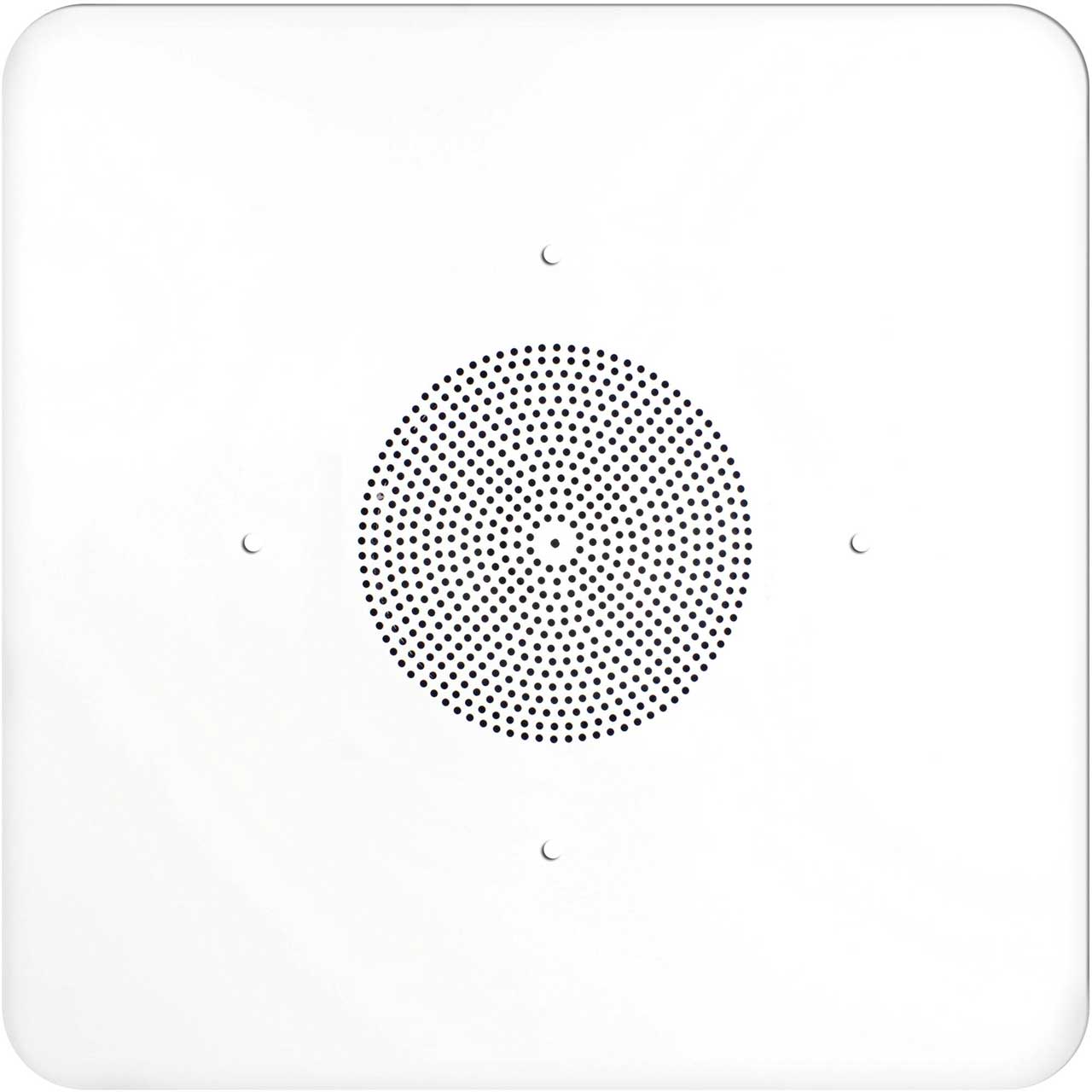

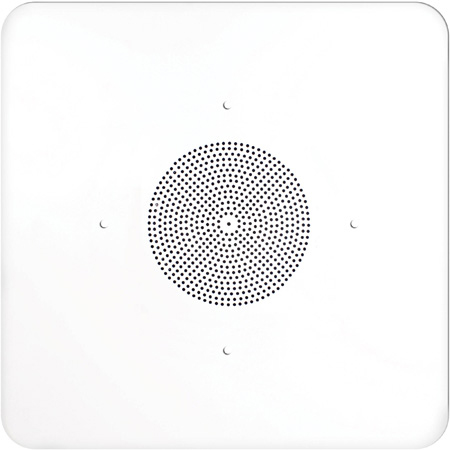

Speco G86TG2X2 2 Ft x 2 Ft G86 Ceiling Tile Speaker

G86TG2X2 - Overview

• Features:

  • Square style white steel grille
  • 70/25V transformer with colored leads
  • “C” models features volume control knob centered on grille


• Specifications:

  • RMS Power: 10W
  • Max. Power: 15W
  • Transformer Type: 70/25V
  • Transformer Power Type: 5W, 2.5W, 1W, 0.5W, 0.25W & 8 Ohms
  • Termination Type: Colored leads
  • Sensitivity (1W/1M): 90dB
  • Maximum SPL (Pax/1M): 100dB
  • Driver Impedance: 8 Ohms
  • Magnet: 5 oz. ferrite
  • Frequency Response Range: 85Hz ~ 20kHz
  • Dispersion at 1000Hz: 120° Conical
  • Driver: 8” paper cone woofer, .8” dual cone tweeter
  • Speaker Dimensions: 2” (W) x 2” (H) x 3.5” (D)
  • Minimum Mounting Depth: 2.7”
  • Weight: 10.5 lbs.
  • Material: Grille: steel
  • Color: Off-White


• Warranty:

  • Lifetime


• GTIN:

  0030519006224
