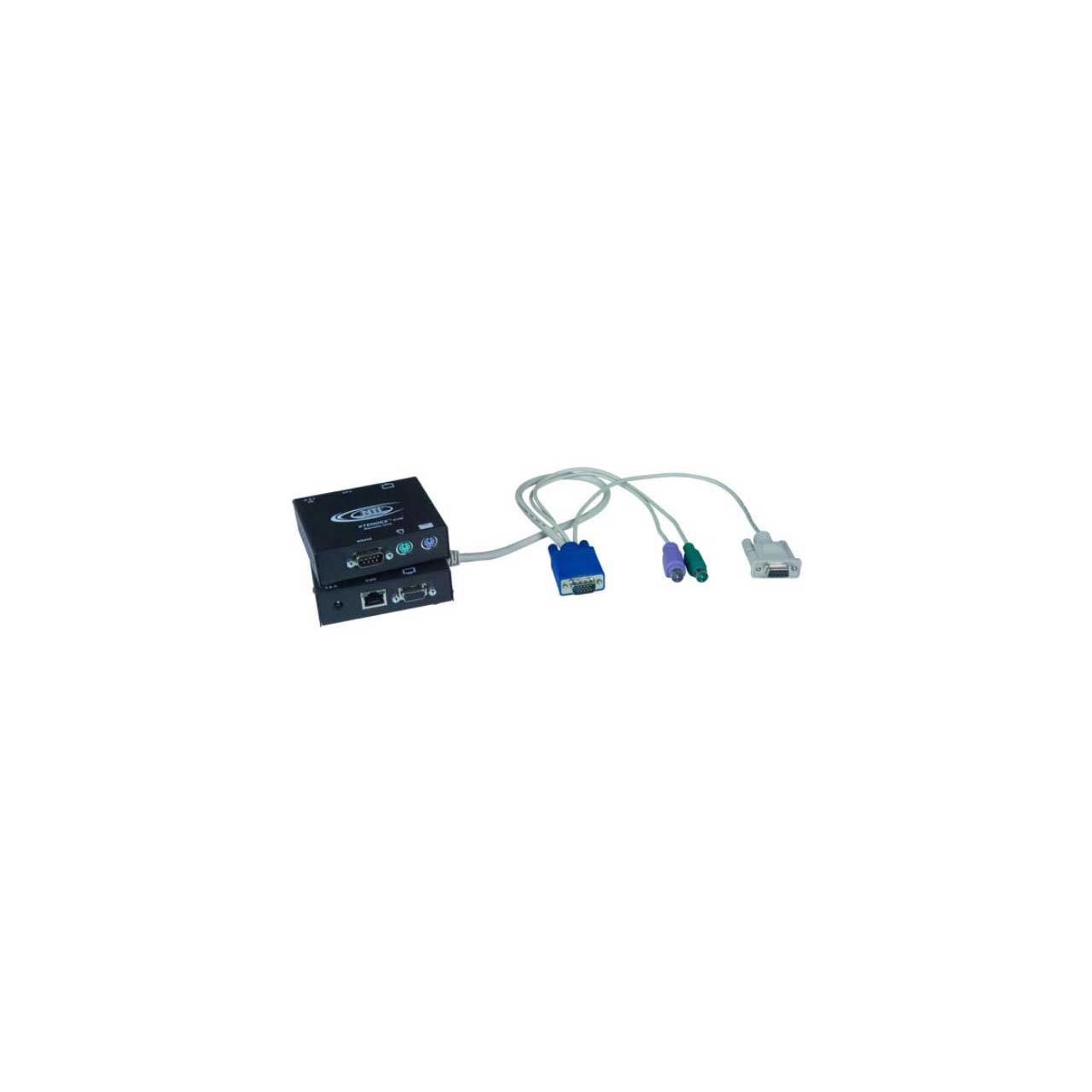

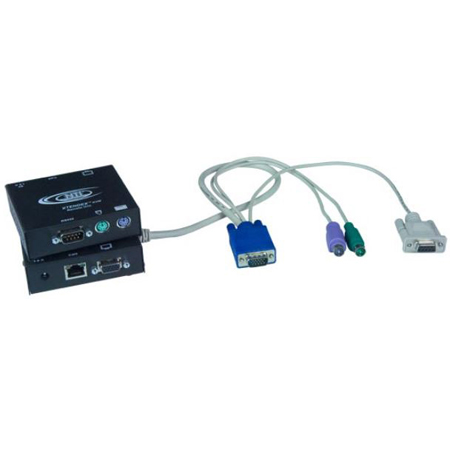

NTI ST-C5KVMRS-R-600 PS/2 KVM & RS232 Receiver Remote Unit

ST-C5KVMRS-R-600 - Overview

• Features:

  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.

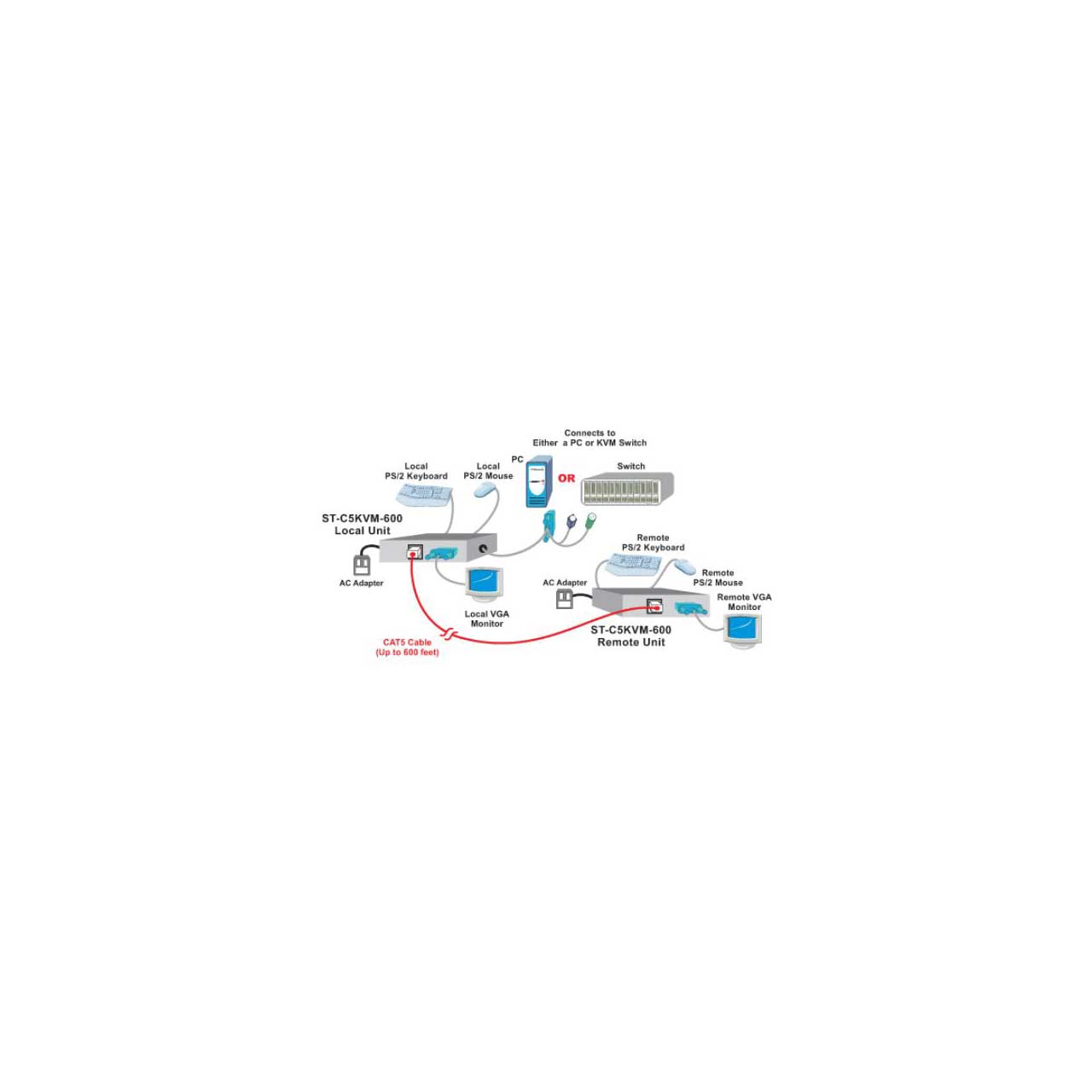

  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Supports resolutions to 1920x1440.
  • Allows local and remote access to network servers.
  • Built-in surge protection.
  • Optional external surge protection available.
  • Available with optional stereo audio or RS232 control.
  • Keep-alive keboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.
  • Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.


• Specifications:

  • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
  • One female 15-pin HD connector / two 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Optional 3.5 mm stereo audio connection.
  • Optional male 9-pin D connector for RS232.
  • Video Quality Adjustment
  • Automatically adjusts the video quality to compensate for varying lengths of CAT5 cable.
  • Test Pattern for Cable Length
  • Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
