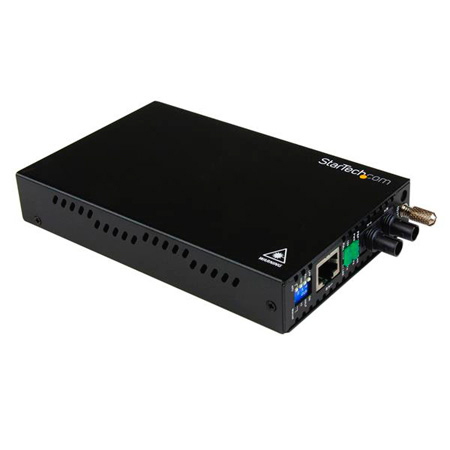

StarTech ET90110ST2 10/100 Mbps MultiMode Fiber Media Converter ST 2km

ITEM #: ST-ET90110ST2 MFG #: ET90110ST2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$95.99

Our Price:

$89.50

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ET90110ST2 - Overview

Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode ST fiber

The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).

A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

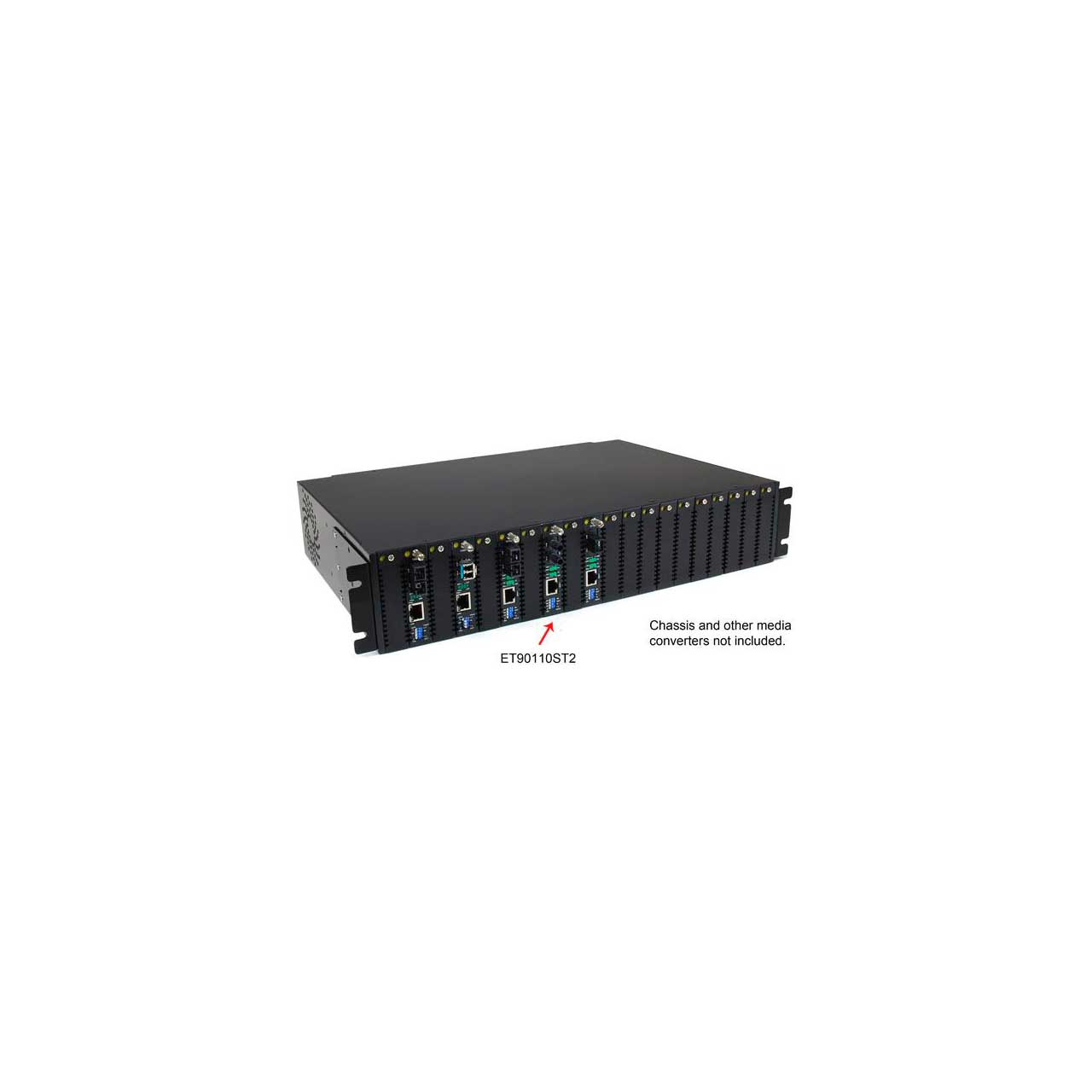

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

  • Features:

    • Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
    • Cost-effective way to extend/bridge networks using fiber cabling
    • Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
    • Suports a maximum fiber cable length of 2km
    • Supports full or half-duplex operation
    • Quick and simple installation, easy to use

  • Specifications:

    • Connector(s)
    • Local Unit Connectors: 1 - RJ-45 Female
    • Remote Unit Connectors: 1 - Fiber Optic ST Duplex Female
    • Performance
    • Maximum Data Transfer Rate: 200 Mbps (Full Duplex Mode)
    • Max Transfer Distance: 2 km (1.2 mi)
    • Fiber Type: Multi Mode
    • Wavelength: 1310nm
    • Fiber Operating Mode: Half/Full-Duplex
    • Auto MDIX: Yes
    • Physical Characteristics
    • Color: Black
    • Enclosure Type: Steel
    • Product Length: 6.1 in [154 mm]
    • Product Width: 3.4 in [87 mm]
    • Product Height: 0.9 in [24 mm]
    • Product Weight: 13.9 oz [393 g]
    • Power
    • Power Source: AC Adapter Included
    • Input Voltage: 115 ~ 230 AC
    • Output Voltage: 12 DC
    • Output Current: 1A
    • Center Tip Polarity: Positive
    • Plug Type: M
    • Environmental
    • Operating Temperature: 0°C to 60°C (32°F to 140°F)
    • Storage Temperature: -10°C to 70°C (14°F to 158°F)
    • Humidity: 10~90% RH

  • Item Includes:

    • 1 - Fiber Media Converter
    • 1 - Universal Power Adapter (NA/UK/EU)
    • 1 - Instruction Manual

  • Warranty:

    • 2-year warranty and free lifetime technical support

  • GTIN:

    0065030846257
