StarTech ET91000LC2 Fiber Media Converter Gigabit 1000Mbps MM LC Fiber 550m

ITEM #: ST-ET91000LC2 MFG #: ET91000LC2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$212.99

Our Price:

$212.97

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ET91000LC2 - Overview

Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber

The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

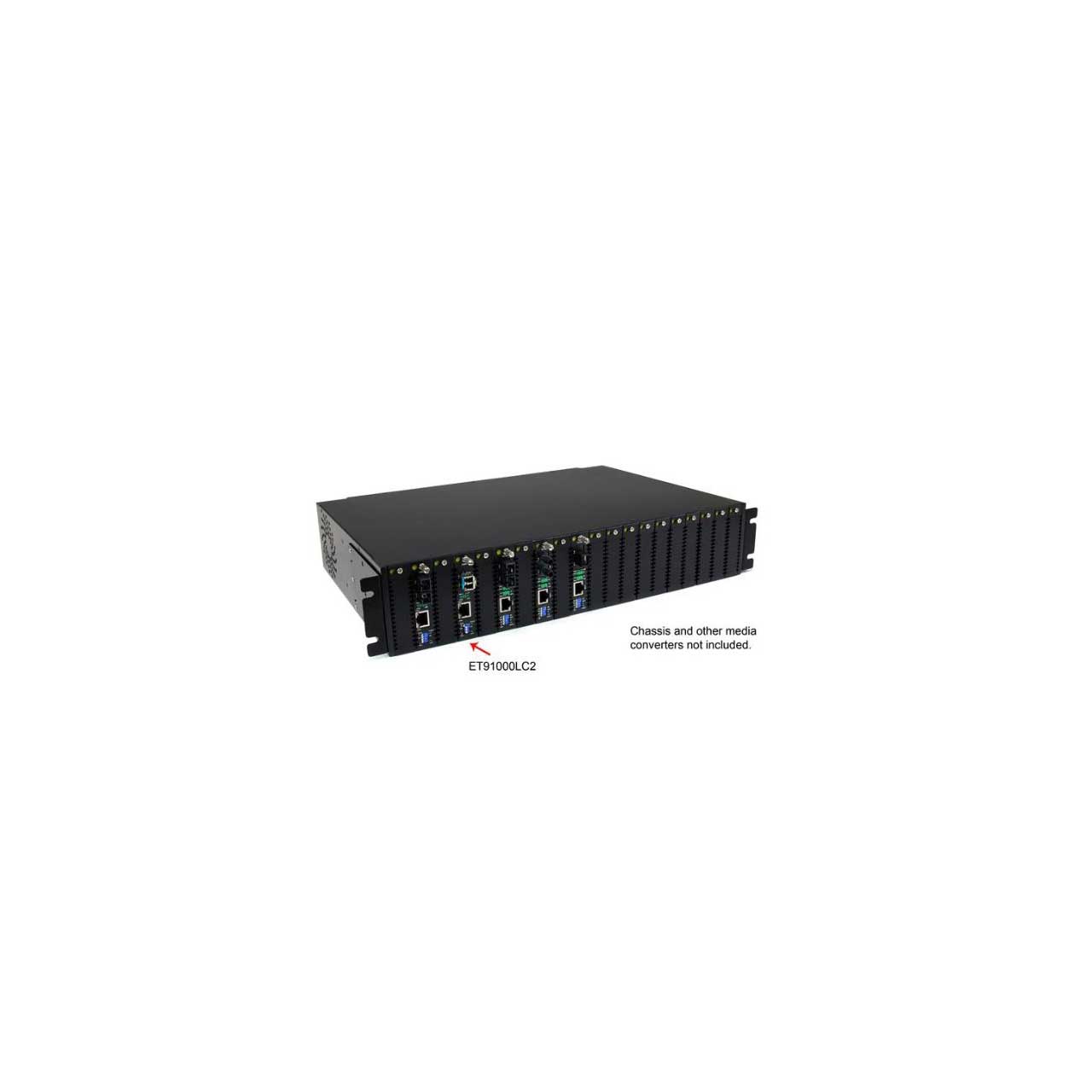

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.

  • Features:

    • Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
    • SFP can be removed from the unit, for replacement or swapping to a different specification
    • Cost-effective way to extend/bridge networks using fiber cabling
    • Advanced feature include Link-loss forwarding, remote monitor status, two frame lengths
    • Maximum fiber cable length of 550m
    • Supports full or half-duplex operation
    • Easy to use and install
    • Jumbo frame support

  • Specifications:

    • Auto MDIX: Yes
    • Fiber Operating Mode: Half/Full-Duplex
    • Fiber Type: Multi Mode
    • Max Transfer Distance: 550 m (1804 ft)
    • Maximum Data Transfer Rate: 2000 Mbps (full duplex mode)
    • MTBF: 65,000 Hours
    • Wavelength: 850nm

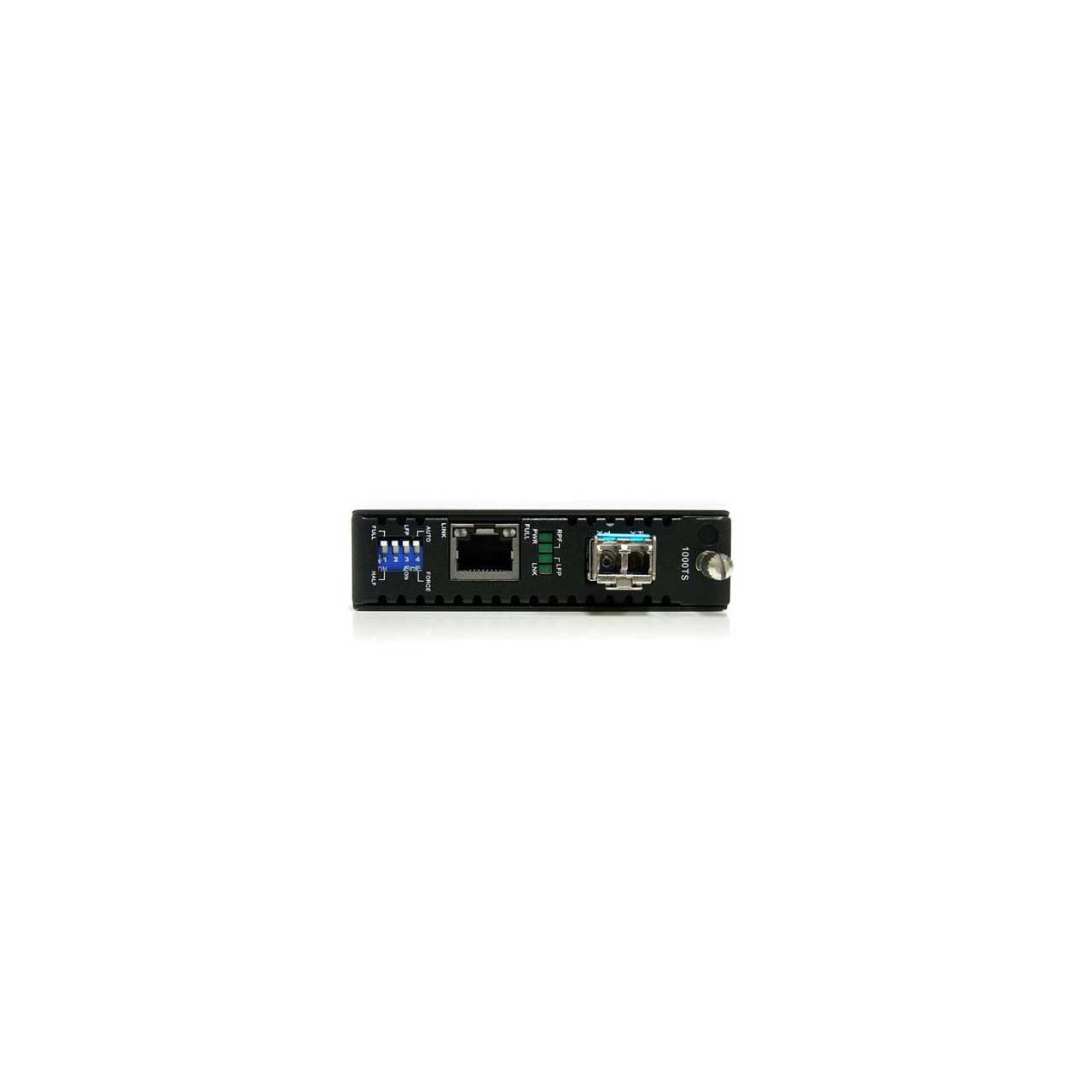

    • Local Unit Connectors:
    • - 1 - Fiber Optic LC Duplex Female
    • - 1 - RJ-45 Female
    • Color: Black
    • Enclosure Type: Steel
    • Product Height: 0.8 in [20 mm]
    • Product Length: 6.3 in [160 mm]
    • Product Weight: 21.9 oz [620 g]
    • Product Width: 3.7 in [95 mm]
    • Center Tip Polarity: Positive
    • Input Current: 0.36A
    • Input Voltage: 115 ~ 230 AC
    • Output Current: 1A
    • Output Voltage: 12 DC
    • Plug Type: M
    • Power Consumption: < 4W
    • Power Source: AC Adapter Included
    • Humidity: 10~90% RH
    • Operating Temperature: 0°C to 60°C (32°F to 140°F)
    • Storage Temperature: -10°C to 70°C (14°F to 158°F)
    • Shipping (Package) Weight: 1.6 lb [0.7 kg]

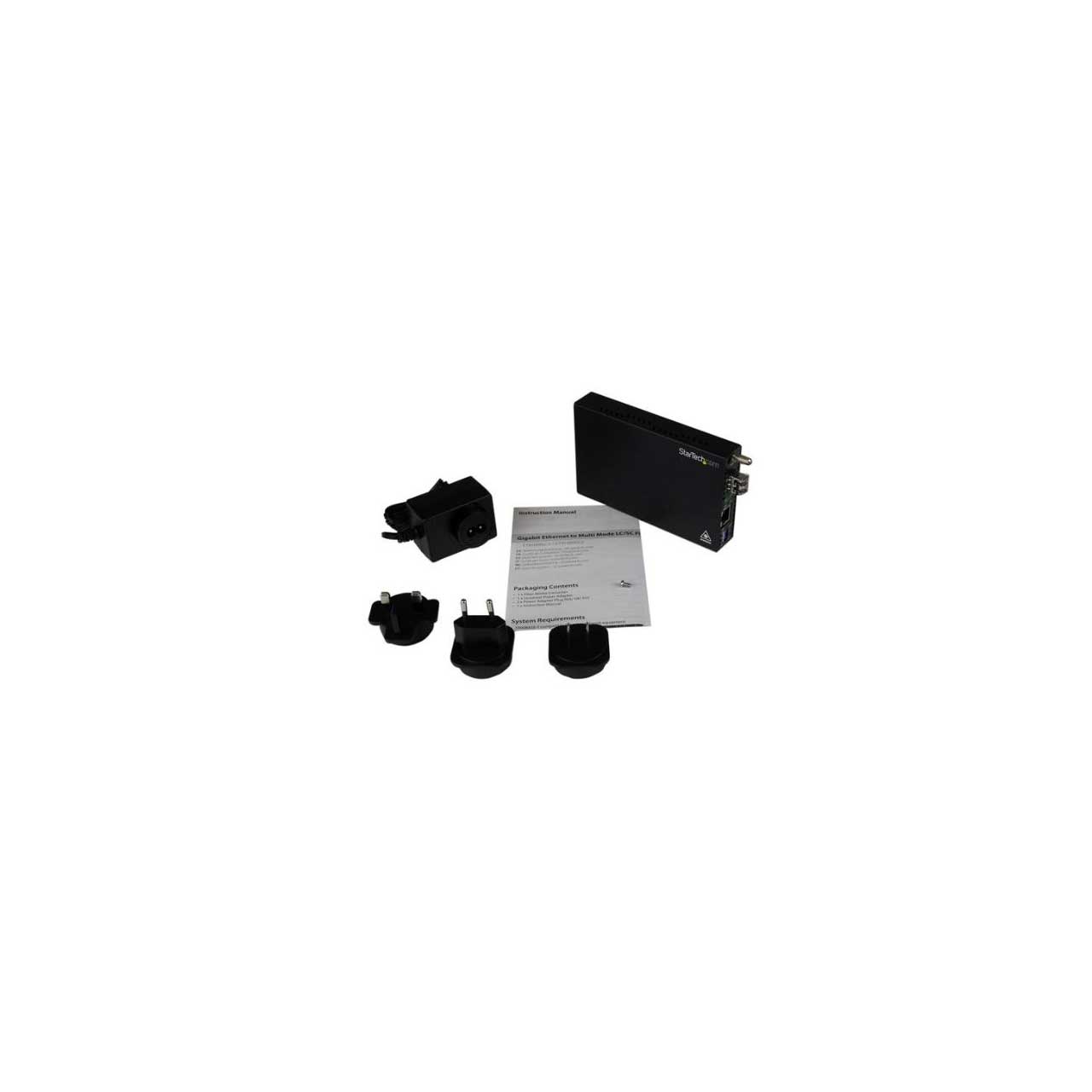

  • Item Includes:

    • (1) Fiber Media Converter
    • (1) Universal Power Adapter (NA/EU/UK) or AU in Australia
    • (1) Instruction Manual

  • Warranty:

    • 2 Years

  • GTIN:

    0065030846226
