StarTech SV231HDMIUA 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub

ITEM #: ST-SV231HDMIUA MFG #: SV231HDMIUA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$212.99

Our Price:

$212.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SV231HDMIUA - Overview

The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

The StarTech.com Advantage

1) Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC
2) Versatile audio support for both HDMI audio and 3.5mm analog audio
3) Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices

  • Features:

    • Supports push button and hotkey PC Switching
    • Integrated USB 2.0 hub - Share USB peripherals between PCs
    • Supports High Resolutions Digital video up to UXGA (1600x1200), WUXGA (1920x1200), and 1080p (1920x1080)
    • No software drivers required; OS independent
    • Supports Plug&Play operation
    • Supports both HDMI audio and 3.5mm analog audio
    • Independent Audio switching
    • Audible tone to indicate PC switching
    • User-defined scan time intervals
    • Manual video adjustments via rear function button

    • Applications

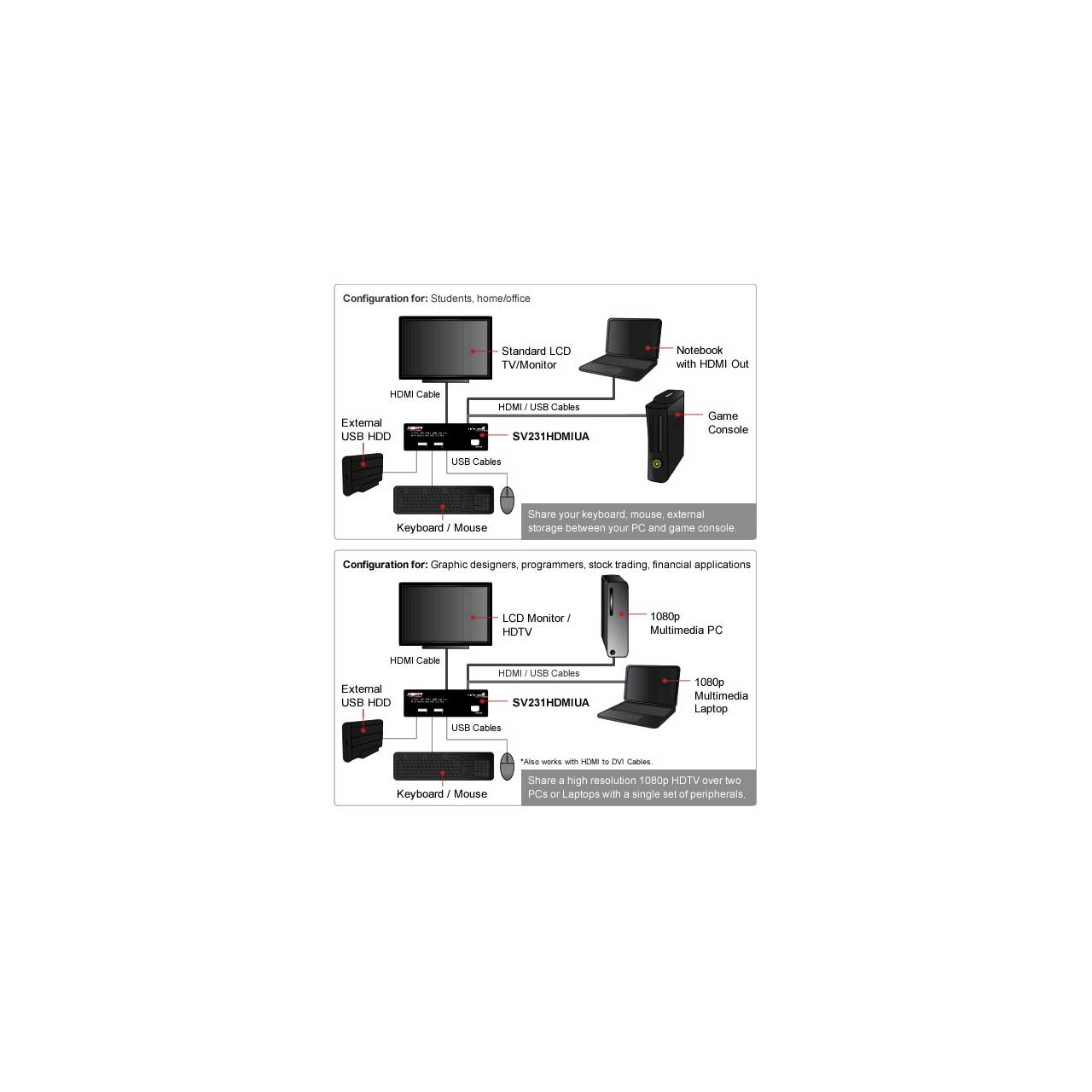

    • Ideal for sharing two newer HDMI multimedia PCs with an HDMI monitor
    • Students can use a single monitor and connect their gaming console along side their PC or laptop
    • Allows multimedia PCs to share peripherals and a single high definition television
    • Use in the Office to connect two multimedia PCs to a single console connection increasing productivity

  • Specifications:

    • Hardware
    • Audio: Yes
    • Cables Included: No
    • Daisy-Chain: No
    • KVM Ports: 2
    • Multi-Monitor: No
    • PC Interface: USB
    • PC Video Type: HDMI
    • Rack-Mountable: No

    • Performance
    • Hot-Key Selection: Yes
    • IP Control: No
    • Maximum Digital Resolutions: 1920 x 1200
    • Maximum Number of Users: 1
    • Port Selection Support: Push Button and Hotkeys
    • Wide Screen Supported: Yes

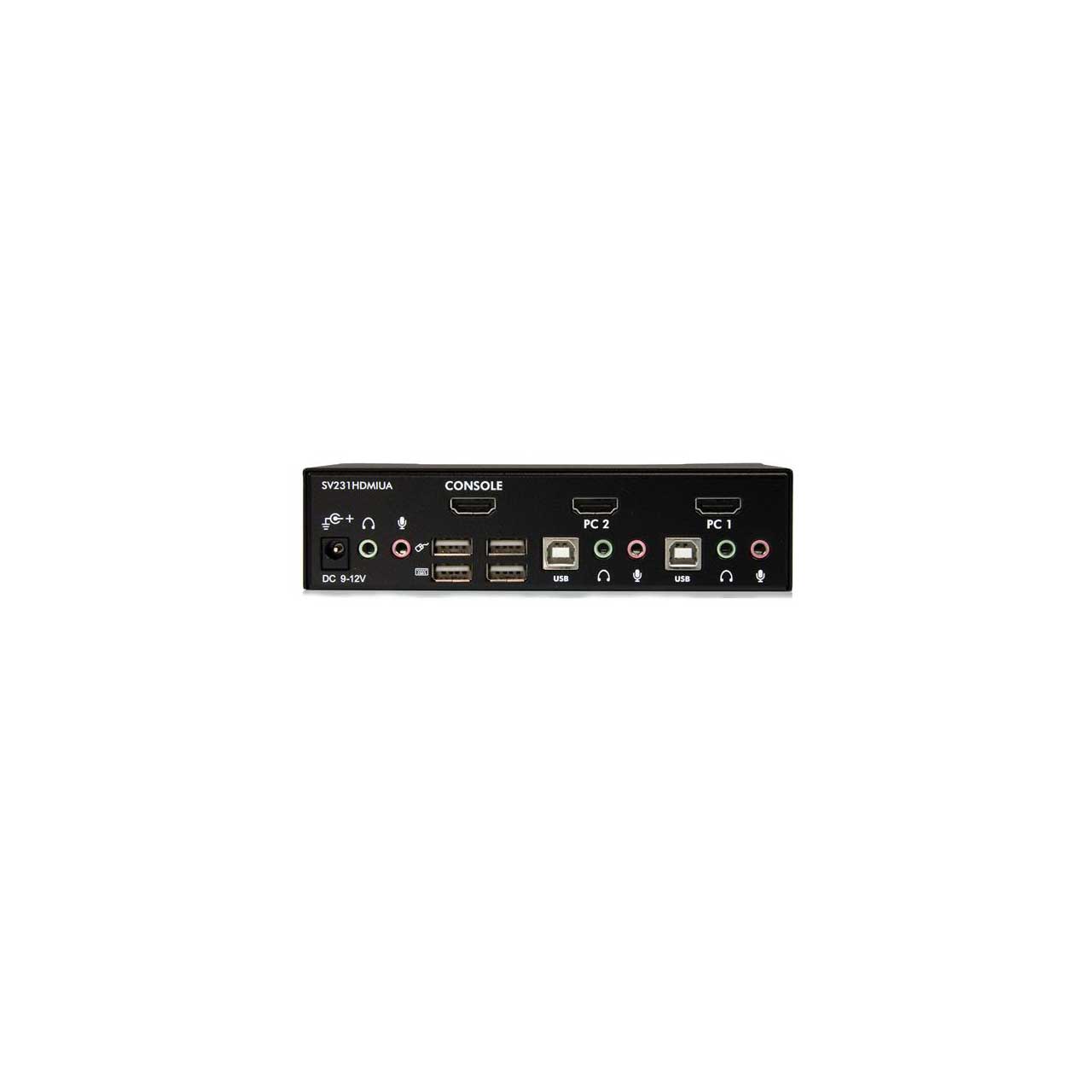

    • Connector(s)
    • Console Interface(s):
    • 1 - HDMI (19 pin) Female
    • 2 - 3.5 mm Mini-Jack (3 Position) Female
    • 4 - USB A (4 pin) Female
    • Host Connectors:
    • 2 - HDMI (19 pin) Female
    • 2 - USB B (4 pin) Female
    • 4 - 3.5 mm Mini-Jack (3 Position) Female

    • Software
    • OS Compatibility: OS independent; No software or drivers required

    • Indicators
    • LED Indicators: 2 - Online/Active (Green - Connected PC is online, Red - PC is selected)

    • Power
    • Center Tip Polarity: Positive
    • Input Current: 0.8A
    • Input Voltage: 110 ~ 240 AC
    • Output Current: 1.5A
    • Output Voltage: 12 DC
    • Plug Type: M
    • Power Source: AC Adapter Included

    • Environmental
    • Humidity: 0~80% RH
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -20°C to 60°C (-4°F to 140°F)

    • Physical Characteristics
    • Color: Black
    • Enclosure Type: Steel
    • Product Depth: 2.8 in [70 mm]
    • Product Height: 1.6 in [40 mm]
    • Product Weight: 28.2 oz [800 g]
    • Product Width: 4.9 in [124.8 mm]

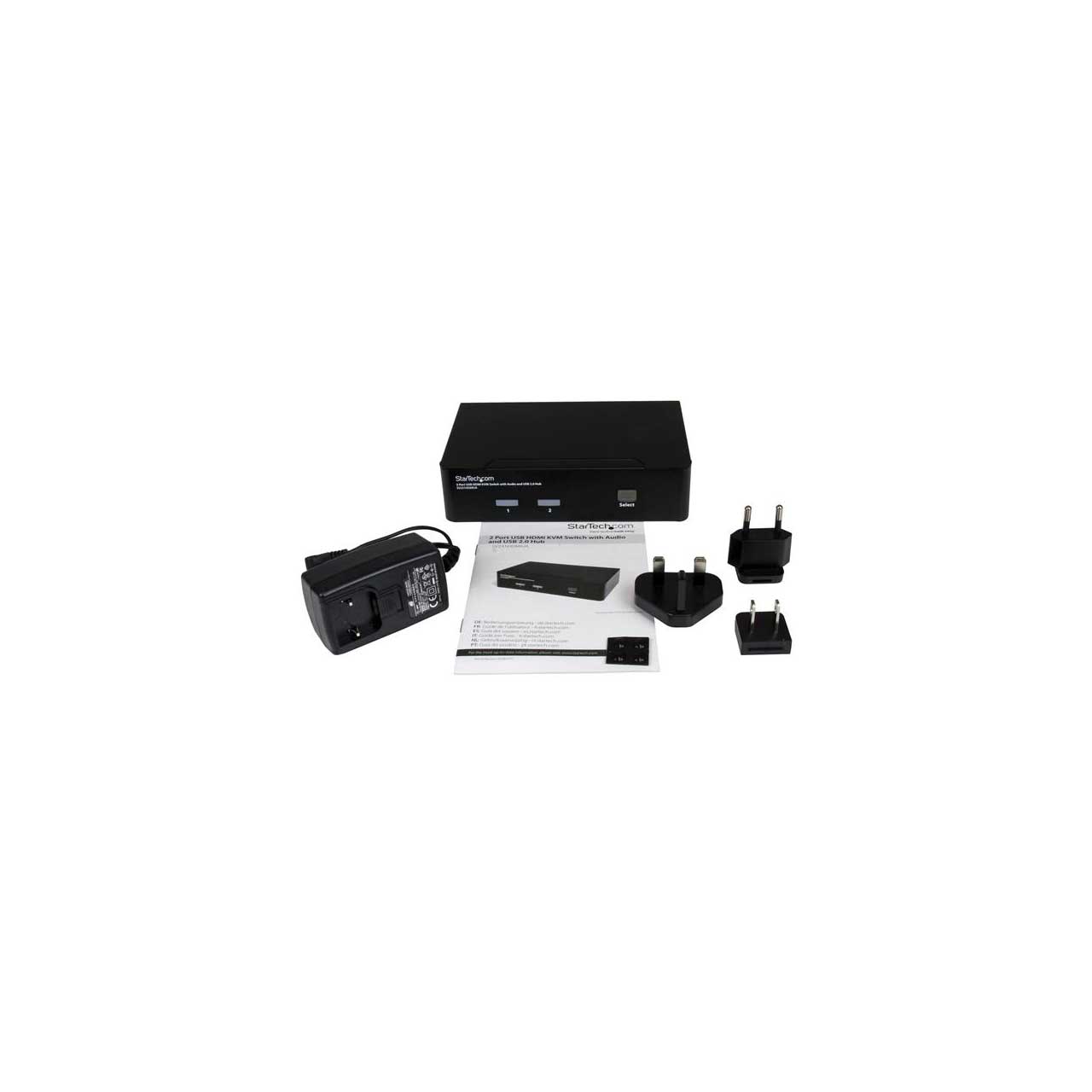

  • Item Includes:

    • 1x 2 Port HDMI KVM Switch
    • 1x Package of Rubber feet
    • 1x Power Adapter
    • 1x User Manual

  • Warranty:

    • 3 Years

  • GTIN:

    0065030837521
