StarTech USB2002EXT2NA 2 Port USB 2.0 Extender Hub over Cat5e/Cat6 Cable (RJ45) - 330Foot/100m

ITEM #: ST-USB2002EXT2NA MFG #: USB2002EXT2NA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$556.45

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


USB2002EXT2NA - Overview

The StarTech USB2002EXTNA USB 2.0 extender over ethernet lets you extend a USB 2.0 connection over distances of up to 100-meters (330-feet), over standard Cat5e or Cat6 ethernet LAN cabling.

Hi-Speed USB performance
With data bandwidth of up to 480 Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 offers a fast, easy, and versatile solution for business or industrial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation.

Plus, the 100m USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.

Compatible with older USB devices
Connecting older peripherals isn't a problem. This versatile USB over network extender is backward compatible with legacy USB 1.0 devices. The USB over ethernet hub enables almost any kind of USB device to be placed at remote locations away from the host computer.

The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales

The USB2002EXT2NA is backed by a StarTech 2-year warranty and free lifetime technical support.

  • Features:

    • USB 2.0 Extender - Connect 2 USB devices up to 330ft/100m over CAT5e/CAT6 RJ45 ethernet network cable w/ data transfer rates up to 480Mbps; Status LEDs for power, activity, link & host connectivity; Newer version of our extender USB2002EXT2
    • Connect Remote USB Devices - The USB extender creates a 2 port hub to remotely access USB devices like printers, cameras, plotters, keyboard/mouse, displays, & CCTV systems at a convenient location
    • Industrial USB Extender - Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection

  • Specifications:

    • Connector(s)
    • 1 - Local Unit Connectors: RJ-45 USB B (4 pin)
    • 1 - Remote Unit Connectors: RJ-45
    • 2 - Remote Unit Connectors: USB Type-A (4 pin) USB 2.0

    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    • Humidity: 10~90% RH
    • Ports: 2
    • Cabling: Cat 5 UTP
    • Package Height: 3.1 in [77.5 mm]
    • Package Length: 9.6 in [24.3 cm]
    • Shipping (Package) Weight: 29.7 oz [840.0 g]
    • Package Width: 7.7 in [19.6 cm]
    • Maximum Data Transfer Rate: 480 Mbps
    • Max Distance: 100 m / 330 ft:
    • Product Height: 1.0 in [26.0 mm]
    • Product Length: 3.4 in [87.0 mm]
    • Weight of Product: 10.2 oz [289.0 g]
    • Product Width: 3.0 in [76.0 mm]
    • Color: Black
    • Material: Aluminum and Plastic
    • Power Source: AC Adapter Included
    • Input Voltage: 100 - 240 AC
    • Input Current: 0.6 A
    • Output Voltage: 24 DC
    • Output Current: 1.0 A
    • Center Tip Polarity: Positive
    • Plug Type: M
    • Power Consumption (In Watts): 24
    • Software: OS Compatibility - OS Independent; No additional drivers or software required
    • System and Cable Requirements: USB enabled computer system with available USB port

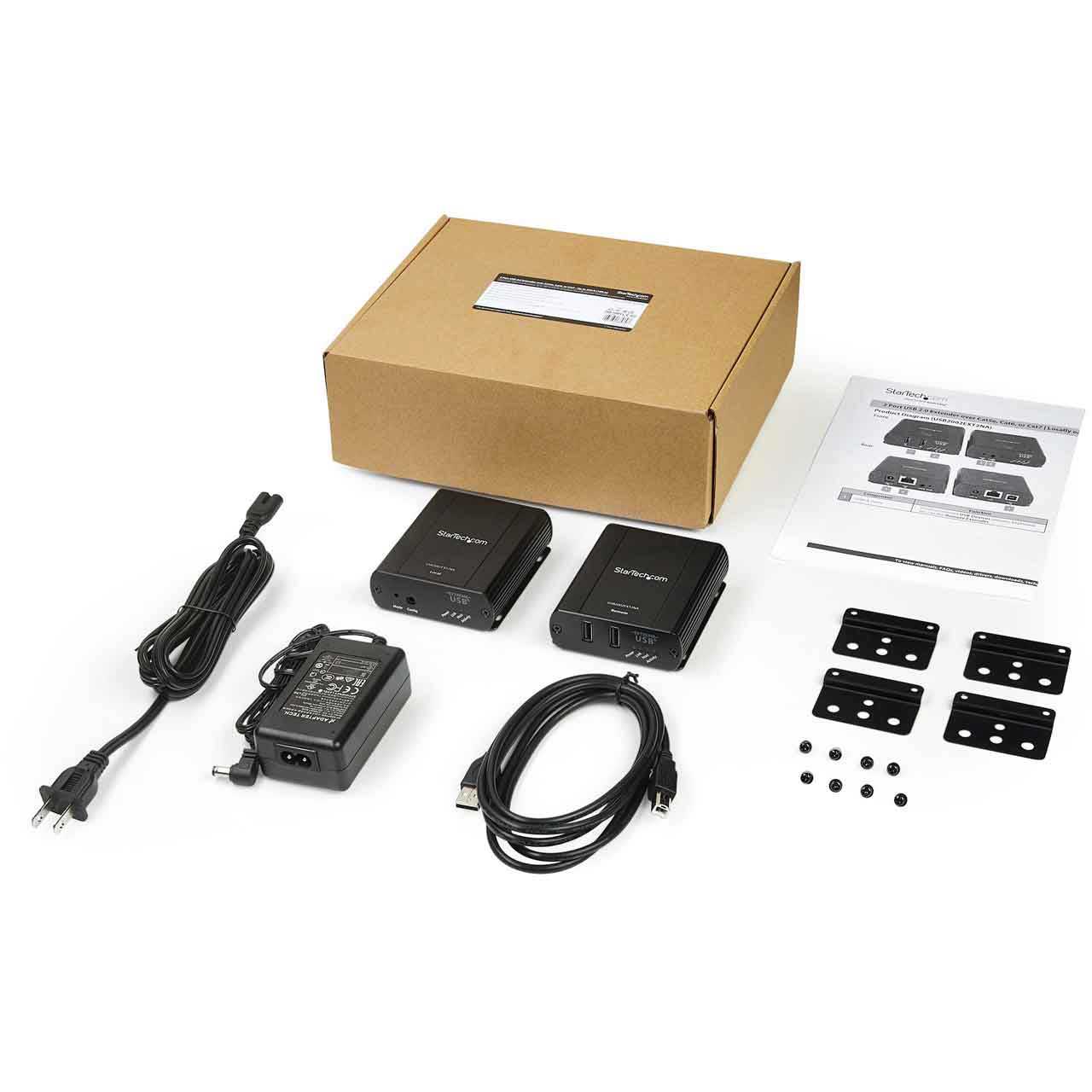

  • Item Includes:

    • 1x Local Unit
    • 1x Remote Unit
    • 1x Mounting Kit
    • 1x Universal Power Adapter with 5.6 ft [170 cm] Cable
    • 1x 6 ft [180 cm] North America Power Cord
    • 1x 5.75 ft [175 cm] USB 2.0 Cable
    • 1x Quick-Start Guide

  • Warranty:

    • 2 Years

  • GTIN:

    0065030889698
