Studio Technologies Model 207A Dante Audio-over-Ethernet eSports Console for Live Events

ITEM #: STCH-M207A MFG #: M207A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


M207A - Overview

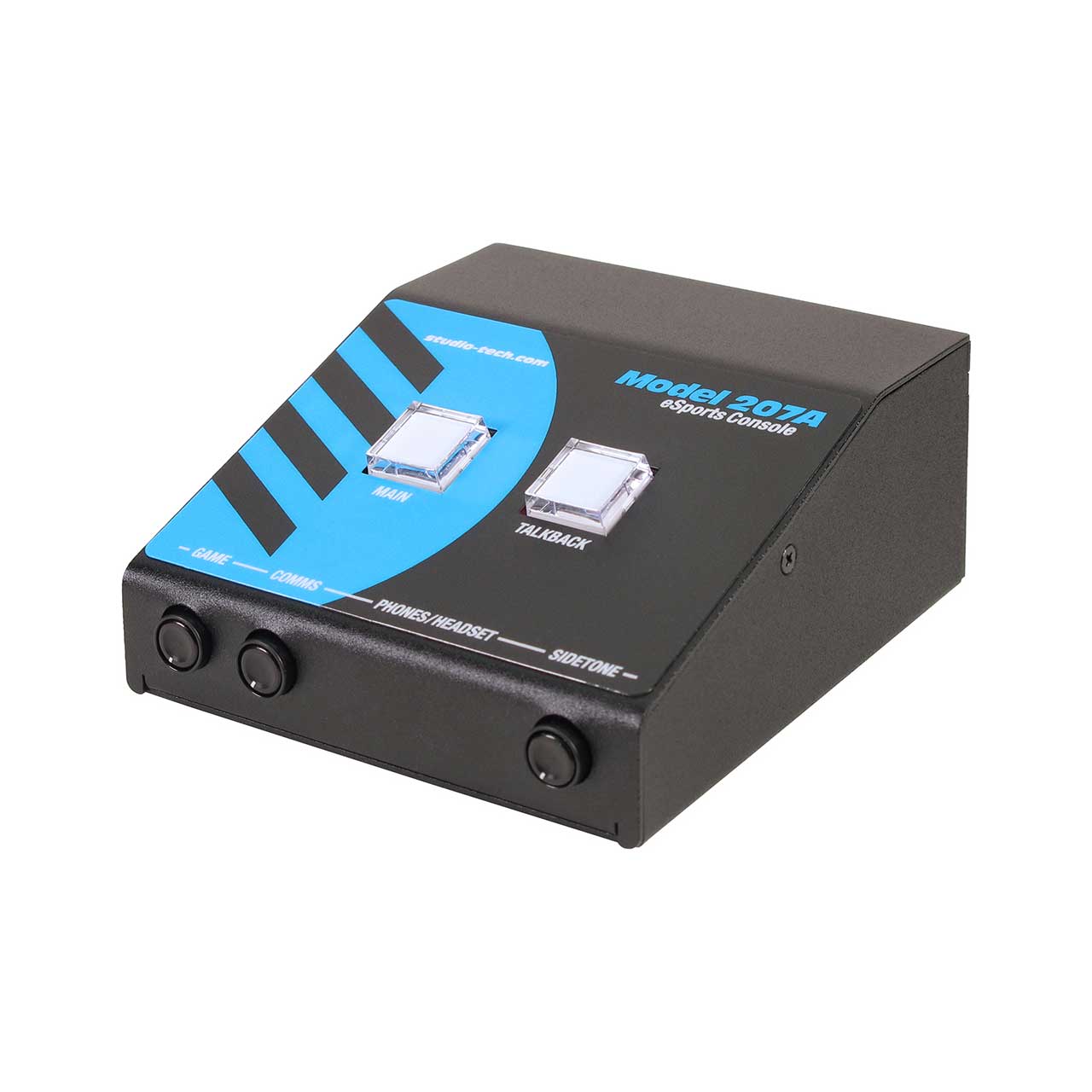

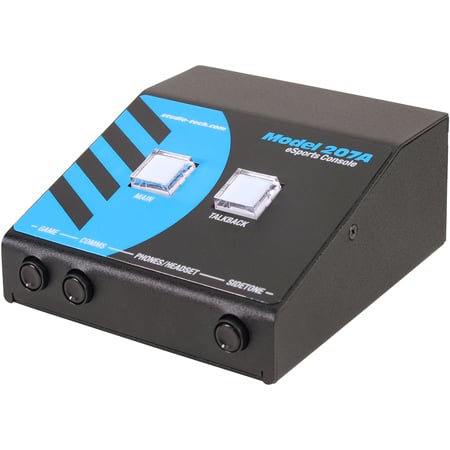

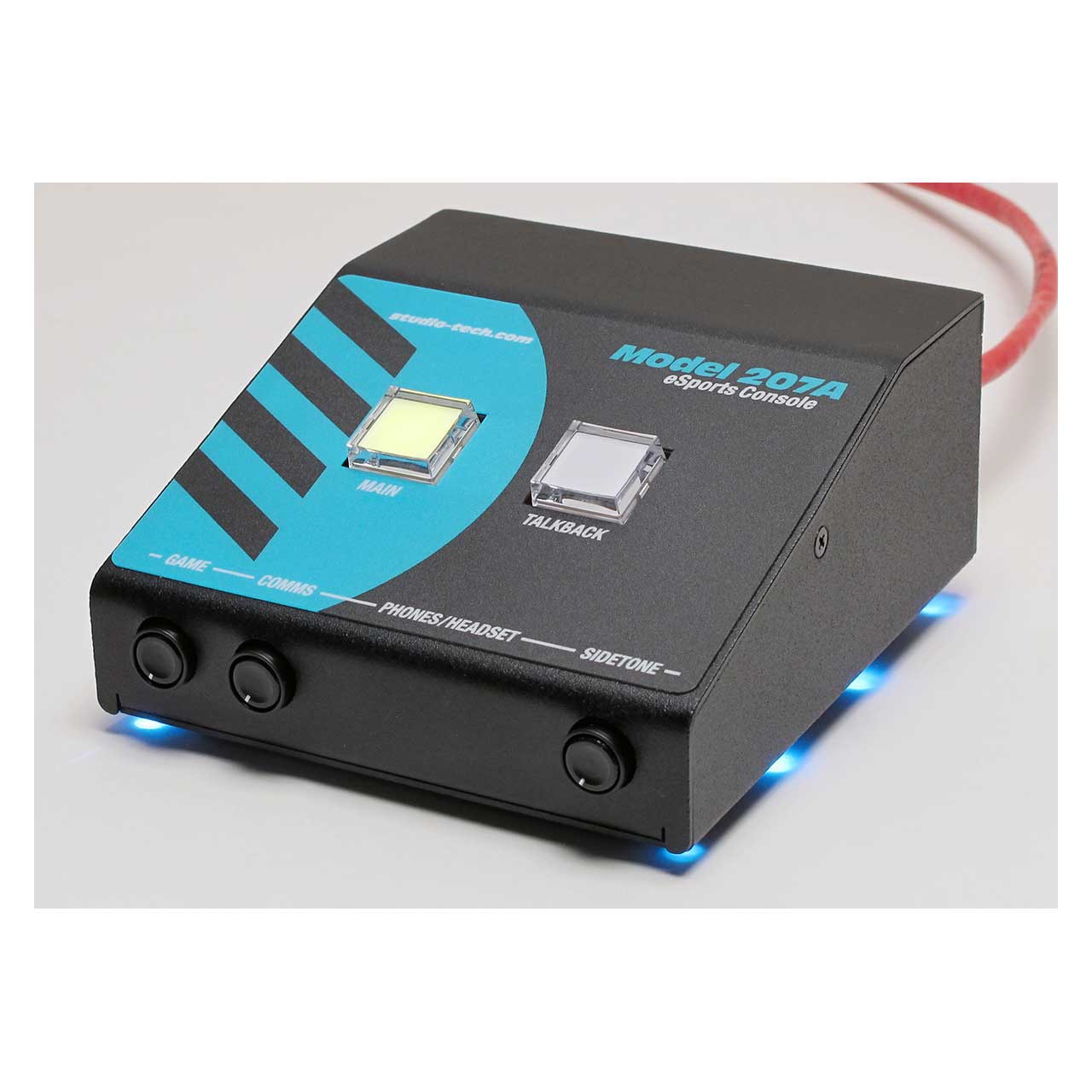

The Studio Technologies Model 207A eSports Console offers a unique combination of analog and digital audio resources specifically intended to support eSports-related live event, entertainment, and streaming broadcast applications. The unit is housed in a compact, steel enclosure that's intended for table-top use. Its compact size also makes it ideal for use in space-constrained locations. Color-configurable LED lights cast a distinctive "underglow" from the bottom of the enclosure.

The Model 207A supports Dante audio-over-Ethernet digital media technology with AES67 compatibility for integration into contemporary applications. The unit is extremely simple to deploy, is "pro" quality throughout, and provides an intuitive user experience. The Model 207A's audio quality is excellent, with low distortion, low noise, and ample headroom. Careful circuit design and rugged components ensure long, reliable operation.

  • Features:

    • Dante audio-over-Ethernet technology
    • Supports headsets with 5-pin XLR and 3.5 mm TRRS CTIA connectors
    • Independent stereo earbud and headset headphone outputs
    • Integrated masking noise source
    • Unbalanced stereo line-input for compatibility with computer audio
    • Main, talkback, and two computer audio output channels
    • Compact unit supports one on-air location
    • Power-over-Ethernet (PoE) powered

  • Specifications:

    • Power Source
    • Power-over-Ethernet (PoE): class 2 (low power, =6.49 watts) per IEEE 802.3af

      Network Interface
    • Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GigE) not supported)
    • Power-over-Ethernet (PoE): Per IEEE 802.3af
    • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s (GigE) Ethernet not supported)

      General Network Audio
    • Type: Dante audio-over-Ethernet
    • AES67-2018 Support: yes, selectable on/off
    • Dante Domain Manager (DDM) Support: yes
    • Bit Depth: 16, 24, or 32
    • Sample Rate: 48 kHz
    • Dante Receiver (Input) Channels: 4
    • Nominal Level: -20 dBFS
    • Dante Receiver Audio Flows: 2
    • Dante Transmitter (Output) Channels: 4
    • Nominal Level: -20 dBFS
    • Dante Transmitter Audio Flows: 2

      Microphone Input
    • Compatibility: dynamic or electret (low-voltage DC-powered) microphones
    • Type: unbalanced
    • Electret Microphone Power: 5 volts DC via 2.21 k resistor, selectable on/off
    • Impedance: 1 k ohms, nominal, microphone power off; 690 ohms, nominal, microphone power on
    • Gain: 24, 30, 36, 42, 48 dB, selectable
    • Frequency Response: 50 Hz to 20 kHz, +0/-2 dB
    • Distortion (THD+N): <0.07%, measured at -20 dBFS, 22 Hz to 22 kHz bandwidth, 36 dB of gain
    • Dynamic Range: >96 dB, A-weighted, 24 dB gain

      Compressor
    • Application: applies to Dante main and talkback transmitter (output) channels and sidetone audio
    • Threshold: 2 dB above nominal level (-18 dBFS)
    • Slope: 2:1
    • Status LED: compressor active

      Headset Headphone Output
    • Type: 2-channel (stereo)
    • Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headsets with a nominal impedance of 50 ohms or greater
    • Max Output Voltage: 3.8 Vrms, 1 kHz, 150 ohm load
    • Frequency Response: 20 Hz to 20 kHz, -2 dB
    • Distortion (THD+N): <0.002%
    • Dynamic Range: >100 dB

      Headphone Output
    • Type: 2-channel (stereo)
    • Compatibility: intended for connection to stereo earbuds with a nominal impedance of 50 ohms or greater
    • Max Output Voltage: 3.8 Vrms, 1 kHz, 150 ohms load
    • Frequency Response: 20 Hz to 20 kHz, -2 dB
    • Distortion (THD+N): <0.002%
    • Dynamic Range: >100 dB

      Stereo Line Input
    • Type: stereo (2-channel), analog, unbalanced
    • Impedance: 10 k ohms, nominal
    • Nominal Level: -16 dBu (-18 dBV) (0.13 Vrms)
    • Gain: -3, 0, 3, 6, 9, or 12 dB, selectable
    • Frequency Response: 20 Hz to 20 kHz, +0/ -0.7 dB
    • Distortion (THD+N): <0.008%, measured at 0 dB gain
    • Dynamic Range: >105 dB, A-weighted

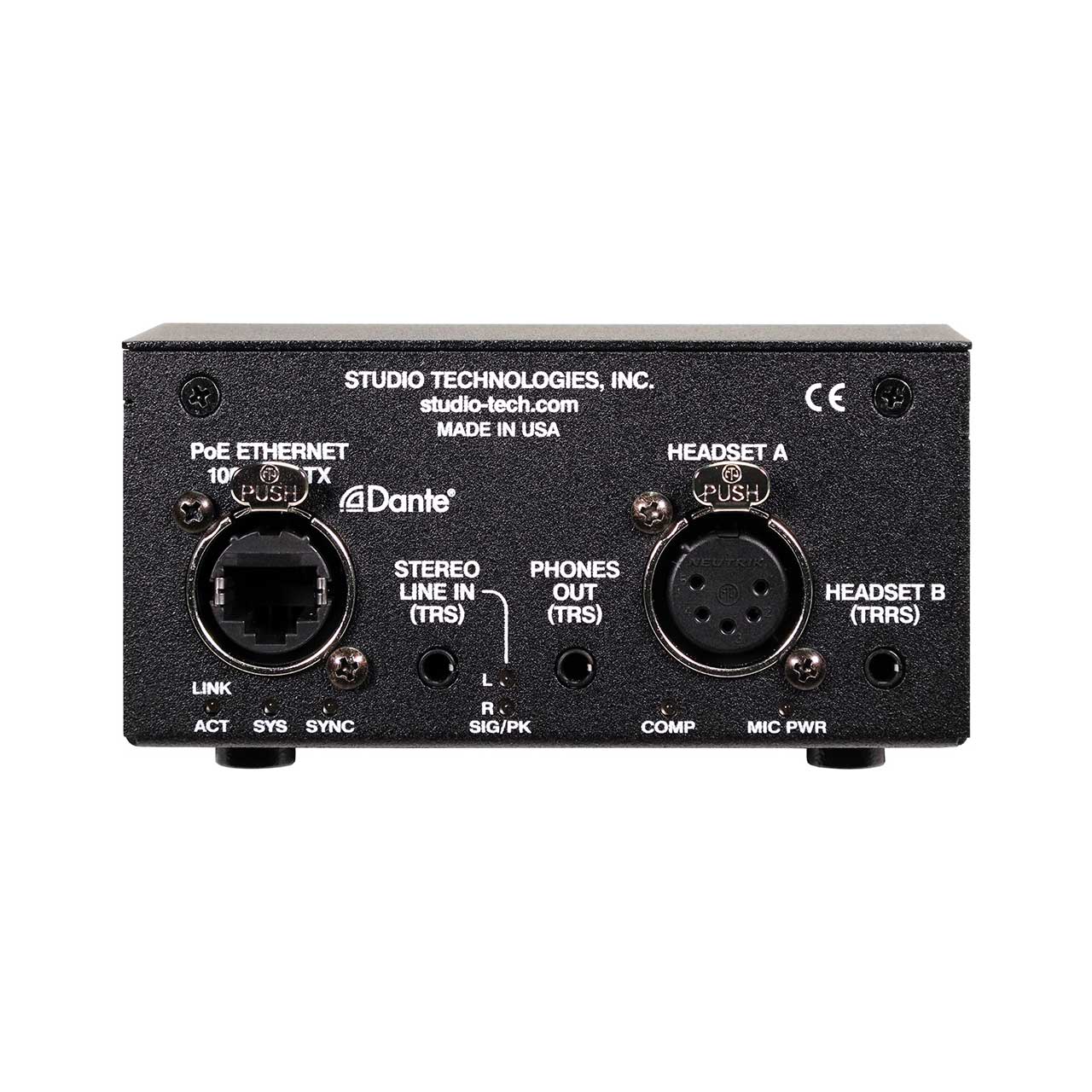

      Connectors
    • Headset A: 5-pin female XLR
    • Headset B: 4-conductor (TRRS) 3.5 mm jack, per
    • Japanese standard JEITA/EIAJ RC-5325A
    • Headphone Output: 3-conductor (TRS) 3.5 mm jack, per Japanese standard JIS C 6560
    • Stereo Line Input: 3-conductor (TRS) 3.5 mm jack, per Japanese standard JIS C 6560
    • Ethernet: Neutrik NE8FBH etherCON RJ45 jack (compatible with standard RJ45 plug or etherCON CAT5-compatible plug)
    • USB: type A receptacle (located inside Model 207A's enclosure and used only for updating firmware)

      Dimensions
    • Dimensions (Overall)(WxHxD): 4.3" x 2.1" x 5.1"

      Weight
    • 1.2 pounds

  • Item Includes:

    • 1x STCH-M207A Dante audio-over-Ethernet eSports Console

  • Warranty:

    • 3-Year Limited Warranty
