StudioPatch Series Bantam/TT Patchbays utilize Switchcraft's EZ Norm technology, allowing the signal flow of each channel to be instantly modified from the front of the patchbay using a standard screwdriver. Now, all StudioPatch Series Bantam/TT patchbays feature user programmable grounds, making it possible to customize each channel's grounding scheme with the flip of a switch. US Patent #7824201 B2

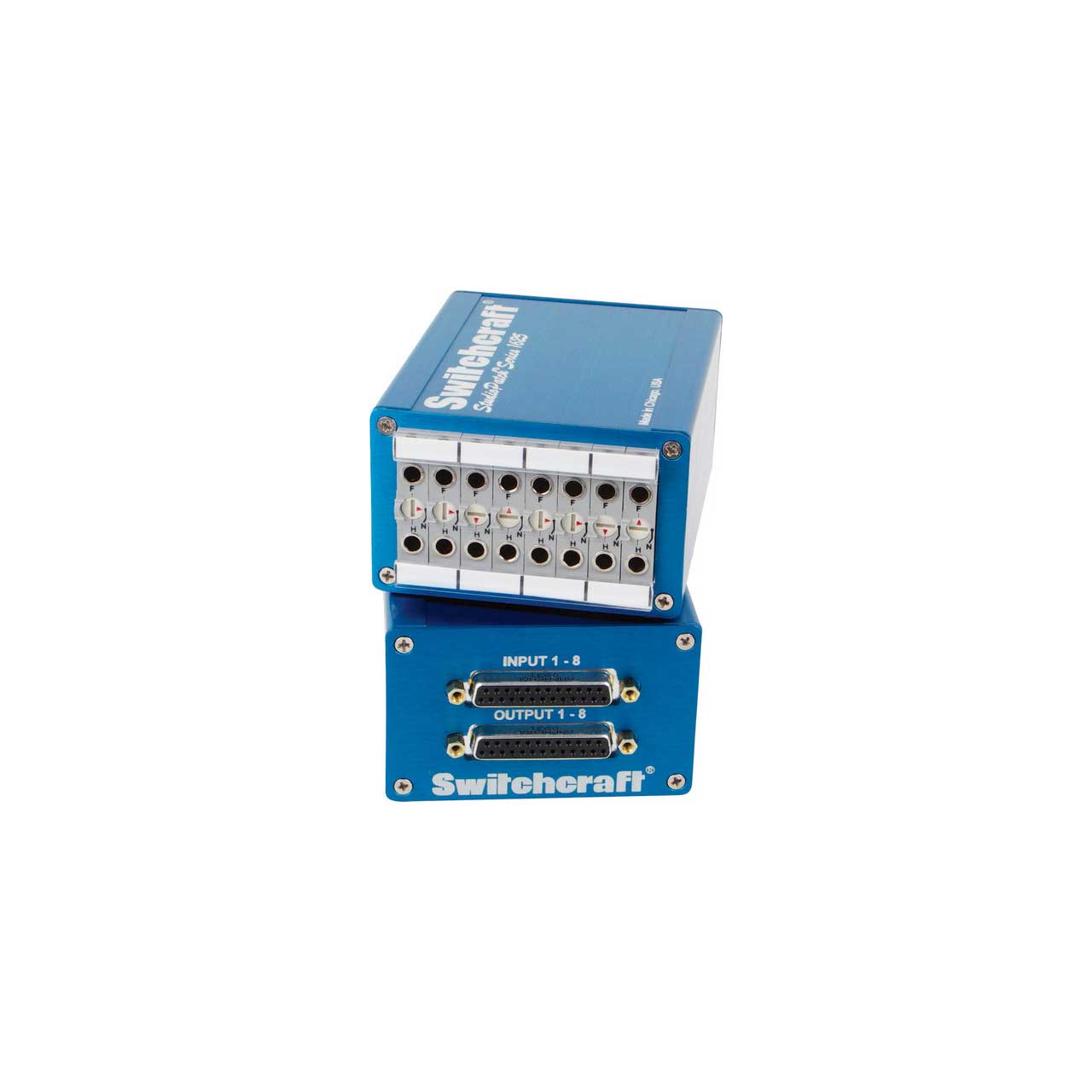

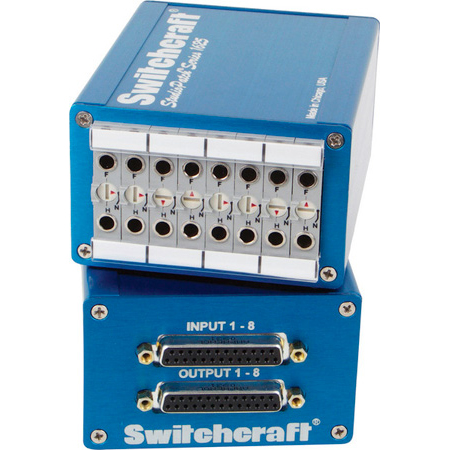

The 1625 is a modular, eight channel patchbay perfect for desktop or mobile applications where limited patching is required, or for building a full size patchbay over time as your studio grows.
DB25 I/O connections wired to the TASCAM DTRS pinout allow for direct connection to today's most popular audio interfaces and outboard gear, creating greater flexibility in your studio.
Grounding Switches:
Up = sleeves vertically strapped
Down = sleeves isolated
EZ Norm Jack
Change the signal flow of each channel from (F) Full to (H) Half to (N) Non-Normalled with the twist of a standard screwdriver
