Switchcraft 370DI AudioStix Passive A/V DI Box 1/8 Inch Stereo Jack RCA Jacks to Locking Male XLR

ITEM #: SW-370DI MFG #: 370DI

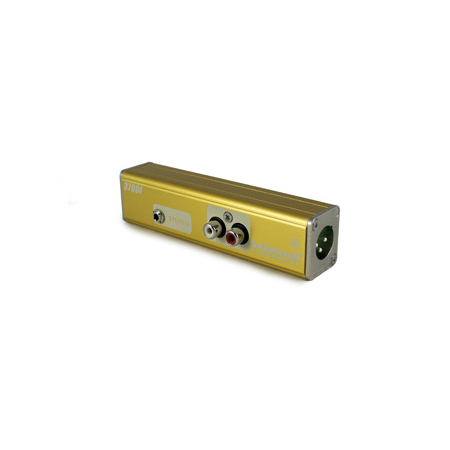

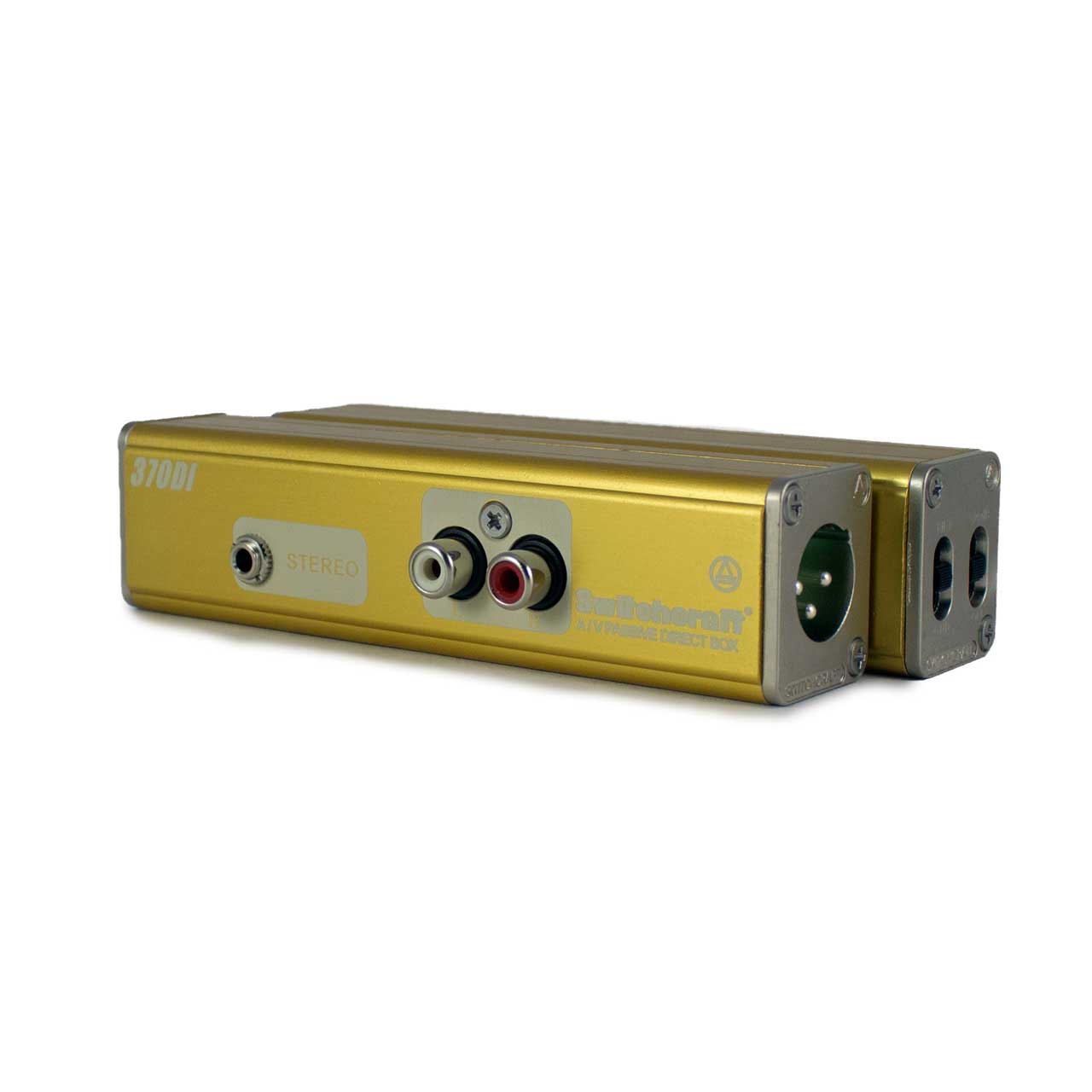

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Switchcraft
Free Shipping with $49 Minimum Order

List Price:

$98.00

Our Price:

$92.39

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

370DI - Overview

The 370DI is a durable, pocket size, Direct Box which is a cross between Switchcraft's SC700CT DI Box and 318 Inline Audio Adapter. The 370DI sums and converts the unbalanced stereo outputs of cell phones, tablets, laptops and consumer gear to a balanced mono line level for connecting to audio consoles and house sound systems.

  • Features:

    • Dual RCA inputs
    • 3.5MM input (1/8" TRS jack)
    • Switchcraft DE Series locking male XLR provides balanced, mono, mic level output
    • Ground Lift Switch
    • 20db pad to enable the device to handle stronger signals without distortion


  • Specifications:

    • Frequency Response: 20Hz-20kHz
    • Total Harmonic Distortion + Noise: 0.12%
    • Maximum Input level, Pad OFF: 20dBV
    • Maximum Input level, Pad ON: 40dBV
    • Voltage Gain: -4.5dB
    • Input Impedance: >1900Ω
    • Output Impedance: <700Ω
    • Pad Attenuation: -20dB


  • GTIN:

    0853592007076
