Sescom 192kHz Digital to Analog Audio Converter with Bass and Volume Adjustment

ITEM #: SES-DAC2 MFG #: SES-DAC2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$33.49

Our Price:

$29.95

Availability: In Stock
iAvailability Description Popup


SES-DAC2 - Overview

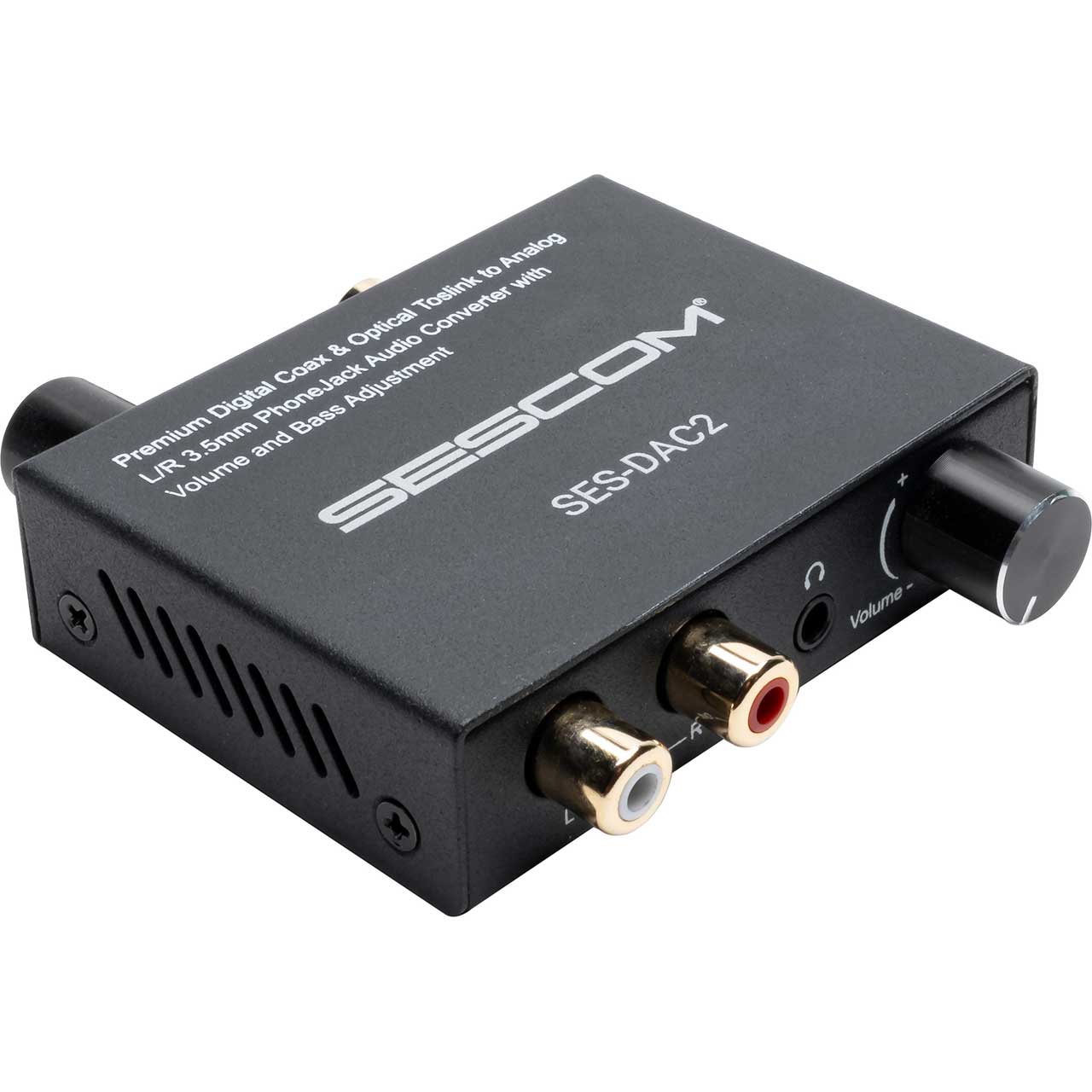

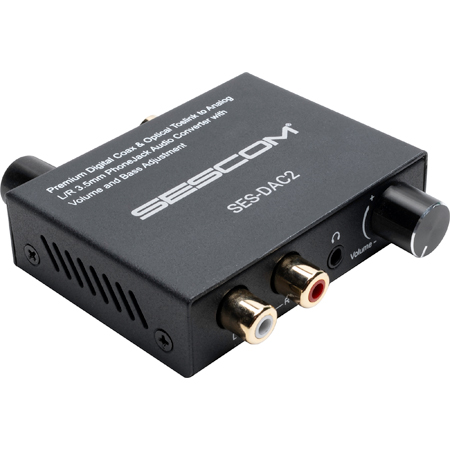

Introducing the Sescom SES-DAC2, a powerful, yet simple compact device for converting any S/PDIF and Toslink optical audio signal into an analog stereo signal via RCA (L,R) as well as 3.5mm stereo. This USB-powered device features a smooth glide volume control knob as well as a Bass Level Controller. It also supports simultaneous output via the RCA's & the 3.5mm connectors. Not only can you adjust the dBs & the low end, you can also split the signal! It's a converter and a splitter in one awesome package.

The unit also has auto sensing for both the SPDIF and Toslink inputs. It auto senses and switches to, by default, the 24-bit S/PDIF stream over the Toslink when a signal is present. Simply disable or disconnect the S/PDIF cable and the SES-DAC2 automatically switches over to Toslink with no signal loss. With spported Sample Rates of 44.1, 48, and 192 KHz your signal remains pristine, transparent and totally Hi-Fi all housed in a rugged metal shell.

  • Features:

    • Converts SPDIF Optical or Coaxial Digital PCM Audio Input to Analog Stereo L/R RCA and 3.5mm Cable Outputs Simultaneously
    • Supported Sample Rates: 32 Khz, 44.1 Khz, 48 Khz, 96 Khz And 192 KHZ
    • Supports 24-Bit S/PDIF Incoming Bit Stream
    • Auto Sensing Input Selection (Priority given to SPDIF Input. To output coax audio, turn off or unplug the SPDIF unit)
    • Features Volume & Bass Adjustment Knobs
    • Housed in an Anti-Interference Metal Shell
    • Automatically Mutes When No Audio Signal is Present on the Input

  • Specifications:

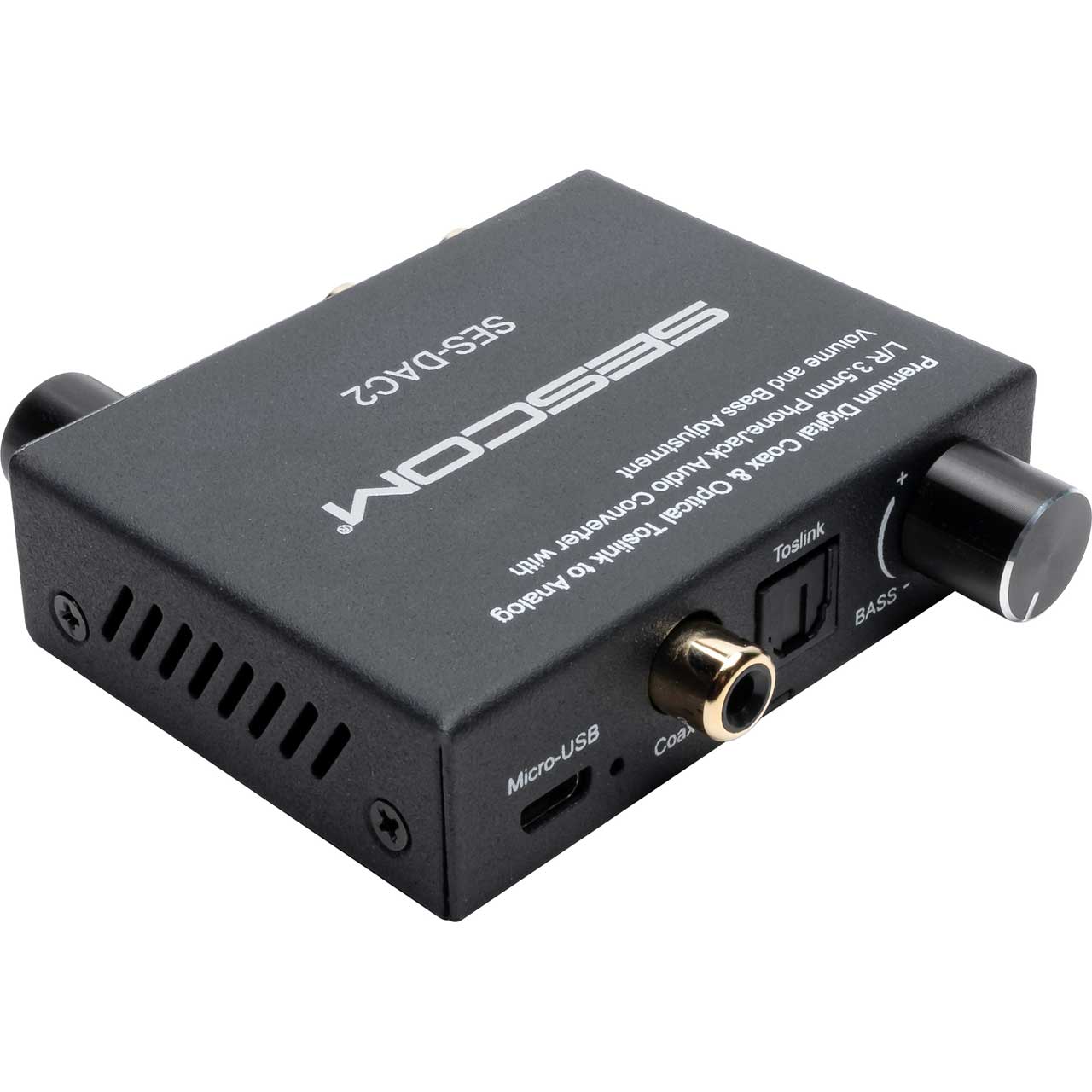

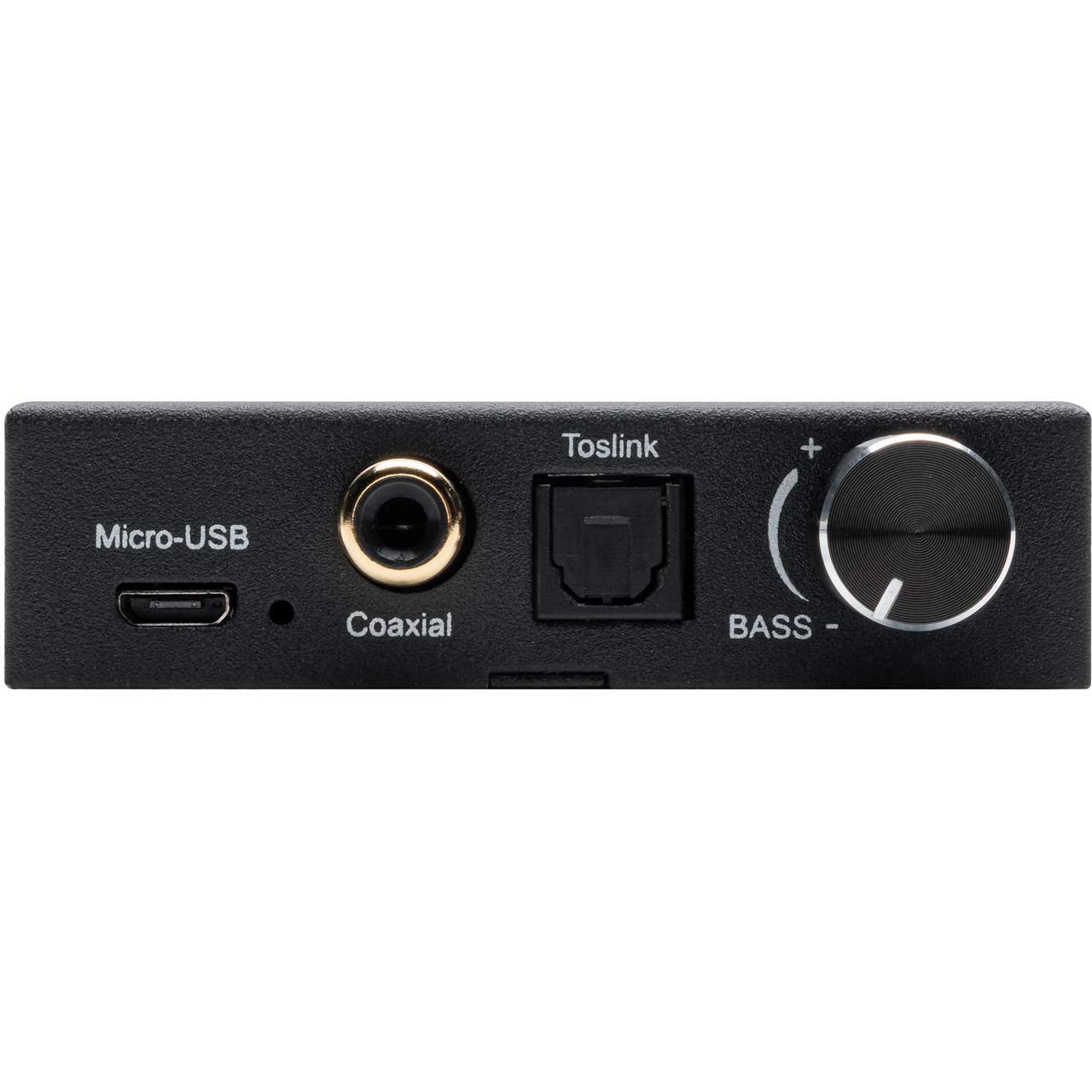

    • Inputs: 1 x Coaxial & 1 x TOSLINK

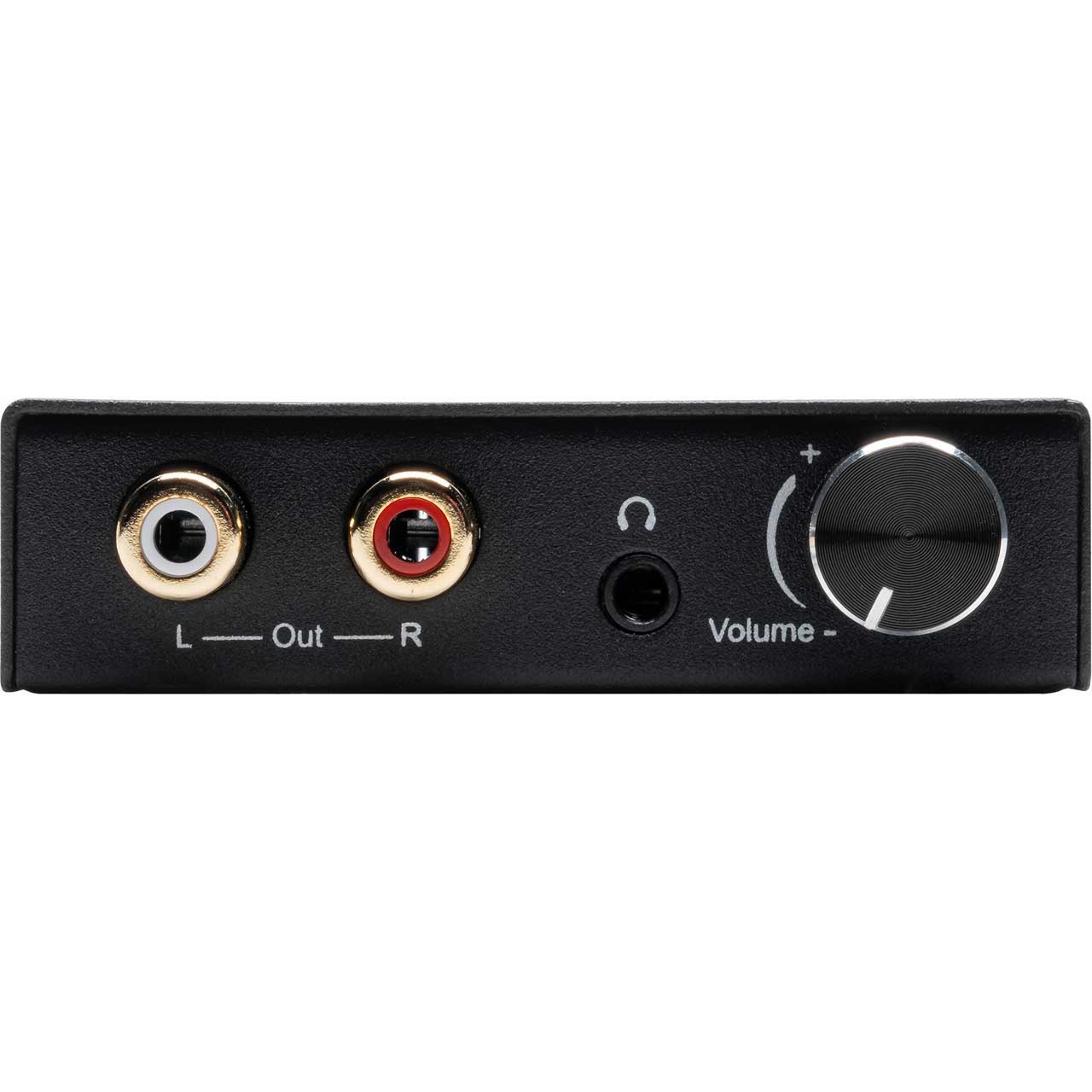

    • Outputs: 1 x 3.5mm Stereo & 1 x L/R Analog
    • Sample Rate: 44.1 KHz, 48 KHz, and 192 KHz
    • Bit Rate: 16-24 Bit
    • Total Harmonic Distortion at 1kHz, 0dBFS, 44.1k .013% @ 100k .043@600
    • Maximum Input Level: -2.5dBV
    • Maximum Output Level: -2.5dBV
    • Output Impedance (ohms): 130
    • Supported Audio Formats: PCM/LPCM
    • Operating Temperature: 0°F - 158°F (0°C - 70°C)
    • Power Supply: USB Power Cable
    • Max Power Consumption: 5W
    • Dimensions (LxWxH): 72 x 54 x 19mm
    • Weight: 97g

  • Item Includes:

    • 1 x SES-DAC2

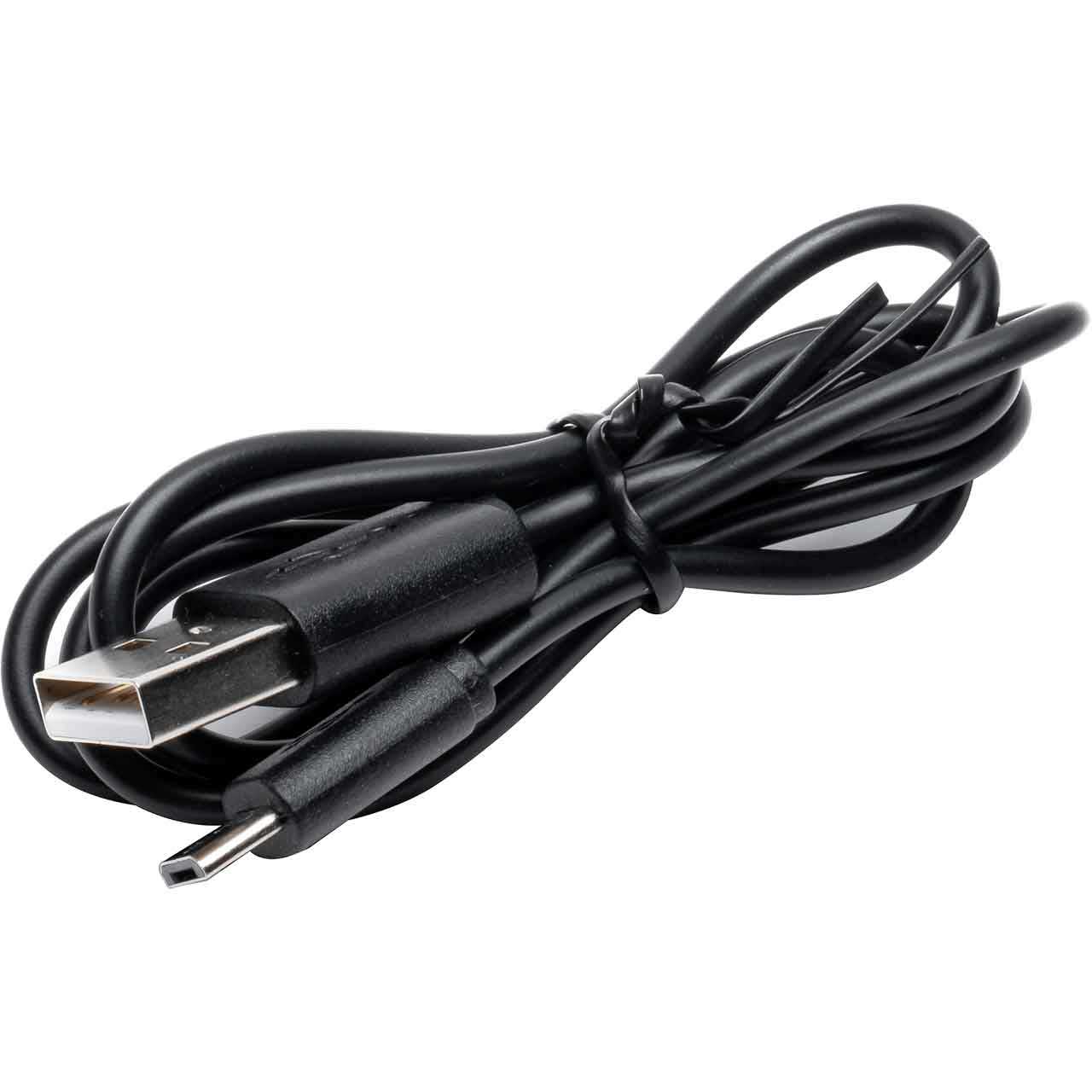

    • 1 x USB Power Cable

  • Warranty:

    • 1 Year
