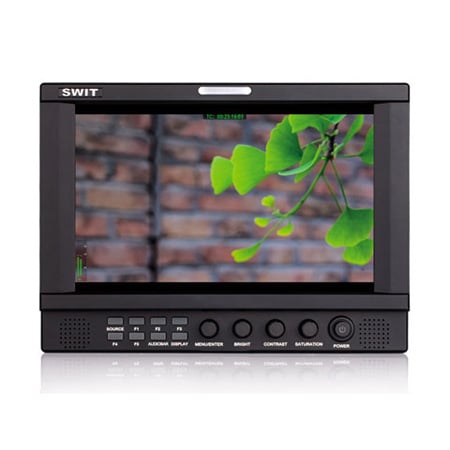

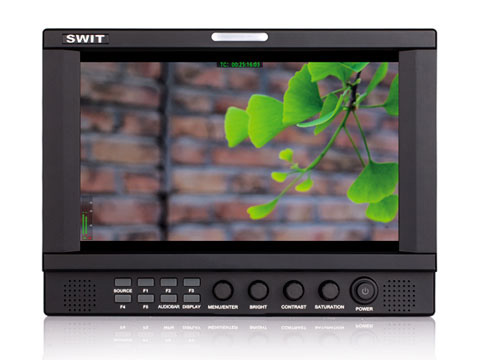

9-inch 1920x1200 FHD LCD
IPS panel with LED backlight
The S-1093H adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920x1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°
The LCD is overlaid with a glass, protects the screen against scratch or broken.
LCD Protective Glass
The LCD of S-1092H is overlaid with a glass, protects the screen against scratch or broken.

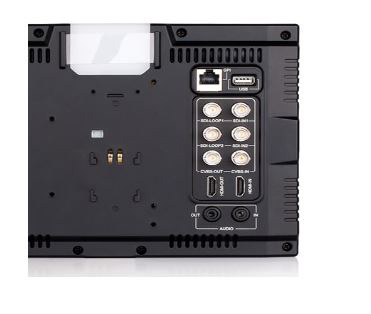

Multi-format Input/Output
3G-SDI / HDMI / CVBS / L&R audio
S-1092H field monitor supports:
3G/HD/SD-SDI input x 2
3G/HD/SD-SDI loop output x 1
HDMI input x 1
HDMI loop output x 1
CVBS input x 1
L&R analog audio input x 1
Embedded Audio Monitoring
Audio meter display and headphone/ Speaker
The monitor displays SDI and HDMI ch-1 & ch-2 embedded audio level meters. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
The ch-1 & ch-2 embedded audio can be output via 3.5mm headphone socket and speaker.
Focus Assist
Red/Blue bi-color
Under focus assist mode, the in-focused subject will be sketched out by red or blue lines. The focus assist is also available during the image zoom-in.
Pic-in-Pic Function
Specially designed for EFP Applications
Under SDI or HDMI input, the S-1092H can display another CVBS input by Pic-in-Pic mode, and under CVBS input, it can display another SDI
or HDMI as Pic-in-Pic window.
The PIP overlay window can be switched on/off without any delay.
