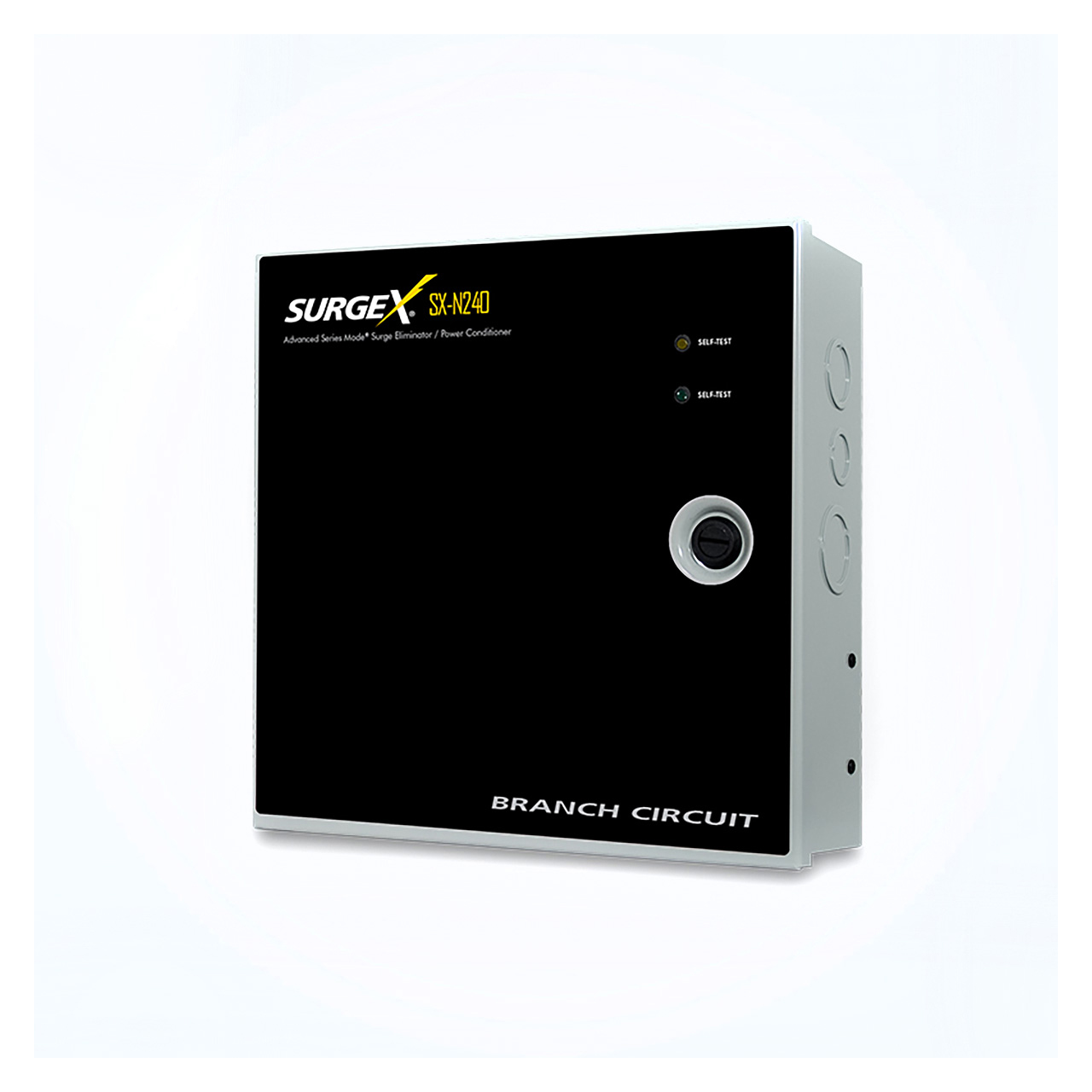

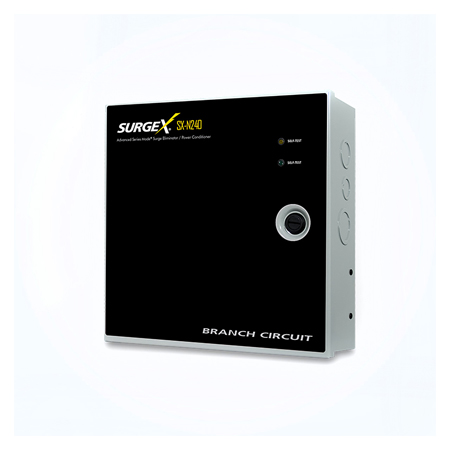

Surgex SX-N240 BRANCH CIRCUIT 20A/240W Power Outlet/Surge Suppressor with NEMA Enclosure for Whole Room Power Protection

ITEM #: SX-N240 MFG #: SX-N240

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,129.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SX-N240 - Overview

The Surgex SX-N240 whole room surge protector operates from 240 volts AC and has a barrier strip accessible through knock-outs within the enclosure for hardwiring power input and output connections, with a load rating of 20 amps at 240 volts. It shall withstand at least 1000 occurrences of surge pulse volatges up to 6000. Built with NEMA magnetic shielding steel enclosures that meet code for use at the service entrance, sub-panels, and in the ceiling plenums. A self-test circuit with a visual indicator provides advanced series mode power protection, and EMI/RFI filtering. Engineered with Advamced Series Mode surge elimination and power conditioning technologies, they eliminate all surge energy to properly protect connected equipment from surges, spikes, and electrical transients without producing harmful ground contamination or common-mode distrubances. An all mode impedance talerant EMI/RFI filter virtually eradicates electrical noise to offer a complete whole room power conditioning solution.

  • Features:

    • NEMA Rated Magnetic Shielding Steel Enclosure
    • Advanced Series Mode Surge Elimination Technology
    • Impedance Tolerant EMI/RFI Filter
    • Non-Sacrificial Components
    • Conforms to UL Std 1283
    • Certified to CSA Std C22.2 No. 8

  • Specifications:

    • Load Rating: 20A
    • Voltage Rating: 120/240V
    • Power Requirement (No Load): 8W
    • Input/Mains plug Type: Terminal Strip
    • # of Receptacles: 1
    • Receptacle Type: Terminal Strip
    • Maximum Applied Surge Voltage: 6000V
    • Maximum Applied Surge Current: Unlimited (due to current limiting)
    • Maximum Applied Surge Energy: Unlimited (due to current limiting)
    • Endurance (C62.41 - 1991 Category B3 Pulses: 1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000
    • BTU/h Max: 400 BTU/h
    • Weight: 14lbs
    • Dimensions (HxWxD): 12" x 12" x 4"
    • Temperature Range: 41°F 95°F
    • Humidity Range: 5% - 95% R.H. Non-condensing
    • Agency Listings: Conforms to UL Std 1283. Certified to CSA Std C22.2 No. 8

      EMI/RFI Filter
    • Normal Mode (50Ω load):
      - > 20dB, 39kHz - 50MHz
      - > 30dB, 150kHz - 50MHz
      - 25dB @ 100kHz; 45dB @ 300kHz
      - 67dB @ 3MHz; 35dB @ 30MHz
    • Common Mode (50Ω load):
      - > 10dB, 290kHz - 50MHz
      - > 20dB, 1.9MHz - 7.875MHz
      - > 30dB, 4.2MHz - 5.125MHz
      - 10dB @ 300kHz; 17dB @ 1MHz
      - 30dB @ 5MHz; 14dB @ 20MHz

  • Item Includes:

    • 1x Surgex SX-N240 Branch Circuit 240V Whole Room Surge Protector

  • Warranty:

    • 5 Year Limited Warranty
