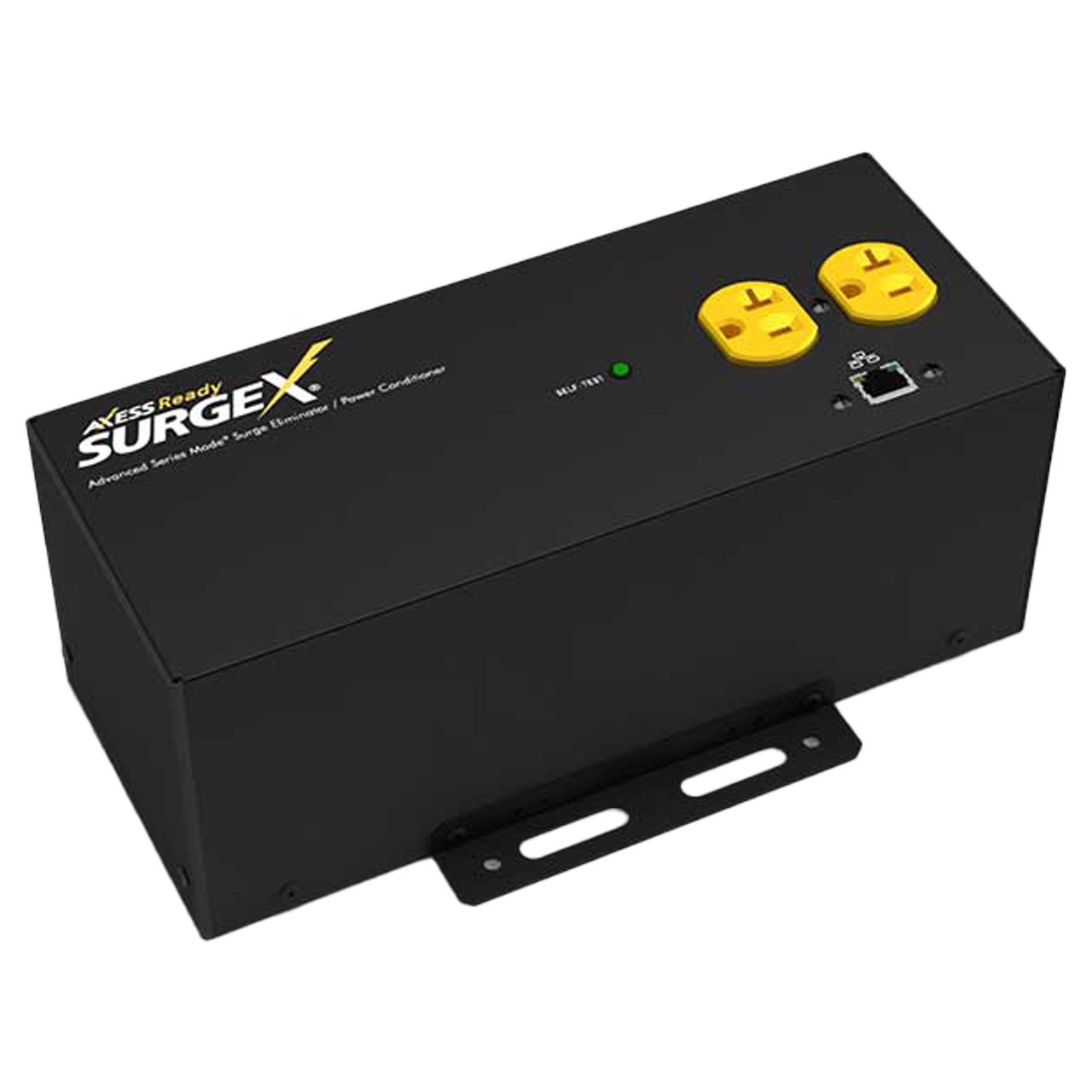

SurgeX SA-20-AR STANDALONE Power Surge Protector & Conditioner w/IP Control - 20A/120V x 2

Name: SurgeX SA-20-AR STANDALONE Power Surge Protector & Conditioner w/IP Control - 20A/120V x 2
Brand: SurgeX
SKU: SX-SA-20-AR
Price: 1249.00 USD
Availability: PreSale

ITEM #: SX-SA-20-AR MFG #: SA-20-AR

SurgeX

Our Price:

$1,249.00

Add to Cart for Better Price

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SA-20-AR - Overview

Surge Elimination Outside of a Rack

The SurgeX SA-20-AR is engineered to safeguard independent audio and video equipment in any environment. This compact surge protection solution fits alongside standalone equipment, takes up minimal space, and is perfect for AV, security, and computer systems that are installed outside of a rack.

Featuring Advanced Series Mode surge elimination technology, the SurgeX Standalone product line provides premium protection for sensitive equipment that relies on audio and video performance. Its patented power protection technology is non-sacrificial and eliminates surge energy up to 6,000 Volts, without producing harmful side effects such as ground contamination or common mode disturbances that can degrade the performance of AV systems.

Is complete with Box Level power management, is IP Addressable, without Internal Log, and contains DMU software.

Features:
- Protects audio video based equipment outside of a rack
- Improves audio and video performance
- Advanced Series Mode r surge elimination technology
- Impedance Tolerantr EMI/RFI filter
- 100% fail-safe protection, never requires reset
- Compact design
- A-1-1 Certified
Specifications:
- Load Rating: 20A
- Voltage Rating: 120V
- Power Requirement (No Load): 15W
- Surge Let-through Voltage (6000 Volt Surge): 0 Volts
- Maximum Applied Surge Voltage: 600 Volts*
- Maximum Applied Surge Current: Unlimited (due to current limiting)*
- Maximum Applied Surge Energy: Unlimited (due to current limiting)*
- Endurance (C62.41-1991 category B3 pulses): 1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000
- EMI/RFI Filter:
- Normal Mode (50Ω Load):
  > 20 dB, 38 kHz - 50 MHz
  > 30 dB, 160 kHz - 50 MHz
  25 dB @ 100 kHz
  39 dB @ 300 kHz
  60 dB @ 3 MHz
  44 dB @ 30 MHz
- Common Mode (50Ω Load):
  > 10 dB, 280 kHz - 50 MHz
  > 20 dB, 1.7 MHz - 50 MHz
  > 30 dB, 9 MHz - 27 MHz
  11 dB @ 300 kHz
  19 dB @ 1 MHz
  26 dB @ 5 MHz
  34 dB @ 20 MHz
- Under-Voltage Auto Shutdown: No
- Over-Voltage Auto Shutdown: No
- Over-Current Auto Shutdown: Circuit Breaker
- Over-Temperature Auto Shutdown: None
- Measure Accuracy: Voltage, Current, Power, Energy, & Temperature: N/A
- Network Port: Single 10/100 Unshielded Twisted Pair Ethernet Jack
- Serial Port: None
- Temperature Sensor Input: None
- Auxiliary Relay Outputs: No
- Contact Closure Input: No
- Dimensions (HxWxD): 4.0 x 10.2 x 4.2"
- Weight: 8.5Lbs
- Temperature Range: 41° to 95°F (5° to 35°C)
- Humidity Range (RH): 5 to 95% (non-condensing)
- Agency Listings:
  Conforms to UL Stds 1283 & 1449
  Certified to CSA Std C22.2 No. 8
  Please Note! * - 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41
Warranty:
- Standalone Series - Limited Lifetime Product Warranty and Limited Five (5) Year Connected Protection Warranty - See attached info for further details
