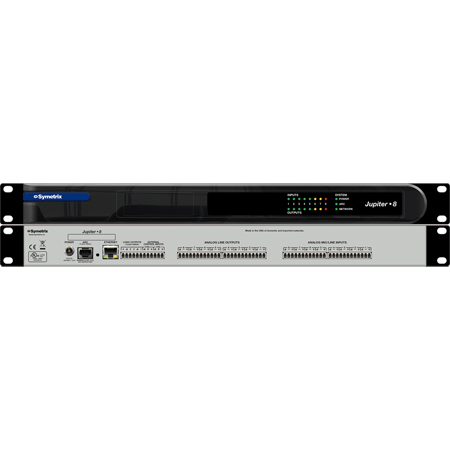

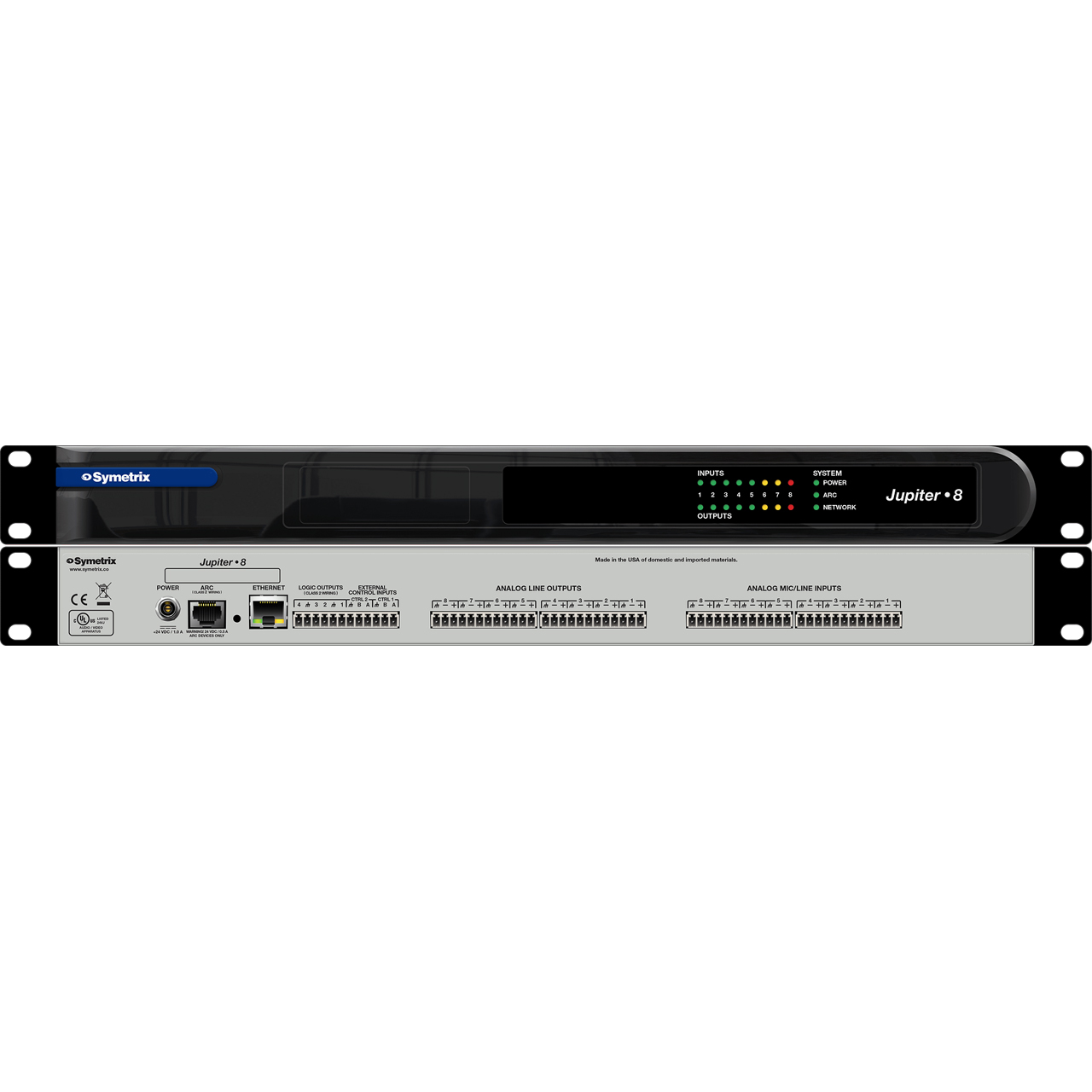

Symetrix JUPITER 8 App-based Digital Signal Processor - 8 Mic/Line In - 8 Line Out - ARC

Name: Symetrix JUPITER 8 App-based Digital Signal Processor - 8 Mic/Line In - 8 Line Out - ARC
Brand: Symetrix
SKU: SYX-JUPITER8
Price: 1830.00 USD
Availability: PreSale

ITEM #: SYX-JUPITER8 MFG #: JUPITER 8

Symetrix

Our Price:

$1,830.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

JUPITER 8 - Overview

App Configurable 8x8 DSP

The Symetrix Jupiter Digital Signal Processor is designed for speed. Bringing the best of fixed architecture ease of use, and flexible app-based configurations, systems can be configured with unmatched speed and without any limitations. Simply choose the app to meet the application's needs and customize the parameters as needed with its beautiful and easy-to-use software.

Innovative and Unique.
Jupiter packages powerful DSP into a zero learning curve, turn-key family of audio processors. Standing on the shoulders of Symetrix' world-class open architecture DSP platforms, Jupiter upholds our commitment to pristine sound.

3 Audio Input/Output Configurations.

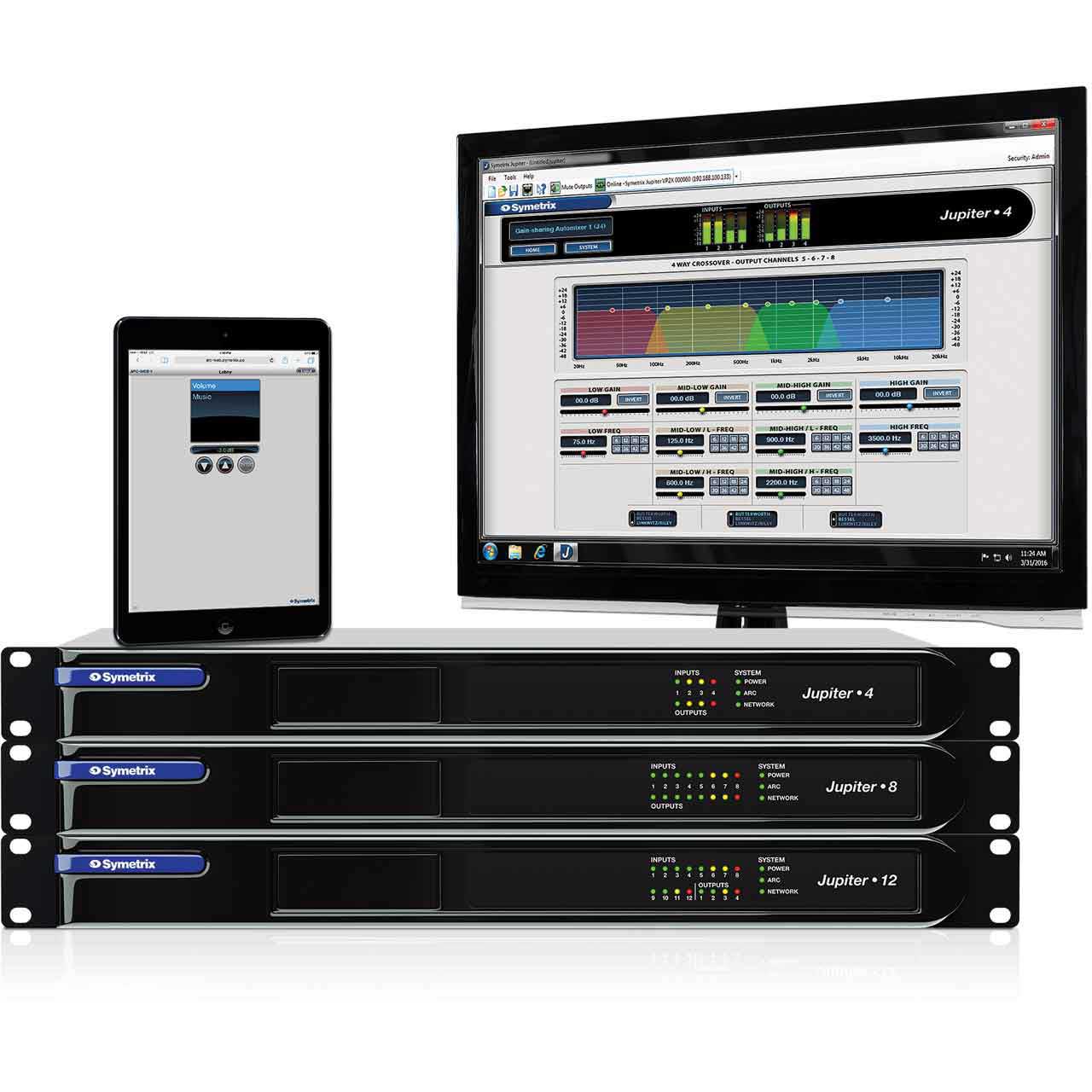

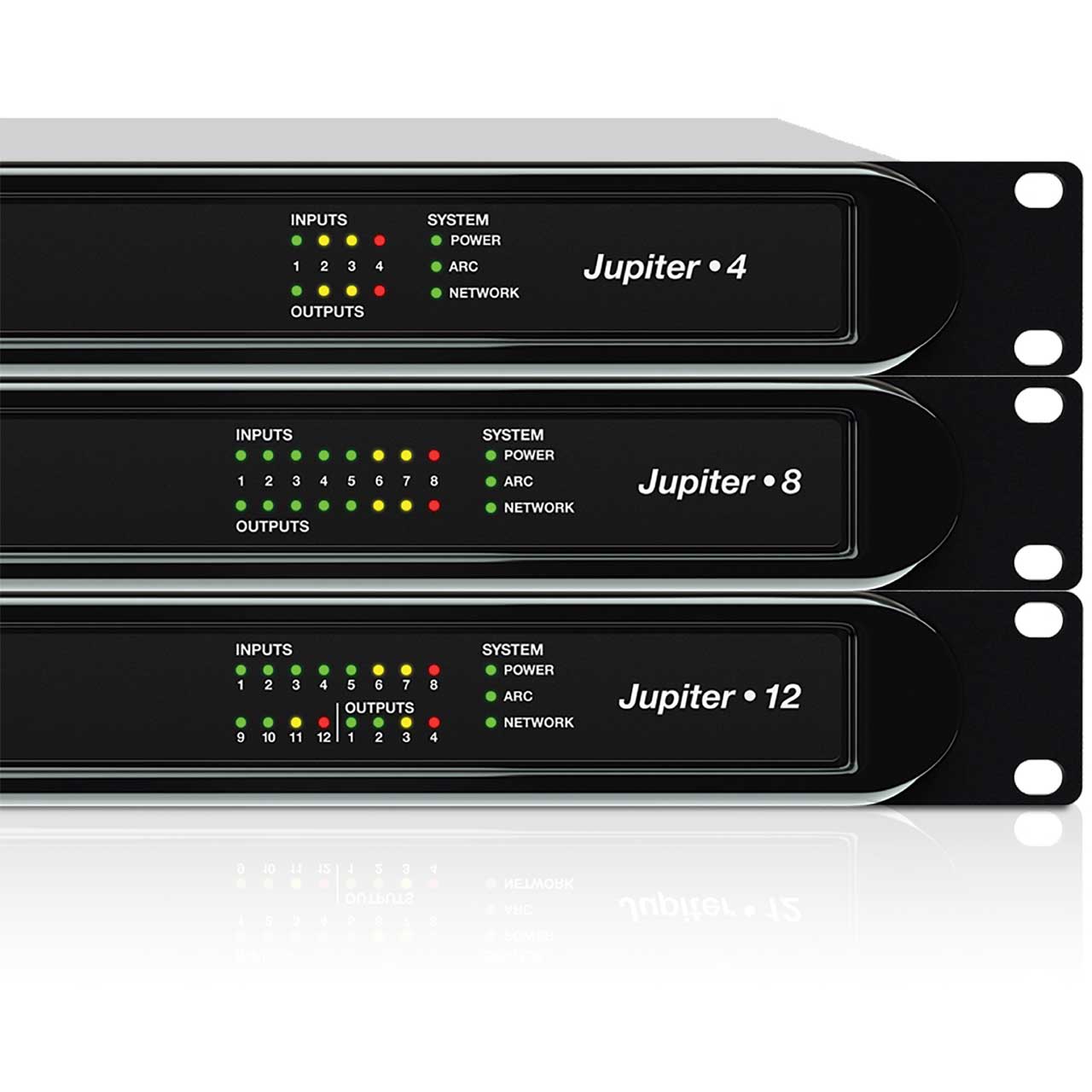

Jupiter 4 (4 in, 4 out), Jupiter 8 (8 in, 8 out), and Jupiter 12 (12 in, 4 out).

High Feature to Cost Ratio.
Near zero programming time slashes installation costs.

85 Turn-key Apps.
Categories include mixing and routing, public address / distribution, sound reinforcement, special purpose DSP. Signal routings, whether simple or complex, are fully tested and ready to go right out of the box.

Features:
- An Innovative and Unique Approach to DSP
- Turn-key Designs Cover a Wide Range of Applications
- 85 Downloadble Apps
- Near Zero Programming Time for Rapid Deploymnet
Specifications:
- Inputs
- Number of Inputs: Twelve (12), eight (8), or four (4) switchable balanced mic or line level on Jupiter 12, 8 or 4 respectively.

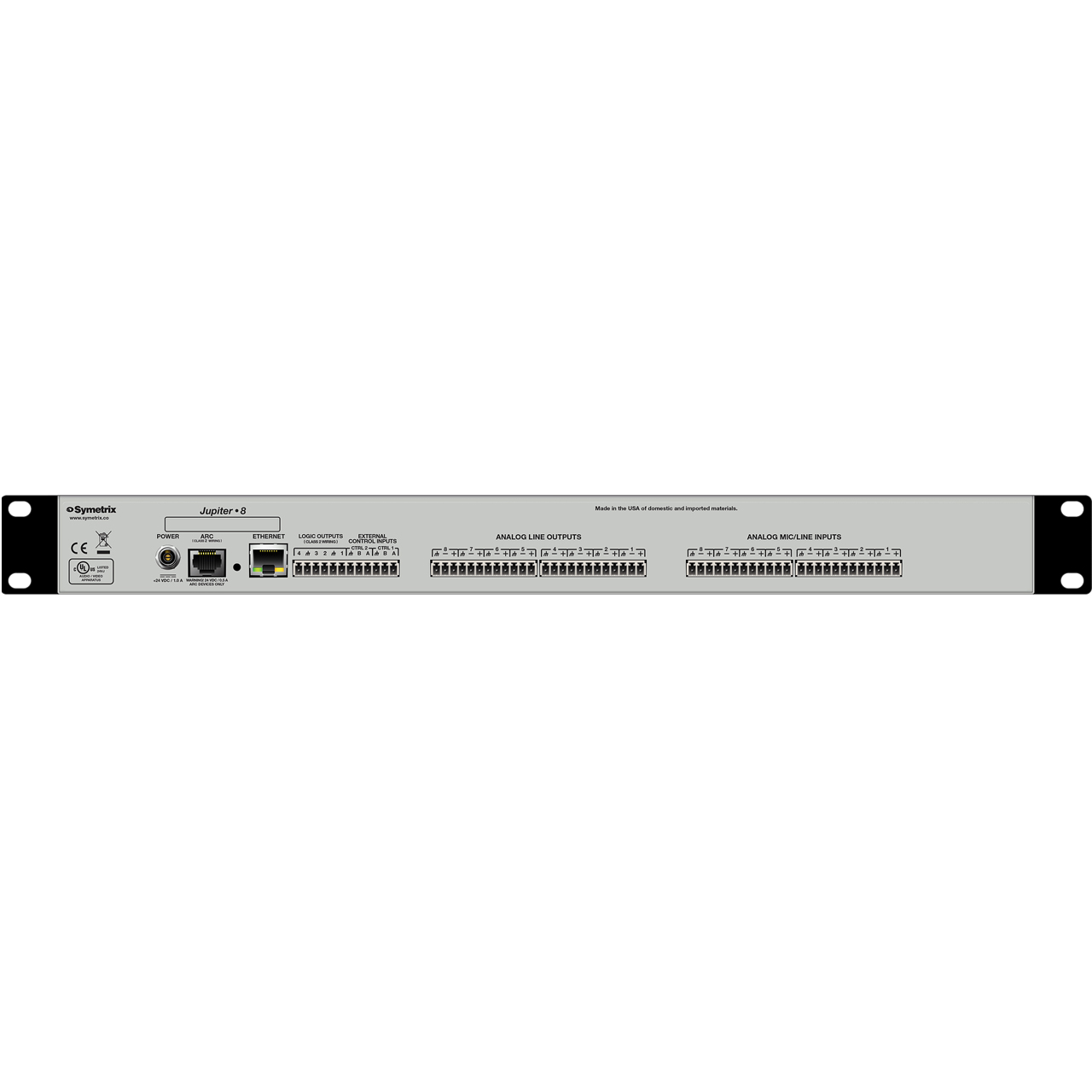

- Connectors: 3.81 mm terminal blocks.
- Nominal Input Level: +4 dBu line or -36 dBu mic level (software selectable) with 20 dB of headroom.
- Mic Pre-amp Gain: +40 dB.
- Input Trim: +/- 24 dB.
- Maximum Input Level: +23 dBu.
- Input Impedance: > 18 kΩ balanced, > 9 kΩ unbalanced, > 2 kΩ with phantom power engaged.
- CMRR: > 50 dB @ 1 kHz, unity gain.
- Mic Pre-amp EIN: < -125 dBu, 22 Hz - 22 kHz, 100 Ω source impedance.
- Phantom Power: +20 VDC, 20 mA maximum per input.

  Outputs
- Number of Outputs: Four (4), eight (8), or four (4) line level on Jupiter 12, 8 or 4 respectively.
- Connectors: 3.81 mm terminal blocks.
- Nominal Output Level: +4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level.
- Maximum Output Level: +24 dBu.
- Output Impedance: 200 Ω balanced, 100 Ω unbalanced.

  Mechanical Data
- Space Required: 1U (WDH: 18.91 in x 7.5 in x 1.72 in
- Electrical: 100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.
- Ventilation: Maximum recommended ambient operating temperature is 86 F.
- Certifications or Compliance: UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS
- Shipping Weight: 8 lbs

  System
- Sample Rate: 48 kHz.
- Frequency Response: 20 Hz - 20 kHz, +/- 0.5 dB.
- Dynamic Range: > 110 dB (A-Weighted), input to output.
- THD+Noise: < -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain.
- Interchannel Crosstalk: < -90 dB @ 1 kHz, typical.
- Latency: < 1.6 ms, input to output with all DSP inactive.
Item Includes:
- 1x 24 VDC @ 1 amps switching power supply
- 1x Power cable
- 1x 12 or 20 detachable 3.81 mm terminal block connectors
