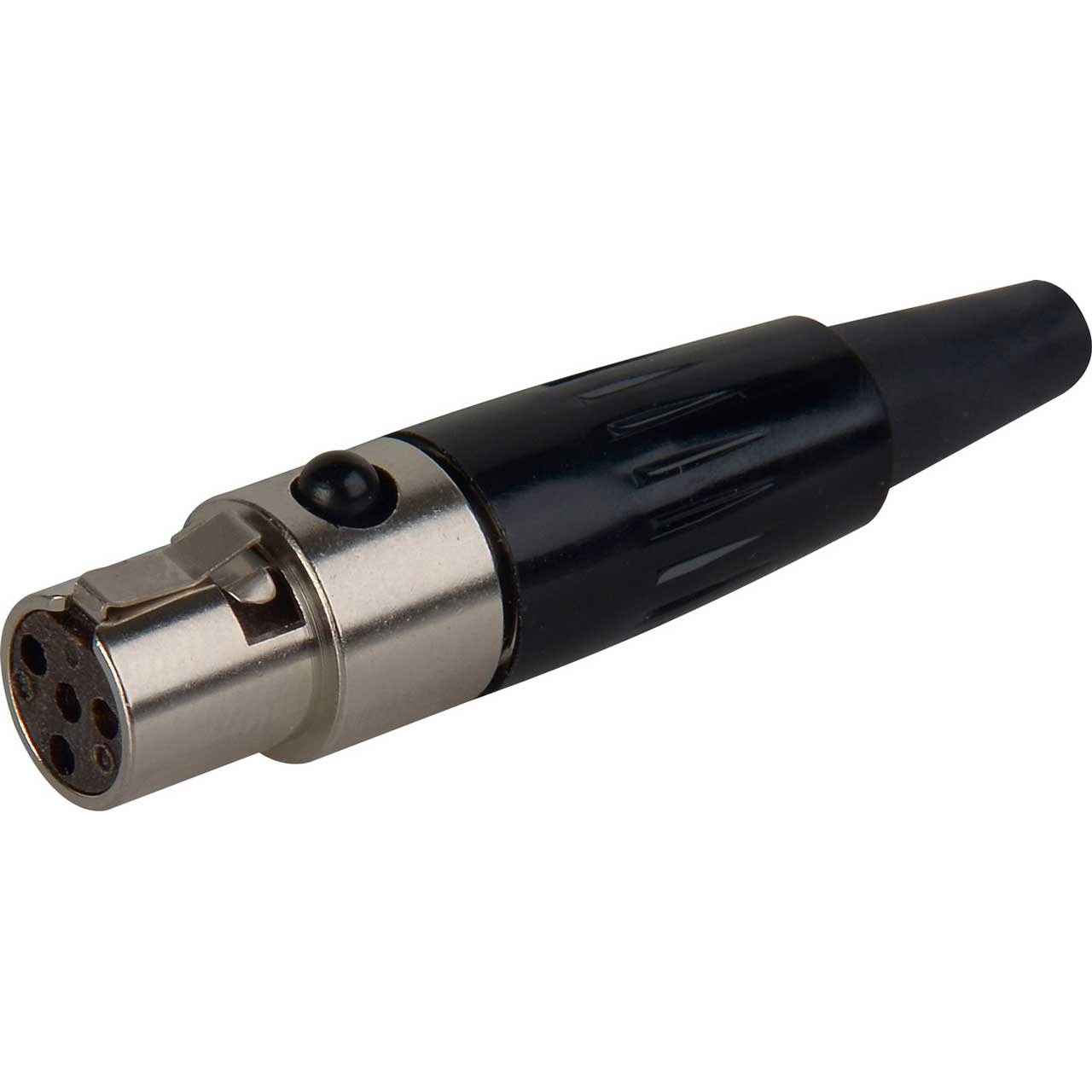

Switchcraft TA4FX ROHS Tini Q-G Miniature Connector Straight Female Cord Plug

TA4F - Overview

• Specifications:

  • ELECTRICAL

  • Contact Resistance: .010 ohms maximum after life (and after salt spray).
  • Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum.
  • Insulation Resistance: 510,000 megohms minimum @ 500 VDC (initial); 10,000 megohms minimum (after humidity test).
  • Dielectric Strength: 1,000 V (rms).


  • MECHANICAL

  • Life: 5,000 operations minimum
  • Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal.
  • Solderability Standard: Meets EIA RS-186-9E.
  • Mechanical Shock: Meets MIL-STD-202, method 213B.
  • Vibration: Meets MIL-STD-202, method 201A.
  • Wire Size: #22 wire gauge solid; #24 wire gauge stranded.


  • ENVIRONMENTAL

  • Thermal Range: -55°C to + 85°C.
  • Humidity: Meets MIL-STD-202, method 106D.
  • Thermal Shock: Meets MIL-STD-202, method 107D.
  • Salt Spray: Meets MlL-STD-202, method 101.


  • MATERIAL

  • Housing, Plugs and Male Receptacles: Copper alloy, nickel-plated. Female Receptacle–Die-cast zinc, nickel-plated.
  • Black Tini Q-G® Housing: Copper alloy, black chrome-plated.
  • Pin and Socket Contacts: Copper alloy, silver-plated.
  • Flex Relief: Molded black thermoplastic elastomer.
  • Latch Button: Molded black thermoplastic.
  • Release Lever and Mounting Washer: Steel, nickel-plated.
  • Standoff/Ground Terminal and Cable Clamp: Steel, electrotinned.
  • Inserts and Insulating Spacer: Molded, high strength thermoplastic
  • Latch (Female): Copper alloy, nickel-plated.
  • Mounting Nut: Copper alloy, nickel-plated.
