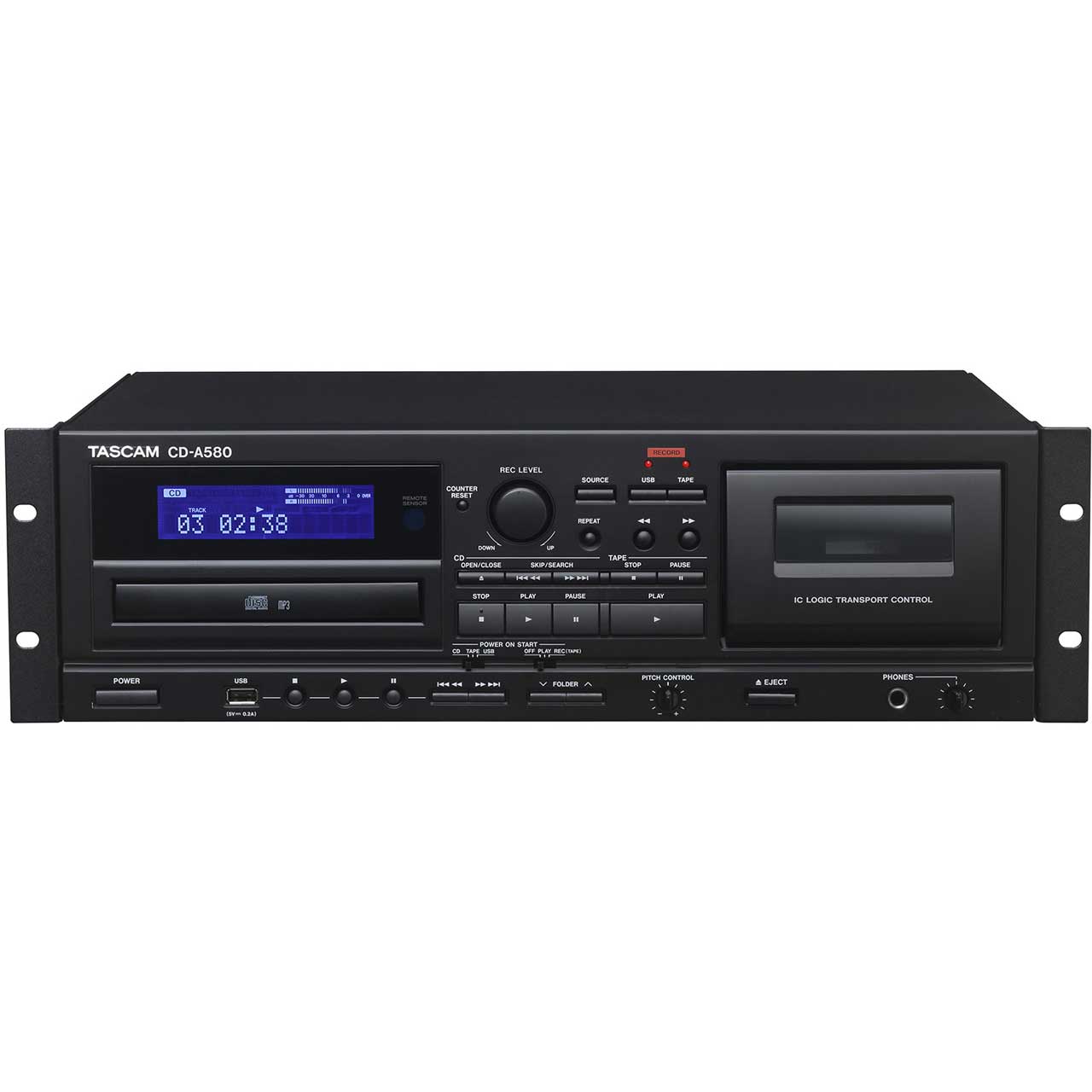

Tascam CD-A580 CD/Cassette Player with USB Dubbing

CD-A580 - Overview

• Features:

  • Cassette deck
  • One-way IC Logic transport control enables recording and playback
  • Dub from CDs
  • Dub from USB flash drive and recording from LINE Inputs
  • +/-10% pitch control
  • Supported cassette tape types
  • Playback: normal (TYPE I), chrome (TYPE II), metal (TYPE IV)
  • Recording: normal (TYPE I), chrome (TYPE II)
  • Recommended tape length: 10 minutes to 90 minutes
  • Power-on recording/playback functions

    CD Player
  • Playback of audio CDs, CD-R, CD-RW discs and data CDs (MP3 files) supported
  • Shuffle and program playback supported
  • Single/All Folder repeat playback
  • Power-on playback functions

    USB flash drive recorder/player
  • Recording as MP3 files possible from CD, cassette and line input sources
  • MP3 file playback
  • Shuffle and program playback supported
  • Single/All Folder repeat playback
  • Manual file division (TAPE/LINE)
  • Power-on playback functions

    General
  • Headphone jack with level control
  • Wireless remote control included
  • LCD display with level meters
  • 3U rackmount size
  • RoHS supported


• Specifications:

  • CD Player section
  • Supported Disc: CD / CD-R / CD-RW (12cm / 8cm)
  • Disc Format:
    Audio CD: CD-DA
    Data CD: ISO9660 Level 1/Level 2
  • Playable Format:
  • CD-DA:
    Sampling Frequency: 44.1kHz
    Quantization Bit Rate: 16-bit
    Channel: 2
  • MP3:
    Audio Modes: STEREO / JOINT STEREO / DUAL CHANNEL / MONO
    Sampling Frequency: 16k to 48k Hz
    Bit Rates: 8k to 320k bps
  • DRM (Digital Right Management) not compatible
  • LINE OUT (RCA): Maximum Output level: +6dBV (2.0V) (Load impedance of 50 kΩ or more) *0dBV=1Vrms

    Cassette Deck section
  • Track System: 4-track, 2-channel stereo
  • Heads: Record/playback x1, Erase x1
  • Tape of Type: C-10 to C-90 cassette
  • Tape Speed: 4.76cm/sec
  • Motor: DC servo motor x1
  • Supported Cassette Tape:
    Playback: Normal (TYPE I), Chrome (TYPE II), Metal (TYPE IV)
    Recording: Normal (TYPE I), Chrome (TYPE II)
  • Pitch Control: +/-10% (Playback only)
  • Required Fast Winding Time: Approx. 120 sec. (with C-60)
  • LINE IN (RCA): Nominal Input Level: -4.5dBu (0.46V) (Input impedance of 50 kΩ or more)
  • LINE OUT (RCA): Nominal Output Level: -4.5dBu (0.46V) (Load impedance of 50 kΩ or more) *0dBu=0.775Vrms

    USB section
  • Connector: USB A-type
  • Interface: USB2.0 FULL SPEED (12Mbps)
  • Playback:
    Format: MP3
    Sampling Frequency: 16k to 48k Hz
    Bit Rates: 8k to 320k bps
    DRM (Digital Right Management) not compatible
    LINE OUT (RCA): Maximum Output Level: +6dBV (2.0V) (Load impedance of 50 kΩ or more)
  • Recording:
    Format: MP3
    Sampling Frequency: 44.1kHz
    Bit Rates: 128kbps
    LINE IN (RCA): Nominal Input Level: -10dBV (0.316V) (Input impedance of 50 kΩ or more)
  • Folder Levels: 8 levels supported *0dBu=0.775Vrms

    Headphones
  • Connector: 1/4" (6.3mm) Stereo phone jack
  • Rated Output: 10mW + 10mW (CD monitoring, THD+N 0.1%, 32Ω)

    General
  • Power: AC 120V, 60Hz
  • Power Consumption: 13W
  • Dimensions (WxHxD): 19 x 5.5 x 11.4" (483 x138.5 x290mm)
  • Weight (Net): 13.2Lbs (6.0kg)
  • Operating Temperature: 41°F to 95°F / 5°C to 35°C

    Audio Performance
  • CD Player section:
    Frequency Response: 20Hz to 20kHz +/-2dB
    THD + N: 0.02% or less (1kHz)
    S/N Ratio: 87dB or more (IHF-A)
  • Cassette Deck Section:
    Wow and Flutter: 0.25% (W.RMS)
  • Frequency Response:
    Chrome: 50Hz to 12.5kHz +/-4dB
    Normal: 50Hz to 12.5kHz +/-4dB
    S/N Ratio: 59dB (Maximum recording level input, A-weighted)
  • USB Frequency Response:
    Playback: 20Hz to 20kHz(+/-2dB)
    Record: 20Hz to 15kHz (+/-3dB, CD to USB)
    100Hz to 15kHz (+/-3dB, LINE IN to USB)
  • S/N Ratio:
    Playback: 85dB or more
    Record: 85dB or more


• Item Includes:

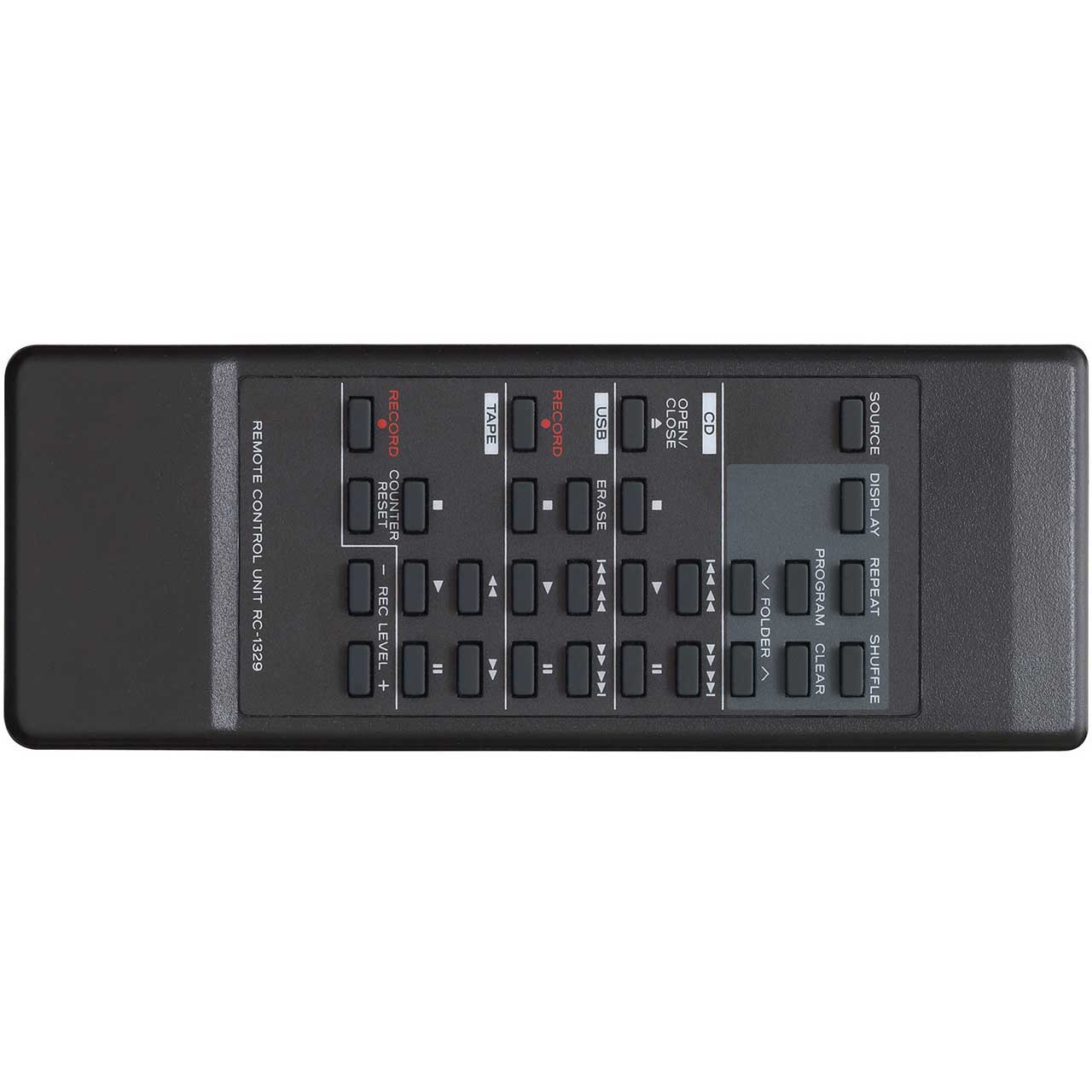

  • Wireless remote control (RC-1329)
  • AAA batteries (x2)
  • Rack mounting screw kit
  • Owners manual
  • warranty card


• GTIN:

  0043774032952
