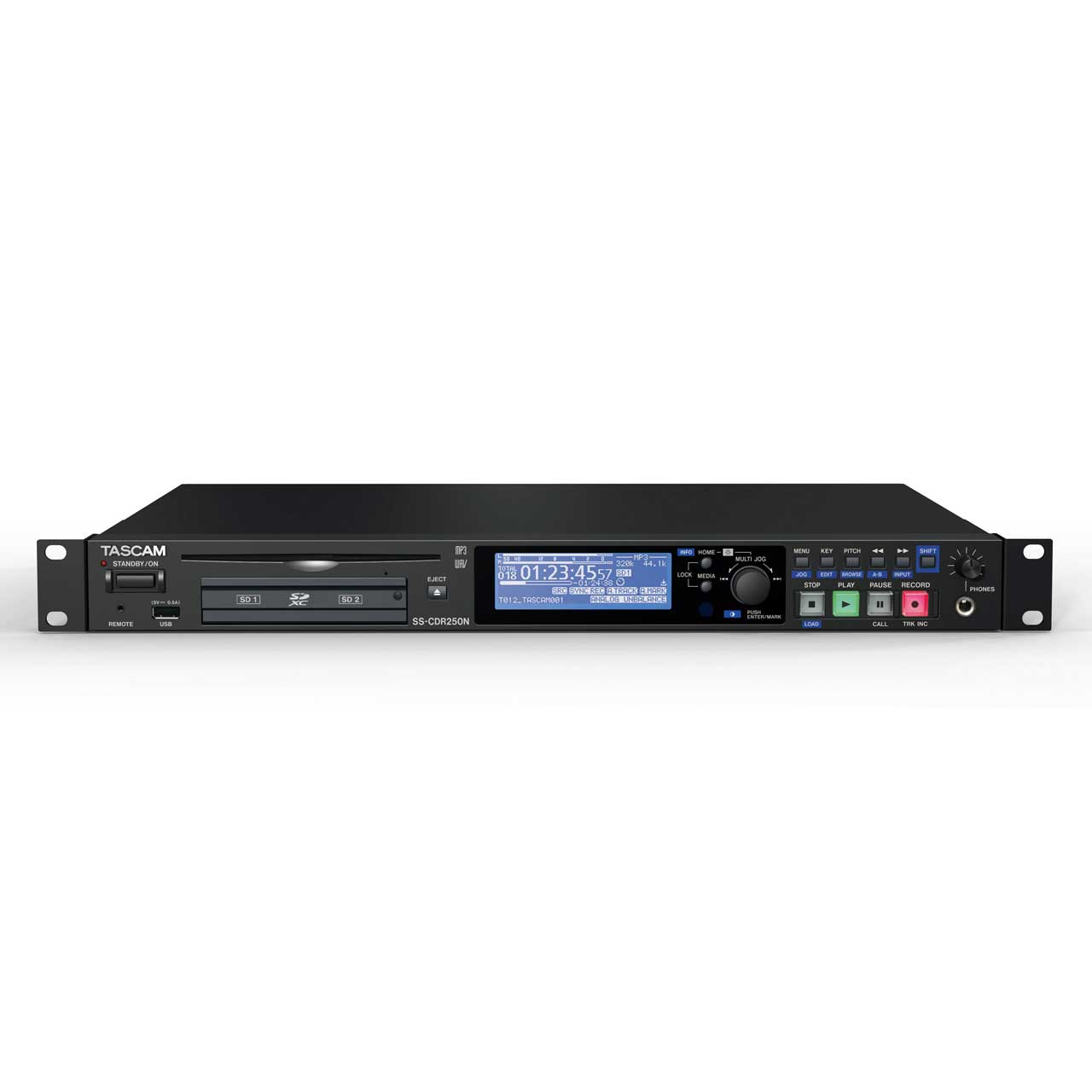

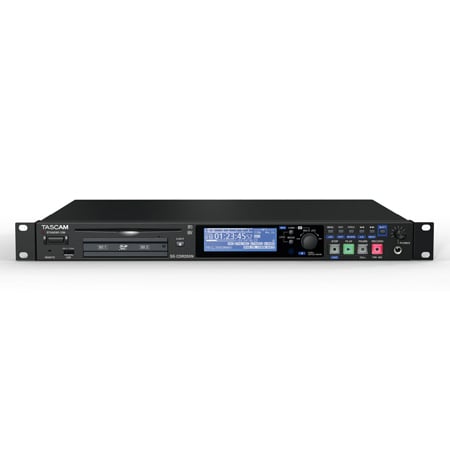

Tascam SS-CDR250N 2-Channel Solid-State Networking CD and Media Recorder

SS-CDR250N - Overview

• Features:

  • Stereo recording up to 96kHz/24-bit BWAV
  • Balanced and unbalanced Mic/line inputs
  • Simultaneous recording to dual SDXC cards
  • Network feature allows files to be uploaded or downloaded from an FTP server
  • Optional Dante networking option card (IF-DA2)
  • Balanced and unbalanced analog I/O
  • AES/EBU and S/PDIF digital I/O
  • Sample rate converter on digital inputs
  • RS-232C Serial and 25-pin parallel control ports
  • Records to SD Card or USB media
  • Automatic file close saves file every 2 seconds to prevent data loss if power is interrupted while recording
  • Power-on play and record
  • Free app for iOS and Android allows the recorder to be operated from a smartphone
  • Password protection and file encryption prevent stolen data assets
  • Scheduled recording triggers recording or playback at a certain time each week, etc. Can be used together with automatic uploads for instant availability.
  • SNTP function allows the internal clock to be set using internet time servers
  • Link playback function allows two units to be operated simultaneously for redundant backup
  • Compressor and limiter on input
  • Auto level control monitors and adjusts the input signal
  • Dual format recording simultaneously captures files as WAV and MP3 format
  • Record or dub to CD-R media (44.1k/16-bit)


• Specifications:

  • Recording/Playback Media
  • SD: SDHC card (4GB to 32GB), SDXC card (64GB to 128GB)
  • USB: USB Flash memory (2GB to 64GB)
  • CD: CD-R, CD-RW

    File Format
  • CD-DA: 44.1kHz, 16bit
  • MP3: 44.1k/48k Hz, 64k/128k/192k/256k/320k bps
  • WAV: 44.1k/48k/96k Hz, 16/24 bit
  • Number of channels: 2(stereo), 1(mono)

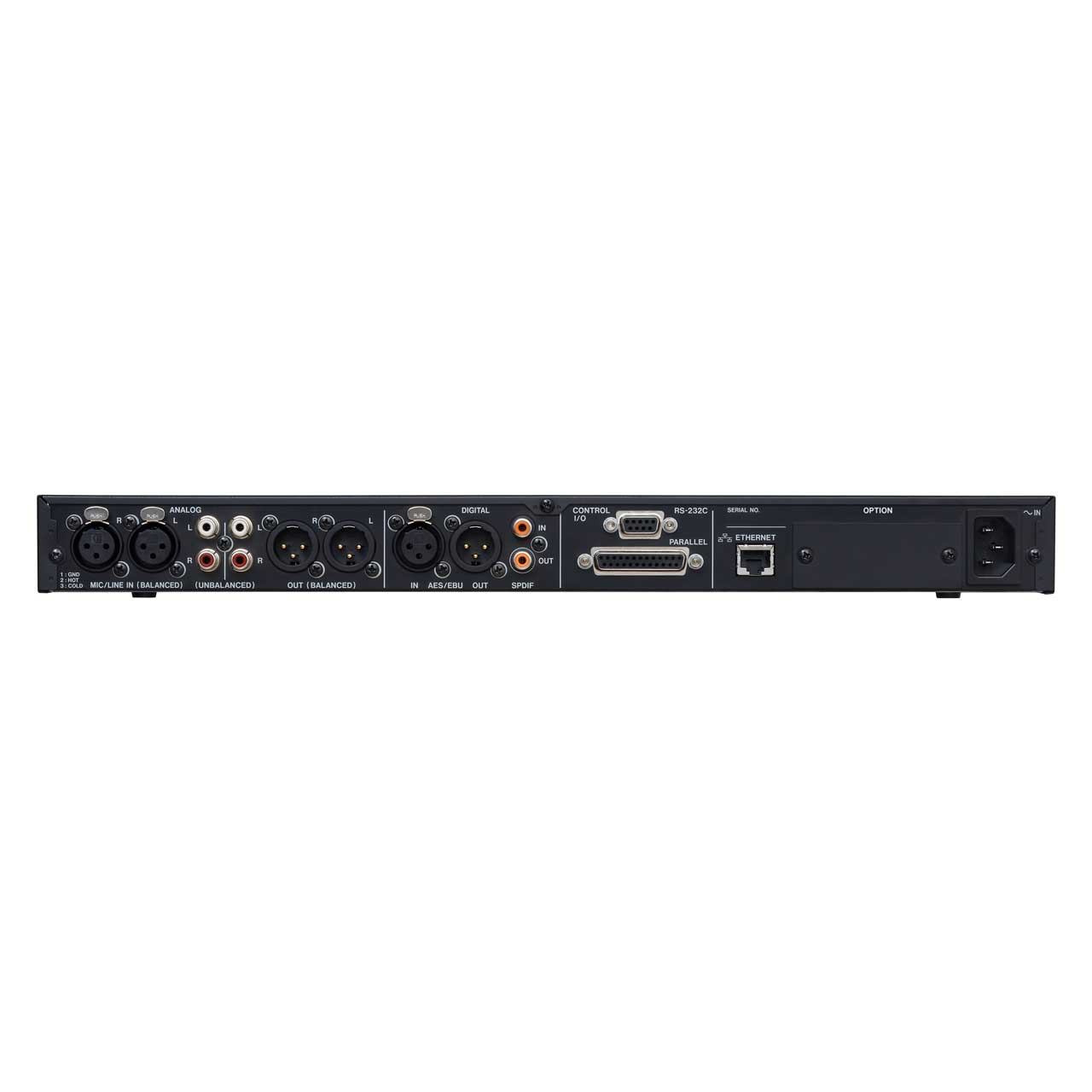

    Analog Audio Inputs/Outputs
  • UNBALANCED: Connector: RCA jacks; Nominal input level: -10dBV (0.316Vrms); Maximum input level: +6dBV (2.0Vrms); Input impedance: 10kΩ (Input), 200Ω (Output)
  • BALANCED: Connector: XLR-3-31, (1:GND, 2:HOT, 3:COLD), 6.3mm(1/4") standard TRS stereo jack (Input Only)

    Line Input
  • Nominal input level: +4dBu(1.23Vrms, Ref.Level other than -9dBFS); +6dBu(1.55Vrms, Ref.Level -9dBFS)
  • Maximum input level: +15dBu(4.36Vrms, Ref.Level -9dBFS); +18dBu(6.16Vrms, Ref.Level -14dBFS); +20dBu(7.75Vrms, Ref.Level -16dBFS); +22dBu(9.76Vrms, Ref.Level -18dBFS); +24dBu(12.28Vrms, Ref.Level -20dBFS)
  • Input impedance: 10kΩ (Input), 200Ω (Output)

    Mic Input
  • Maximum input level: +4dBu (1.23Vrms)
  • Minimum input level: -70dBu (245uVrms) or more
  • Input impedance 2.2kΩ

    Digital Audio Inputs
  • AES/EBU Connector: XLR-3-31
  • Input impedance: 110Ω
  • Format: AES3-2003/IEC60958-4(AES/EBU)
  • Supported sampling frequencies: 44.1k / 48k / 96k Hz
  • S/PDIF Connector: RCA jack
  • Format: IEC60958-3
  • Supported sampling frequencies: 32k to 96k Hz

    Digital Audio Outputs
  • AES/EBU Connector: XLR-3-32
  • Output impedance: 110Ω
  • Format: AES3-2003/IEC60958-4(AES/EBU)
  • Supported sampling frequencies: 44.1k / 48k / 96k Hz
  • S/PDIF Connector: RCA jack
  • Format: IEC60958-3

    Control Input/Output
  • Remote (Front) Connector 2.5mmTRS jack (TASCAM RC-3F, RC-20 sold separately)
  • RS-232C Connector: D-sub 9 pin
  • Parallel Connector: D-sub 25 pin
  • Phones Connector: Standard 6.3mm (1/4") stereo jack; Maximum output: 45mW+45mW(THD+N 0.1% or less, into 32Ω load)

    Physical
  • Power: AC 100V to 240V, 50/60Hz
  • Power consumption: 22W
  • Dimensions: 482.6(W)x45(H)x300.5(D)mm
  • Weight: 3.2kg
  • Operating temperature range: 5 to 35°C


• GTIN:

  0043774032648
