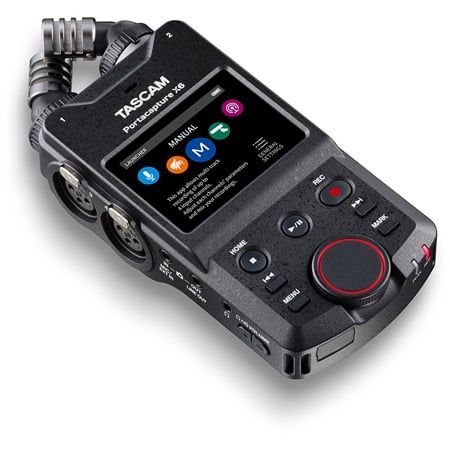

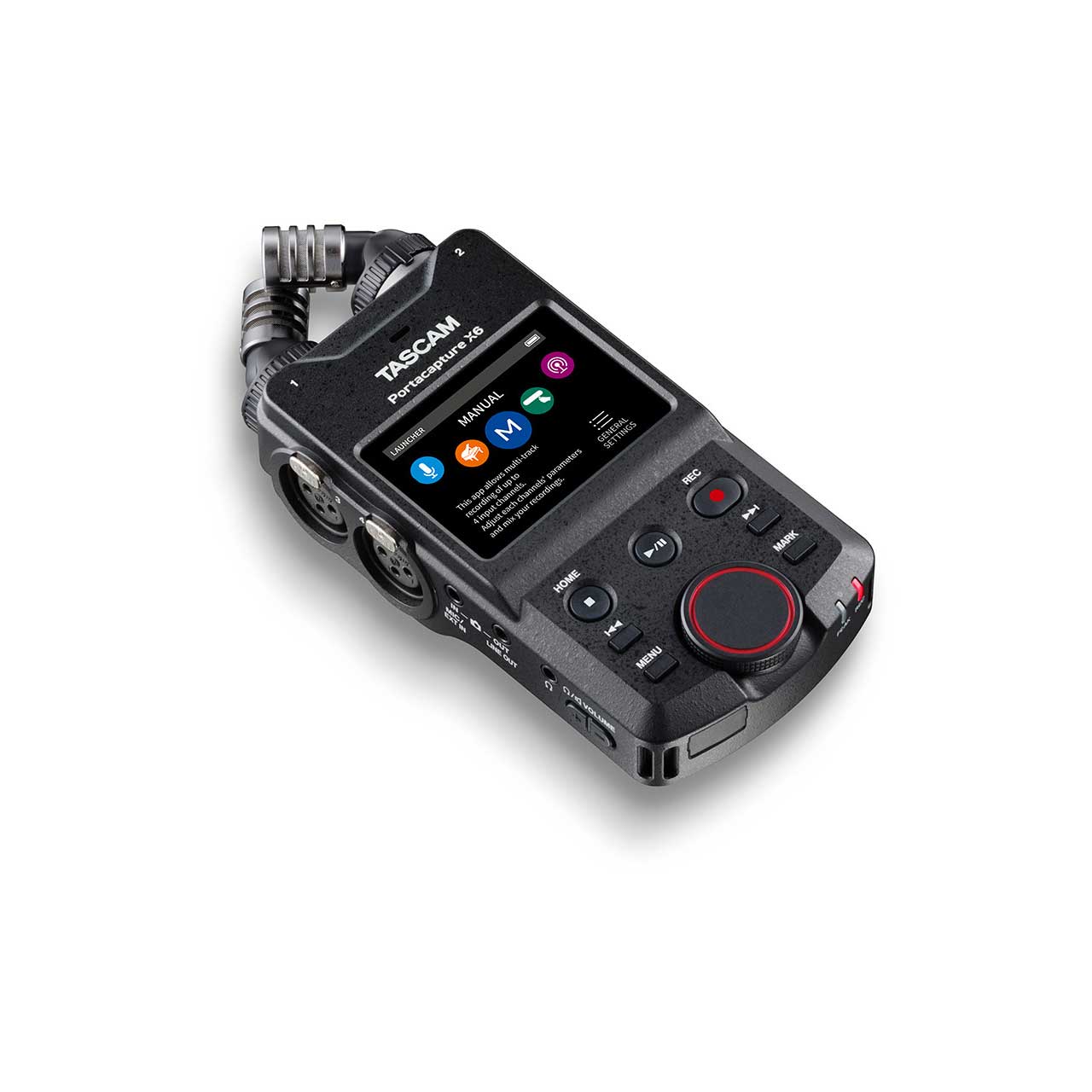

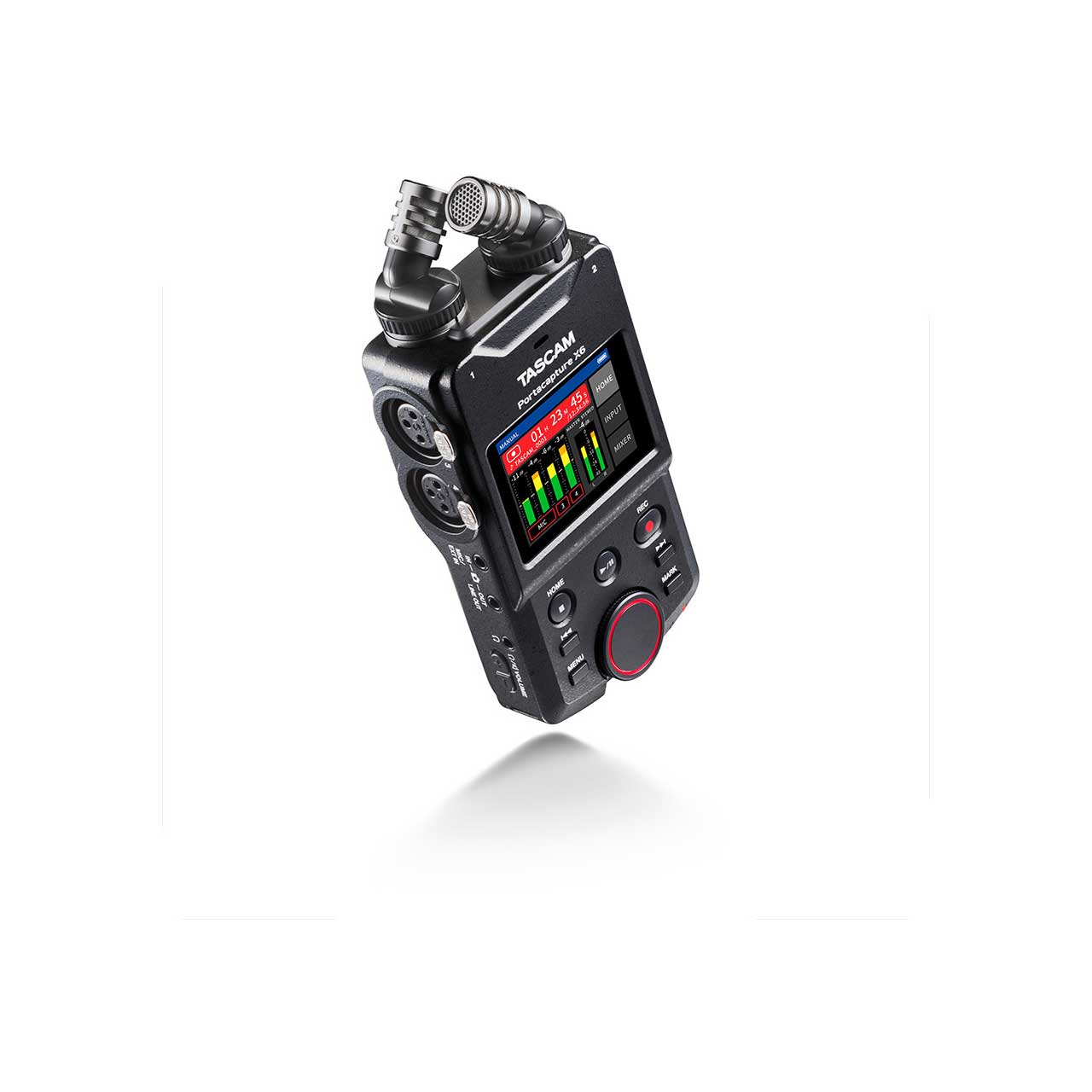

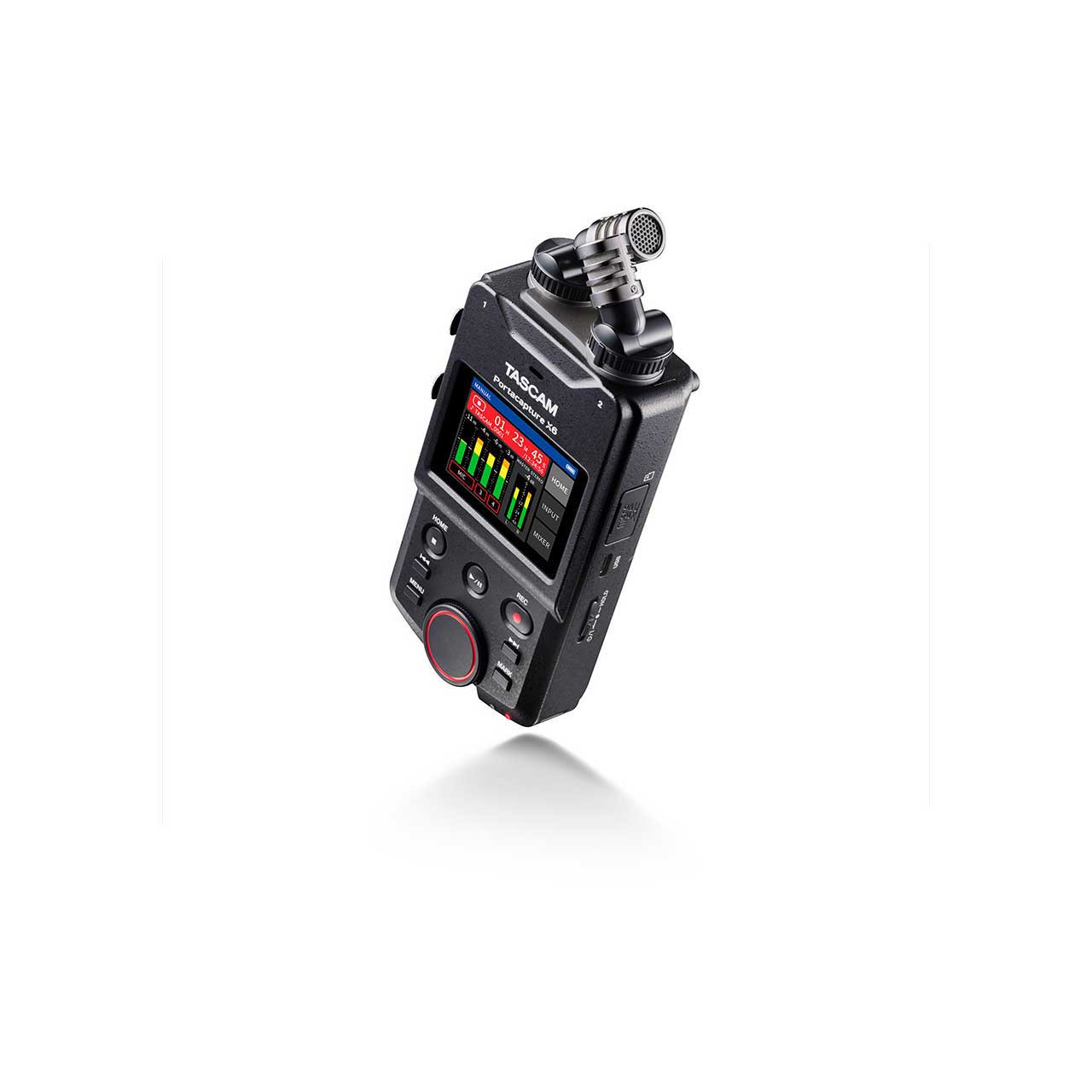

Tascam Portacapture X6 High Resolution Portable Handheld Multitrack Audio Recorder

PORTACAPTURE X6 - Overview

• Features:

  • Enjoy intuitive app-like controls on the X6, all using the large 2.4-inch touchscreen. Easy-to-use recording, pre-production and post-production capabilities are just a touch away.
  • Capture using up to 96 kHz, 32-bit float recording
  • Record 6 tracks (4 track + 2 mix) simultaneously
  • Easy-to-use recording pre-sets: Select from music, podcast, interviews, field recording and 6-track multi-track for the ideal recording setup for your needs.
  • 2 XLR inputs and dual built-in mics with switchable AB/true-XY patterns
  • The 2 XLR input terminals are compatible with phantom power (24V/48V) to support recordings with multiple mic/line inputs
  • Undistorted recording processing enables safe recording without lowering the S/N ratio with 32-bit float processing
  • Equipped with a 6-in/2-out USB audio interface function

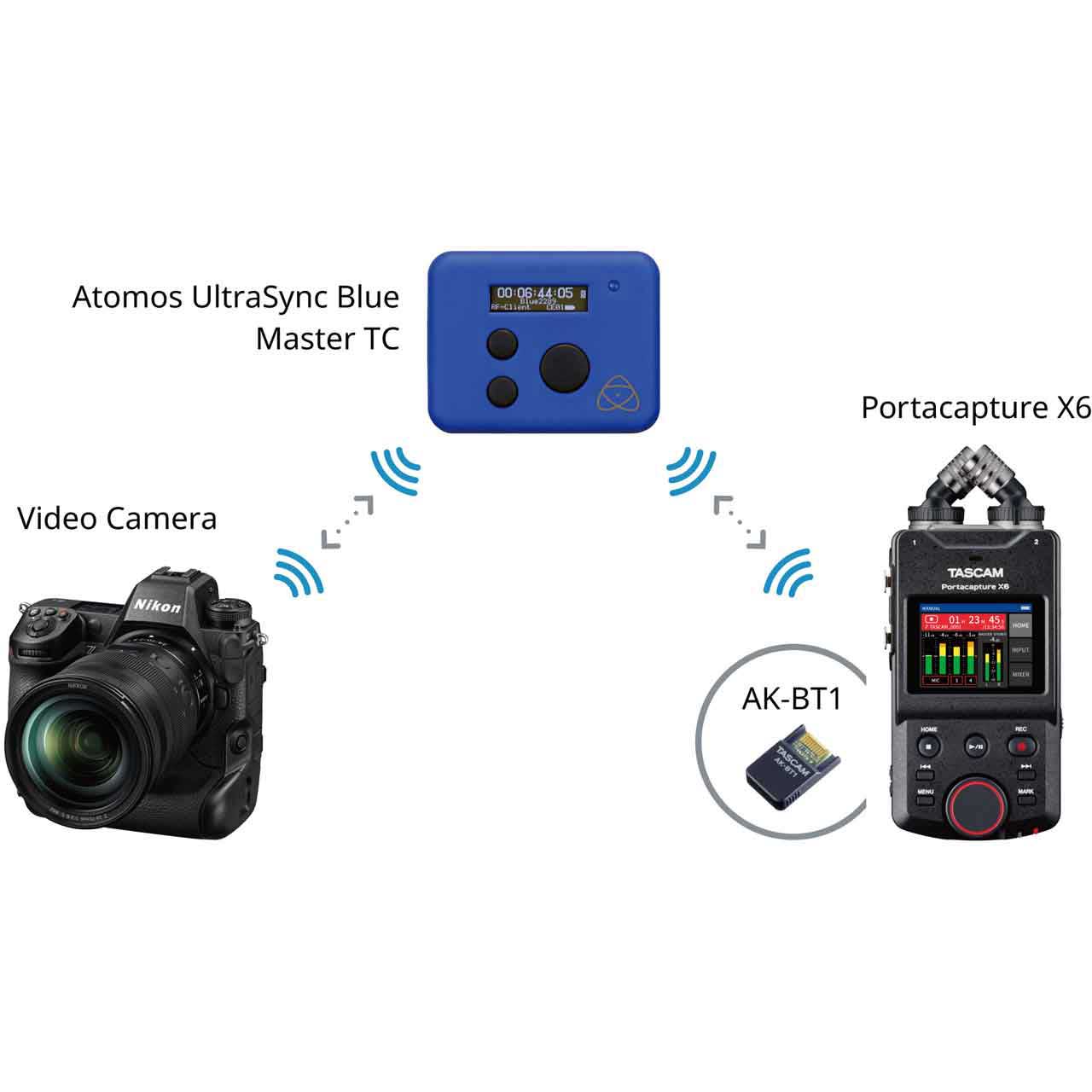

  • Wireless remote control from smartphones/tablets is possible with the optional AK-BT1 Bluetoothr adapter (sold separately). Timecode sync is also possible via Bluetoothr (*Timecode sync will be supported from V1.10 firmware update)


• Specifications:

  • Recorder
  • Recording media: microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (48GB - 512GB) Please Note: Class 10 or higher required
  • Recording / playback formats: WAV (BWF): 44.1k/48k/96kHz, 16/24-bit, 32-bit float, MP3: 44.1k/48kHz, 128k/192k/256k/320kbps

    Number of channels
  • Input channels: 4 channels maximum
  • Recording tracks: 6 tracks maximum (4 tracks, stereo mix)
  • Analog audio input ratings

    Mic inputs (balanced)
    Input jacks 3-4(when INPUT SELECT set to MIC):
  • Connectors: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
    Note: supports phantom power only when MIC input selected
  • Input impedance: 2.2kΩ or higher
  • Maximum input level: +2dBV
  • Minimum input level: -75dBV
    Input jacks 3-4 (when INPUT SELECT set to LINE):
  • Connectors: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
  • Input impedance: 9kΩ or higher
  • Nominal input level: +4dBu(GAIN setting at minimum)
  • Maximum input level: +24dBu
  • Minimum input level: -53dBu
  • Line input (unbalanced): MIC/EXT IN jack (can provide plugin power)
  • Connectors: 3.5mm (1/8") stereo mini jack
  • Input impedance: 10 kΩ or higher (when plug-in power is off ), 1.8 kΩ or higher (when plug-in power is on)
  • Nominal input level: -20 dBV(GAIN setting at minimum)
  • Maximum input level: 0 dBV
  • Minimum input level: -67 dBV
    Analog audio output ratings:
  • Line output (unbalanced): LINE OUT jack
  • Connectors: 3.5mm (1/8") stereo mini jack
  • Output impedance: 210Ω
  • Nominal output level: -14dBV
  • Maximum output level: +6 dBV
  • Headphone output: headphone jack
  • Connectors: 3.5mm (1/8") stereo mini jack
  • Maximum output: 45mW + 45mW (THD+N 0.1% or less, into 32 Ω load)
  • Built-in speaker: 0.4 W (mono)

    USB
  • Port: USB Type-C
  • Transfer mode: USB 2.0 Hi-Speed
  • Device classes: mass storage,USB audio 2.0 (USB class compliant)

    USB audio
  • Sampling frequencies: 44.1, 48, 96 kHz
  • Quantization bit depth: 24-bit
  • Number of input channels: 6 (output from unit)
  • Number of output channels: 2 (input to unit)
  • Bluetooth device connector: For Bluetooth adapter (AK-BT1) only

    Portacapture Control
  • iOS/iPadOS devices: iOS 16/iPadOS 16,iOS 15/iPadOS 15,iOS 14/iPadOS 14
  • Note: iPadOS 16 is currently being tested.
  • Android devices: Android 11,Android 10
    Note: Compatibility has been confirmed, but this does not guarantee operation with all devices.
  • Power: 4 AA batteries (Alkaline, Ni-MH or Lithium-ion), USB bus power from a computer, TASCAM PS-P520U AC adapter (sold separately)
  • Power consumption: 7.5W (maximum)
  • Dimensions (WxHxD) Excluding Protrusions: 2.95 x 6.86 x 1.46"
  • Weight: 0.58/.80Lbs (with/without batteries)
  • Operating Temperature Range: 32° to 104°F

    Audio performance
  • Mic amp EIN (equivalent input noise): Input jack 3-4 (MIC IN): -125 dBu or less
  • Frequency response: Input jacks 3-4 to PCM data: 20Hz - 20kHz at 48kHz: +0/-0.3dB (JEITA) 20Hz - 40kHz at 96kHz: +0/-0.4dB (JEITA)
  • Dynamic range: Input jacks 3-4 to PCM data (20kHz SPCL LPF, A-weighting): 112dB or higher (at 48kHz) 112dB or higher (at 96kHz)
  • Total harmonic distortion ratio (THD+N): Input jacks 3-4 (LINE IN) to PCM data, 1kHz sine wave,-5 dBFS input, GAIN at minimum, 20kHz SPCL LPF: 0.008% or less
  • Input jacks 3-4 (MIC IN) to PCM data, 1kHz sine wave,-5 dBFS input, GAIN at minimum, 20kHz SPCL LPF: 0.006% or less

    Computer system requirements
  • Windows: Compatible computers: Windows computer with a USB 2.0 (or higher)
  • Mac: Compatible computers: Mac with a USB 2.0 (or higher)


• Item Includes:

  • 1x Portacapture X6
  • 4x AA alkaline batteries
  • 1x Owner's Manual (including warranty)
  • 1x TASCAM ID registration guide


• GTIN:

  0043774035434
