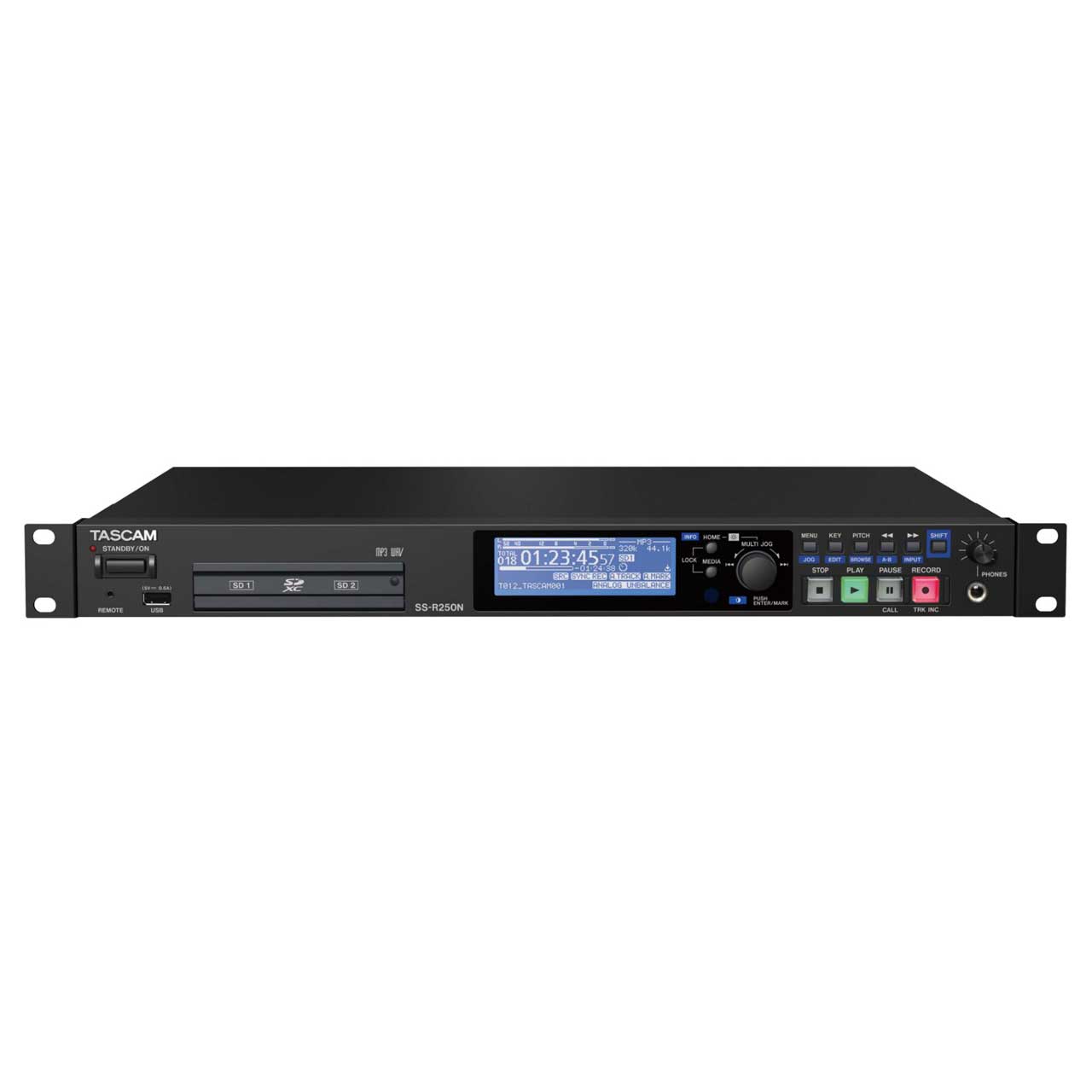

Tascam SS-R250N Solid-State Memory Recorder with Networking and Optional Dante Support

SS-R250N - Overview

• Features:

  • FTP Client function enables automatic uploading of recorded files or downloading audio files from the server
  • Event List for recording, playback, download and other functions can be operated automatically based on the time set
  • Time setting via SNTP Client function enables event management with more accuracy
  • Automatic Upload function enables recorded files to be uploaded automatically
  • Serial and parallel port connections
  • Supports recording and playback of high-resolution files up to 96kHz / 24bit

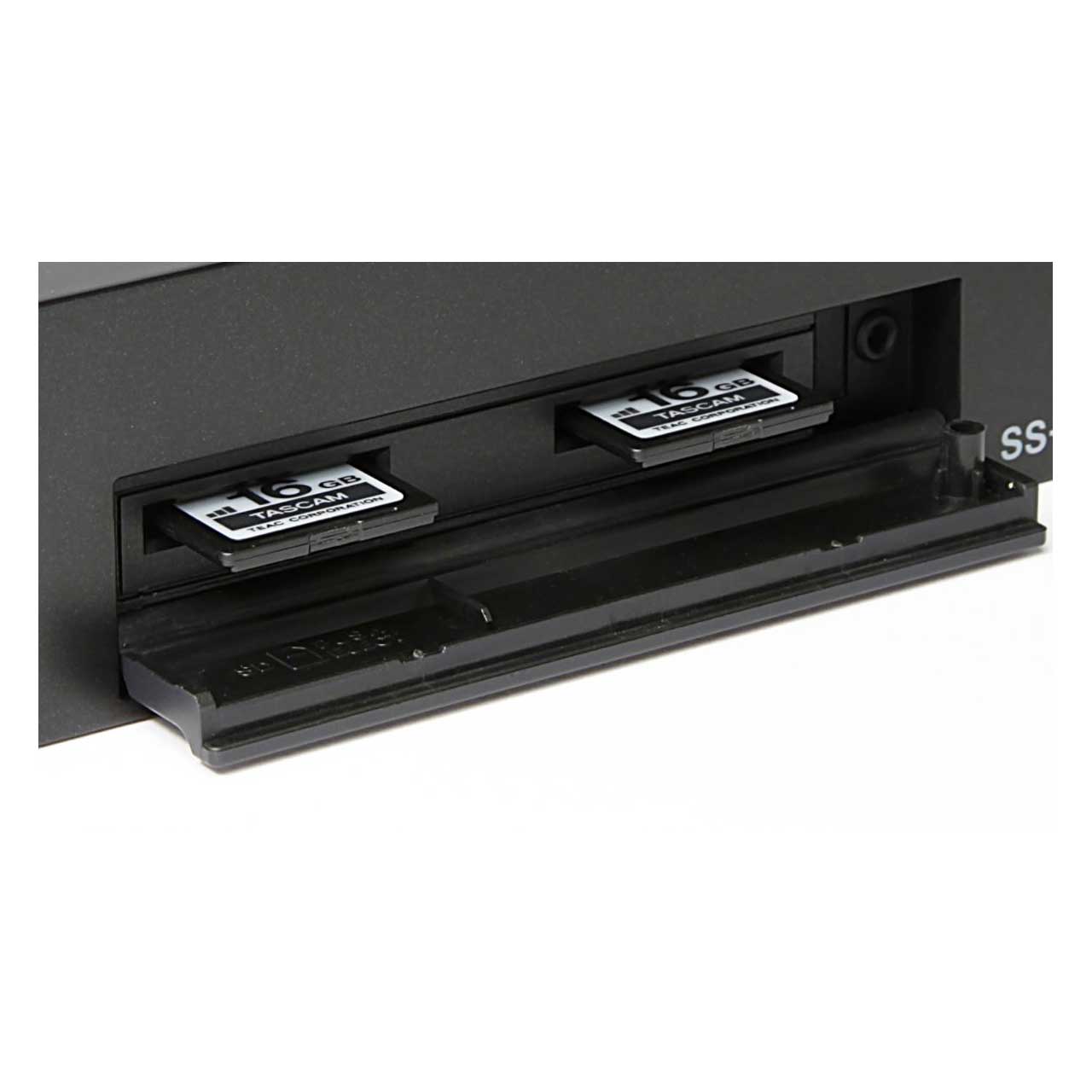

  • Dual SD memory card slot permits mirror and relay recording
  • Auto mark function: When an error occurs or input level overloads, the time point will be marked automatically
  • PRE REC function to prevent any missing part in your recording
  • Auto track function automatically trims the tracks
  • Compressor and limiter included
  • Auto level control function automatically adjusts the input level for recording
  • Starts recording as soon as the unit is turned on with Power-on-record function
  • Microphone input connector with phantom power supply
  • Direct recording function enables the recording starts right away without any standby
  • Call function that saves the position where your last playback starts
  • Playback modes such as Program, Random, and Single
  • Ducking function automatically adjusts the playback volume while the input level increases or decreases
  • All repeat / A-B repeat function
  • Incremental play function to transport to the beginning of the next track
  • Monaural mix playback function
  • Auto Cue function tracks the first sound in the playback for standby
  • Auto ready function allows a standby before the next track begins
  • Pitch control and key control function for speed and key adjustments
  • EOM (End of message) notification available before the track ends
  • Sampling rate converter for inputs and outputs are available
  • Link playback function allows two units to be operated at the same time
  • Automatic file closing process to avoid data loss if there is a sudden power loss during recording
  • 1U rack-mount size


• Specifications:

  • Recording/Playback Media
  • SD: SDHC card (4GB to 32GB), SDXC card (64GB to 128GB)
  • USB: USB Flash memory (2GB to 64GB)

    File Format
  • MP3: 44.1k/48k Hz, 64k/128k/192k/256k/320k bps
  • WAV: 44.1k/48k/96k Hz, 16/24 bit
  • Number of channels: 2(stereo), 1(mono)

    Analog Audio Inputs/Outputs
  • UNBALANCED: Connector: RCA jacks; Nominal input level: -10dBV (0.316Vrms); Maximum input level: +6dBV (2.0Vrms); Input impedance: 10kΩ (Input), 200Ω (Output)
  • BALANCED: Connector: XLR-3-31, (1:GND, 2:HOT, 3:COLD), 6.3mm(1/4") standard TRS stereo jack (Input Only)

    Line Input
  • Nominal input level: +4dBu(1.23Vrms, Ref.Level other than -9dBFS); +6dBu(1.55Vrms, Ref.Level -9dBFS)
  • Maximum input level: +15dBu(4.36Vrms, Ref.Level -9dBFS); +18dBu(6.16Vrms, Ref.Level -14dBFS); +20dBu(7.75Vrms, Ref.Level -16dBFS); +22dBu(9.76Vrms, Ref.Level -18dBFS); +24dBu(12.28Vrms, Ref.Level -20dBFS)
  • Input impedance: 10kΩ (Input), 200Ω (Output)

    Mic Input
  • Maximum input level: +4dBu (1.23Vrms)
  • Minimum input level: -70dBu (245uVrms) or more
  • Input impedance 2.2kΩ

    Digital Audio Inputs
  • AES/EBU Connector: XLR-3-31
  • Input impedance: 110Ω
  • Format: AES3-2003/IEC60958-4(AES/EBU)
  • Supported sampling frequencies: 44.1k / 48k / 96k Hz
  • S/PDIF Connector: RCA jack
  • Format: IEC60958-3
  • Supported sampling frequencies: 32k to 96k Hz

    Digital Audio Outputs
  • AES/EBU Connector: XLR-3-32
  • Output impedance: 110Ω
  • Format: AES3-2003/IEC60958-4(AES/EBU)
  • Supported sampling frequencies: 44.1k / 48k / 96k Hz
  • S/PDIF Connector: RCA jack
  • Format: IEC60958-3

    Control Input/Output
  • Remote (Front) Connector 2.5mmTRS jack (TASCAM RC-3F, RC-20 sold separately)
  • RS-232C Connector: D-sub 9 pin
  • Parallel Connector: D-sub 25 pin
  • Phones Connector: Standard 6.3mm (1/4") stereo jack; Maximum output: 45mW+45mW(THD+N 0.1% or less, into 32Ω load)

    Physical
  • Power: AC 100V to 240V, 50/60Hz
  • Power consumption: 20W
  • Dimensions: 482.6(W)x45(H)x300.5(D)mm
  • Weight: 2.9kg
  • Operating temperature range: 5 to 35°C


• GTIN:

  0043774032631
