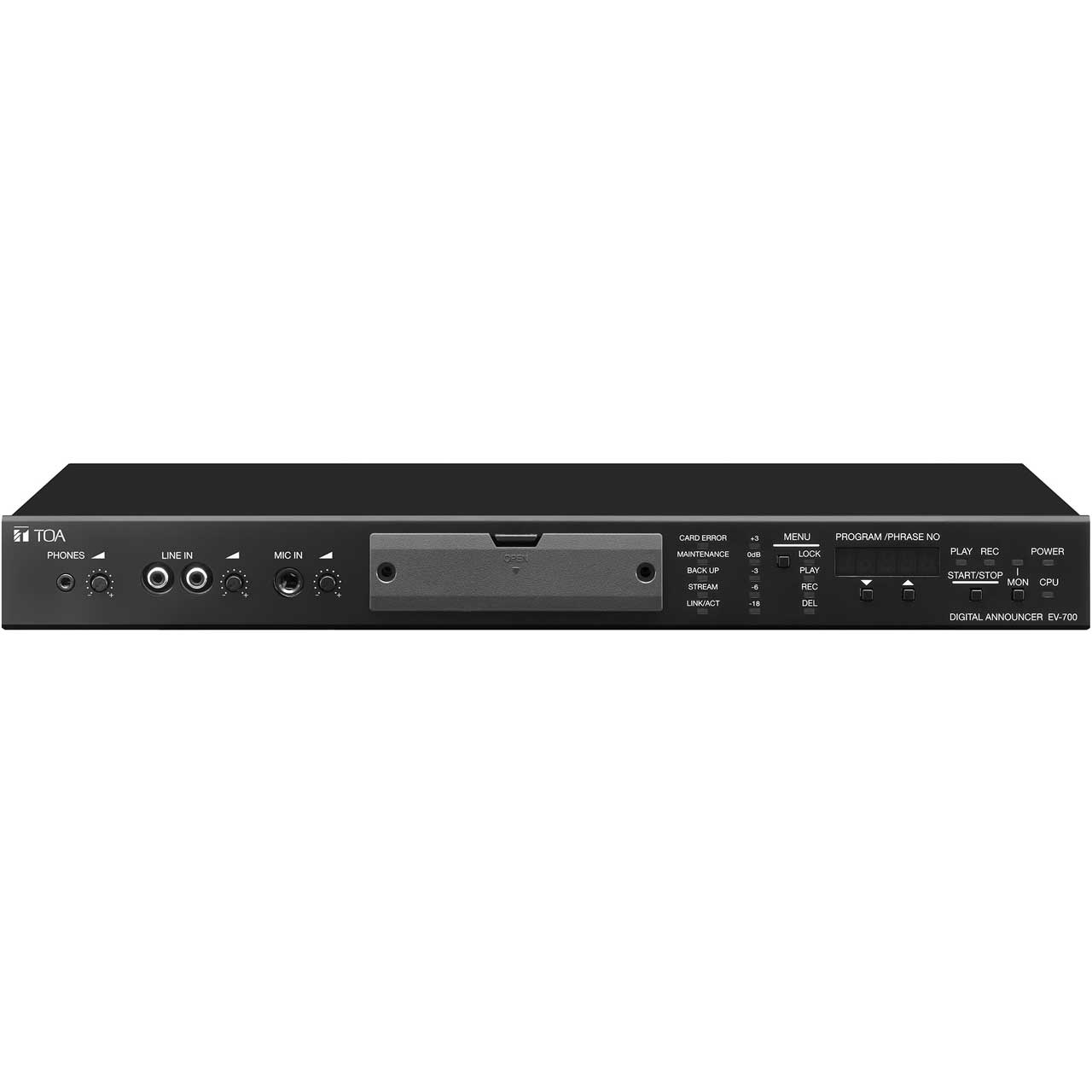

TOA EV-700PS Rack-Mountable Digital Message Repeater

ITEM #: TOA-EV700PS MFG #: EV700PS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,833.00

Our Price:

$2,290.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EV700PS - Overview

The TOA EV-700 Digital Announcer provides numerous benefits for to your existing PA system in large facilities, ranging from retail stores and shopping malls to schools, factories and railway lines. The EV-700 permits easy manual distribution (or automatic activation by external device) of timed and repeated announcements, BGM and other audio programs with excellent sound quality. Creation and editing of various sound source files and programs, updating of settings and activation of announcements can be handled easily by direct input or managed remotely via a network. And prerecorded emergency messages are ready for broadcast the moment they are needed.

Note: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

  • Features:

    • Settings and control of the EV-700, and sound source rewriting via the network connection to a PC.
    • Simple operation for recording and repeat play in case of an emergency situation.
    • Quick start of chime broadcast using Prerecorded audio files contained in the supplied memory card.
    • Another memory card automatically takes over broadcast operation without interruption even if the memory card in use fails.
    • Plays recorded phrases combined as a program.
    • User assignable priority level to the programs. Audio files written to the memory card supplied with the unit

  • Specifications:

    • Power Source: Supplied from an external 24 V DC (21.6 - 26.4 V)/400 mA power supply, Removable terminal block (2 pins) or from an optional AD-246 AC adapter
    • Power Consumption: 10 W
    • Wave Format: 44.1 kHz/32 kHz sampling rate, 16 bits PCM, WAV file (monaural)
    • Sound Source Rewriting Method: LAN data transfer/Analog recording/
    • Direct write to memory card using the setting software
    • Audio Input: MIC: -55 dB*1 (microphone input volume control in maximum position), 600 O, unbalanced, o6.3 phone jack (2P)
    • LINE(rear): -20 dB*1 (line input volume control in maximum position), 10 kO, unbalanced, Removable terminal block (12 pins)
    • LINE(front): -29 dB*1 (line input volume control in maximum position), 10 kO, unbalanced, RCA pin jack
    • Audio Output : LINE 1, 2: 0 dB*1, 600 O, unbalanced, Removable terminal block (12 pins)
    • Headphones: 0 dB*1, 100 O, monaural, o3.5 mini jack (3P)
    • Frequency Response: 20 Hz - 20 kHz ±3 dB (1 kHz) 50 Hz - 14 kHz ±3 dB (IT-450 mounted, 1 kHz)
    • Distortion : 0.3 % or less (1 kHz, rated output)
    • Storage Media : Compatible with CompactFlashT specification Memory card
    • Number of Mountable Memory cards: 2 (1 Memory card containing preset sound sources is supplied. Backup operation available when 2 cards are mounted.
    • Number of Recordable Phrases: 32768
    • Maximum Recording Time: About 3 hours (at 44.1 kHz sampling rate) or about 4 hours (at 32 kHz sampling rate)
    • Audio Output Method: Single channel monaural

      Number of Playback Program
    • Direct mode: <16 programs
    • Binary mode: 256 programs 1 emergency message takes precedence over the above programs and is played back.
    • R.E.M. (Recording Endless Message) playback *2 can be performed.

      Control Input
    • Activations 1 - 16, playback, pause, recording, erasure/clear, emergency playback, emergency recording, emergency pause
    • No-voltage make contact input, pulse make length: 50 ms or more, open voltage: 30 V DC, short-circuit current:< 10 mA, Removable terminal block (16 pins)
    • Control Output : Shorting outputs 1 - 8 (busy), Error: contact capacity: 30 V DC, 0.5 A, Removable terminal block (8 pins)

    • Network
    • Network I/F: 100BASE-TX
    • Network protocol: TCP/IP, UDP, HTTP, FTP
    • Connector: RJ45 connector
    • Operating Display: 7-segment LED, 5 digits
    • Operating Temperature: 0 °C to 40 °C (32 °F to 122 °F)
    • Operating Humidity : 0 %RH or less (no condensation)
    • Finish: Panel: Aluminum, black, 30 % gloss, paint
    • Case: Pre-coated steel plate, black, 30 % gloss
    • Dimensions: 420 (W) x 44 (H) x 222 (D) mm (16.54" x 1.73" x 8.74")
    • Weight: 2.4 kg (5.29 lbs.)

  • Item Includes:

    • Memory card (Containing prerecorded audio files) x 1
    • Rubber foot x 4
    • Removable terminal plug (2 pins) x 1
    • Removable terminal plug (8 pins) x 2
    • Removable terminal plug (16 pins) x 2
    • Removable terminal plug (12 pins) x 2
    • Front cover fixing screw x 2
    • CD (setting software) x 1
