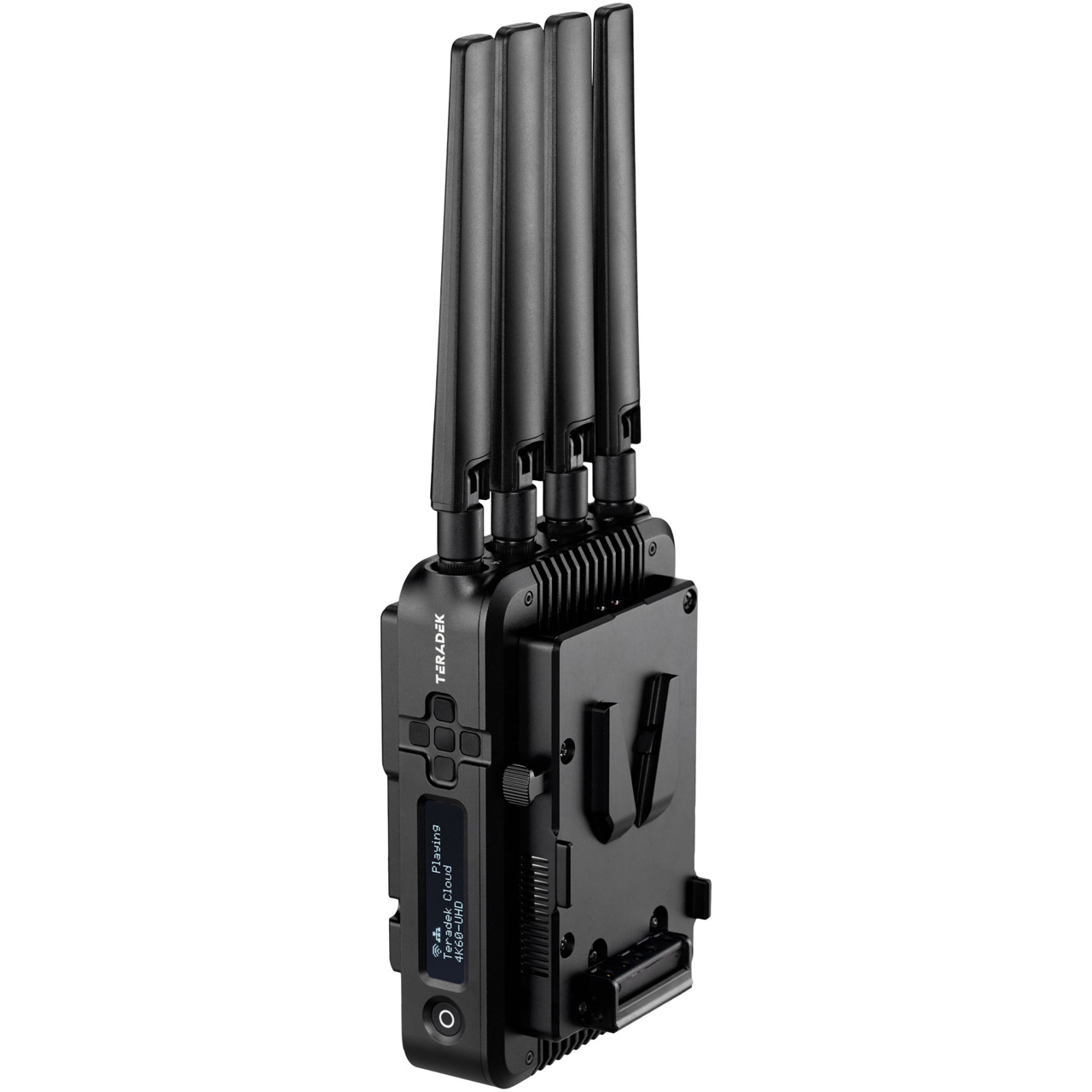

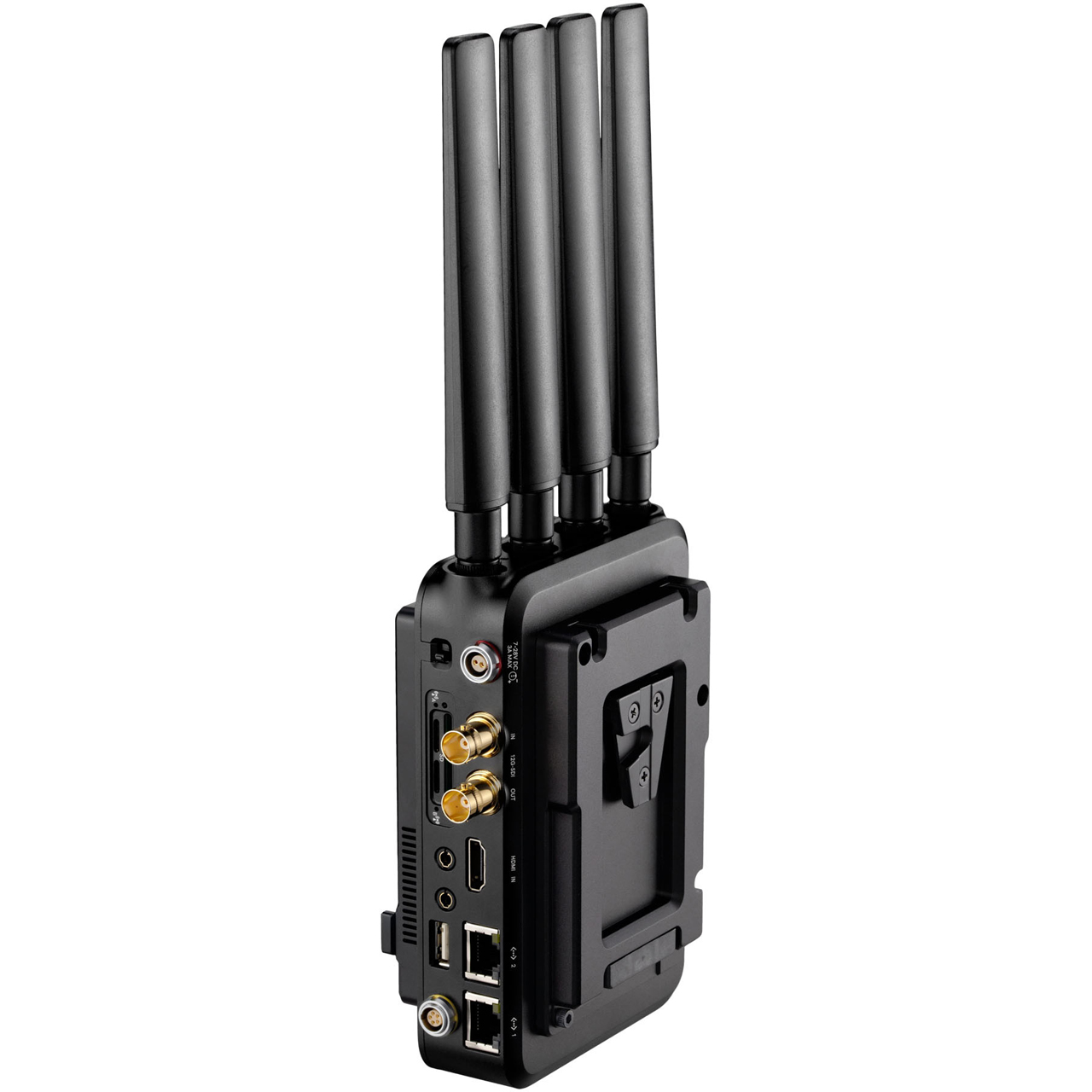

Teradek 857-CV Prism Mobile Mk II Camera Back Bonded Dual HEVC/AVC Video Encoder with 12G-SDI & HDMI out - V-Mount

ITEM #: TER-PRISM857-CVM MFG #: 10-2857-CV

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5,490.00

Our Price:

$4,990.00

Availability: In Stock
iAvailability Description Popup


10-2857-CV - Overview

Stream on the go over 5G networks

Introducing the most compact 5G bonded cellular encoder for live coverage from the field.

Prism Mobile is the lightest 5G and LTE-enabled camera-back video encoder on the market. Choose between the advanced 5G model or the deep value Mk II LTE version. Both systems provide high-performance cellular connectivity in cameraback or desktop form factors. With a flexible I/O and a compact, low-SWaP design, Prism Mobile easily fits into any workflow. Prism Mobile gives you 4K 10-bit HDR video transmission with integrated 5G or LTE network bonding for live coverage from any location. Prism Mobile can encode up to 4Kp60 video with stunning 10-bit 4:2:2 image fidelity paired with Stereo or 5.1 and 7.1 surround sound.

The Bonded Cellular Solution
Compact, low profile, and loaded with 5G connectivity, Prism Mobile is the ultimate contribution encoder for live coverage from the field.

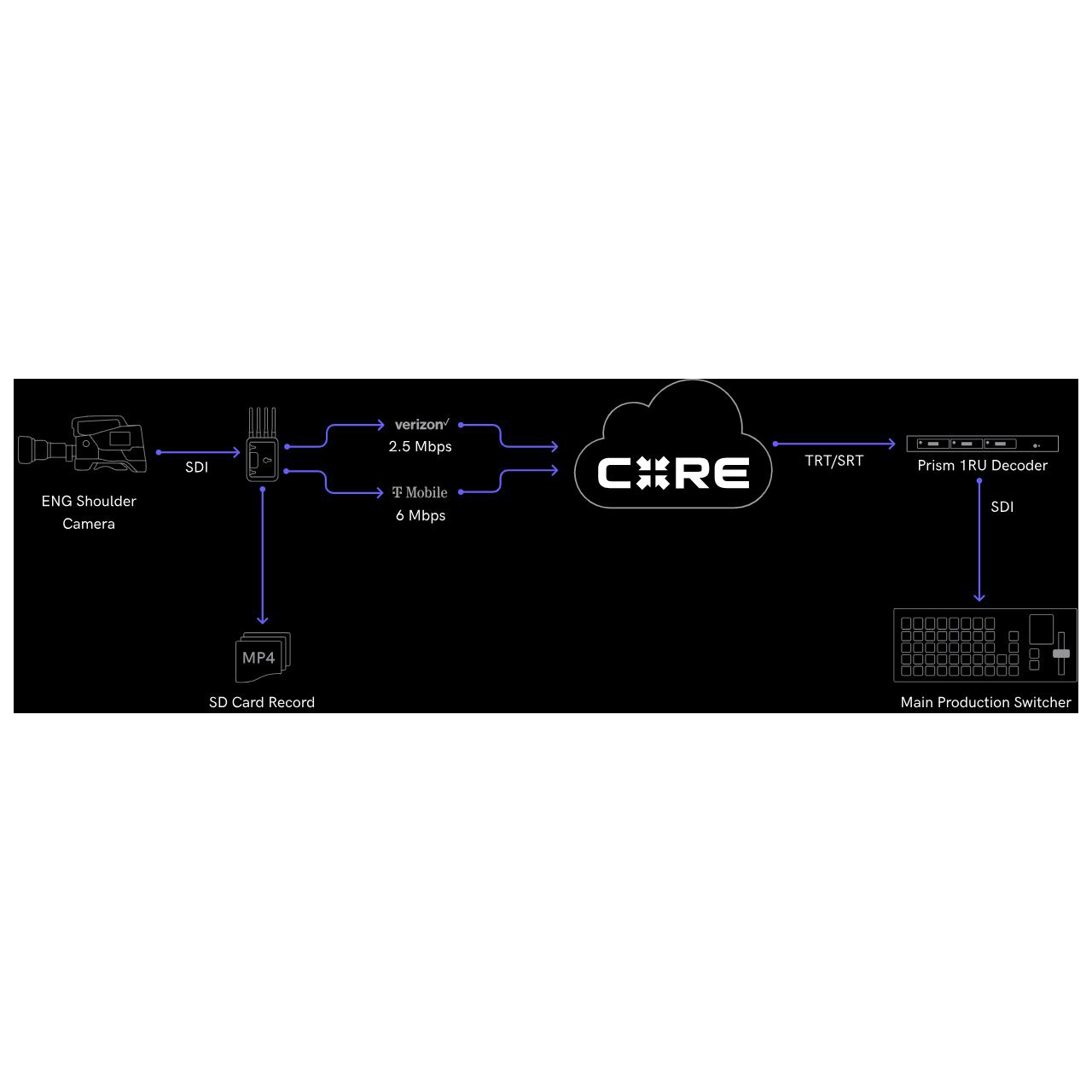

Mission-Critical Network Bonding
Get exceptional worldwide internet connectivity virtually anywhere you go with two internal high-throughput Node 5G modems uniquely designed for video applications. For maximum redundancy, Prism Mobile can bond up to nine network connections across Cellphone Hotspots (4x), Ethernet (2x), and Cellular Modems (3x) - ensuring your stream never misses a beat.

  • Features:

    • Low Latency: As low as 250ms over cellular
    • Multi-Track Audio: Up to 8 channels
    • Bonded Cellular: Up to 9x connections
    • Built-In Modems: 2x 5G / LTE
    • From HD to 4K: 4:2:2 | 10-bit HDR
    • On-Board Recording: Camera to Cloud ready

  • Specifications:

    • Video

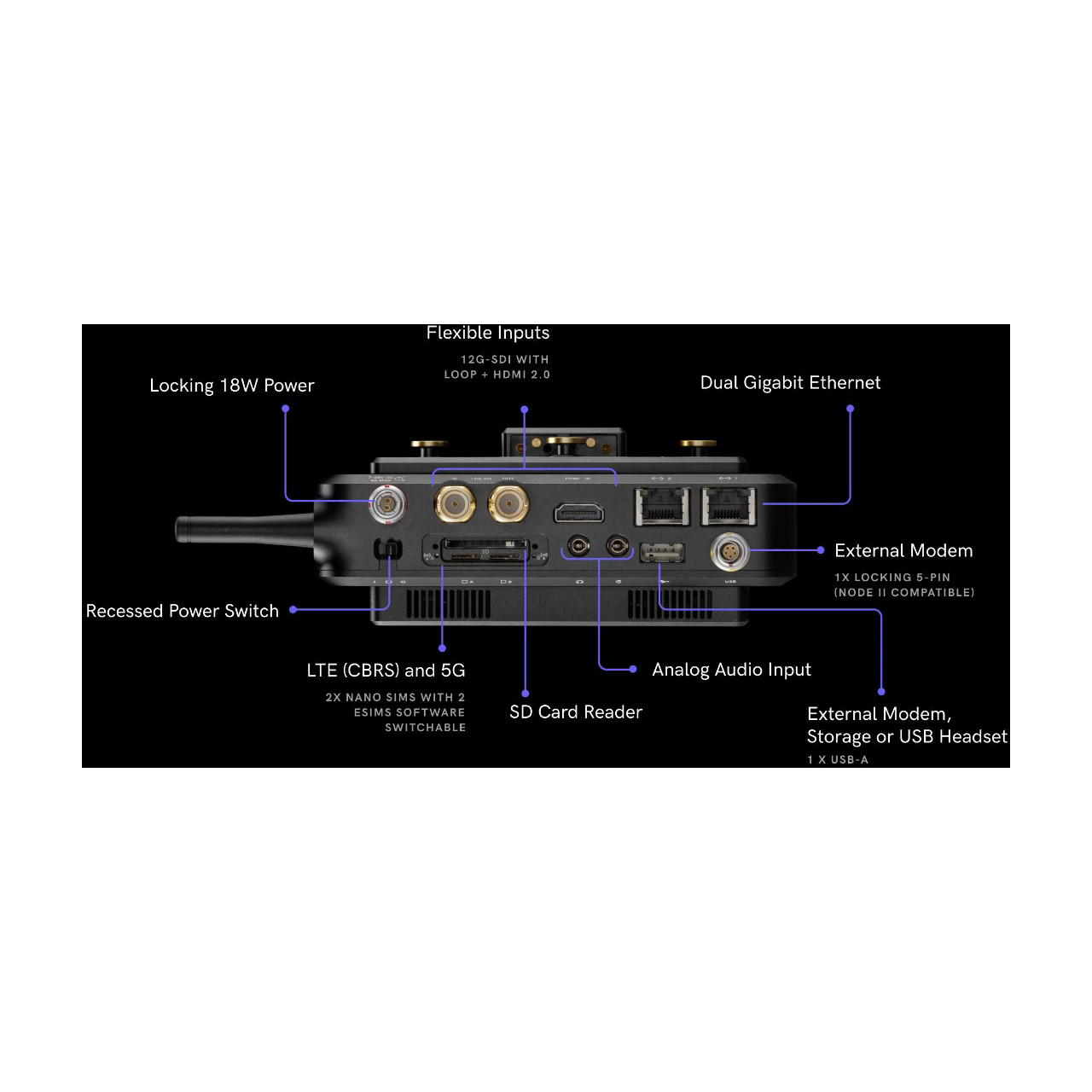

      Video Inputs
    • 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
    • 1x HDMI 2.0 Type-A receptacle

      Video Outputs
    • 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)

      Supported Resolutions
    • 4K DCI: p23.98/24/25/29.97/30/50/59.94/60
    • 4K UHD: UHD p23.98/24/25/29.97/30/50/59.94/60
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080i: 50/59.94/60
    • 1080PsF: 23/24/25/29/30
    • 720p: 50/59.94/60
    • 576i, 480i

      Audio

      Audio Compression
    • AAC-LC

      Audio Bitrate
    • 32kbps to 512kbps

      Audio Sample Rate
    • 48kHz

      Audio Input
    • Embedded over SDI, 3.5mm TRRS Stereo Line Level
    • Analog or Microphone in, adjustable gain

      Audio Output
    • 3.5mm Stereo Headphone output

      IFB
    • Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A)

      Protocol Support

      Network Protocols
    • TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

      Supported Video Transport Protocols
    • Teradek Reliable Transport (TRT)
    • Teradek Bonding Protocol
    • Secure Reliable Transport (SRT)
    • Reliable Internet Stream Transport (RIST)
    • RTMP/RTMPS
    • MPEG-TS DASH (UDP, TCP, TCP Server, Multicast)
    • RTSP/RTP
    • HLS Server
    • Integrated CDNs (YouTube, Facebook, Vimeo)
    • Airmix
    • WHIP

      Video Processing

      Video Compression/Decompression
    • ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
    • AVC: Baseline, Main, High
    • ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
    • HEVC: Main

      Supported Video Bitrate
    • 250 Kbps to 85 Mbps

      Video Format Conversion Support
    • Built in video scaler and deinterlacer

      HDR Support
    • Yes (2020-PQ, 2020-HLG, P3D65-PQ)

      Color Correction
    • CDL/1024 1D LUT (supports 10-bit color)
    • 33x33x33 3D LUT (supports 10-bit color)

      Bonding
    • TeraLink

      Recording
    • SD Card - Full size, USB Drive, NFS

      Camera to Cloud
    • Core Cloud, Frame.io, Sony Ci, Sony C3 Portal, PIX, Moxion, Avid

      Physical Attributes

      Construction
    • Milled aluminum

      Mounting Options
    • Camera-back, Gold, Gold 26V and V-Lock mounts
    • Can be mounted using the 1/4" 20 mounting holes

      Additional Modem Mounting
    • Prism Mobile Node Bracket via 1/4-20 and 2x M3 machine screws.

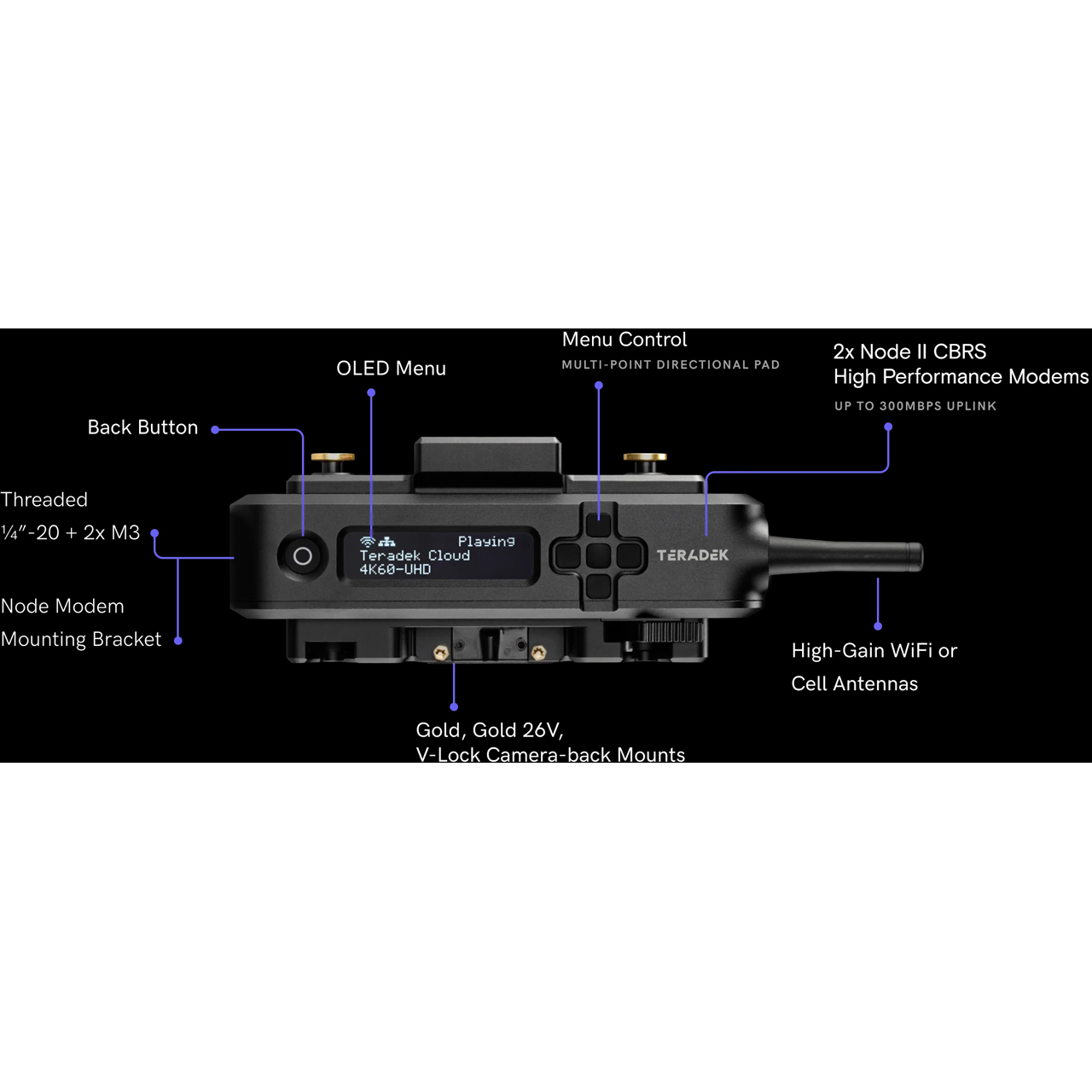

      Interfaces

      Configuration Interface
    • Core Cloud for remote device management
    • Feature-rich Web UI for local device management
    • Intuitive iOS configuration app (Prism App)
    • OLED Status Display w/ Nav control buttons

      Cellular
    • 2x Internal Node II LTE Modems (CBRS supported)

      USB Interface Functionality
    • 1x Powered LEMO with Node Modem support
    • 1x Powered USB-A with external storage support

      Ethernet
    • 2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45) 2

      Wireless
    • WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration

      Power

      Power Input
    • 2-pin circular locking connector, Gold, Gold 26V and V-Lock Battery Plates

      Voltage
    • 6-28V DC

      Nominal Power Consumption
    • 20W Nominal, 36W Max

  • Item Includes:

    • 1x Prism Mobile MK II
    • 1x V-Lock Battery Mount

  • Warranty:

    • 12 Month Limited Warranty
