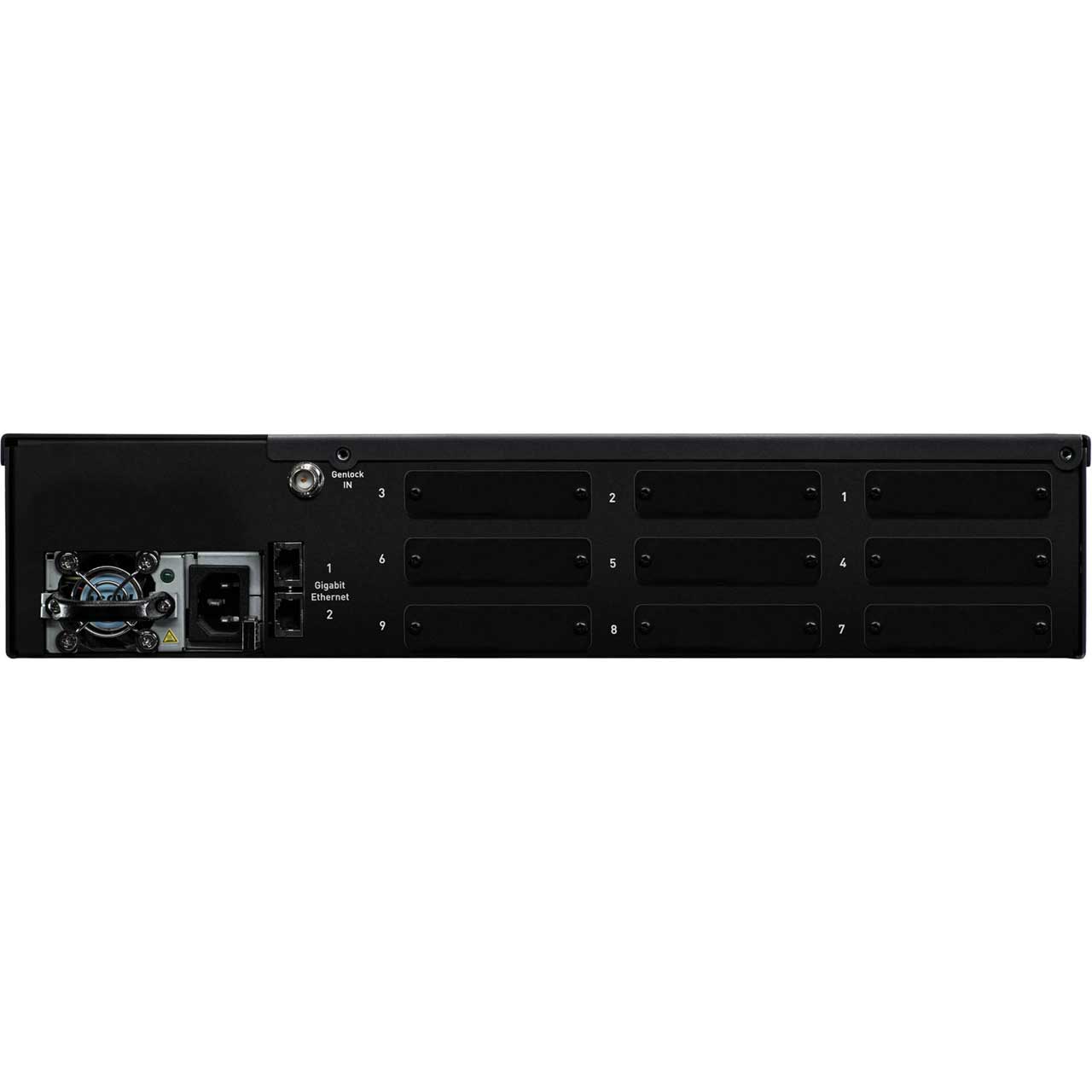

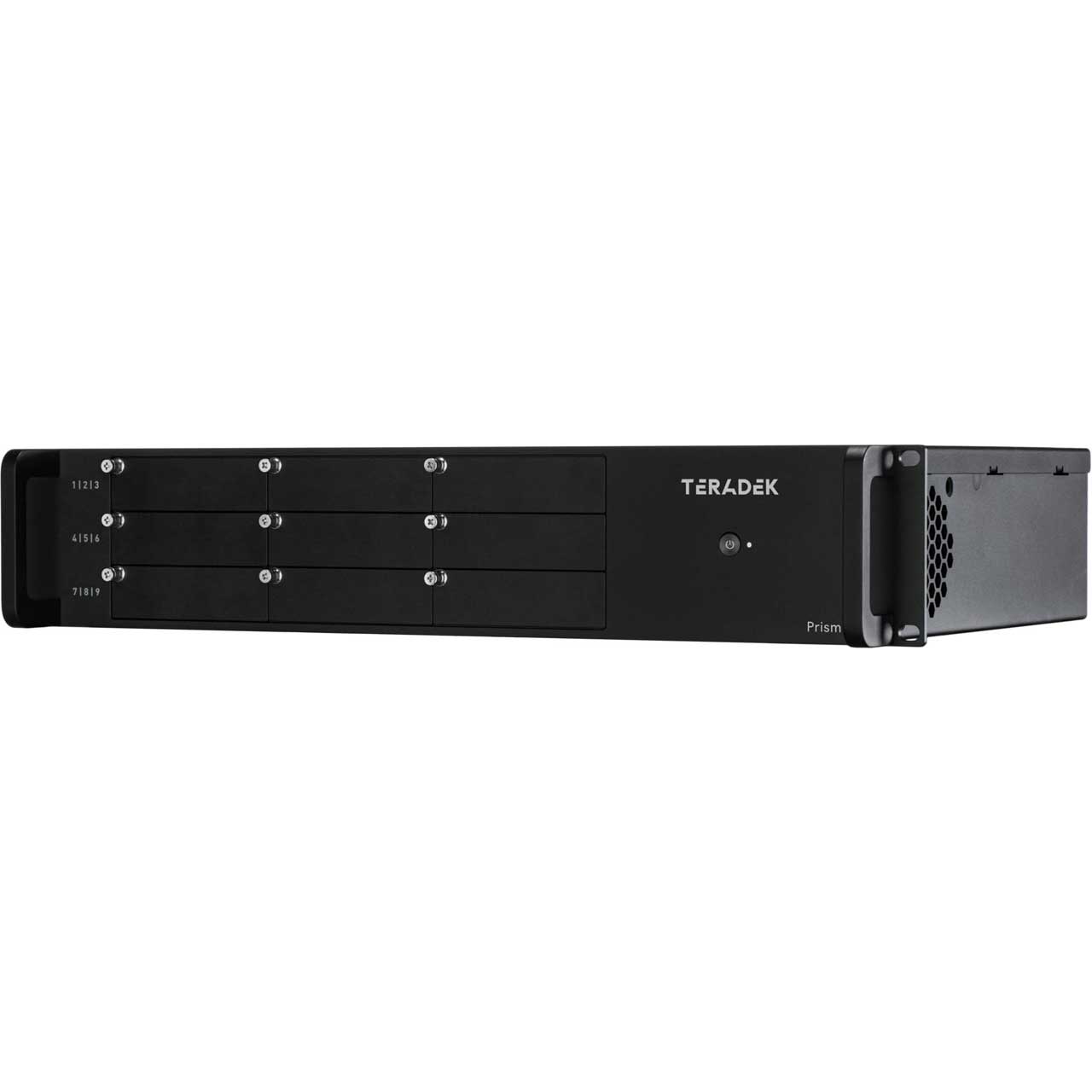

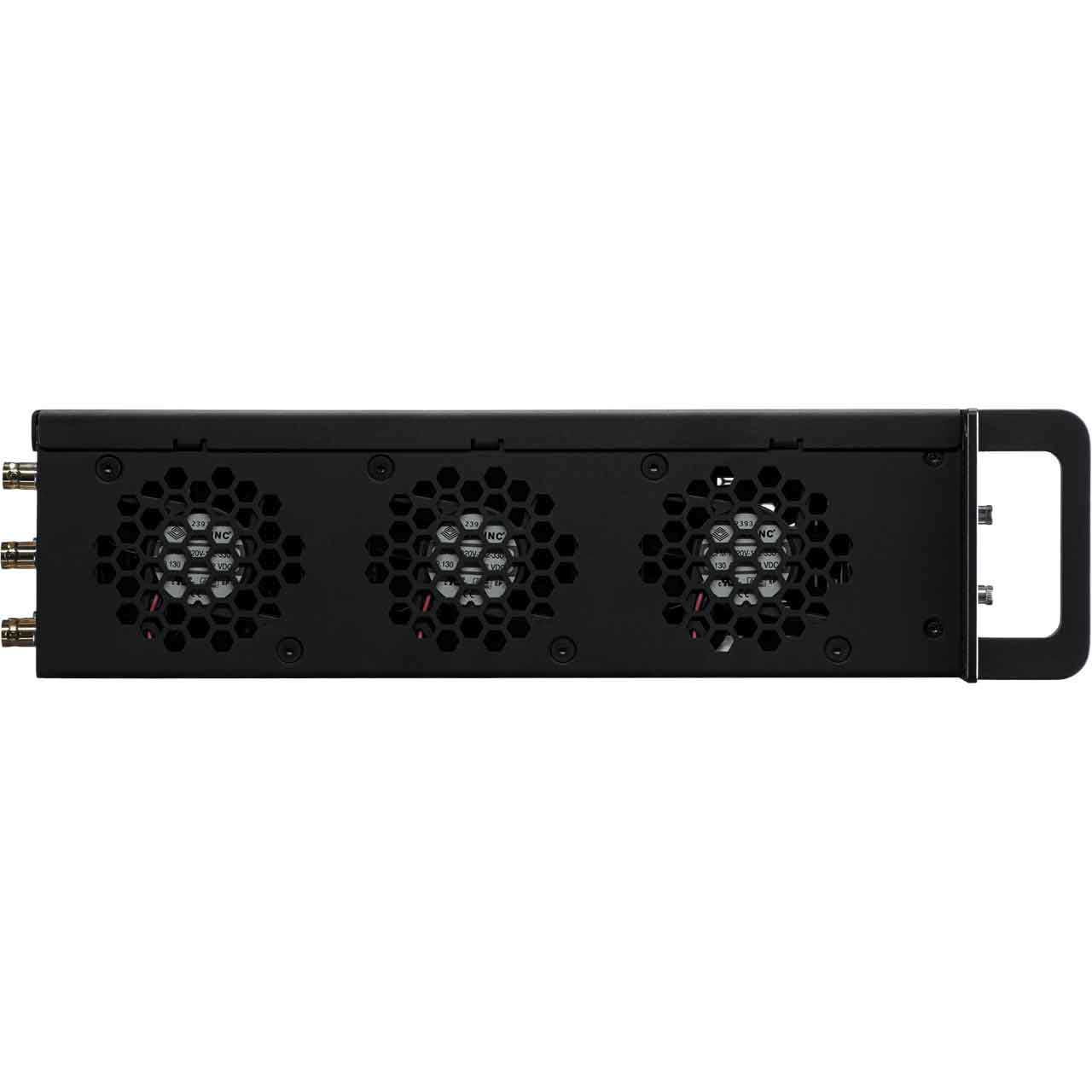

Teradek 10-2802 Prism 802 Base Rack System 2U

10-2802 - Overview

• Features:

  • 2RU rack mount chassis for Prism encoder and decoder cards
  • Supports up to 9 Prism encoder and/or decoder cards
  • Dual gigabit Ethernet ports
  • Optional redundant power supply


• Specifications:

  • Video
  • Genlock Input: COMING SOON

    Physical
  • Dimensions (WxDxH): 17" x 12.1" x 3.5" (431.8mm x 307.3mm x 88.9mm)
  • Weight: 8.90lbs (4040g)
  • Construction: Milled/Bent aluminum

    Interfaces
  • Http: No
  • Switches: On/Off

    Network
  • Ethernet: 2x 10/100/1000 Ethernet ports

    Power
  • Power Input:
    - Up to 2x 110/240V AC Power Input
    - Hot Swappable 495W Power Supply
  • Nominal Power Consumption: 15W + 15W per Codec Card

    Environmental
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)


• Item Includes:

  • 1x Prism Chassis Base Rack System 2U
  • 1x Power Cable IEC 10ft black USA
  • 1x Teradek Standard Terms and Conditions
  • 1x CORE Booklet
  • 1x Insert - Product Register
  • 1x Quickstart Guide - PRISM


• GTIN:

  0818264025895
