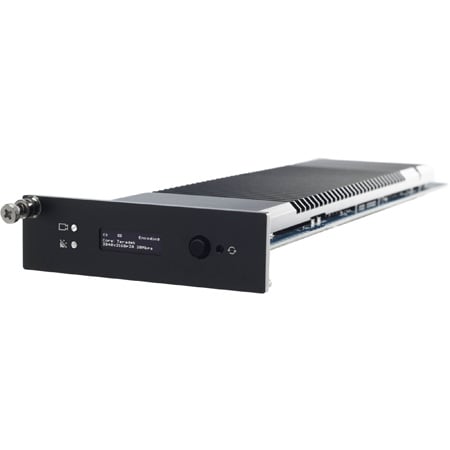

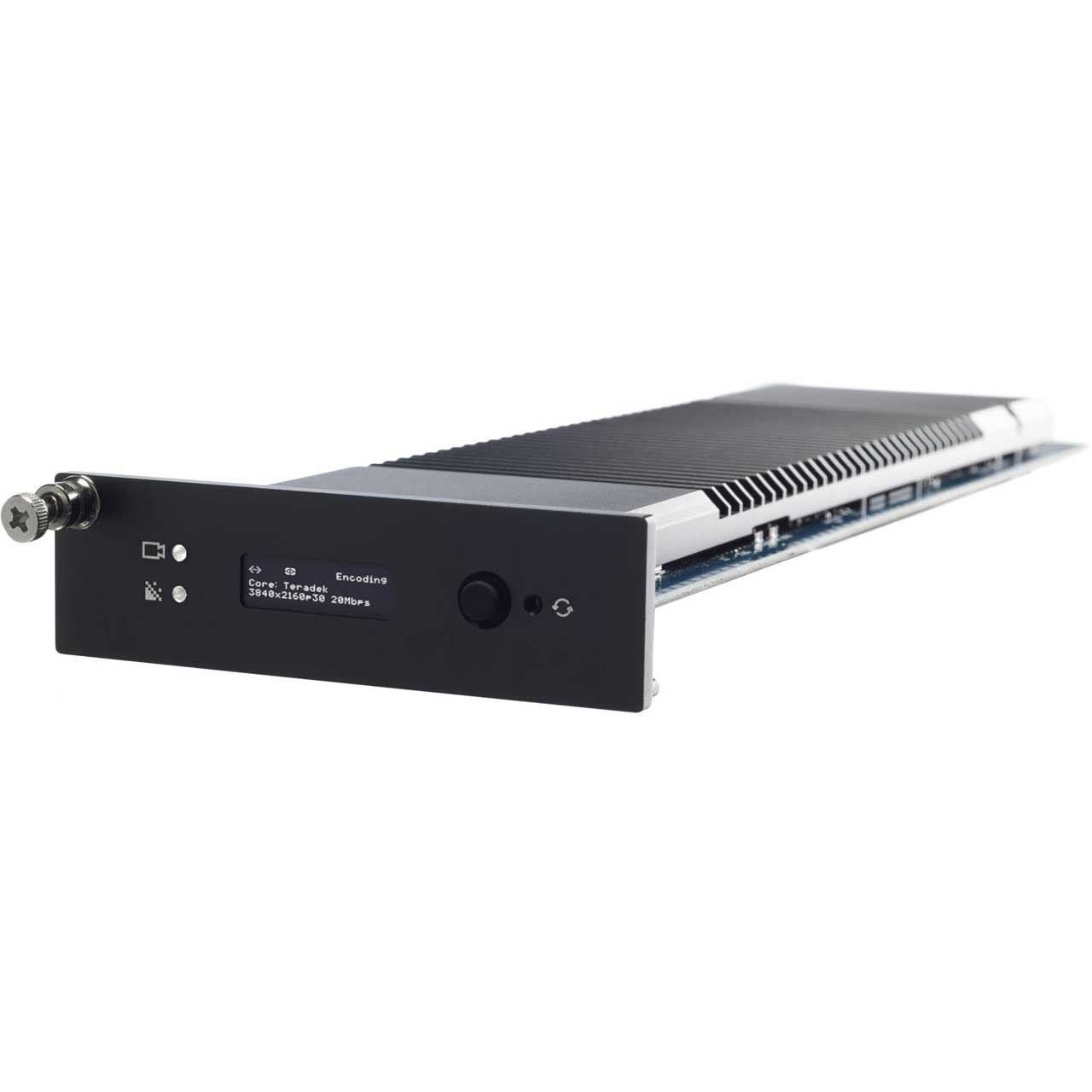

Teradek 10-2853 Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card

10-2853 - Overview

• Features:

  • Designed for Prism Rack Base System
  • HEVC/H.264 compression
  • Supports encoding up to 2160p60
  • HDR Ready: 10-bit, 4:2:2
  • Protocols: SRT, MPEG-TS, RTMP(S)
  • 12G-SDI input and looping output
  • 3.5mm analog audio input and output


• Specifications:

  • Video
  • Video Inputs: 1x SD/HD/3G/6G/12G-SDI (75Ω BNC)
  • Hdr Support: 10-bit, 4:2:2
  • Genlock Input: 75Ω BNC (From Chassis)
  • Video Outputs: 1x SD/HD/3G/6G/12G-SDI (75Ω BNC)

    Supported Resolutions
  • 4Kp 23.98/24/25/29.97/30/50/59.94/60
  • 1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1080i 50/59.94/60
  • 1080PsF 23/24/25/29/30
  • 720p 50/59.94/60
  • 576i 480i

    Video Processing
  • Video Compression:
    - ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
    - AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
    - ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
    - HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
  • Supported Video Bitrate: 250 Kbps to 85 mbps
  • Video Format Conversion Support: Built in Video Scaler and Deinterlacer
  • Color Correction: None

    Protocol Support
  • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
  • Supported Video Transport Protocols: RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT)
  • Remote Control: Teradek Core

    Audio Processing
  • Audio Compression: AAC-LC

    Audio Inputs
  • Embedded, 8 channels
  • 3.5mm Stereo Line Level Analog

    Audio Outputs
  • Embedded, 2 channels
  • 3.5mm Stereo Line Level Analog

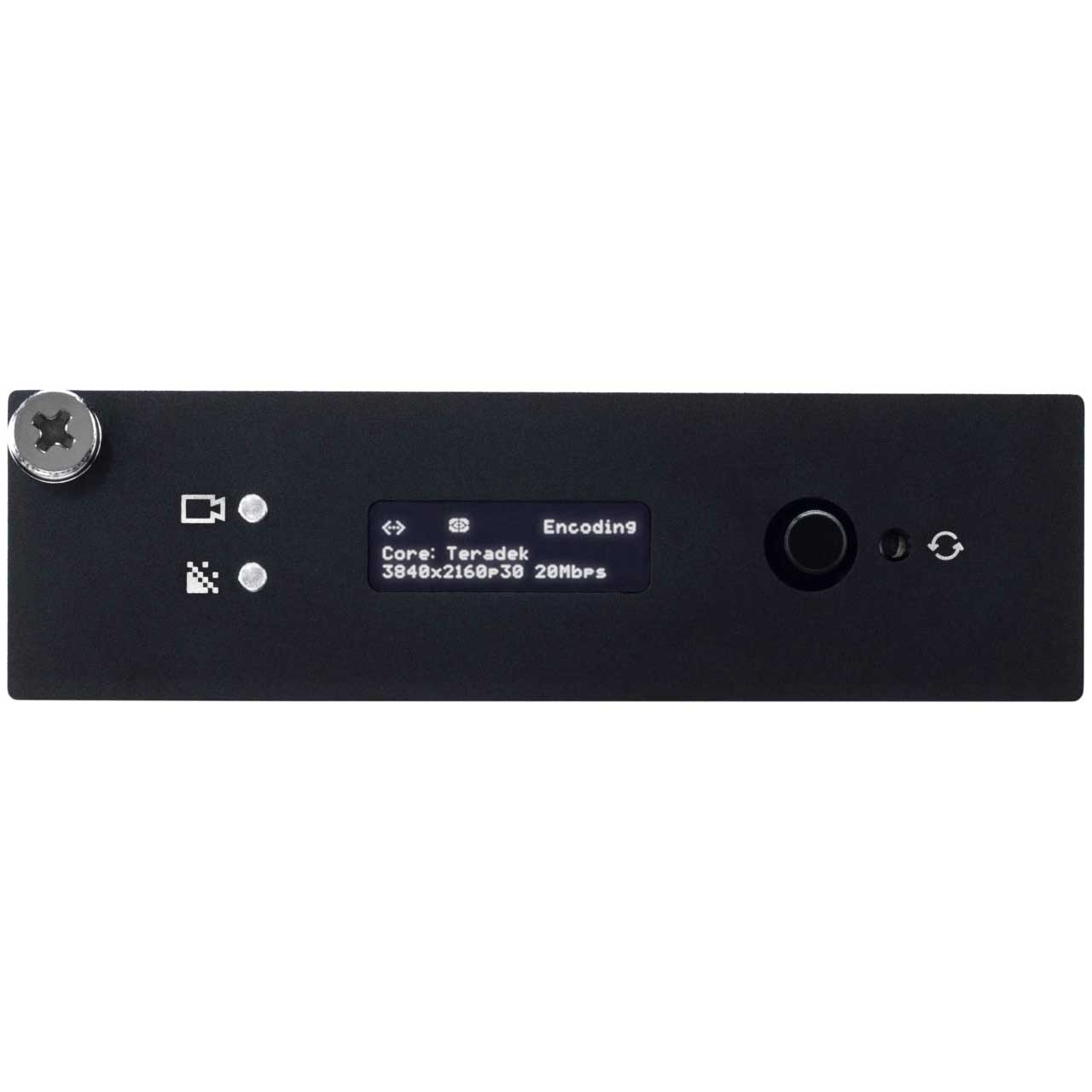

    Interfaces
  • Configuration Interfaces:
    - Feature-rich Web UI for configuration and control
    - 0.9" OLED Status Display w/ Nav control
    - Video LED
    - ENC/DEC LED
  • Switches: Reset Switch

    Power
  • Power Input: Powered By Chassis
  • Nominal Power Consumption: Up to 15W per card


• Item Includes:

  • 1x Prism 853 4K 10bit HEVC/AVC 12G-SDI Encoder Card

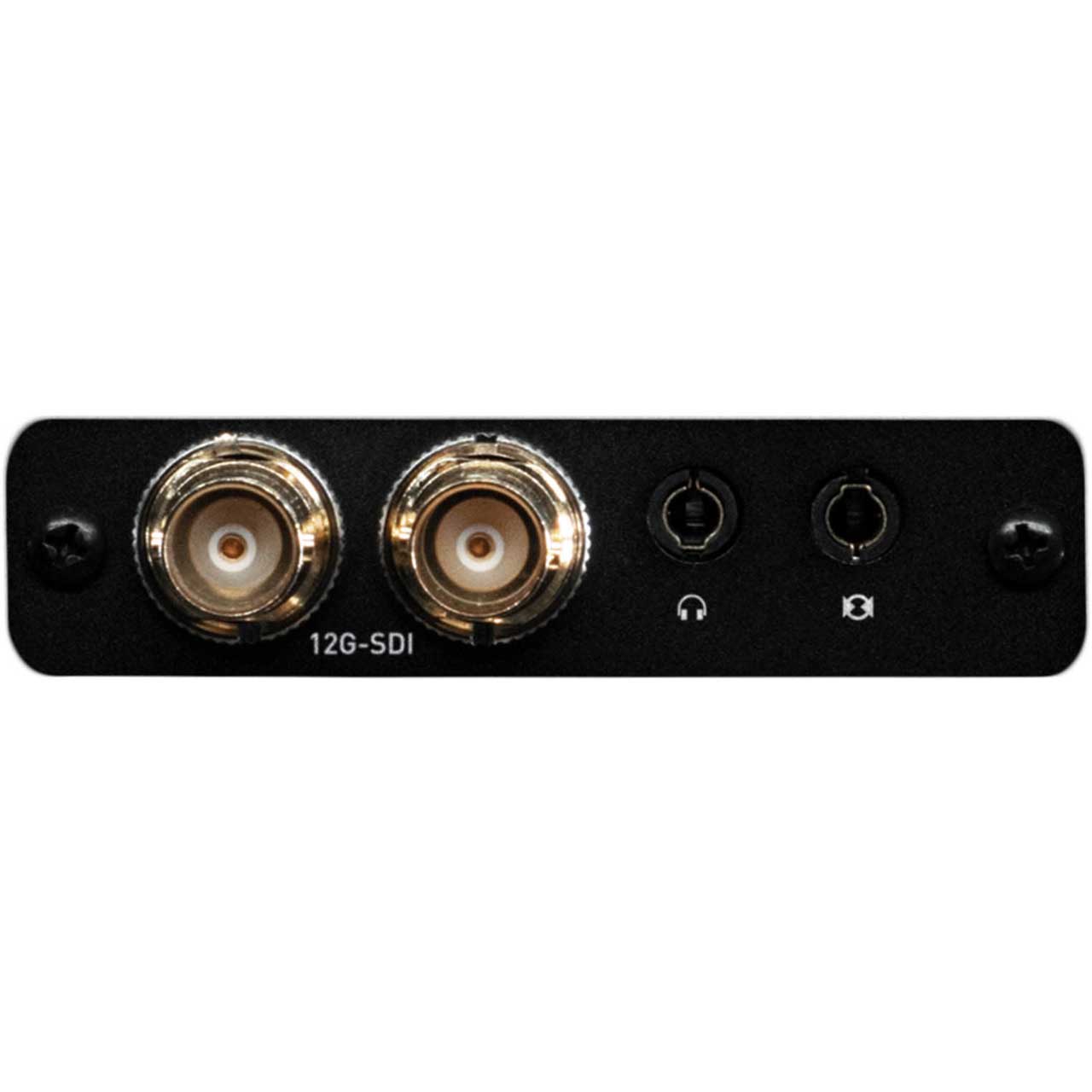

  • 1x Audio/Video Backplate


• GTIN:

  0818264026564
