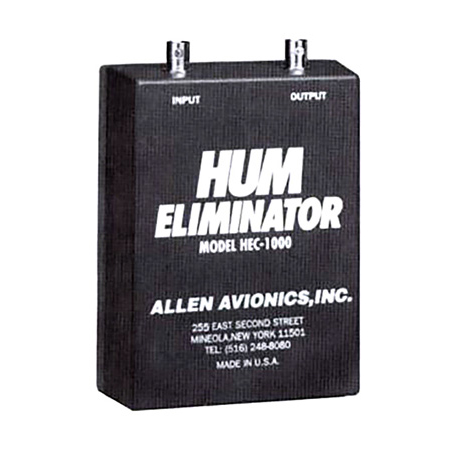

Allen Avionics HEC-1000 75 Ohm Single Channel Video Hum Eliminator ABS Housing

HEC-1000 - Overview

• Features:

  • Flat Response
  • Bandwidths up to 30MHz
  • No Low or High Frequency Roll-Off
  • No Differential Gain or Phase Distortion
  • Rugged, Waterproof Case
  • BNC Connectors
  • Passive Device - Failure Free
  • For Color and Black & White
  • Reversible
  • Small, Compact Package


• Specifications:

  • Impedance Model HEC-1000: 75 Ohms, Unbalanced
  • Bandwidth:
  • - DC to 30 MHz
  • - 0.61 dB @ 10 MHz
  • - 1.00 dB @ 20 MHz
  • - 1.25 dB @ 30 MHz
  • Insertion Loss: 0.2 dB max.
  • Return Loss: 20 dB min.
  • Hum Reduction: 50 dB for 60 Hz hum depending on the system
  • Packaging: Hi-Impact ABS Plastic
  • Mounting: Four (4) 8-32 x 1/2" inserts
  • Dimensions: 5-3/8" x 4" x 2"
  • Weight: 3 Lbs.
