Teradek 6G Flexible H Antenna Kit - 2dBi 4.9-7.3Ghz RP-SMA - 4 Pack

ITEM #: TER-FLEXHANTEKT4 MFG #: 11-0904

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$349.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


11-0904 - Overview

Teradek 6G Flexible H Antenna Kit - 2dBi 4.9-7.3Ghz RP-SMA. These are meant for the Bolt 4K or Bolt 6 & to be used with V antennas.

These are designed special horizontally polarized antennas for use with the V antennas. Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics of the system by combining the two perpendicular polarization. For this H+V antenna configuration, two H antennas should be used at the TX and two at the RX as pictured. This configuration should allow for better reception and better video quality in medium-range situations and/or when the environment will create a lot of reflections for the wireless signal.

The combination of H and V antenna signals achieves better diversity than V antennas alone, especially while shooting outdoors. H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner compared to the vertical signal from the V antenna.

  • Features:

    • Output: 2dBi 4.9-7.3Ghz RP-SMA
    • Polarization: Mushroom Horizontal

  • Specifications:

    • Output: 2dBi 4.9-7.3Ghz RP-SMA

  • Item Includes:

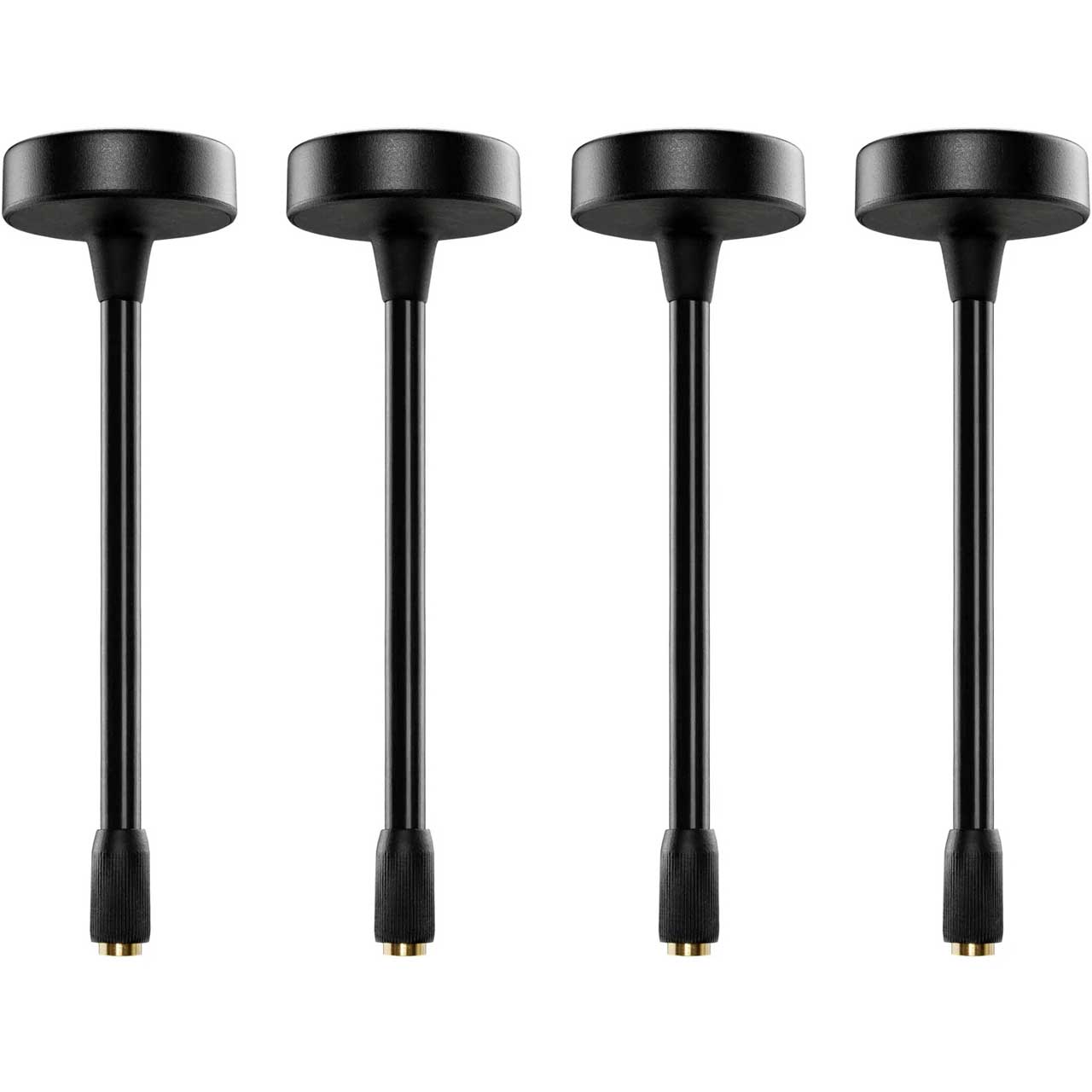

    • 4x 6G Flexible H Mushroom Antenna

  • GTIN:

    0818264028186
