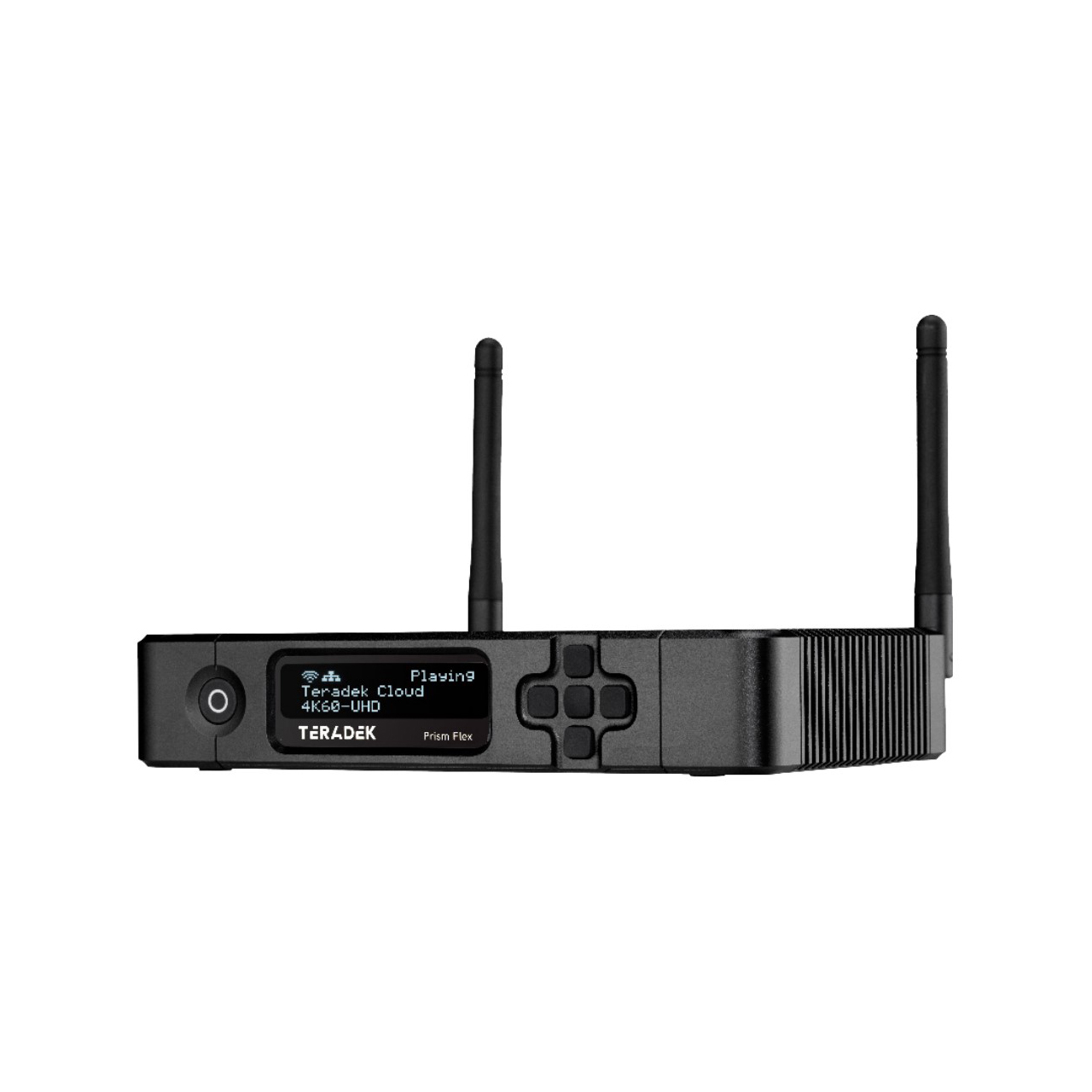

Teradek Prism Flex MK II HEVC/AVC 12G-SDI/HDMI Decoder

ITEM #: TER-PRSMFLEXMK2D MFG #: 10-2858

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$3,490.00

Availability: In Stock
iAvailability Description Popup


10-2858 - Overview

With a flexible I/O and compact, low-SWaP design, Prism Flex Mk II easily fits into any workflow. Flex Mk II is perfect for placement on a table top, camera-top, or wedged between your video switcher and audio mixer. Flex Mk II can encode or decode up to 4Kp60 video with stunning 10-bit 4:2:2 image fidelity. The Prism platform supports many common streaming protocols such as TRT, SRT, MPEG-TS, RTSP/ RTP and RTMP(S), and can be connected to Teradek's Core Cloud platform for even more flexibility.

The Compact Solution
The professional's choice for a live production multi-tool. Prism Flex gives you ultra-low latency, 4K HDR streaming in a low-SWaP form factor that fits seamlessly into any video workflow.

Enterprise Performance
Ultra-reliable, ultra-low latency, and ultra-high quality: Prism delivers on all fronts. Stream in HEVC or AVC, and select from a multitude of protocols to deliver your video feed to CDNs, decoders, software solutions, and more.

On-Board Recording
Record your live feed on Prism Flex and upload your content directly to Core Cloud for archiving or low latency distribution to clients and stakeholders. We've also partnered with Frame.io, Sony, and PIX to provide built-in camera-to-cloud capability for production workflows.

Designed for Size, Weight, and Power
Limited on space and power? The Prism Flex was designed from the ground up to provide broadcast-grade performance in a compact form factor. At just 11.6oz and pulling a max of 24W, Prism Flex is the ideal encoder for large-scale, set-and- forget streaming video deployments.

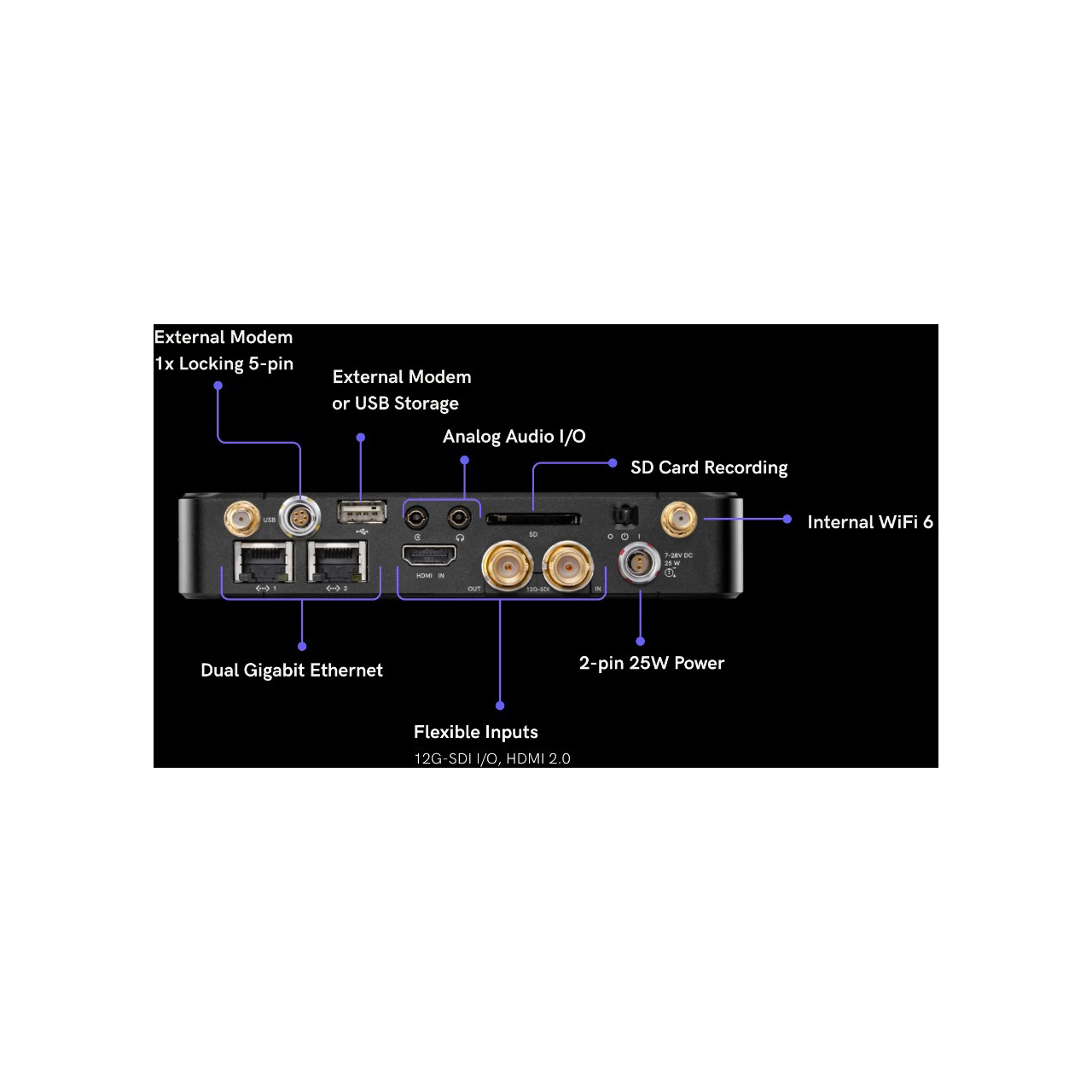

Prism Flex's compact, multi-I/O, low-power design can squeeze into small spaces - making it easy to integrate into any live production workspace and workflow. It includes a 12G-SDI input and loop though, HDMI 2.0 input, dual Ethernet ports, WiFi 6, and 2 USB ports for LTE modems and external recording drives (the Decoder also includes 12G-SDI and HDMI 2.0 Outputs).

Add Reliability When You Need It the Most
Experience a robust internet connection in the most challenging network environments. Stream over LTE, 5G, and private mobile networks with our durable trio of high-performance modems have an aluminum chassis, 3¼"-20 mounting options, and a 5-pin locking connector to attach to your Prism Flex. And with worldwide SIM support, our Nodes work with virtually any SIM card, and can operate on most data bands around the world.

  • Features:

    • Ultra-Low Latency: As low as 100ms over WAN
    • Network Flexibility: WiFi, Ethernet, & Cellular
    • Camera-to-Cloud: Frame.io, Sony C3P, Sony Ci, PIX
    • From HD to 4K: 4:2:2 | 10-bit HDR
    • On-Board Recording: Store and Forward
    • Multiple Protocols: SRT, TRT, RTMP(S), and more

  • Specifications:

    • Video
      Video Inputs
    • N/A
      Video Outputs
    • 2x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
      Supported Nodes
    • Single Decode, De-bonding Decode or Restream (additional licenses)
      Supported Resolutions
    • 4K DCI: p23.98/24/25/29.97/30/59.94
    • 4K UHD: p23.98/24/25/29.97/30/50/59.94/60
    • 1080p: 23.98/24/25/29.97/30/50/59.94/60
    • 1080i: 50/59.94/60
    • 1080PsF: 23/24/25/29/30
    • 720p: 50/59.94/60
    • 576i
    • 480i

      Audio
      Audio Compression
    • AAC-LC
      Audio Bitrate
    • 32kbps to 512kbps
      Audio Sample Rate
    • 48kHz
      Audio Input
    • N/A (see IFB)
      Audio Output
    • Embedded over SDI and HDMI, 3.5mm Stereo Headphone (TRRS) output
      IFB
    • Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A)

      Licensable Features
      Enable Extra Streams
    • N/A
      Enable Decoding
    • N/A
      De-Bonding Decoder
    • Debond Teradek Bonding Protocol or TRT and re-transmit via Teradek Bonding Protocol: TDS, SRT, RTMP, MPEG-TS, RTSP, HLS

      Video Processing
      Video Compression/Decompression
    • ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
    • AVC: Baseline, Main, High
    • ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
    • HEVC: Main
      Video Bitrate
    • 250 Kbps to 85 Mbps
      Video Format Conversion Support
    • Build in video scaler and deinterlacer
      Number of Encoded/Decoded Streams
    • Up to one 4KDCI p60 4:2:2 10bit (without additional license)
      HDR Support
    • Yes (2020-PQ, 2020-HLG, P3D65-PQ)
      Color Correction
    • CDL/1024 1D LUT (supports 10-bit color)
    • 33x33x33 3D LUT (supports 10-bit color)
      Bonding
    • TeraLink
      Recording
    • N/A
      Camera to Cloud
    • N/A

      Protocol Support
      Network Protocols
    • TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
      Supported Video Transport Protocols
    • Teradek Reliable Transport (TRT)
    • Secure Reliable Transport (SRT)
    • RTMP/RTMPS
    • MPEG-TS
    • DASH (UDP, TCP, TCP Server, Multicast)
    • RTSP/RTP
    • RIST (Reliable Internet Stream Transport)
    • HLS Client
    • Integrated CDNs (YouTube, Facebook, Vimeo)
    • WHIP
      Remote Management
    • Teradek Core Cloud, Private SDK

      Physical Attributes
      Dimensions
    • 6.25"W x 3.6"D x 1.4"H [162 x 92 x 35mm]
      Weight
    • Weight 11.6oz [328.9g]
      Construction
    • Milled Aluminum
      Mounting Options
    • Desktop, Four 1/4" 20 threaded mounting holes

      Interfaces
      Construction Interface

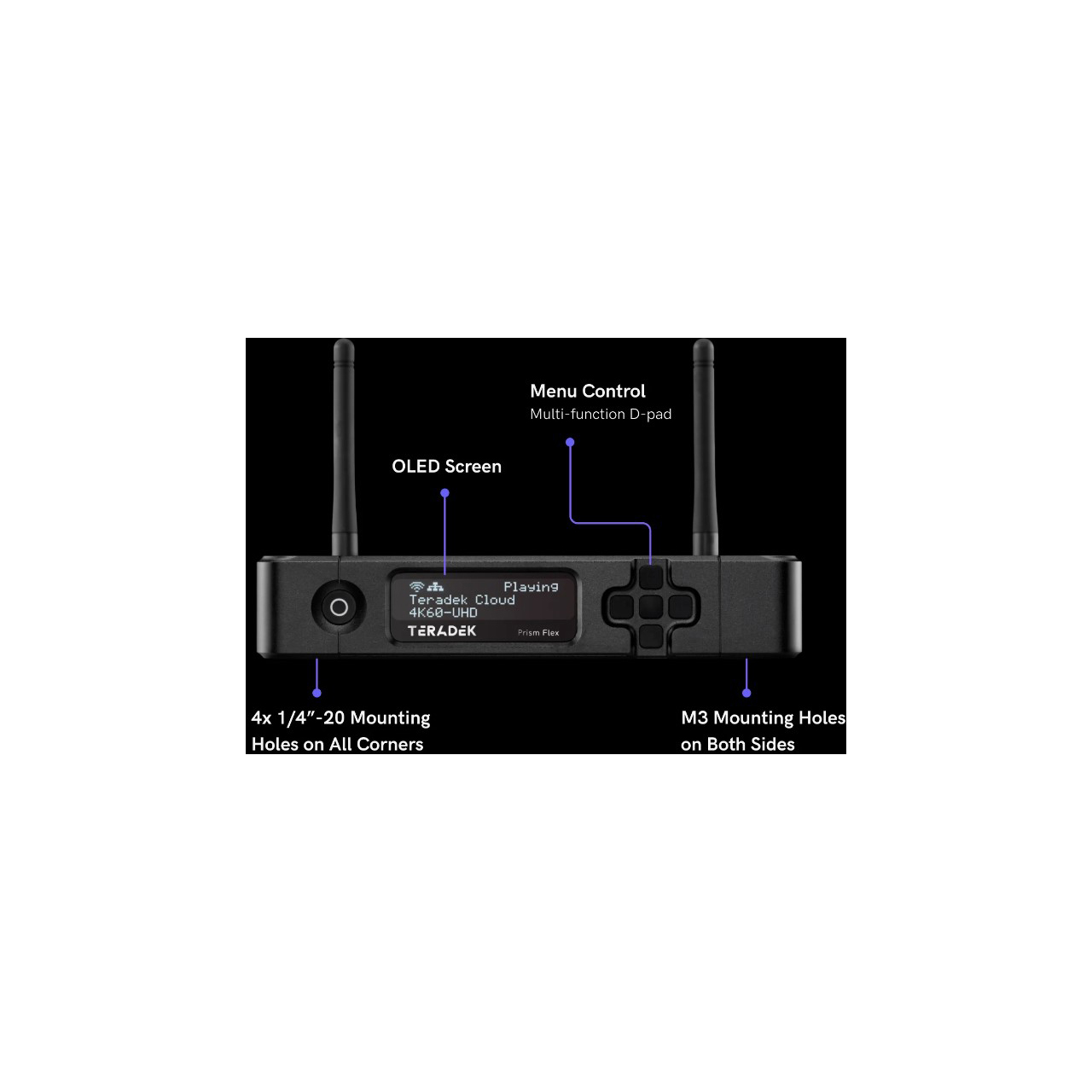

    • Feature-rich Web UI for local device management, configuration, and control, OLED Status Display w/Nav Control Buttons
      USB Interface Functionality
    • 1x Powered 5-Pin Locking Connector with Node Modem support
    • 1x Powered USB-A with Node and external storage support
      Ethernet
    • 2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
      Wireless
    • WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration

      Power
      Power Input
    • 2-pin circular locking connector
      Voltage
    • 6-28V DC
      Nominal Power Consumption
    • 18W

  • Warranty:

    • 12 Month Limited Warranty
