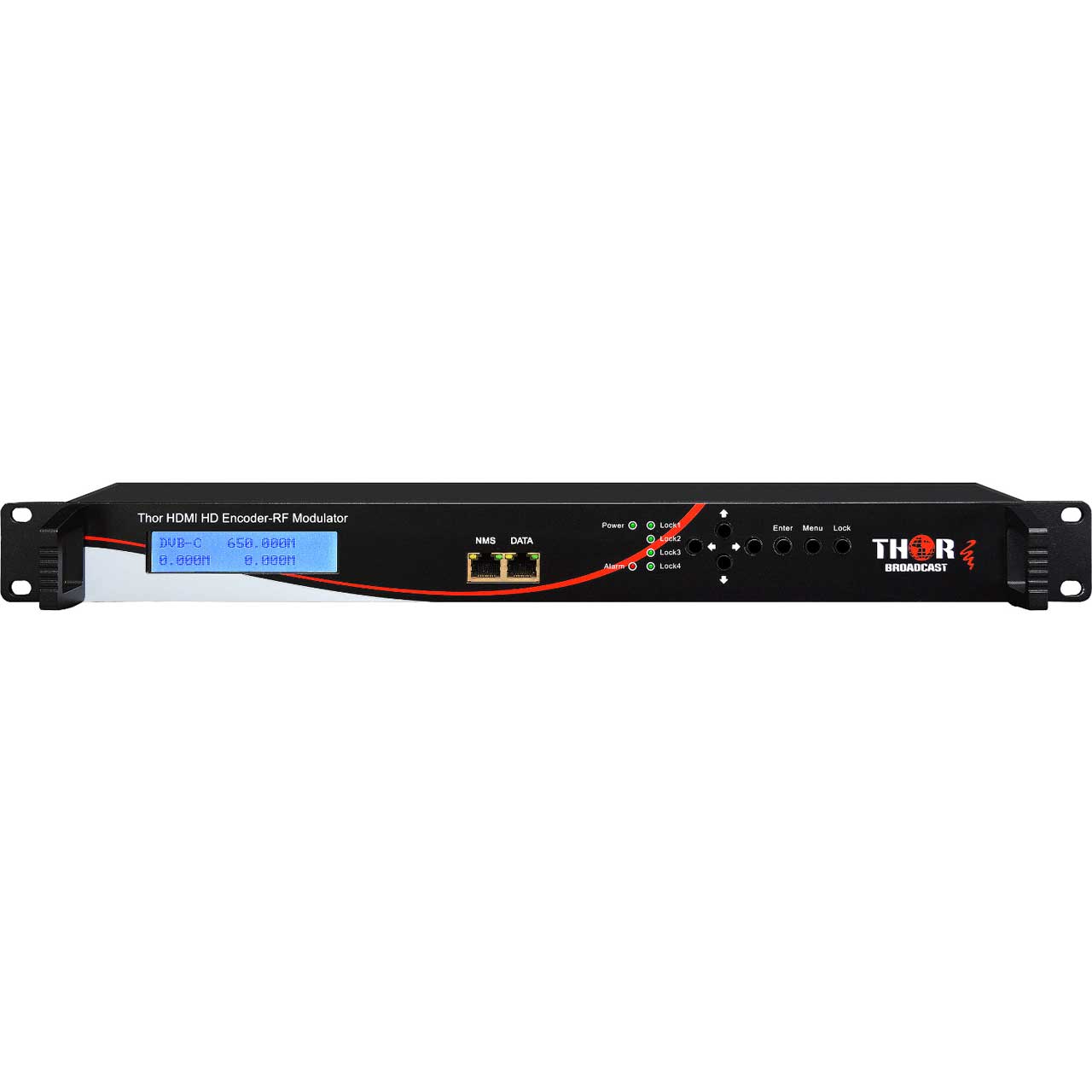

Thor Fiber H-4HDMI-ATSC-IPLL 4-Channel HDMI to ATSC RF Modulator Encoder with Low Latency & IPTV Streamer

ITEM #: THR-4HDMI-ATSC-L MFG #: H-4HDMI-ATSC-IPLL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,674.00

Our Price:

$3,895.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


H-4HDMI-ATSC-IPLL - Overview

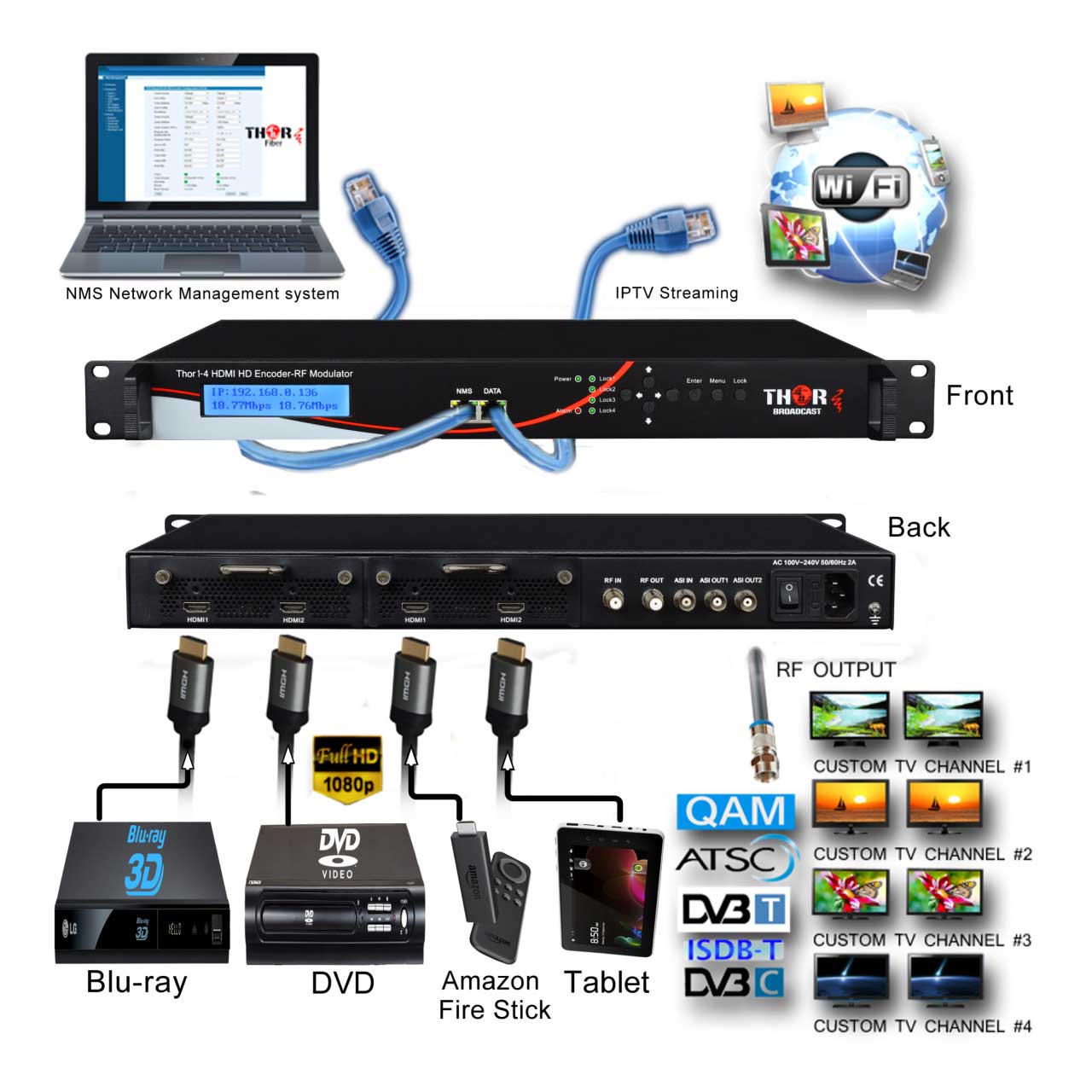

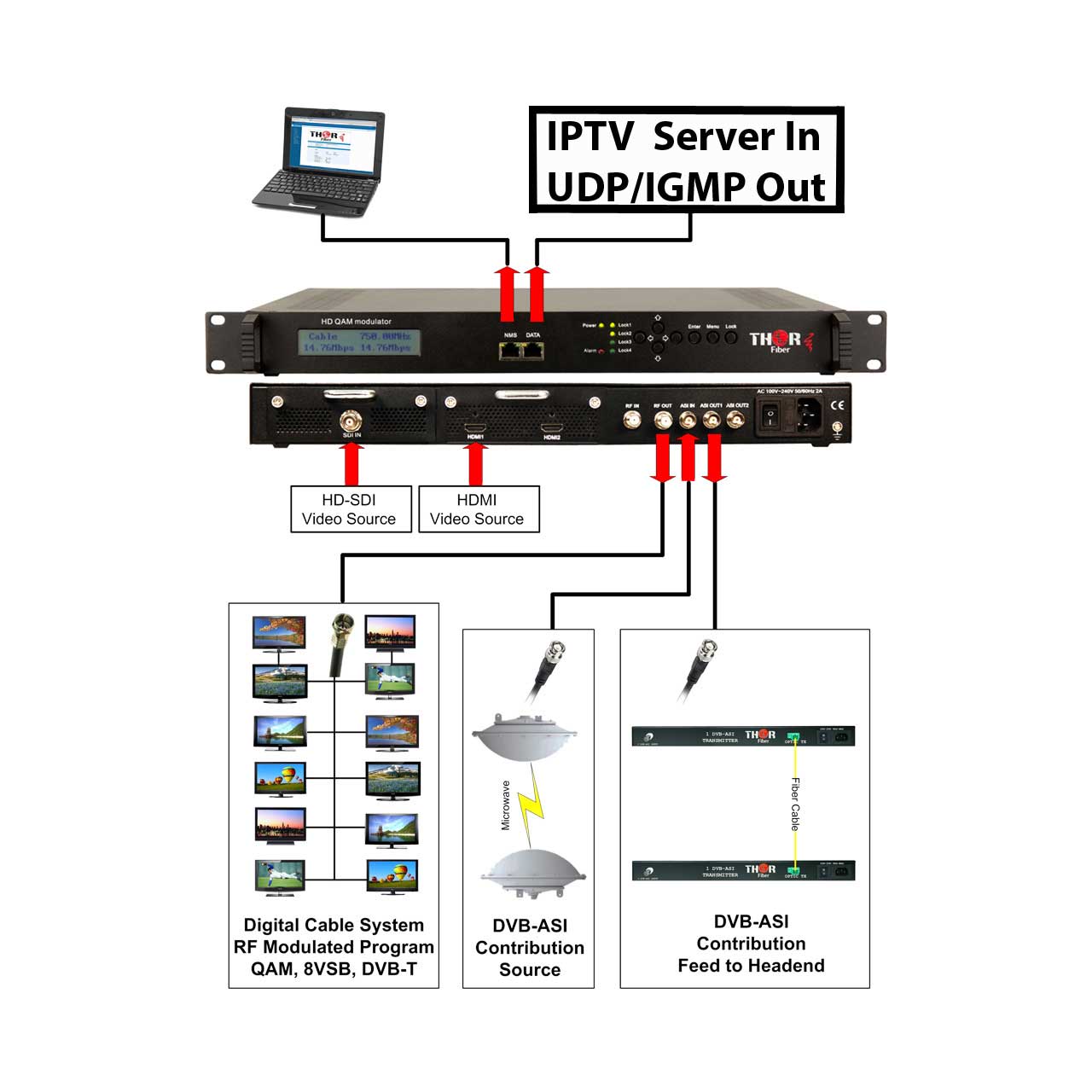

The Thor ATSC Low Latency modulator is a multi-dynamic tool used to distribute any live HDMI video source such as a cable TV STB, DVD player, Digital Signage Device etc, and broadcast that video on your own RF channel over your existing coax infrastructure. This easy to use encoder modulator is useful for any type of high quality video encoding & distribution that necessitates ultra-low latency feature that will reduce average encoding speeds from 1200-1600ms down to 70-250ms. This unit can be just an encoder, a modulator, or IPTV server, or all 3 at once. Units range from 1-4 channels and are compatible with any HDMI source that will output an RF channel with perfect HD quality video up to 1080p60 that encodes in either MPEG-2 or H.264. Creating your headend with dozens of channels can be easily accomplished by stacking several units and daisy chaining the RF in’s & out’s, or by using an external RF combiner.

  • Features:

    • 70 ms Low Latency encoding feature for low delay display

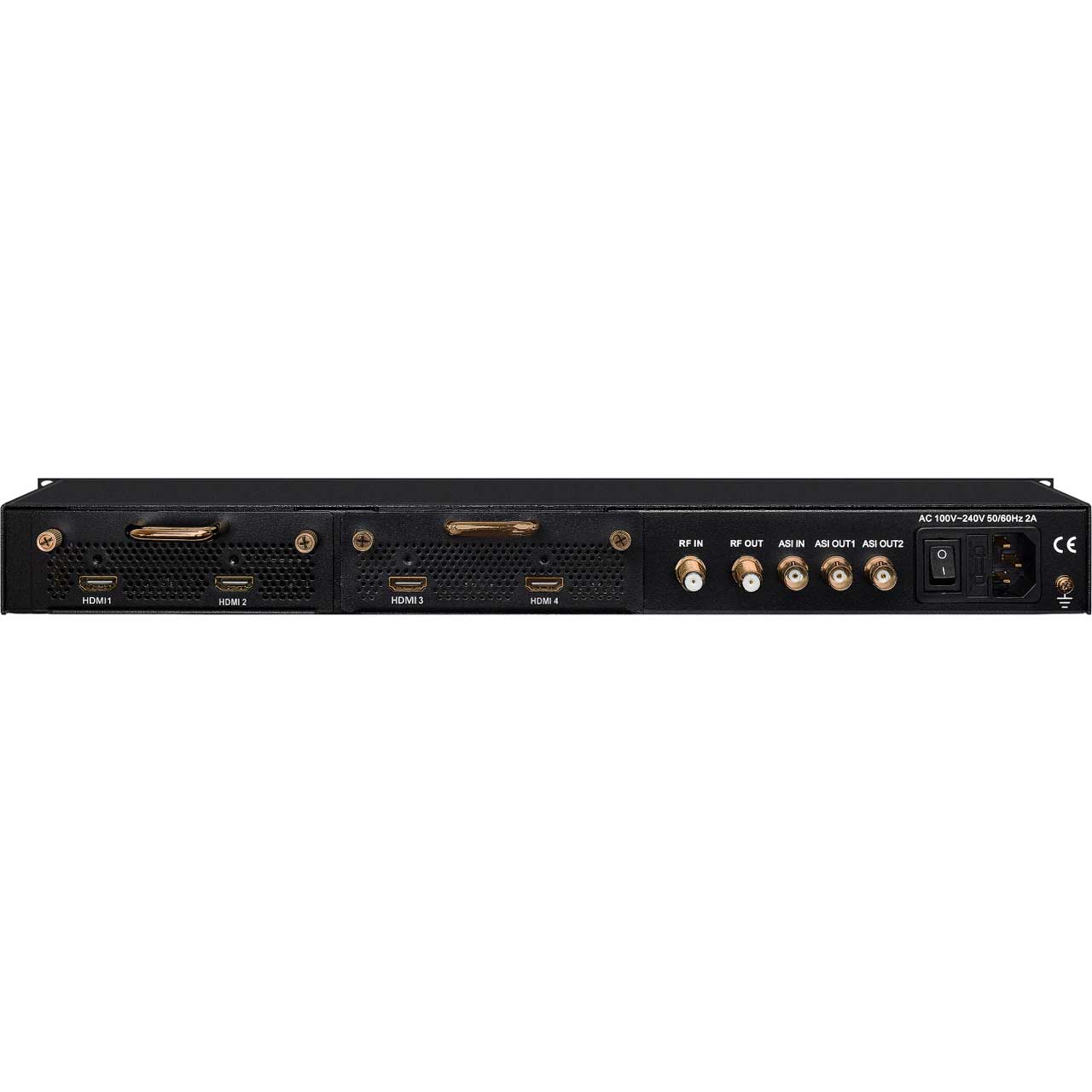

    • 4x HDMI Input and 1x ASI Input / ATSC, IPTV, & ASI Output
    • Distribute or Broadcast any live HDMI digital video source

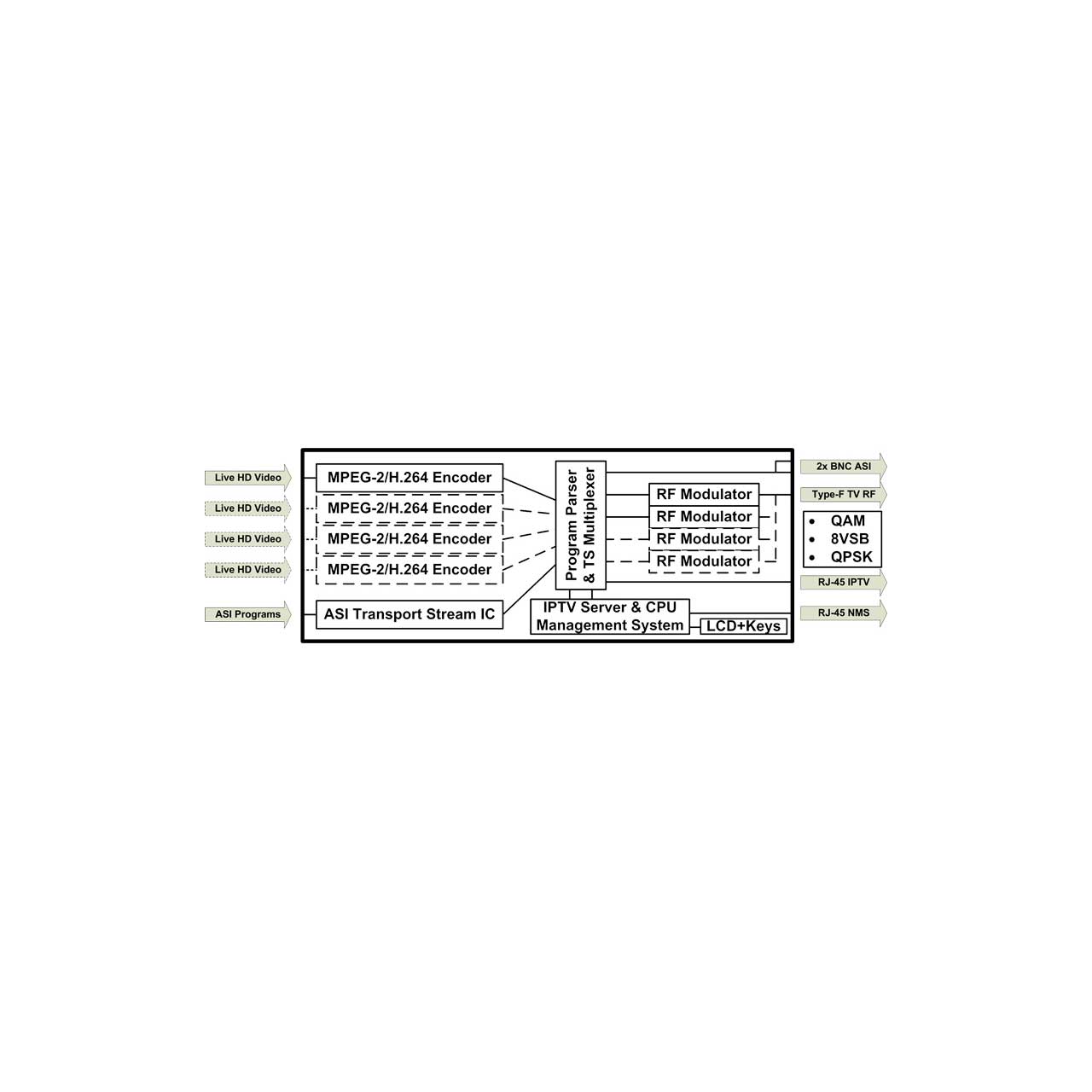

    • Combination Encoder, Modulator, IPTV Server, & ASI Mux
    • Controlled through web server on separate network port
    • Encodes in MPEG-2 or H.264 video codecs at 0.5 - 19 Mbps

  • Specifications:

    • HDMI Formats: 1080p, 1080i, 720p
    • Frame Rates: 50, 59.94, 60 fps
    • Video Codecs: MPEG-2, H.264
    • Video Bit Rates: 0.5 - 19.5 Mbps, CBR or VBR
    • Audio Codecs: MPEG1 Layer2, MPEG2 Layer2, AAC, Dolby AC3
    • Audio Bit Rates: 64 - 32 kbps (6 steps)
    • ASI Input: SPTS, MPTS (up to 80Mbps)
    • ASI Output: SPTS, MPTS (up to 80Mbps)
    • RF Output: 8VSB 19Mbps
    • IP Management: HTTP Webserver port 80
    • IPTV Streaming: RTP, RTSP, UDP; Unicast & IGMP Multicast
    • Power Input: 100-240 VAC Auto Switching 20W
    • Dimensions: 482 x 300 x 44 mm
    • Weight: 3.75 kg
    • Operating Temperature: 0 - 45 C
