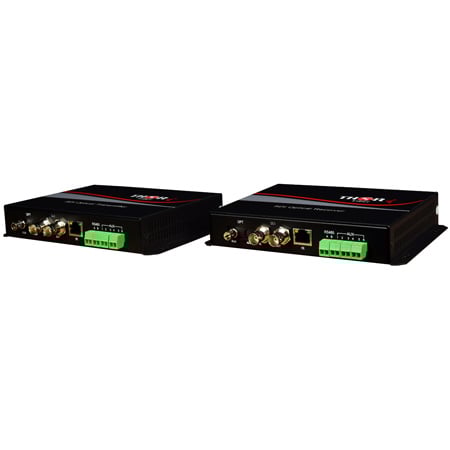

Thor F-M1SDI-TR-ET 1CH HD-SDI Bi-directional Tx & Rx with Bi-directional 10/100 Ethernet (RJ45) 20km ST/PC

ITEM #: THR-FM1SDITRET MFG #: F-M1SDI-TR-ET

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Thor Fiber
Free Shipping with $49 Minimum Order

List Price:

$2,394.00

Our Price:

$1,995.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

F-M1SDI-TR-ET - Overview

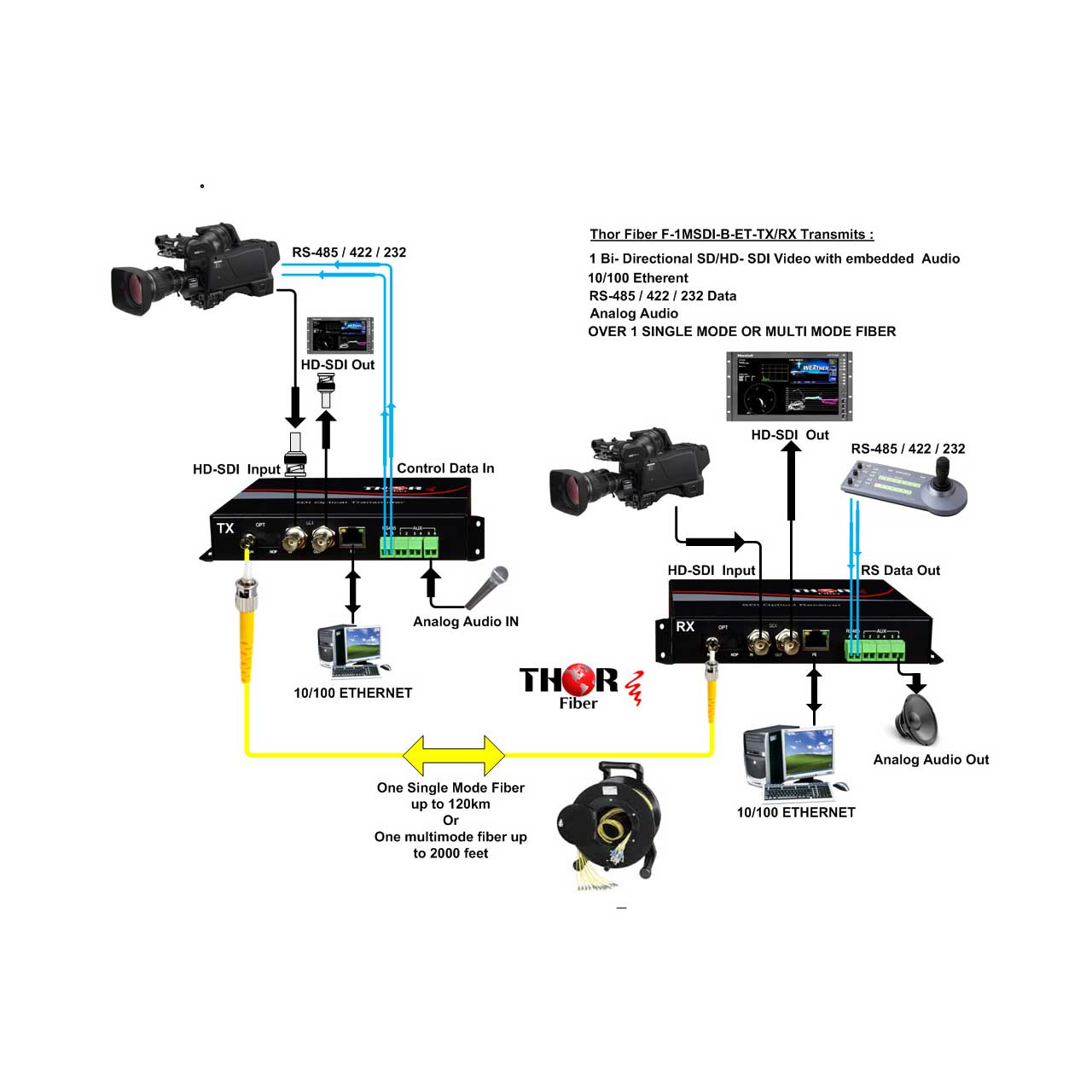

Thor Compact F-M1SDI-TR-ET is a high performance, reliable, bi-directional one channel SD/HD-SDI video optical transceiver, which performs in real-time, loss-free, high-quality SD/HD-SDI transmission (audio embedded) over any single mode fiber optical line. Besides the unit transmitting a bi-directional SDI signal, the F-1MSDI-TR-ET provides a bi-directional Ethernet interface sharing 100M bandwidth, unidirectional RS485 data channel for control, and optional(ask your sales rep for cost) audio/contact closure/RS422/RS232 data transmission, which is widely used in live TV broadcast, high-definition video conferencing, high-definition video monitoring and intelligent transportation systems etc.

  • Features:

    • Bi- Directional SDI signal over a single fiber
    • Bi-Directional 10/100 Etherent (RJ45)
    • Unidirectional RR-485 Control data
    • Analog Audio (optional) by order only (ask associate for additional cost)


  • Specifications:

    • Compliant with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s

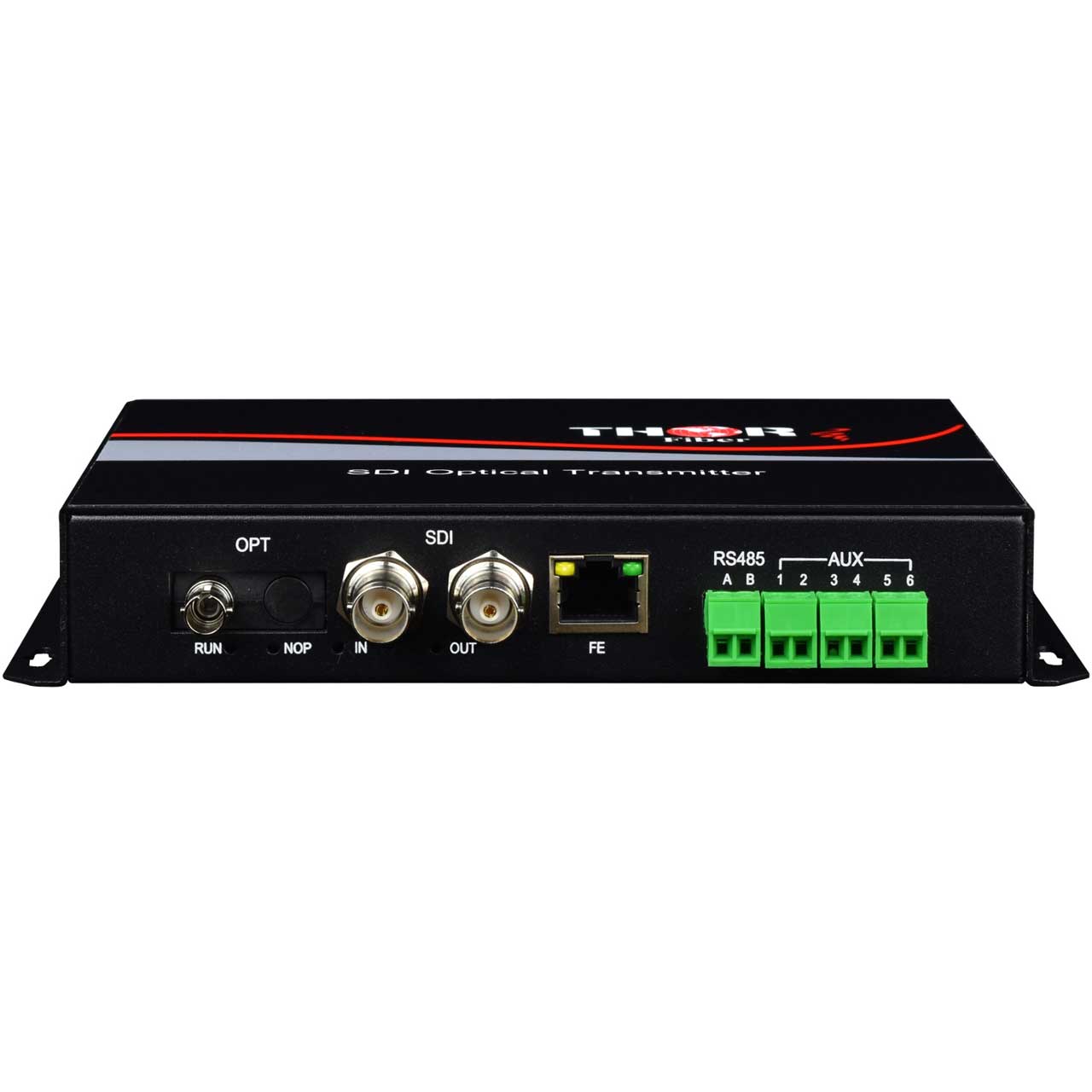

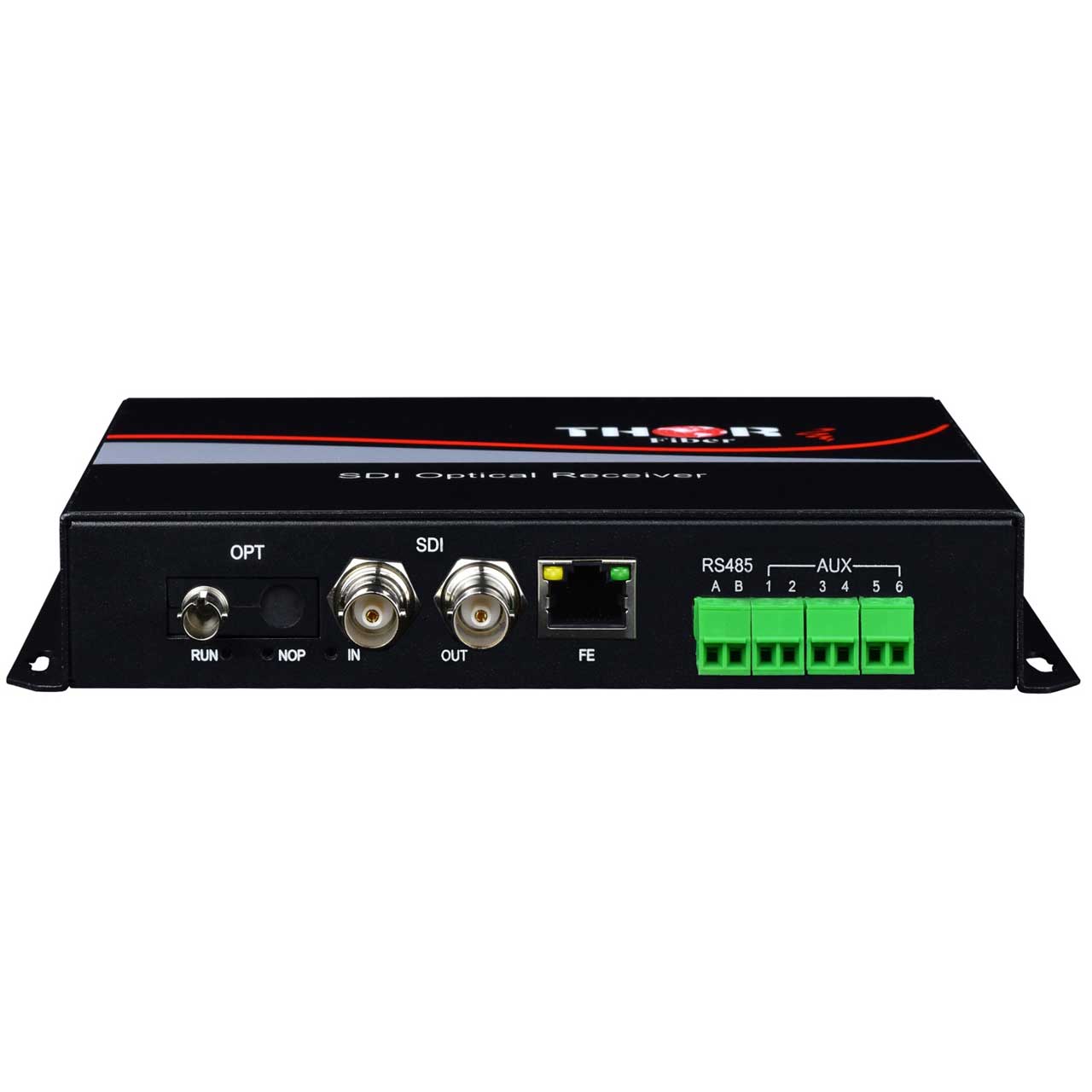

    • One SD/HD-SDI input (BNC), one SD/ HD-SDI output(BNC) and one fast Ethernet interface
    • Supports 1080P@30,25,24, 29.97, 1080I@60,50,59.94, 720P@60,50,30,25,24, 9.94, 29.97, 23.98 and 625i/525i format, when input is [email protected], [email protected], [email protected], 29.97, 23.98, the output is 1080P@30, 1080I@60, 720P@60,30, 24 respectively
    • Equipped with integrated cable equalizer
    • Embedded ESD and surge protection circuit to prevent damage from static and thunder
    • With NOP (No optical signal) alarm indications, output status indicator and input lock indicator
    • With APC circuit to perform at a stable optical power
