Belden 9841 CM Multi-Pair RS-485/DMX512 Low Capacitance Control Cable STR/TC/SF/UTP 1 Pr 24AWG - Chrome - 100 Foot

Name: Belden 9841 CM Multi-Pair RS-485/DMX512 Low Capacitance Control Cable STR/TC/SF/UTP 1 Pr 24AWG - Chrome - 100 Foot
Brand: Belden
SKU: BL-9841-100
Price: 196.47 USD
Availability: InStock

ITEM #: BL-9841-100 MFG #: 9841 060100

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$342.23

Our Price:

$196.47

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

9841 060100 - Overview

RS-485 Serial Control Cable for Enhanced Automation Systems

Belden 9841 is a Multi-Pair Low Capacitance RS-485 SF/UTP Control Cable with 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, in a CM rated PVC Outer Jacket.

A Belden Multi-Pair Cable is an electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation.

Applications
RS-485 Protocol
POS (Point of Sale) Equipment
Computer Communications
Low Voltage Analog Signals (4-20ma, 0-10v,...)
Low Voltage Digital Control (24v,…)
Line Level Audio
Panel Wiring
Serial communication (RS-485 standard) like PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

Features:
- Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
- Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
- Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference
Specifications:
- Pairs: 1
- Conductor AWG: 24
- Conductor Stranding: 7x32
- Conductor Material: TC - Tinned Copper
- Insulation Material: PE - Polyethylene
- Insulation Nom. Thickness: 0.023 in (0.58 mm)
- Insulation Nominal Diameter: 0.068 in (1.7 mm)
- Insulation Color Code: White/Blue Stripe & Blue/White Stripe
- Outer Shield Type Tape: Bi-Laminate (Alum+Poly) 100%
- Outer Shield Type Braid: Tinned Copper (TC) 90%
- Drainwire Type: 24 AWG (7x32) TC
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Thickness: 0.035 in (0.89 mm)
- Outer Jacket Nom. Diameter: 0.232 in (5.89 mm)
- Overall Cable Diameter (Nominal): 0.232 in (5.89 mm)
- UL Temperature: 80°C
- Operating Temperature: -30°C to +80°C
- UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
- UL Rating: 80°C (UL AWM 2919)
- Operating: -30°C to +80°C
- Stationary Min.: 3.5 in
- Max. Pull Tension: 87 lbs
- Bulk Cable Weight: 49 lbs/1000ft
- Environmental Suitability: Indoor
- Flammability/Fire: Resistance: IEC 60332-1-2
- NEC/UL Compliance: Article 800, CM
- AWM Compliance: 2919
- CEC/C(UL) Compliance: CM
Item Includes:
- 9841 Low Capacitance Control Cable 1 Pr 24AWG - Chrome - 100 Foot
Warranty:
- Limited 10 Year Warranty
GTIN:
0612825259442

9841 060100 - Recommended Accessories

Assembled DB9 Male Solder D-SUB Connector with Plastic Backshell
C9PSM
Our Price: $7.33
LXS31 In-line 3-Pin DIN Male Cable End Connector
LXS31
Our Price: $3.35
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19
Black 8 Inch Softcinch VELCRO® Brand Hook & Loop Polytie Cable Tie 25 Pack
3108-X-25
Our Price: $19.10
Rip-Tie 9-Inch Caribiner Cable Carrier 2 Pack Black
RIP-9C2BK
Our Price: $11.93
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Pro Tapes 001CC350MFLGRN Hot Green CAUTION CABLE Tape 3 Inch x 60 Yard
GT-CABLE
Our Price: $50.24
SpoolMaster CC Wire Spool Cart Caddy
SPMA-CC
Our Price: $310.00
HellermannTyton 115-00049 Resealable/Reuseable CableTies 10in- 100 pack
REL50LOC2-100
Our Price: $28.72
Rip Tie Unitag Cable Identification Labels 100 Pk Yellow (5/8x1.5In)
U-15-100-Y
Our Price: $33.05

9841 060100 - Reviews

9841 060100 - Attachments

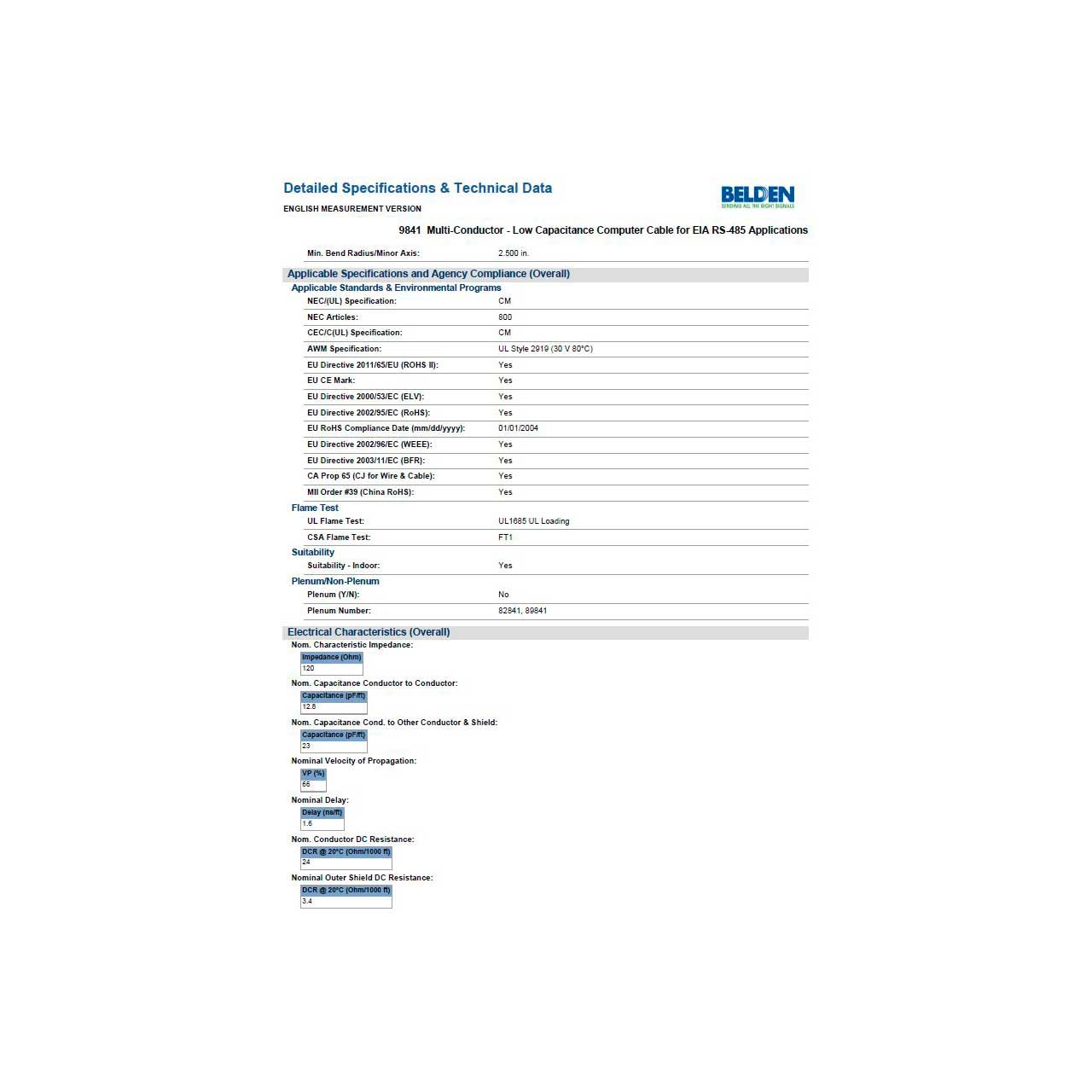

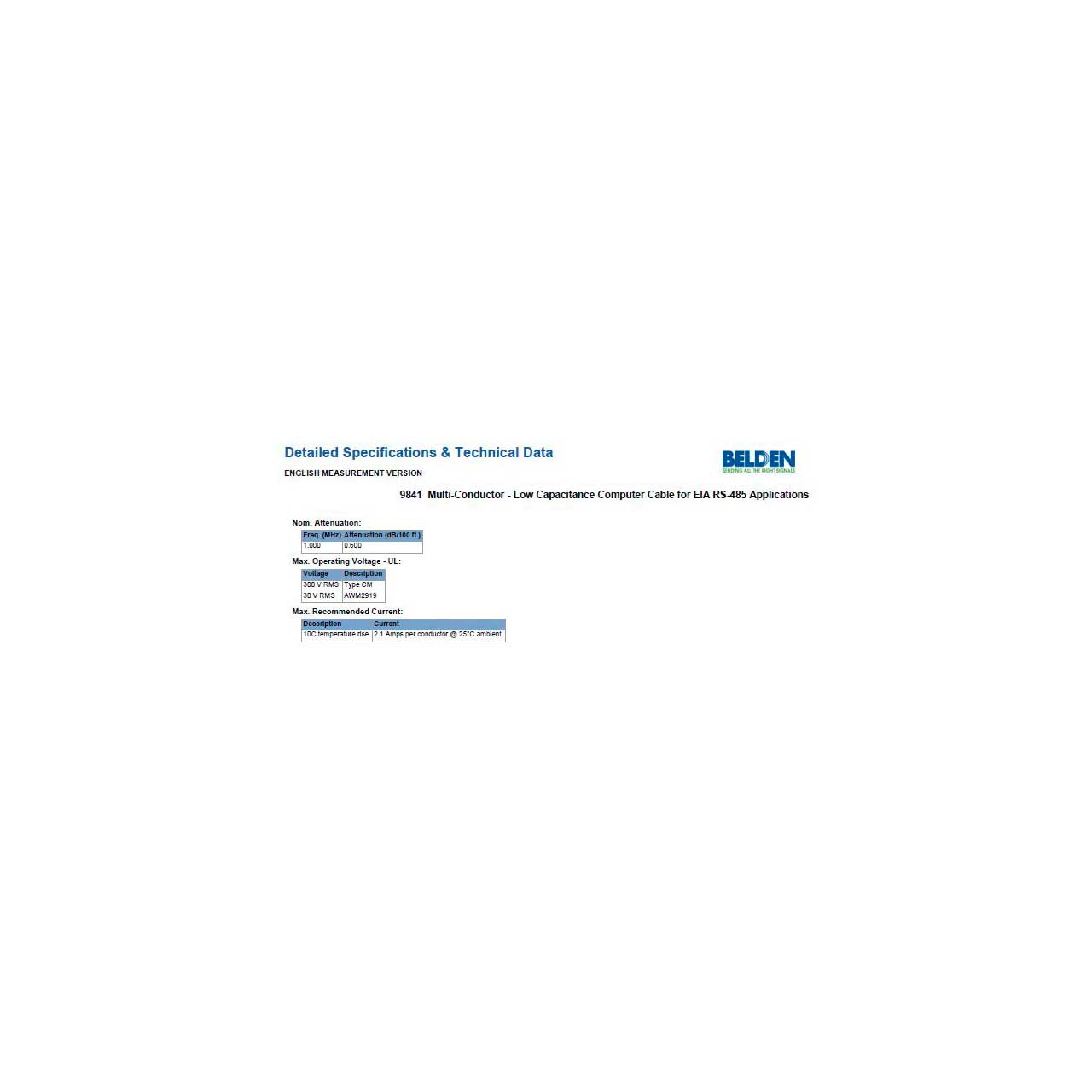

9841 Spec Sheet
