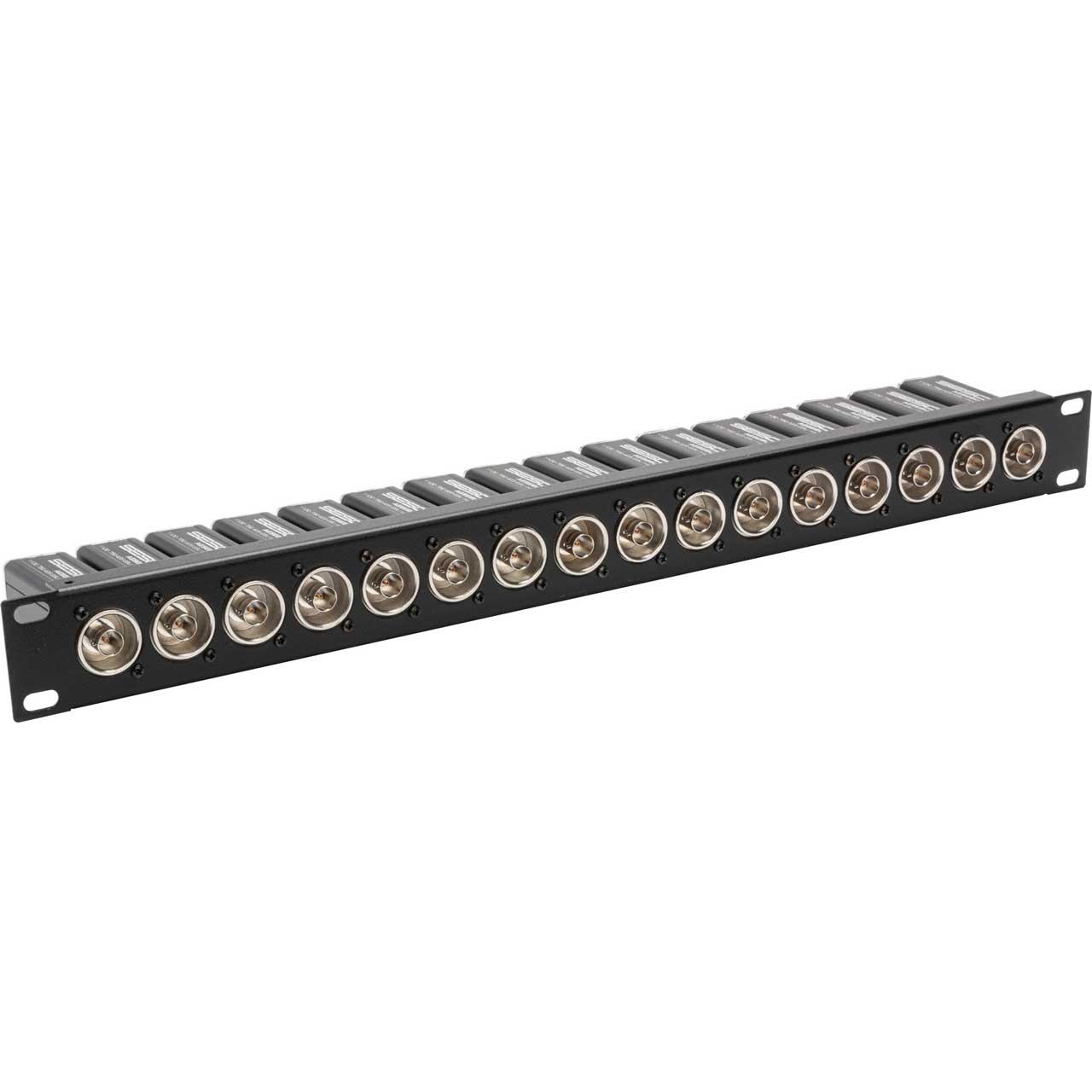

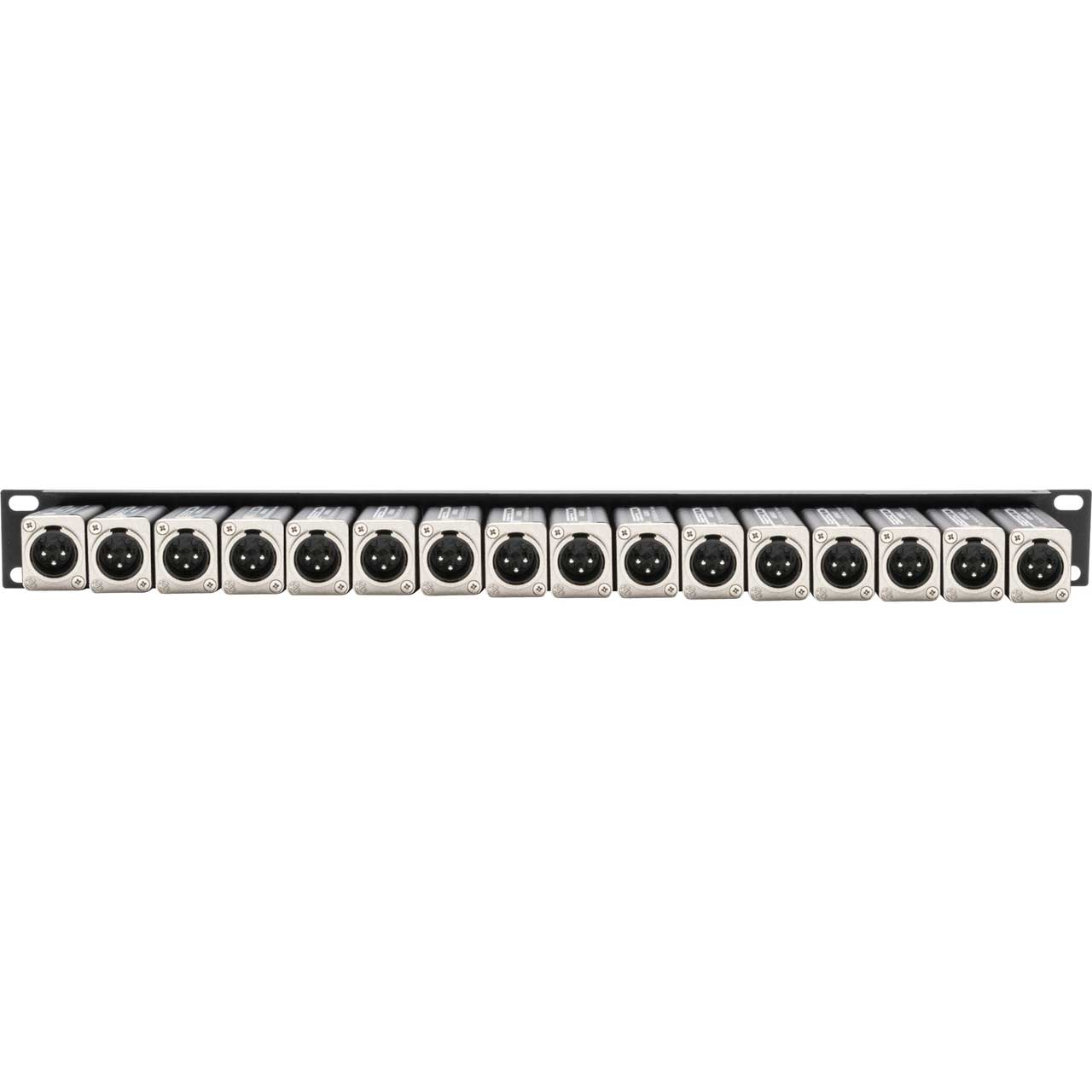

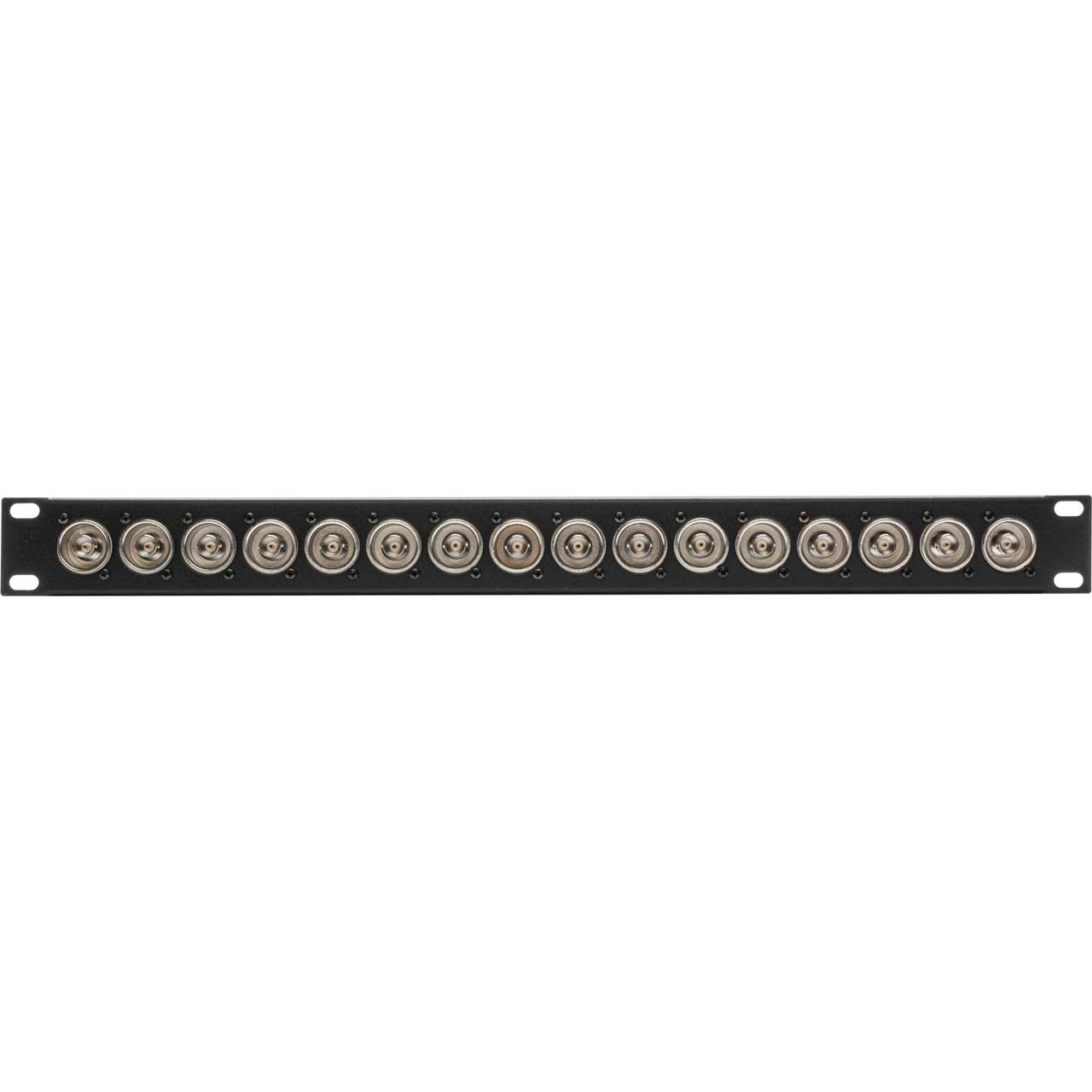

My Custom Shop 16-Port 1RU AES/EBU Impedance Transformer Patch Panel BNC Female to Rear XLR Male

ITEM #: TN-AESEBU16M MFG #: TN-AESEBU16M

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
My Custom Shop
Free Shipping with $49 Minimum Order

List Price:

$1,129.49

Our Price:

$1,024.49

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

TN-AESEBU16M - Overview

My Custom Shop proudly builds audio rack panels and patchbays in their US facility using only quality components from suppliers such as Neutrik, Switchcraft, Canare, and Senko. With 20 years of experience in the custom metal plate and panel industry, My Custom Shop now offers a diverse variety of standard models in 1, 2, and 3RU sizes, with connector options including XLRs, RCAs, 1/4 and 3.5mm jacks, and more.

  • Features:

    • Impedance matching 75 Ohm to 110 Ohm digital transformers
    • Conversion of balanced/unbalanced circuit (BALUN)
    • Electrical Isolation
    • Reduction of hum and noise
    • Standard EIA 1RU 19" by 1.75" rack space


  • Specifications:

    • Frequency Bandwidth: 0.1 MHz to 15MHz VSWR Return Loss: <1.30>17.7dB @ up to 10MHz Insertion Loss: <0.3dB @ 0.1 to 10MHz Maximum Voltage/Max. Power: 5Vp-p/250mW


  • Warranty:

    • 1 Year
