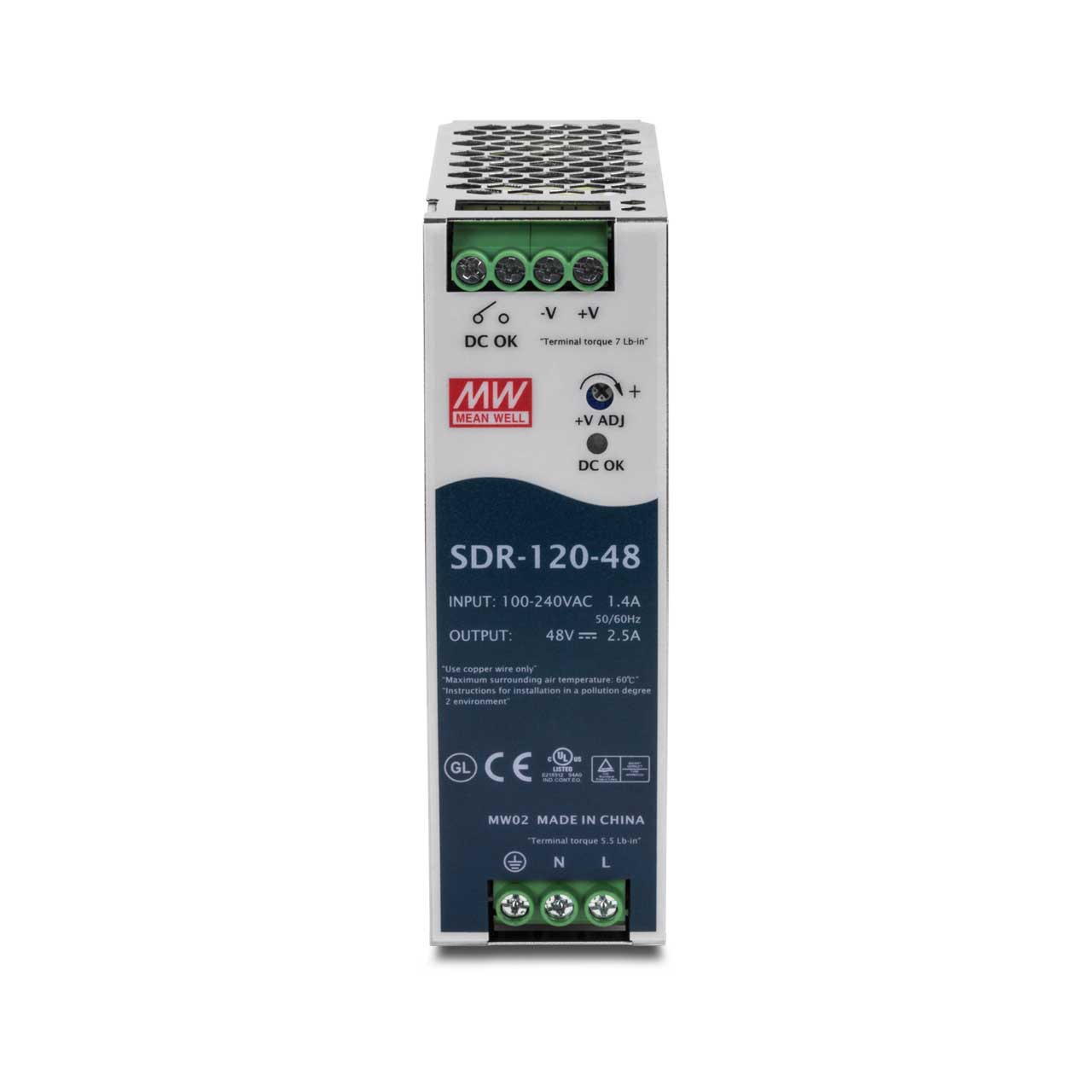

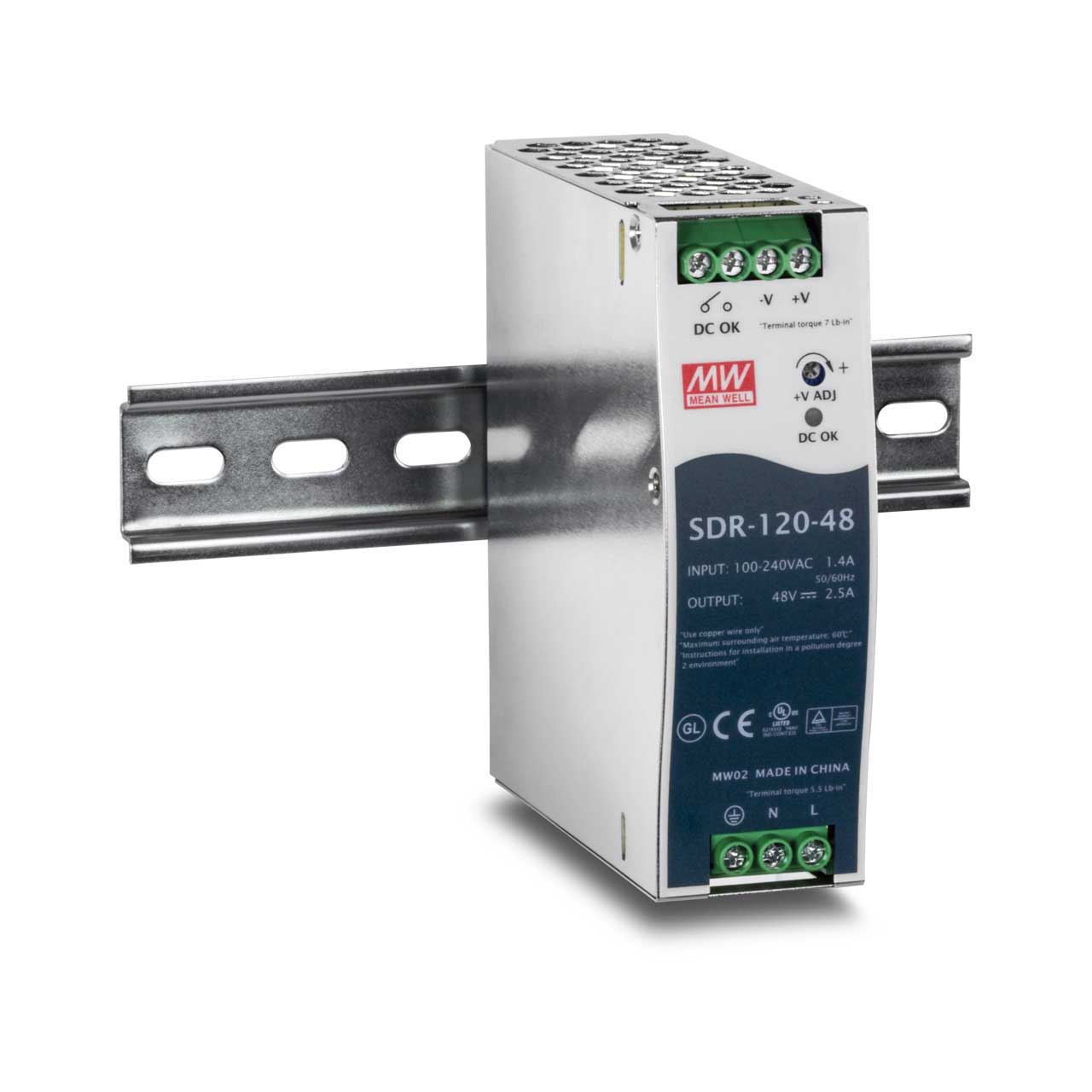

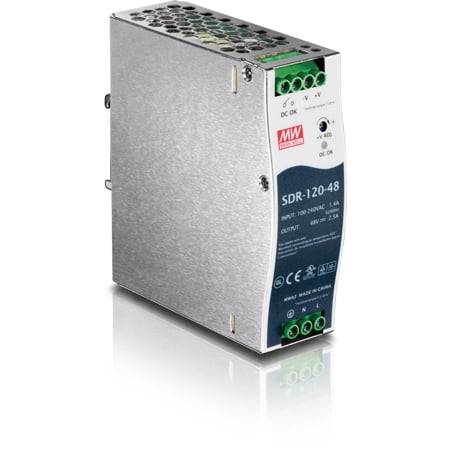

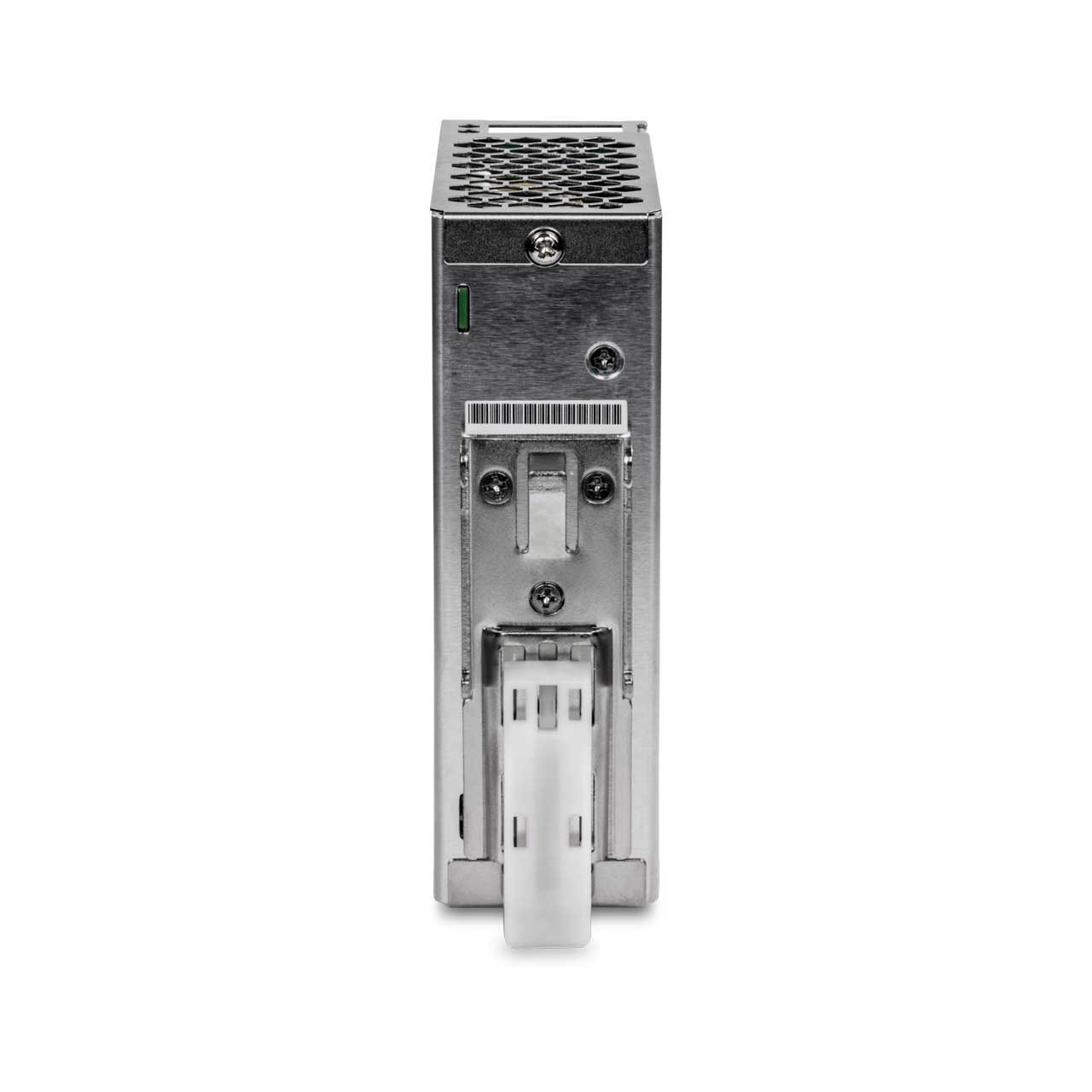

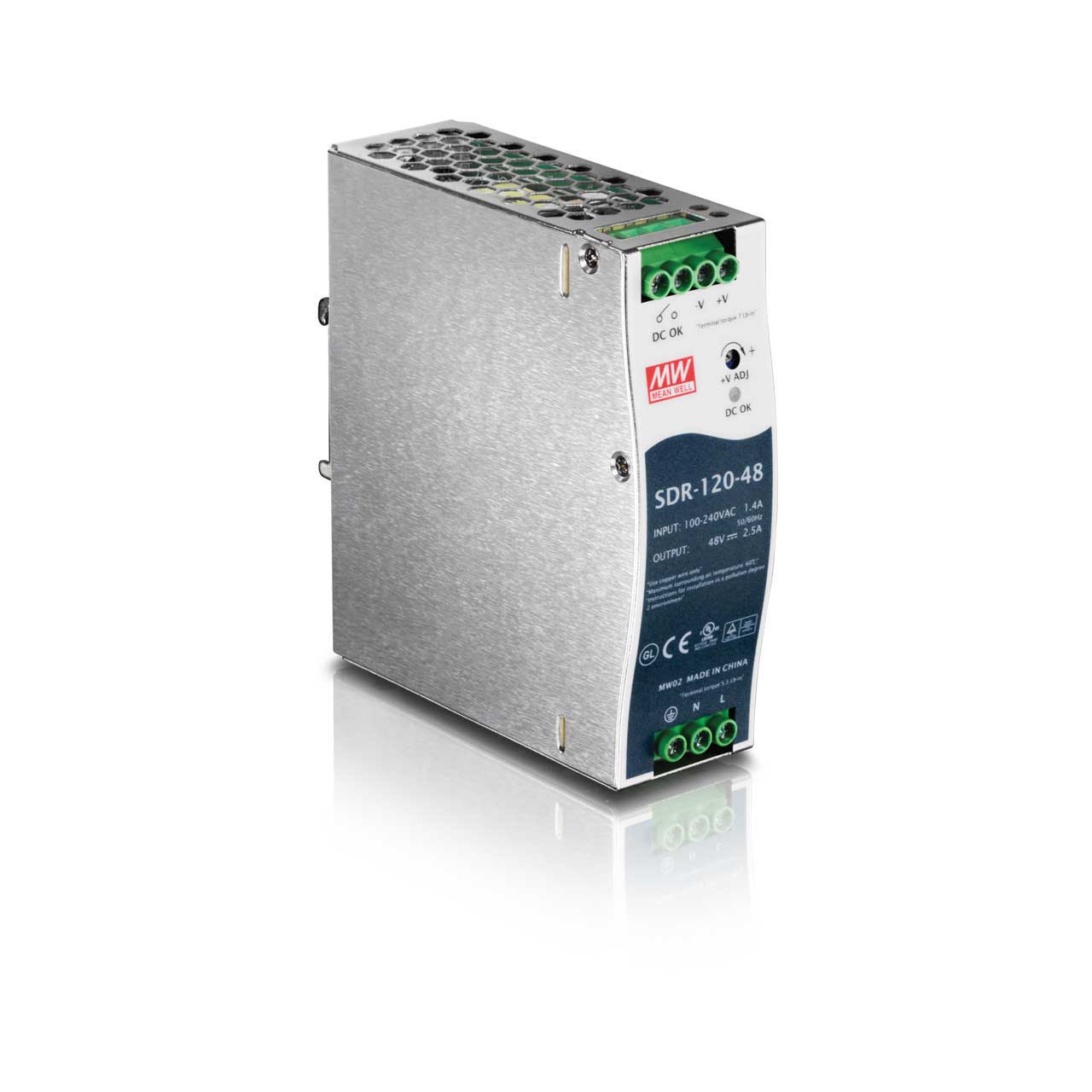

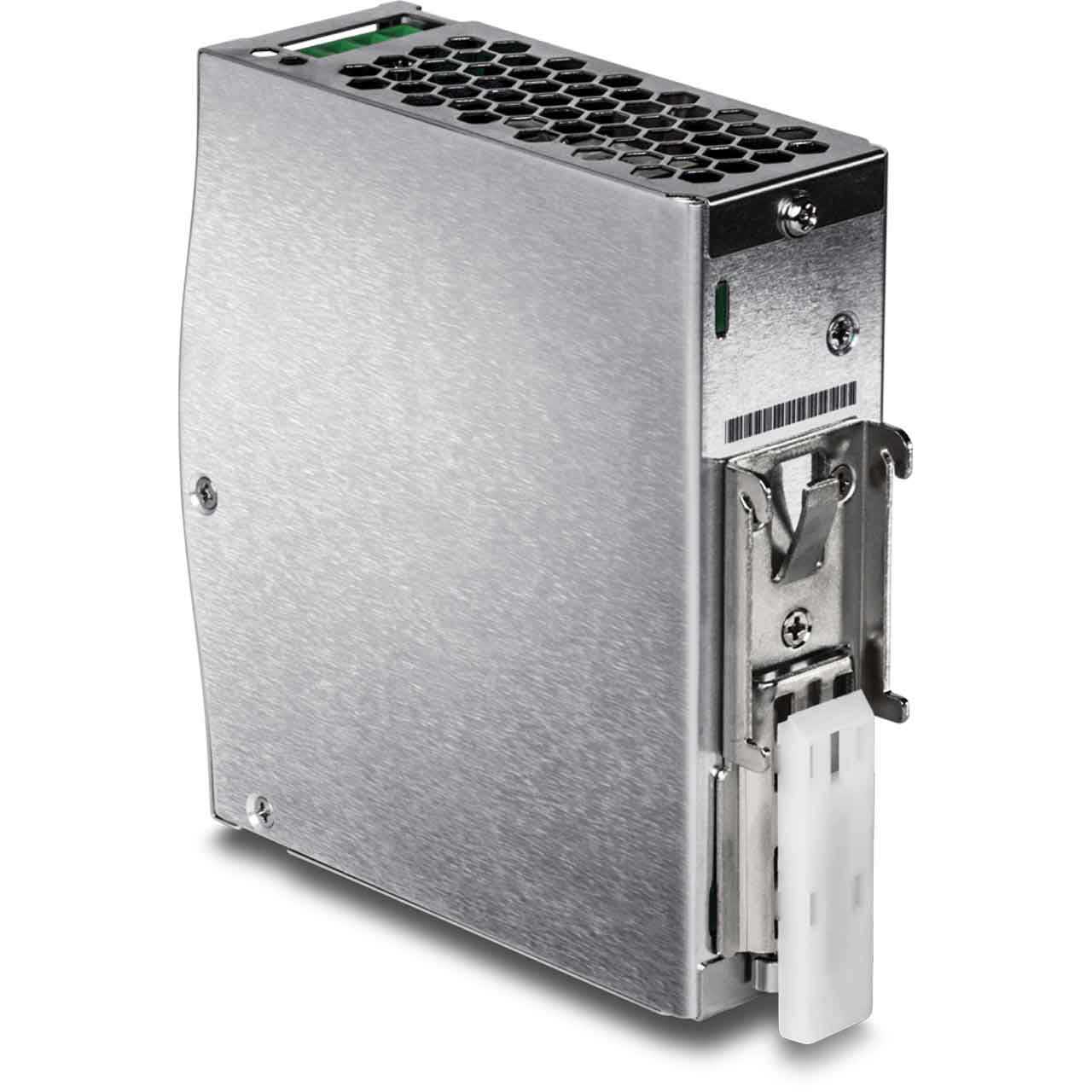

TRENDnet TI-S12048 120 W Single Output Industrial DIN-Rail Power Supply - v1.0R - Extreme

TI-S12048 - Overview

• Features:

  • Industrial power supply with integrated DIN-rail mount
  • Provides up to 120 Watts of power (48 V, 2.5 A)
  • Built-in active PFC (PF > 0.93)
  • Short circuit/overload/over voltage/over temperature protection
  • High efficiency (91%) design
  • UL 508 approved
  • 100 % full load burn-in test
  • Extreme -13 to 158 °F (-25 to 70 °C) operating temperature range
  • NDAA / TAA compliant (U.S. and Canada only)


• Specifications:

  • Interface:
  • Input: 100-240 V AC, 50/60 Hz, 1.8 A 125-370 V DC
  • Output: 120 Watts, 48 V, 2.5 A
  • DIN-rail: TS-35/7.5 or 15
  • Housing Metal case, DIN-rail mount,LED indicator confirms power to the unit
  • Operating Temperature: - 13 to 158 °F (- 25 to 70 °C), Max. 95 % non-condensing
  • MTBF 2,899,000 hours
  • Dimensions: 1.6 x 4.9 x 4.5 in (40 x 125 x 114 mm)
  • Weight: 670 g (23.6 oz.)
  • Certifications (Mean Well): CE, UL 508CB 60950-1, TUV EN60950-1


• Item Includes:

  • 1x TI-S12048 120 W Single Output Industrial DIN-Rail Power Supply


• GTIN:

  0710931160383
