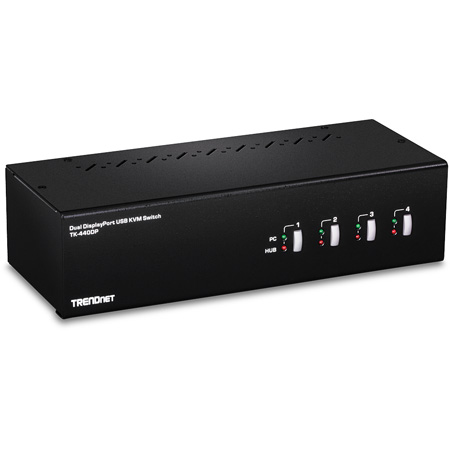

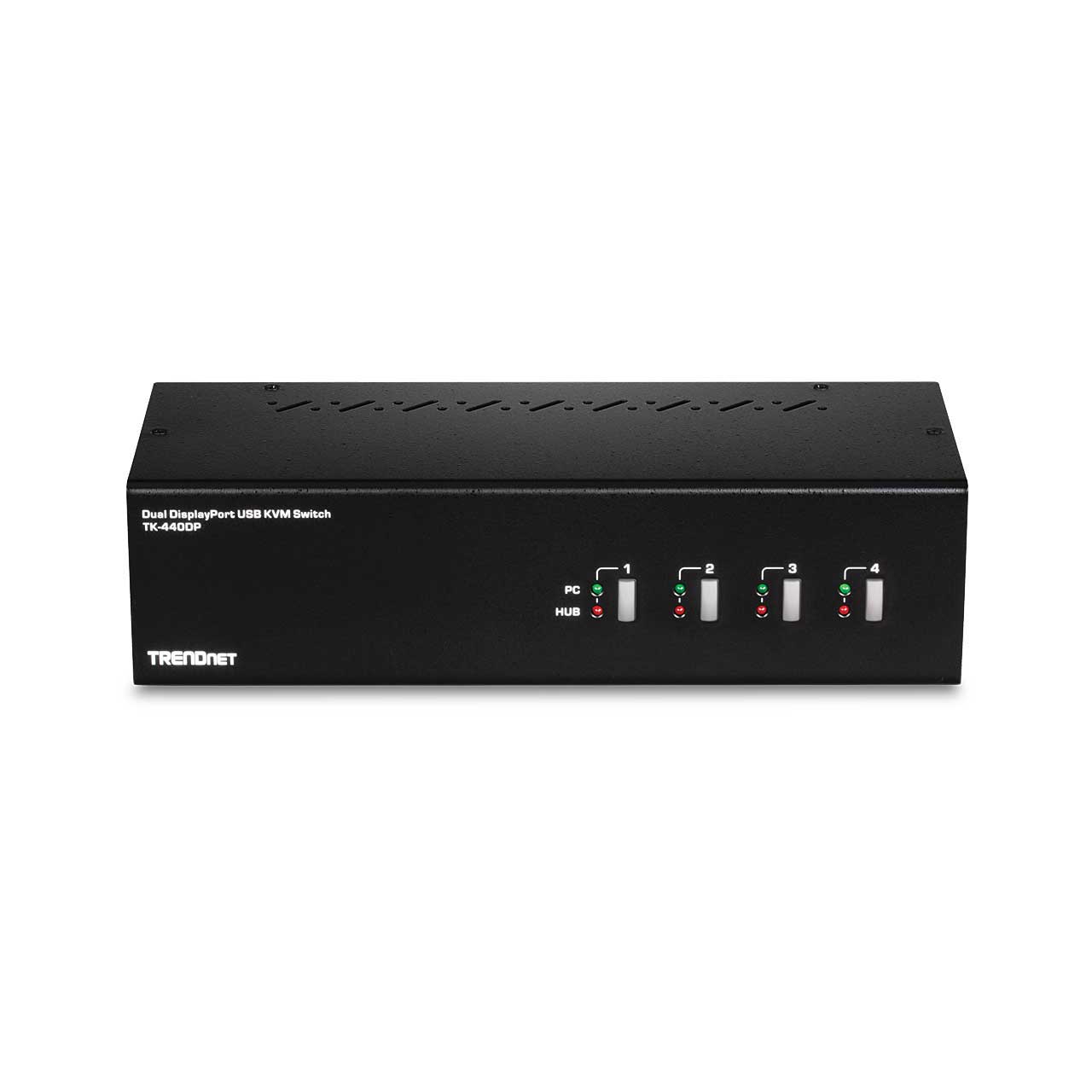

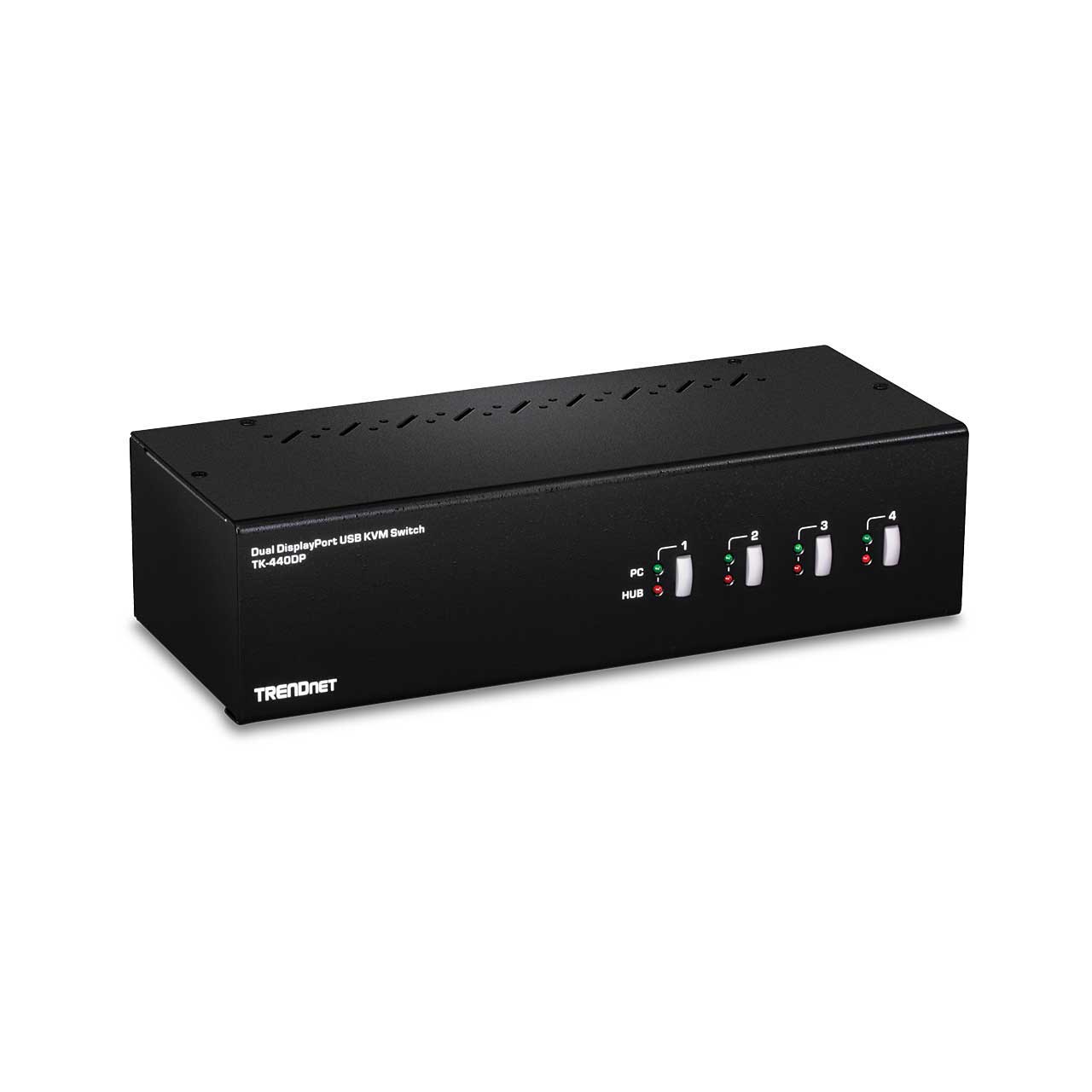

TRENDnet TK-440DP 4-Port Dual Monitor Display Port KVM Switch

TK-440DP - Overview

• Features:

  • Dual Monitor - Designed to connect to two DisplayPort monitors.
  • 4K UHD Resolution - Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz).
  • USB 2.0 Hub - Two additional USB ports to connect storage drives and printers.
  • 4-Port Dual Monitor KVM - Control up to four computers with dual monitor support
  • DisplayPort Monitor - Designed to connect to two DisplayPort monitors
  • 4K UHD - Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz)
  • Audio Support - Full audio support maximizes work station productivity
  • USB Mouse & Keyboard - True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs
  • Housing - Rugged metal enclosure
  • Hot Keys - Hot Key command shortcuts


• Specifications:

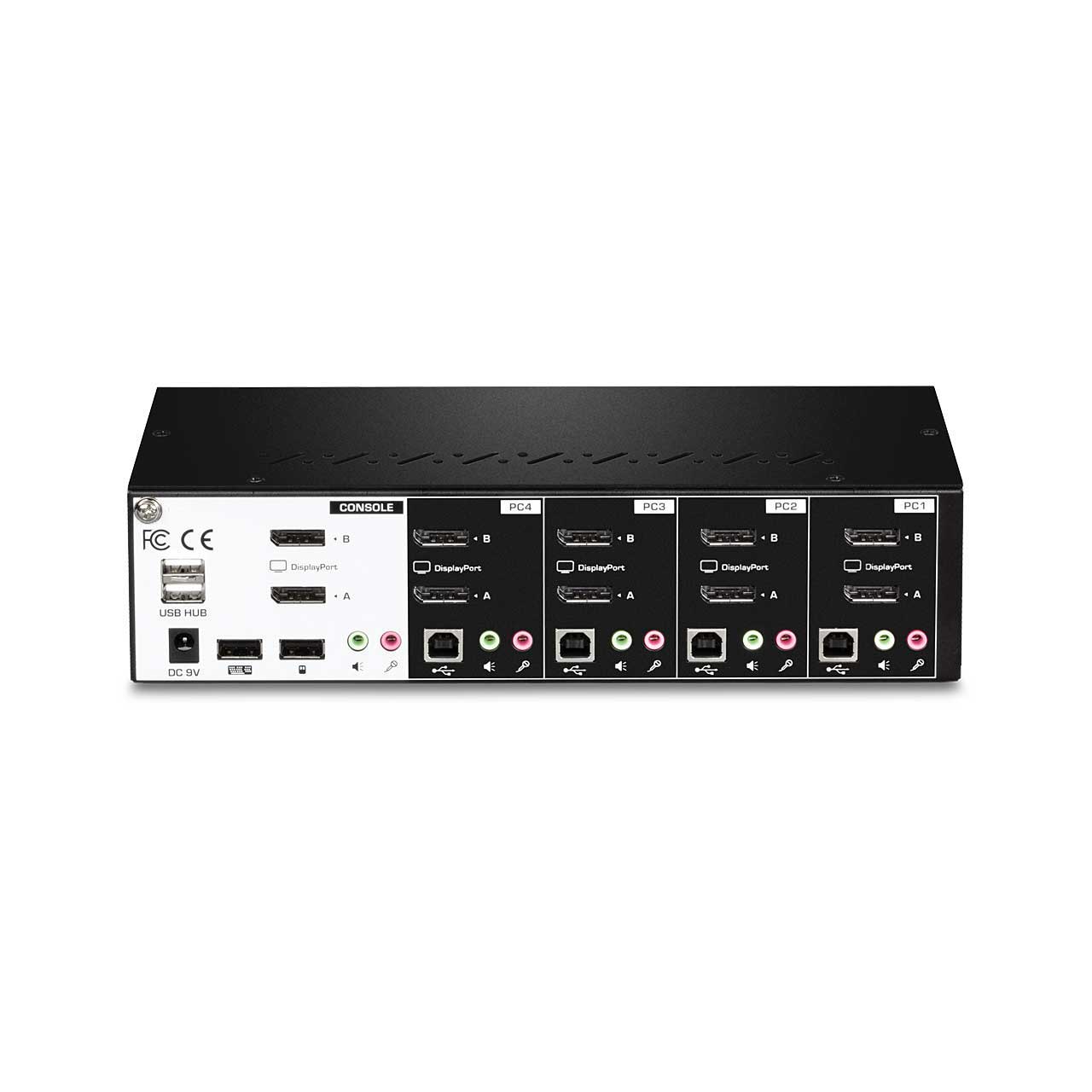

  • Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm

    KVM Port Interface
  • Keyboard/Mouse: USB Type B
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm

    Computer Interface (up to 4)
  • Keyboard/Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm

    Monitor Resolution:
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

    General
  • Switching Control: Front panel push buttons, Keyboard hot key commands
  • Operating Temperature: 0° - 40° C (32° - 104° F)
  • Operating Humidity: Max. 90% non-condensing
  • Power: Input: 100 - 240V AC, 50/60Hz, 0.8A, Output: 9V DC, 2A external power adapter, Max. consumption: 0.7W
  • Dimensions (L x W x H): 254 x 100 x 66mm (10 x 3.9 x 2.6 in.)


• GTIN:

  0710931170214
