TRENDnet TPE-TG80G 8-Port Gigabit GREENnet PoEplus Switch 8 Ports - 10/100/1000Base-T - Twisted Pair - Gigabit Ethernet

ITEM #: TNET-TPE-TG80G MFG #: PU1973

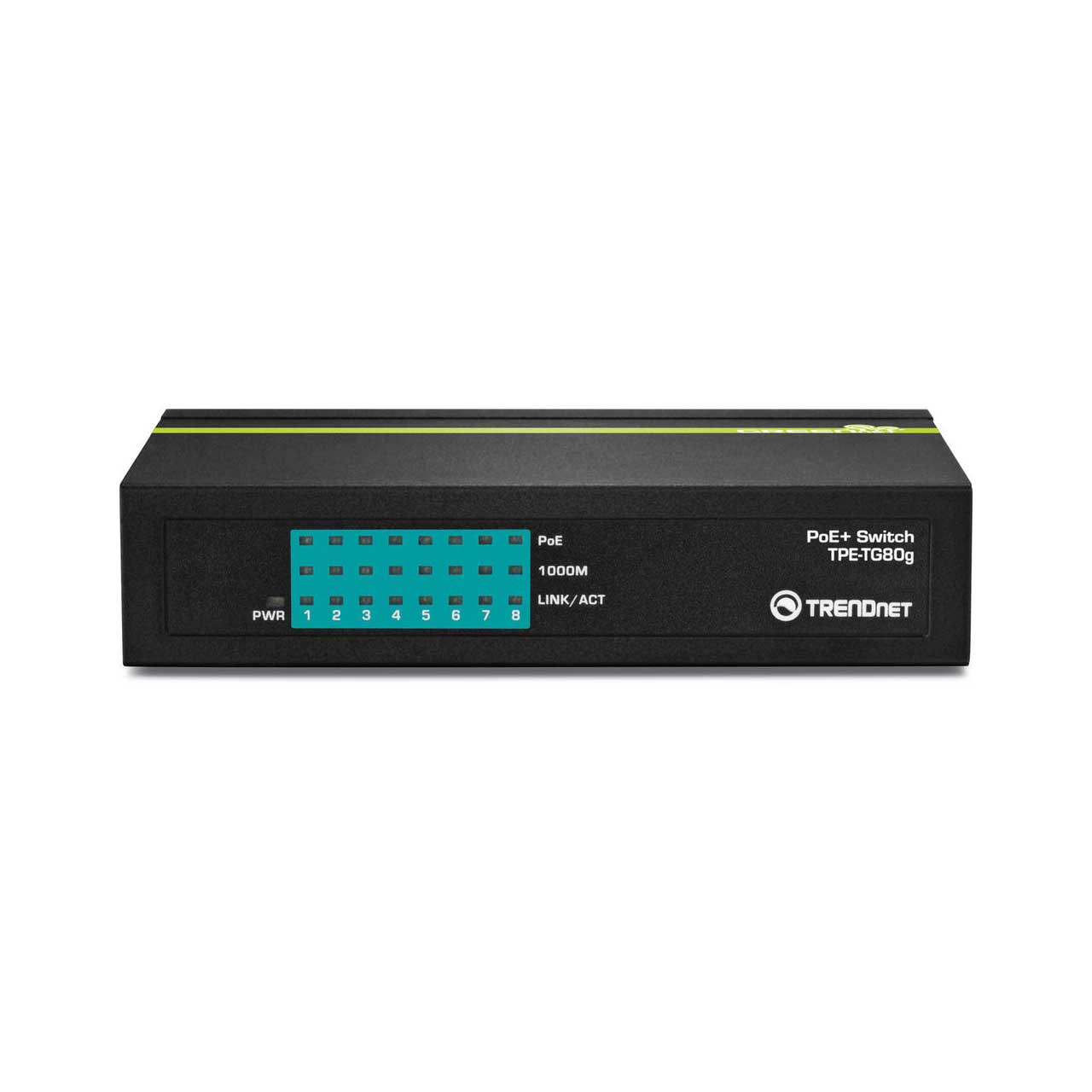

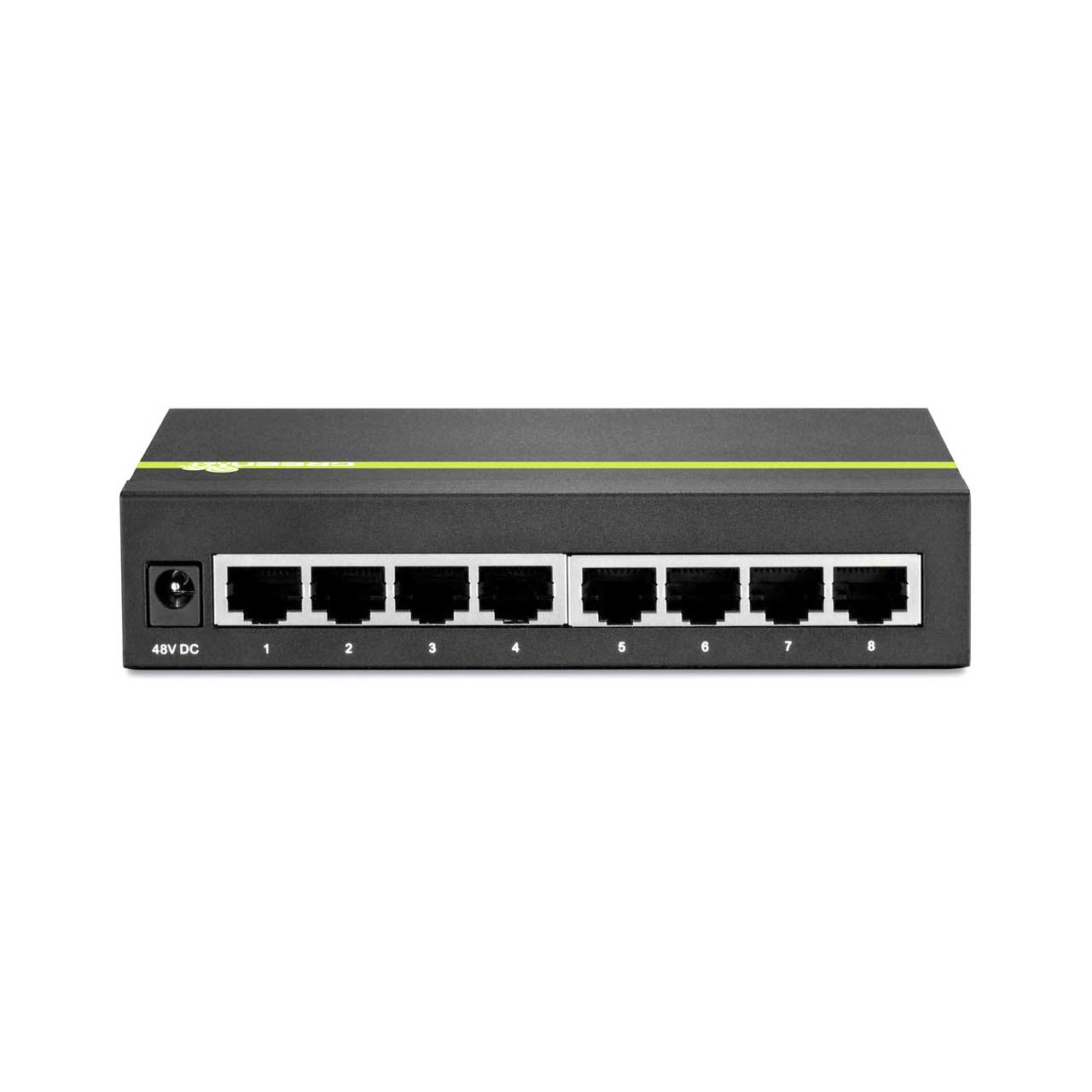

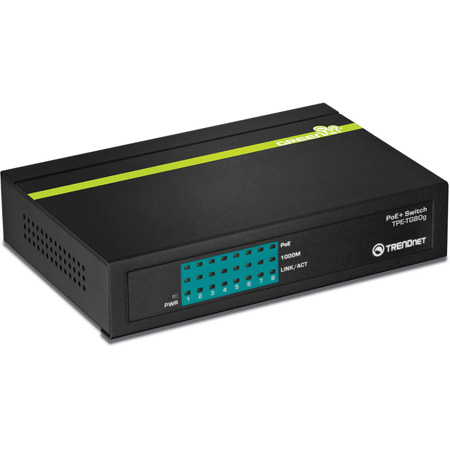

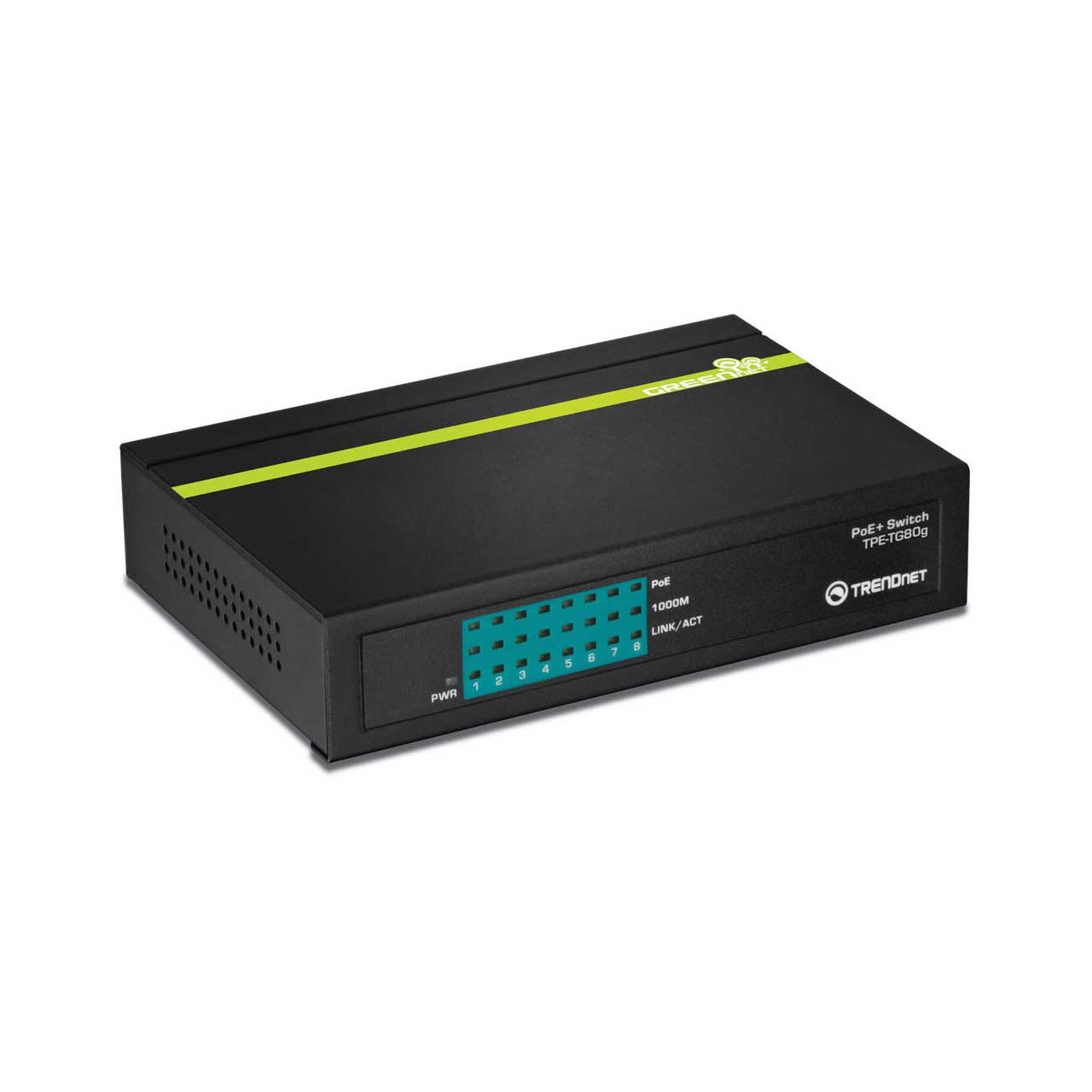

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$124.99

Our Price:

$109.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PU1973 - Overview

TRENDnet's 8-Port Gigabit GREENnet PoE+ Switch, model TPE-TG80g, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers eight Gigabit PoE+ ports which supply up to 30 watts of power per port for devices such as high power wireless access points, PTZ (Pan / Tilt / Zoom) internet cameras, and VoIP telephony systems. Auto sensing technology delivers 30 watts to 802.3at PoE+ devices (up to 3 devices), 15 watts to 802.3af PoE devices, and only data to non-PoE devices. GREENnet technology reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 16 Gbps. LED indicators display device status for efficient troubleshooting. This switch comes in a sturdy metal case and quickly adds PoE+, PoE, and non-PoE devices to your network.

  • Features:

    • 8 x Gigabit PoE+ ports
    • 123 W PoE power budget
    • 16 Gbps switching capacity
    • Sturdy metal switch
    • Plug and Play installation

  • Specifications:

    • Standards
    • IEEE 802.1p QoS
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3ab
    • IEEE 802.3af (15.4 Watts/port)
    • IEEE 802.3at (30 Watts/port)
    • IEEE 802.3az
      Device Interface
    • 8 x Gigabit PoE/PoE+ ports
    • LED indicators
      Data Transfer Rate
    • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    • Gigabit: 2000 Mbps (full duplex)
      Performance
    • Data RAM Buffer: 128 KB
    • Switch Fabric: 16 Gbps
    • MAC Address Table: 8 K entries
    • Forwarding rate: 11.9 Mpps (64-byte packet size)
    • Jumbo Frame: 9 KB
    • Special Features: GREENnet energy saving technology
      Power
    • Input: 110-240 V AC, 50/60 Hz, 0.75 A
    • Output: 54 V DC, 2.77 A
    • Consumption: 5.3 Watts (Max. without PD)
      PoE
    • PoE budget: 123 Watts
    • Pin 3, 6 for power+ and pin 1, 2 for power- (mode A)
      Physical
    • Operating Temperature: 0 – 45 °C (32 - 113 °F)
    • Operating Humidity: Max. 90% non-condensing
    • Dimensions: 150 x 96 x 28 mm (5.9 x 3.8 x 1.1 in.)
    • Weight: 400 g (14 oz.)
    • Certifications: CE, FCC

  • GTIN:

    0710931505191
