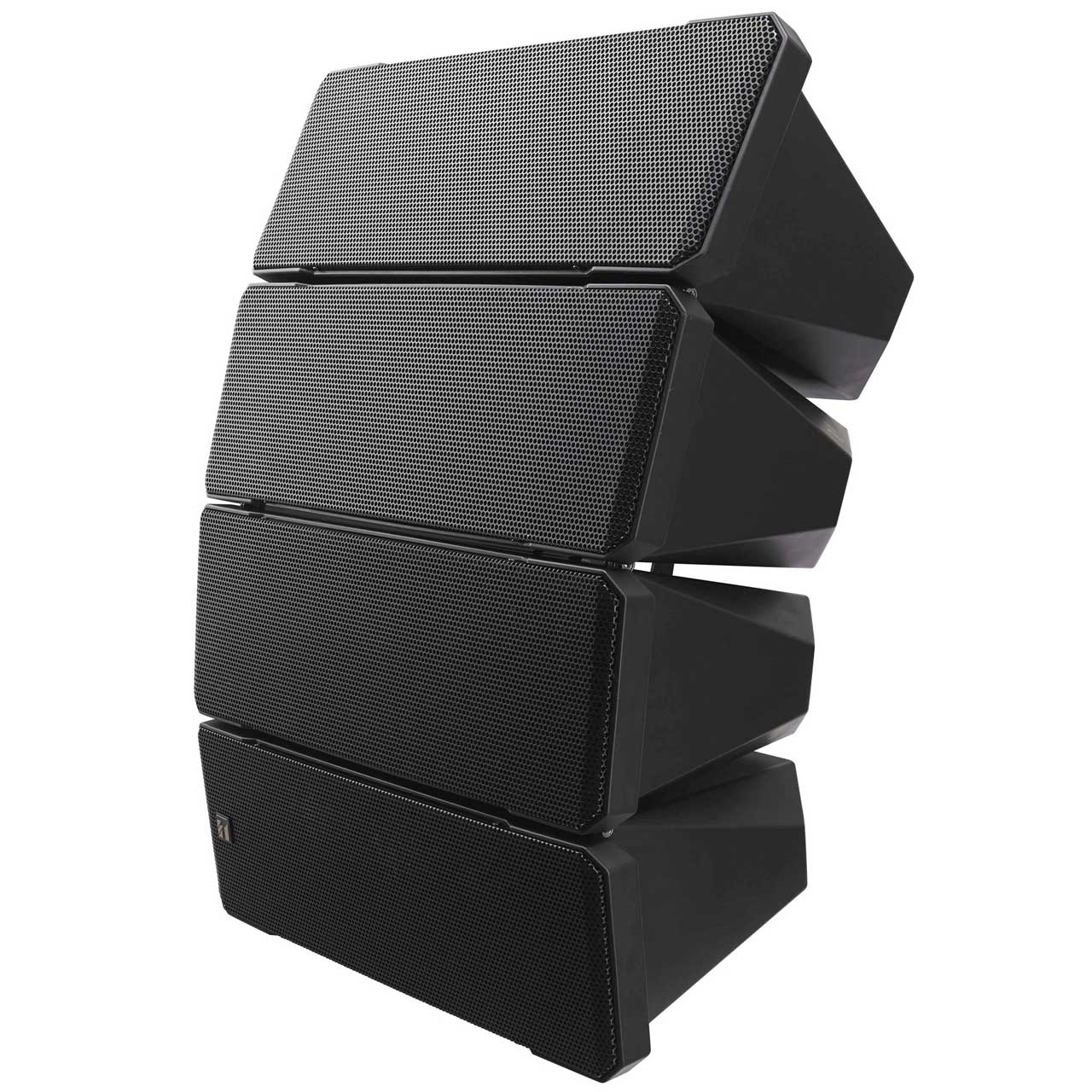

TOA HX-7B Variable Dispersion Speaker 750W 8 Ohms - Black

ITEM #: TOA-HX-7B MFG #: HX-7B

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,152.00

Our Price:

$1,739.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HX-7B - Overview

The HX-7 expands the HX Series with a larger, more powerful configuration. Designed to meet the needs of medium-sized venues, such as churches, auditoriums (and other performance spaces), as well as gymnasiums and sports arenas, it adds true line array performance to its already impressive range of configurations. Its improved hi-frequency driver compliment improves output, power handling, and provides enhanced intelligibility within the vocal range. Multiple HX-7's may be stacked together vertically for increased power handling and distance coverage. Like its smaller sibling, the HX-5, the HX-7 offers flexibility not available with other "single-box" speaker products.

  • Features:

    • 4 cell configuration each incorporating:
    • (2) 5" Low-frequency drivers
    • (1) Center-mounted, waveguide-loaded, 1"-exit compression driver
    • Flexible vertical angle adjustment between 0° and 45° (60° with second HX-7 and optional adapter).
    • Power handling: 750W Continuous Program at 8 Ohms.
    • 100dB sensitivity (1W at 1m).
    • Optional hardware for stand, wall, ceiling & flown installations.
    • Black or White & weather-proof (WP) versions available.

  • Specifications:

    • Power Handling Capacity: Continuous Pink Noise: 250 W (IEC60268-5: 350 W), Continuous Program: 750 W
    • Rated Impedance: 8 Ω
    • Sensitivity: 100 dB (1 W, 1 m)
    • Frequency Response: 75 Hz - 20 kHz
    • Crossover Frequency: 1.7 kHz
    • Directivity Angle: Horizontal - 100°, Vertical - Depending on directivity angle mode
    • Speaker Component: Low frequency - 5.5" (Cone-type x 8), High Frequency - Wave front control horn with compression driver x 4
    • Input Terminal: Speakon NL4MP x 2 and M4 screw terminal, distance between barriers - 0.35"
    • Finish: Enclosure - Polypropylene Black, Punched net - Surface-treated steel plate black paint, Hanging bracket - Steel Plate t3.0 black paint
    • Dimensions: 19.57" (W) x 26.14" (H) x 10.79" (D)
    • Weight: 66.14 lbs
