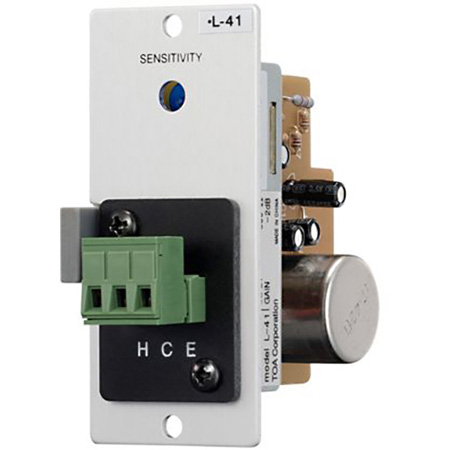

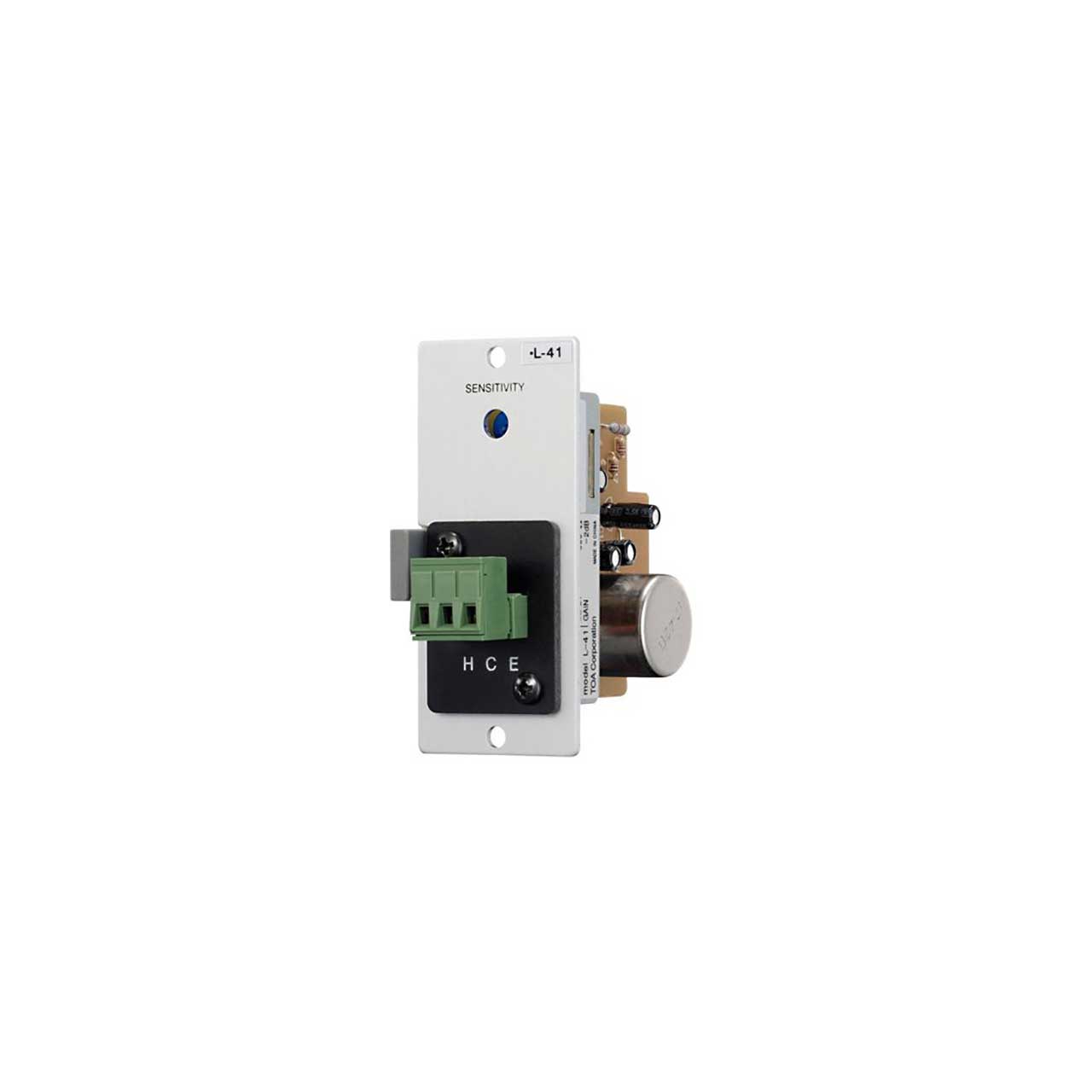

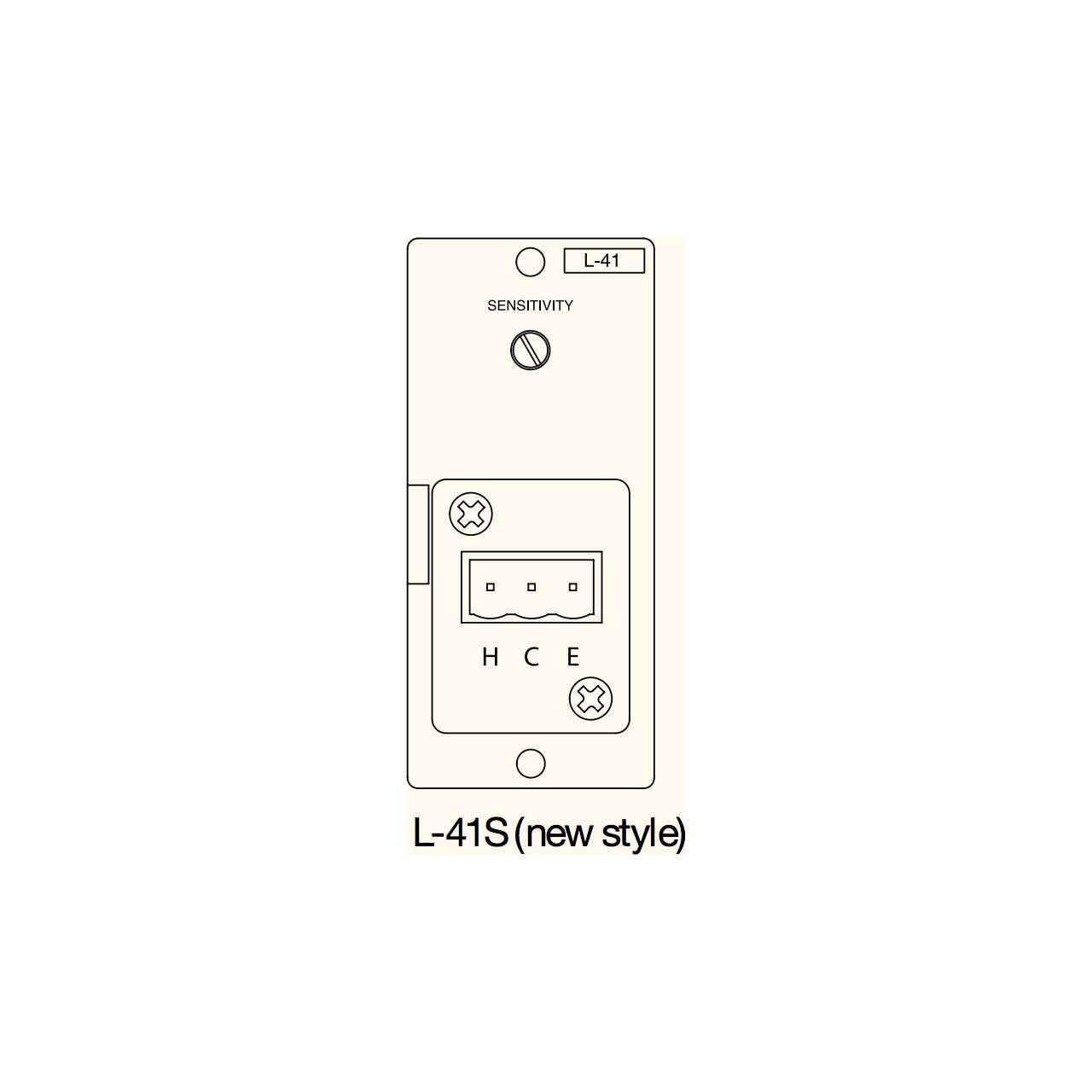

TOA L-41S 600 Ohm Balanced Line Input Module Mute Send w/Screw Terminals

L-41S - Overview

• Features:

  • For Applications Requiring 600 ohm Line Matching.
  • Transformer Isolation (600 ohms) minimizes ground loop problems when connecting remote equipment (greater than 15 feet)
  • Signal At Input Terminals Activates Both Mute Bus #1 and Mute Bus #2 Buses By Default (cut diode(s) to disconnect individual mute bus)
  • Connector:removable terminal block


• Specifications:

  • Faceplate Controls: Mute send sensitivity
  • PCB Controls: Mute bus selection
  • Input Impedance: 600 ohms, balanced transformer-isolated
  • Sensitivity: -16 dBu, min. -30 dBu to activate mute function
  • Gain: -2 dB
