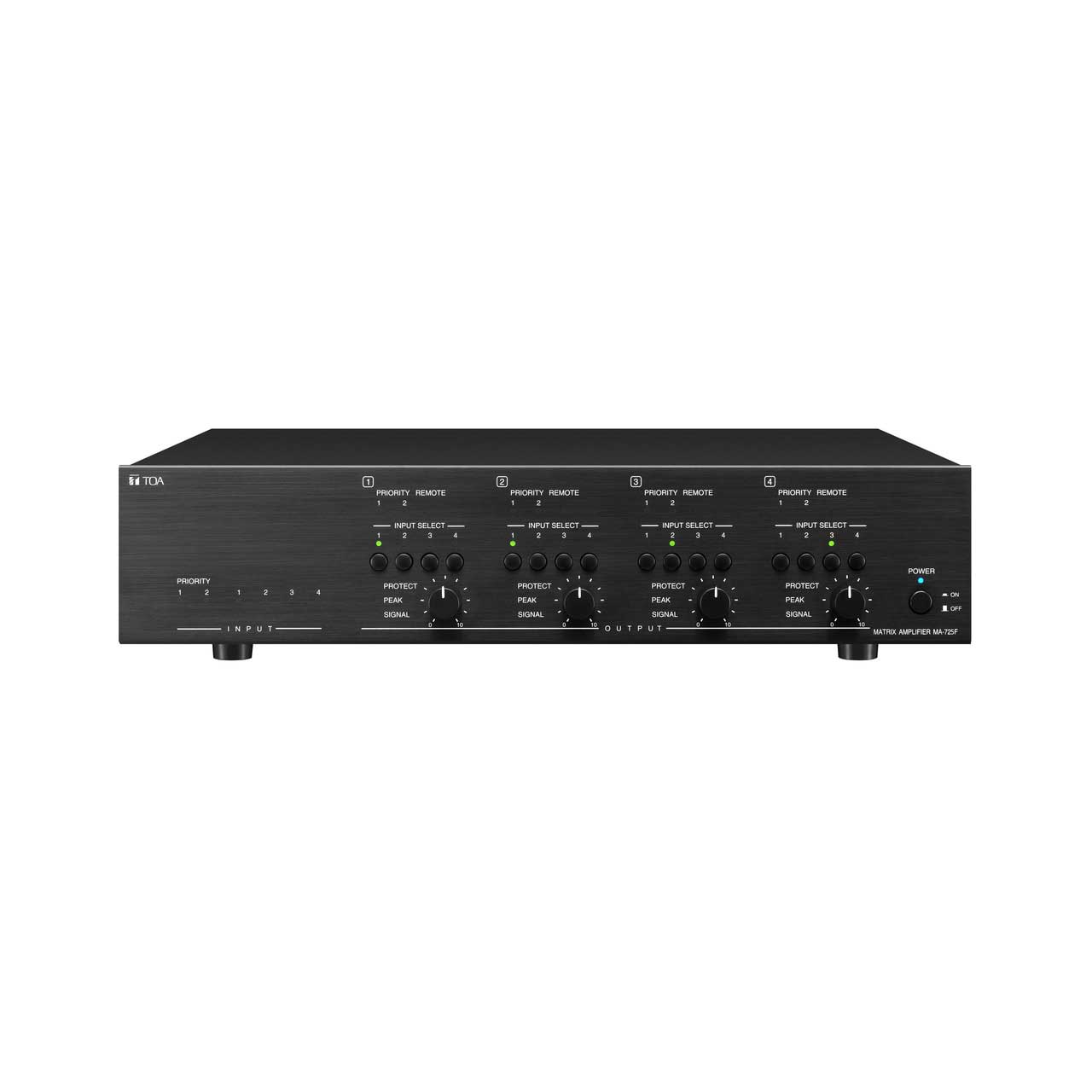

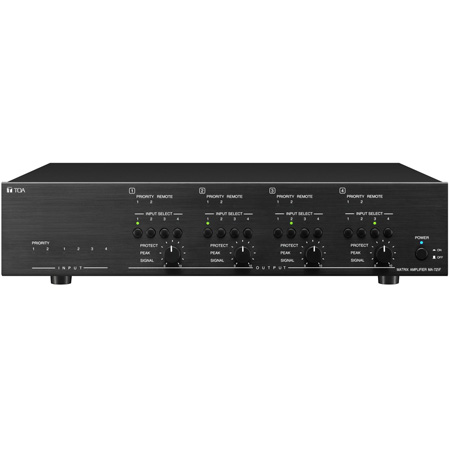

TOA MA-725F-AM 4 x 250 Watt Matrix Mixer-Amp with DSP and Ethernet Access

MA-725F-AM - Overview

• Features:

  • 4 stereo line and 2 priority MIC/LINE inputs with matrix routing to 4 amplifier outputs.
  • 2 priority inputs with different priority level for paging or other audio source to override stereo line inputs.
  • Each priority input has input gain level, mute sensitivity and mute hold time adjustments.
  • 4 channels of 250W Class-D amplifier at 70V/100V
  • Independent DSP preset selection per each channel and 50Hz HPF for speaker protections.
  • DSP preset selections include general EQs, TOA speaker EQs and X-over settings to be used with subwoofers.
  • Each output channel also has auxiliary line output to deliver audio to other audio systems for scale expansions.
  • Up to 4 wall mount remote control, WP-700 can be connected to control the line input selection and output volume.
  • 100-240V universal power supply.


• Specifications:

  • General
  • Power Source: 100 - 240V AC, 50/60Hz
  • Power Consumption: 1350 W (rated output), 200 W (based on cULus standards), 42.5 W (idle), 22 W or less (stand-by) 9 W or less
  • Frequency Response: 20Hz - 20 kHz (-3 dB / + 1 dB, LPF OFF)
  • Total Harmonic Distortion: 1% or less, at 1kHz, rated output
  • Certifications: cULus 60065, EN60065, EN55032, EN55020, FCC part15 class A
  • DSP Preset: 16 presets in 4 banks at each output channel, selectable
  • S/N Ratio Mic: 60 dB* or more, Line: 75 dB* or more (A-weighted)
  • Muting: Manual mute / Automatic mute
  • Mute Hold Time: 50ms - 10 seconds, adjustable
  • Priority Level: PRIORITY 1 > PRIORITY 2 > LINE 1-4

    Control
  • Power: ON/OFF switch, Power remote terminal
  • Priority 1-2: MIC/LINE selector switch, Gain control, Assign switch, Auto mute switch, Mute sense control, Manual mute terminal,
    Mute hold time control, Priority mix switch
  • Line In 1-4: Gain control, Assign restriction switch
  • Output 1-4: LINE IN 1-4 selector switch, Output gain control, 70V/100V selector switch, HPF switch, DSP bank selector switch, DSP
    preset selector switch
  • Remote 1-4: Remote control connector (RJ-45), Remote link switch
  • Operating Temperature: 0 to 40 °C degree (32 to 104 °F)
  • Operating Humidity: 35% to 80%RH (no condensation)
  • Finish Panel: Aluminum, hair line, black; Case: Steel plate, black, paint
  • Dimension: 420 (W) x 107.6 (H) x 350 (D) mm (16.54" x 4.24" x 13.78")
  • Weight: 7.6 kg (16.7 lbs) 5.7 kg (12.3 lbs)


• Item Includes:

  • 1x MA-725F-AM Mixer
  • 1x Power Cord (2m (5.65ft))
  • 7x Removable Terminal Plug (5 pins x 2, 3 pins x 1, 2 pins x 4)
  • 2x Rack Mounting Bracket x 2, B
  • 4x Racket Mounting Screws
  • 1x User Manual
