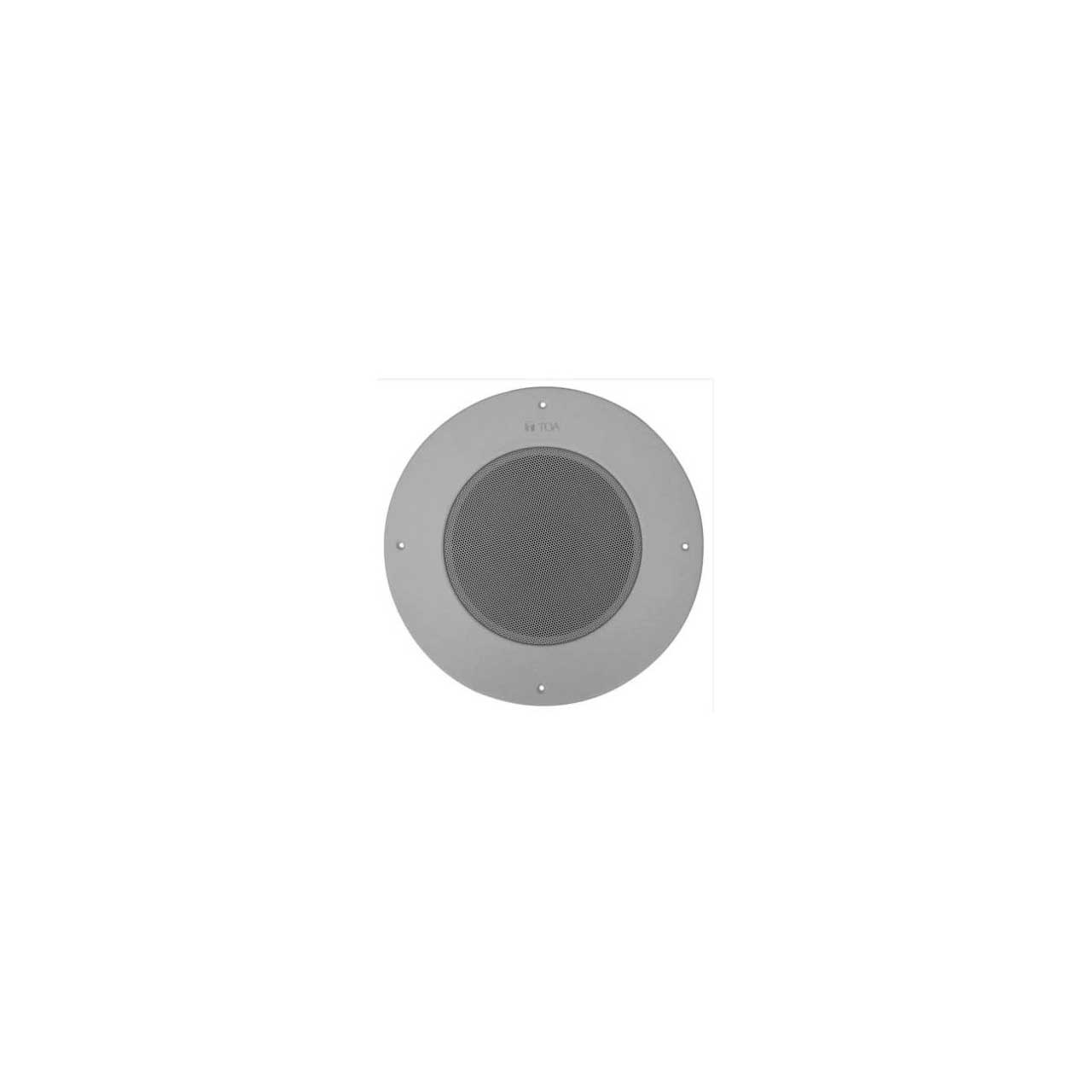

TOA PC-580RU 5-Watt 8-Inch Ceiling Paging Speaker

Name: TOA PC-580RU 5-Watt 8-Inch Ceiling Paging Speaker
Brand: TOA Electronics, Inc.
SKU: TOA-PC-580RU
Price: 40.00 USD
Availability: InStock

ITEM #: TOA-PC-580RU MFG #: PC-580RU

TOA Electronics, Inc.

List Price:

$50.00

Our Price:

$40.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PC-580RU - Overview

The PC-580RU is designed to fill the need for a high-performance, cost effective ceiling speaker for
use in Mass Notification Systems, Voice Evacuation, Emergency Paging, and everyday Paging and Background Music
requirements.The PC-580RU speaker meets UL 2572 (ULC S541, UL 1480 UUMW) (Fire Alarm Signaling) and UL 2043 (use in air handling spaces) standards when using the HY-BC580U Back Can.

Specifications:
- Rated Input: 10W (speaker), 5 W (transformer, 70.7 V line and 25 V line).

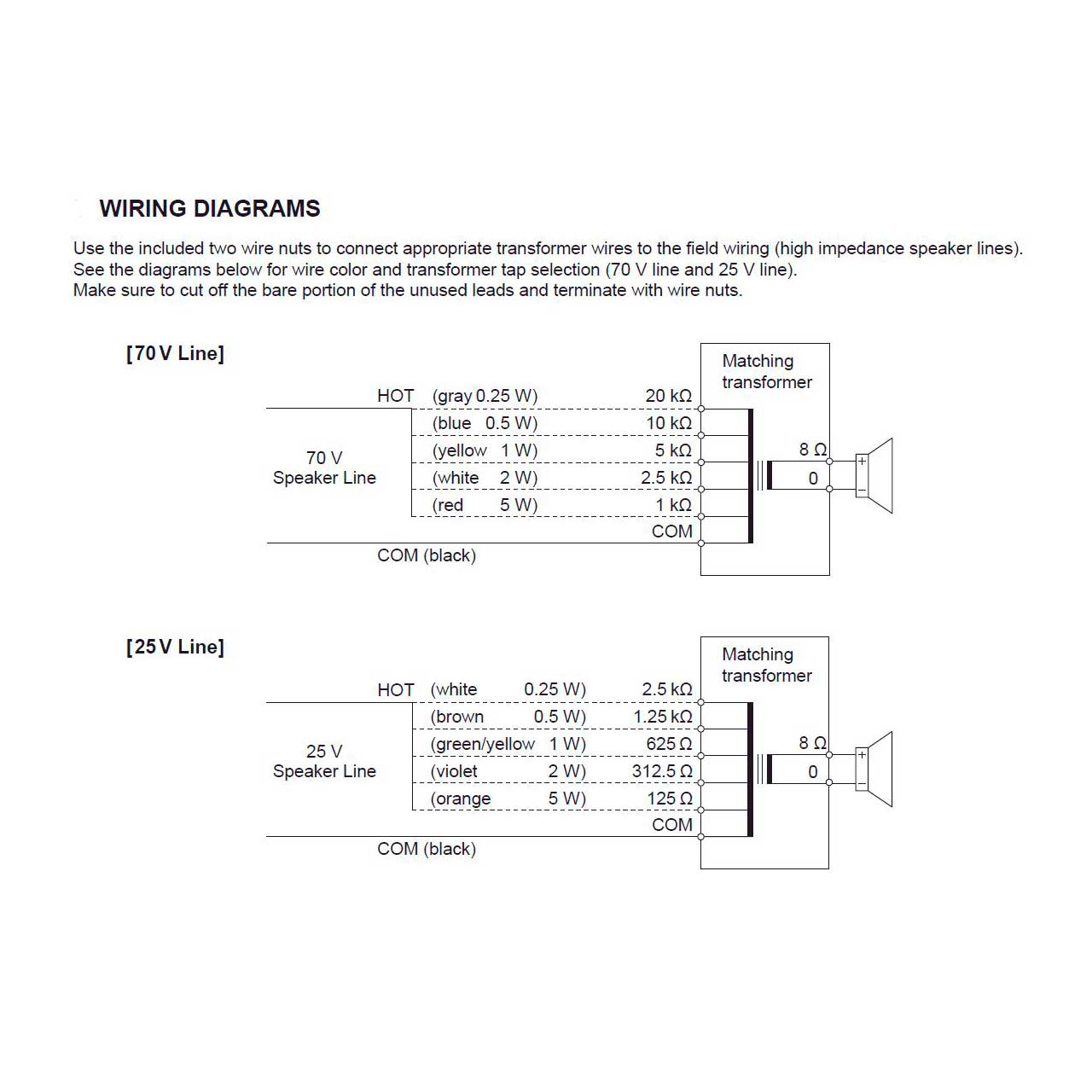

- Rated Impedance;70.7 V line: 20 K (0.25 W), 10K (0.5W), 5K (1 W), 2.5 K (2 W), 1 K (5 W) Ohms
- 25 V line: 2.5 K (0.25 W), 1.25 K (0.5 W), 625 (1 W), 312.5 (2 W), 125 (5 W) Ohms.
- Sensitivity: 97 dB (1 W, 1 m).
- Frequency Response: 50 - 16.5 KHz.
- Speaker Component: 200 mm (8") dual cone type.
- Magnet Size: Dia. 80 (3.15") x dia. 32 (1.26") x 12 (0.47") mm.
- Magnet Weight: 272g (10 oz).
- Flux Density: 11,900 gauss.
- Dimensions of Fixing Hole: Dia. 203.2 mm (8.00").
- Finish:Baffle: Steel plate, white, Grille: Surface-treated steel plate net, white.
- Dimensions: Dia. 324 x 87.3 (d) mm.
- Weight: 1.50 kg (3.31 lbs).
- Accessory: Mounting screw (M 5 x 38 mm) x 4; Speaker pass through terminal strip.
- UL Standards: UL 2572 (ULC S541, UL 1480 UUMW) and UL 2043 when used with HY-BC580U.
- Option:Back can (for UL/ULC certified installation): HY-BC580U.
