TOA U-01F Line Input Module - Unbalanced; 220k Ohms - Female XLR

ITEM #: TOA-U01F MFG #: TOA-U01F

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
TOA Electronics, Inc.
Free Shipping with $49 Minimum Order

List Price:

$86.00

Our Price:

$70.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

TOA-U01F - Overview

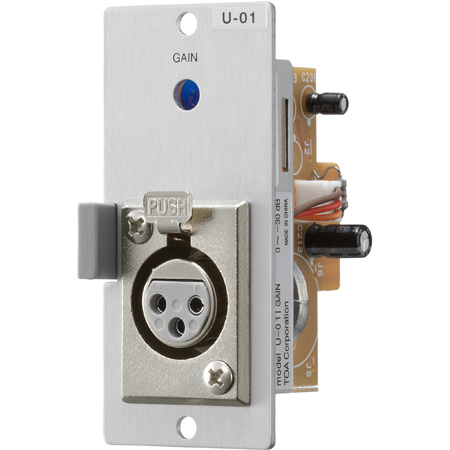

The TOA U-01F is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has an unbalanced line input with female XLR type connector, and gain control.

  • Specifications:

    • Power Source: 24 V DC (supplied from the main frame)
    • Current Consumption: 4 mA
    • Input Sensitivity: -20 dB* (rated output: -20 dB*), adjustable: -20 to +10 dB*
    • Input Impedance: 220 kΩ, unbalanced
    • Frequency Response: 20 Hz - 20 kHz ±1.0 dB
    • Distortion: 0.05 % or less (1 kHz, output: 0 dB*)
    • Noise Level: -106 dB* (20 Hz - 20 kHz BPF)
    • Gain: -30 - 0 dB
    • Connector: Female XLR connector (XLR-3-31 equivalent)
    • Dimensions: 35 (W) x 78 (H) x 88 (D) mm (1.38 x 3.07" x 3.46")"
    • Weight: Max. 75 g (0.17 lb)
