U-03R - Overview

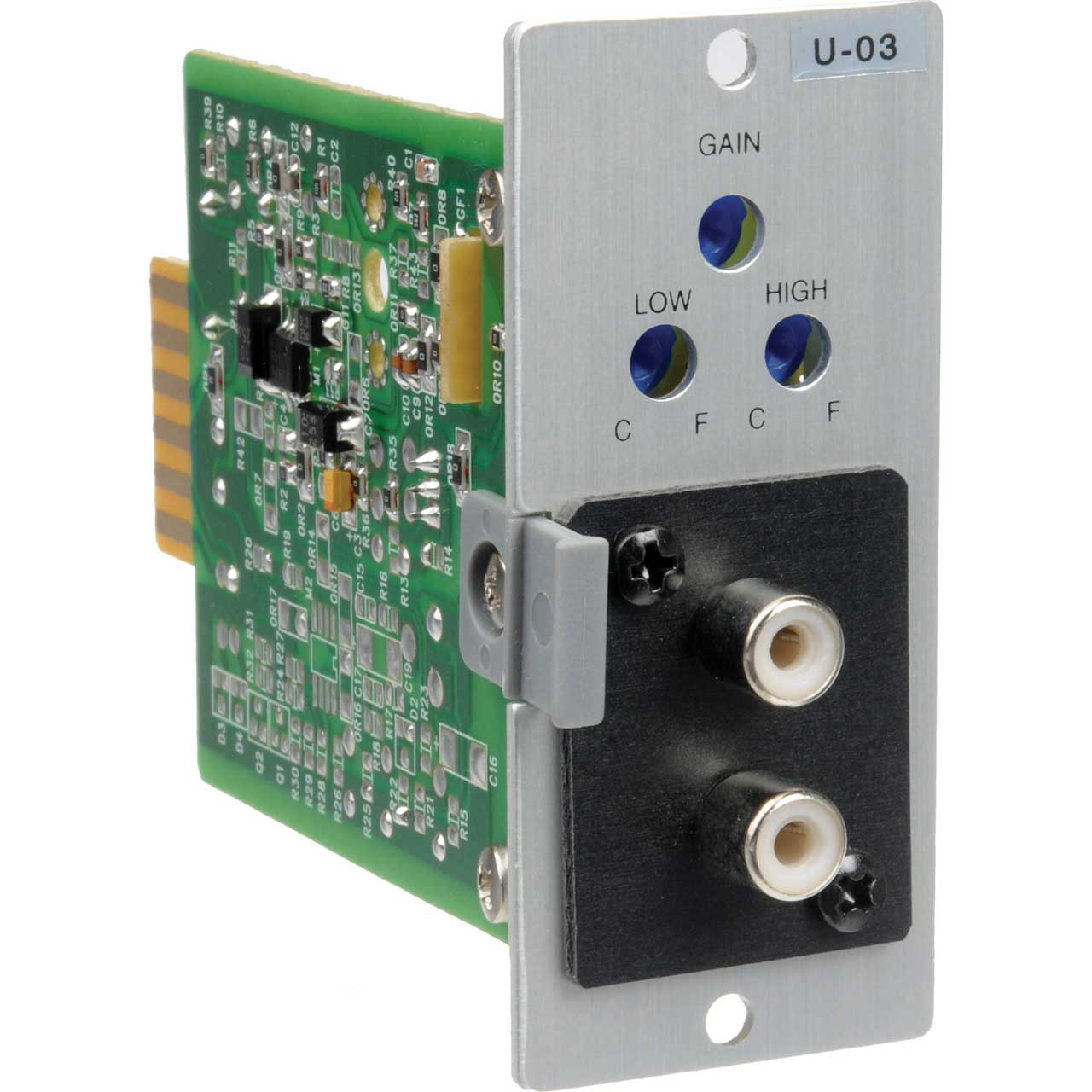

The TOA U-03R is an AUX module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a low-cut and a high-cut filter.

Features:
- Use "B" Series Modules with transformer isolation for balanced or unbalanced sources. Use "L" Series Modules only for 600 ohm impedance matching. Use "U" Series modules for unbalanced sources with short cables (less than 15 feet)
Specifications:
- Power Source: 24 V DC
- Current Consumption: Under 8 mA
- Input Sensitivity (Rated Output 100 mV ): 100 - 3,600 mV (adjustable)
- Low Cut Filter (100 Hz ): -5 to -15 dB
- High Cut Filter (10 kHz ): -7 to -13 dB
- Noise Output (20 Hz - 20 kHz BPF): Under 10 µV
- Distortion: Under 0.05 %
- Frequency Response: 20 Hz - 20 kHz
- Input Connector: RCA pin jacks
- Output Connector: 6P card edge-connector
- Dimensions: 35 (W) x 78 (H) x 88 (D) mm
- Weight: 50 g
