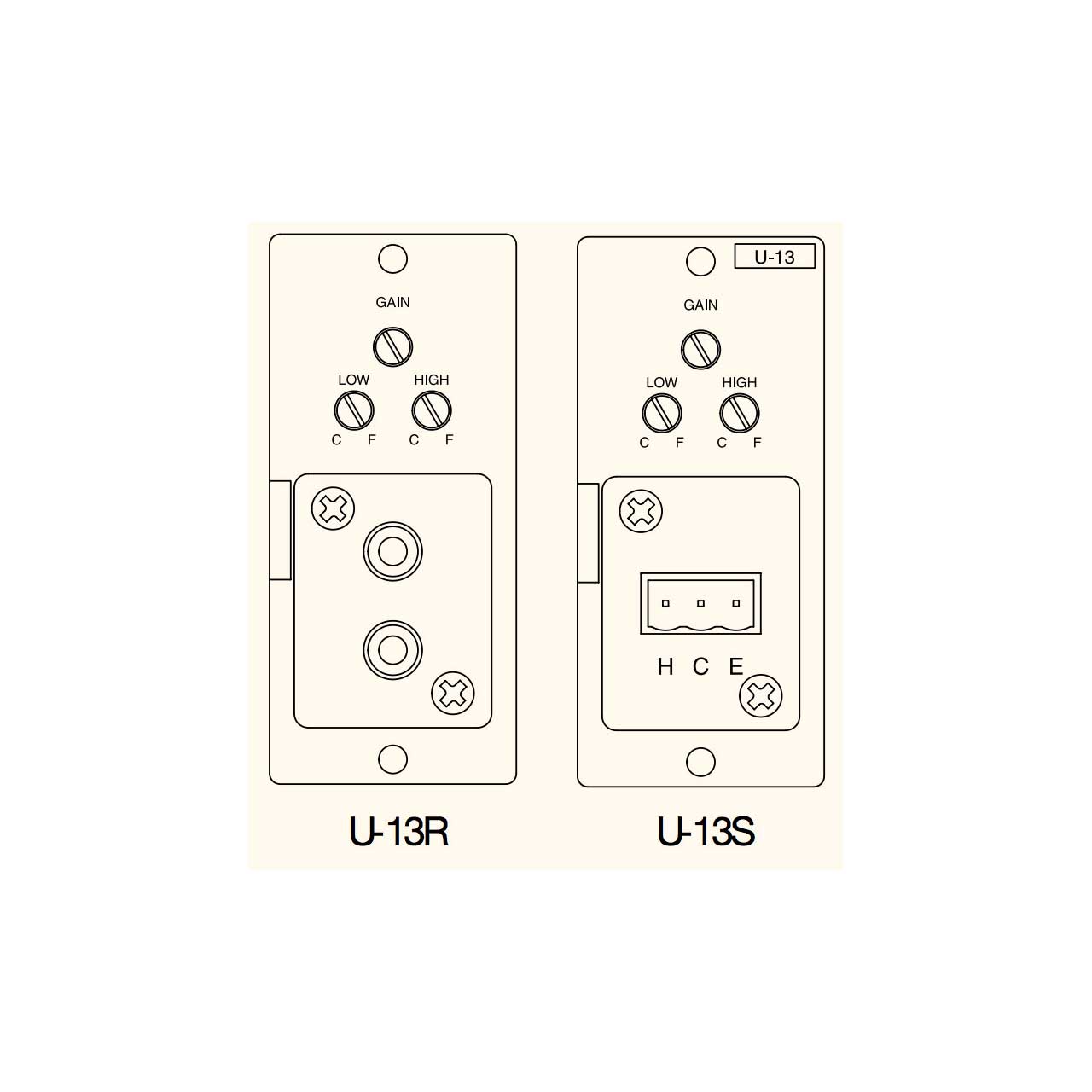

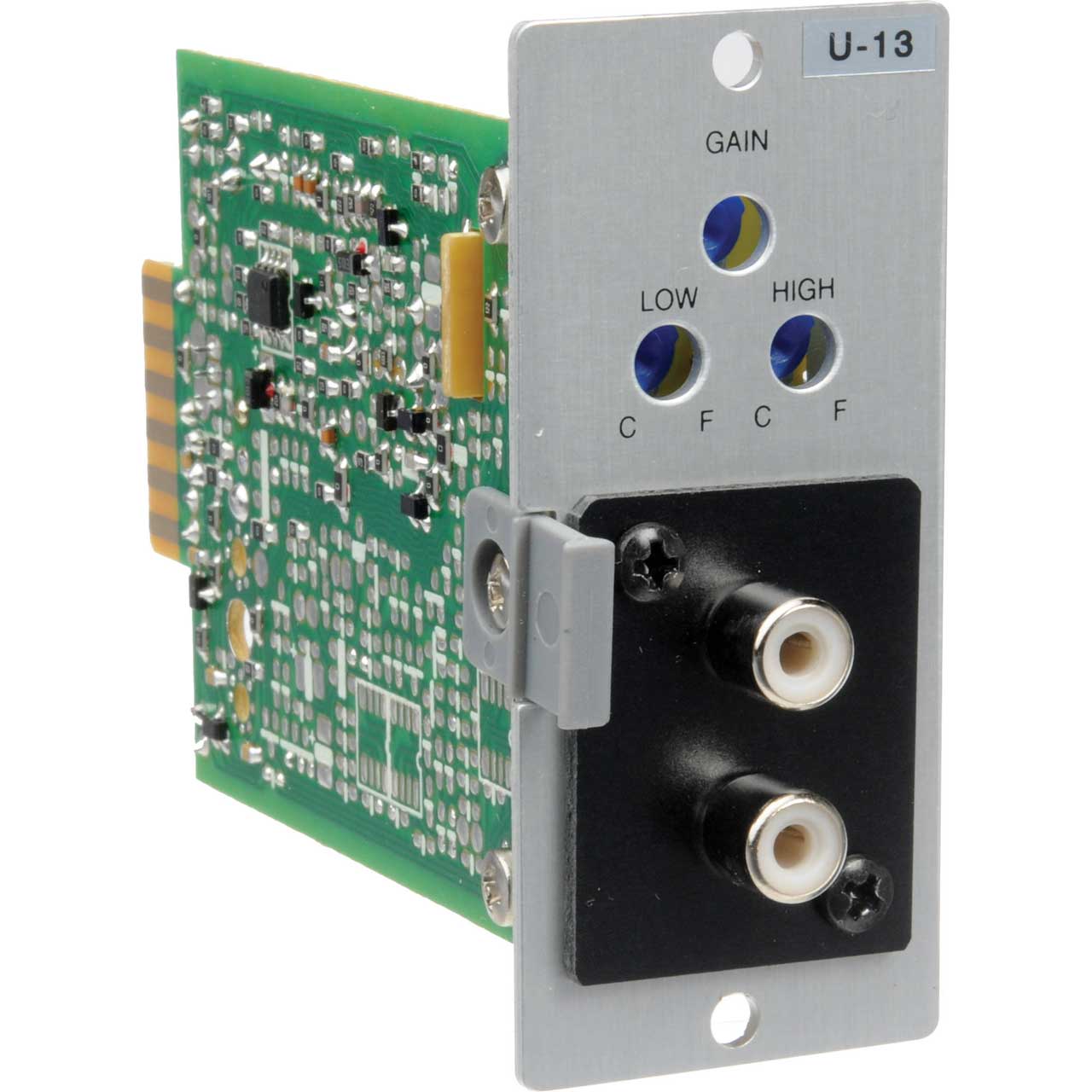

TOA U-13R Stereo Line In Module Mute Receive With Stereo Summing Dual RCA Jacks

Name: TOA U-13R Stereo Line In Module Mute Receive With Stereo Summing Dual RCA Jacks
Brand: TOA Electronics, Inc.
SKU: TOA-U13R
Price: 81.00 USD
Availability: PreSale

ITEM #: TOA-U13R MFG #: U-13R

TOA Electronics, Inc.

List Price:

$100.00

Our Price:

$81.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

U-13R - Overview

The TOA U-13R is an AUX module to be used in conjunction with the 900 series or AX-1000 amplifier. It has an input that can control muting operations of a signal output.

Features:
- Use "B" Series Modules with transformer isolation for balanced or unbalanced sources. Use "L" Series Modules only for 600 ohm impedance matching. Use "U" Series modules for unbalanced sources with short cables (less than 15 feet)
Specifications:
- Power Source: 24 V DC
- Current Consumption: Under 11 mA
- Input Sensitivity (Rated Output 100 mV ): 100 - 3,600 mV (adjustable)
- Low Cut Filter (100 Hz ): -5 to -15 dB
- High Cut Filter (10 kHz ): -7 to -13 dB
- Noise Output (20 Hz - 20 kHz BPF): Under 10 µV
- Distortion: Under 0.05 %
- Frequency Response: 20 Hz - 20 kHz
- Signal Muting Level: Over 50 dB
- Input Connector: RCA pin jacks
- Output Connector: 6P card edge-connector
- Dimensions: 35 (W) x 78 (H) x 88 (D) mm
- Weight: 50 g
