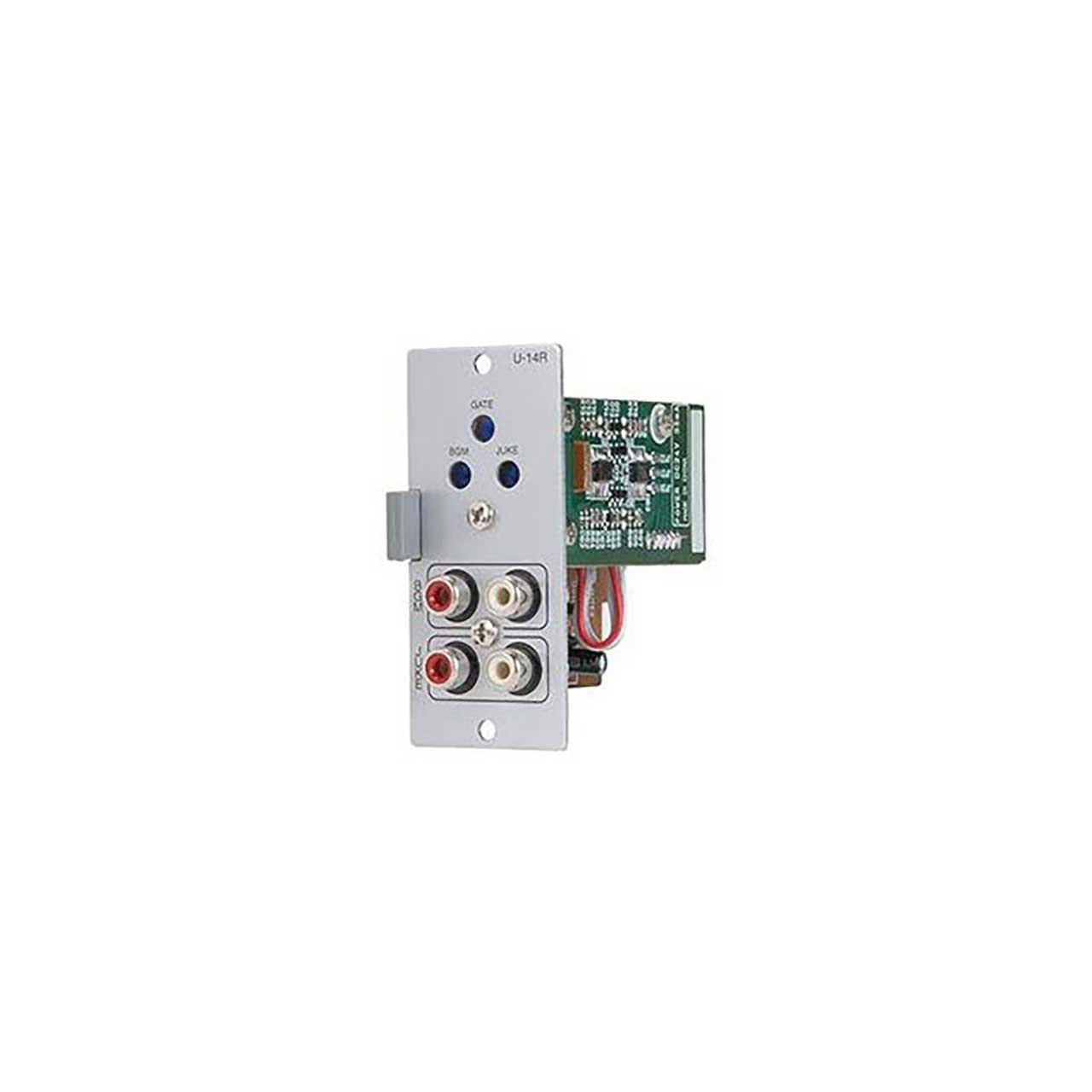

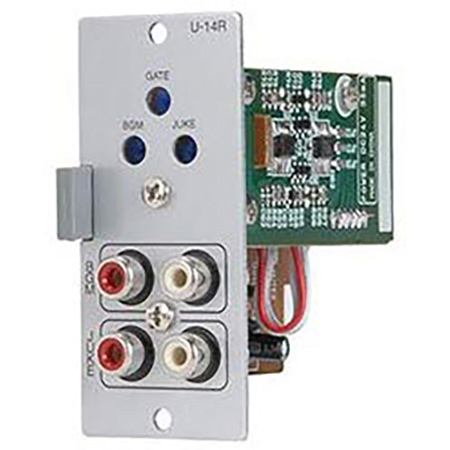

TOA U-14R 2 Line In Module Automute with Stereo Summing Dual RCA Jacks

ITEM #: TOA-U14R MFG #: U-14R

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$137.00

Our Price:

$111.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


U-14R - Overview

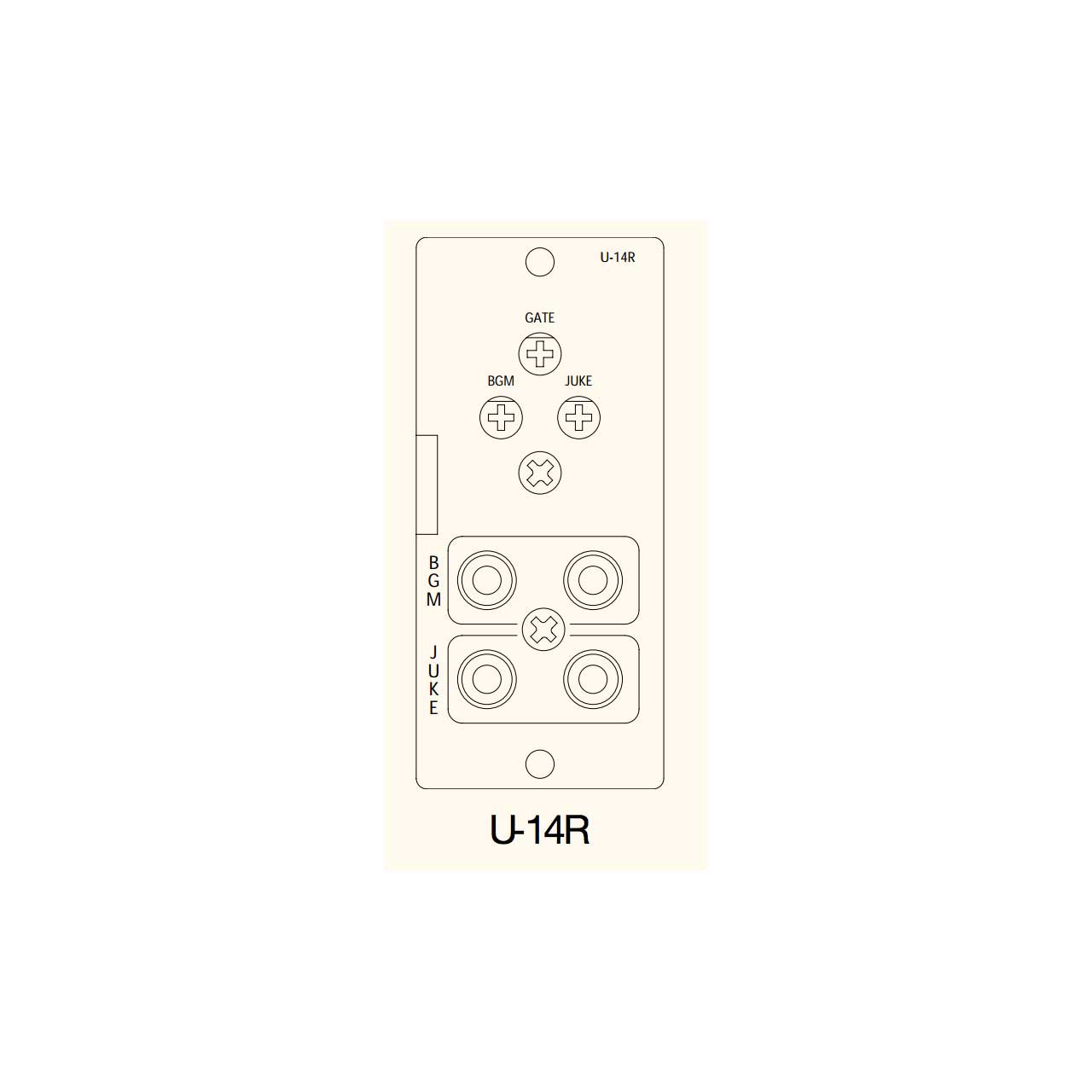

The TOA U-14R is a plug-in type Input Priority module designed to be used in conjunction with TOA's 900 Series and BG-1000 Series amplifiers. The U-14R is equipped with 2 inputs: BGM and JUKE, and the JUKE input has priority over the BGM input. BGM signals are only output when an input is received. Output automatically switches over to JUKE signal input when JUKE signals are received. Each of BGM and JUKE inputs has both L and R inputs, which are internally mixed and output. The JUKE input is equipped with an AGC, which maintains a uniform output level for varying input signal levels. When the U-14R is used with a 900 Series amplifier, its outputs (both BGM and JUKE) can be turned off using the two MUTE BUS signal channels.

  • Specifications:

    • Power Source: 24 V DC
    • Current Consumption: Under 30 mA
    • Maximum Output: +14 dB*
    • Output Level Variable Range: BGM: -24 to -4 dB* (-10 dB* input to L and R) JUKE: -24 to -4 dB* (-10 dB* input to L and R)
    • Juke Gate Threshold Level: -60 to -30 dB (adjustable)
    • Noise Output (20 Hz - 20 kHz BPF): Under 10 µV
    • Distortion (1 kHz, 1 V input): BGM: Under 0.03 %, JUKE: Under 0.05 %
    • Frequency Response: 20 - 20,000 Hz (±1 dB)
    • Signal Muting Level: Over 60 dB
    • Input Connector: RCA pin jacks
    • Output Connector: 6P card edge-connector
    • Dimensions: 35 (W) x 78 (H) x 88 (D) mm
    • Weight: 64 g
