Camplex opticalCON QUAD APC to Four (4) SC/APC Tactical Breakout Adapter - Single Mode

ITEM #: TOPADAP-12 MFG #: TOPADAP-12

Primary Image
Camplex
Free Shipping with $49 Minimum Order

List Price:

$340.95

Our Price:

$302.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

TOPADAP-12 - Overview

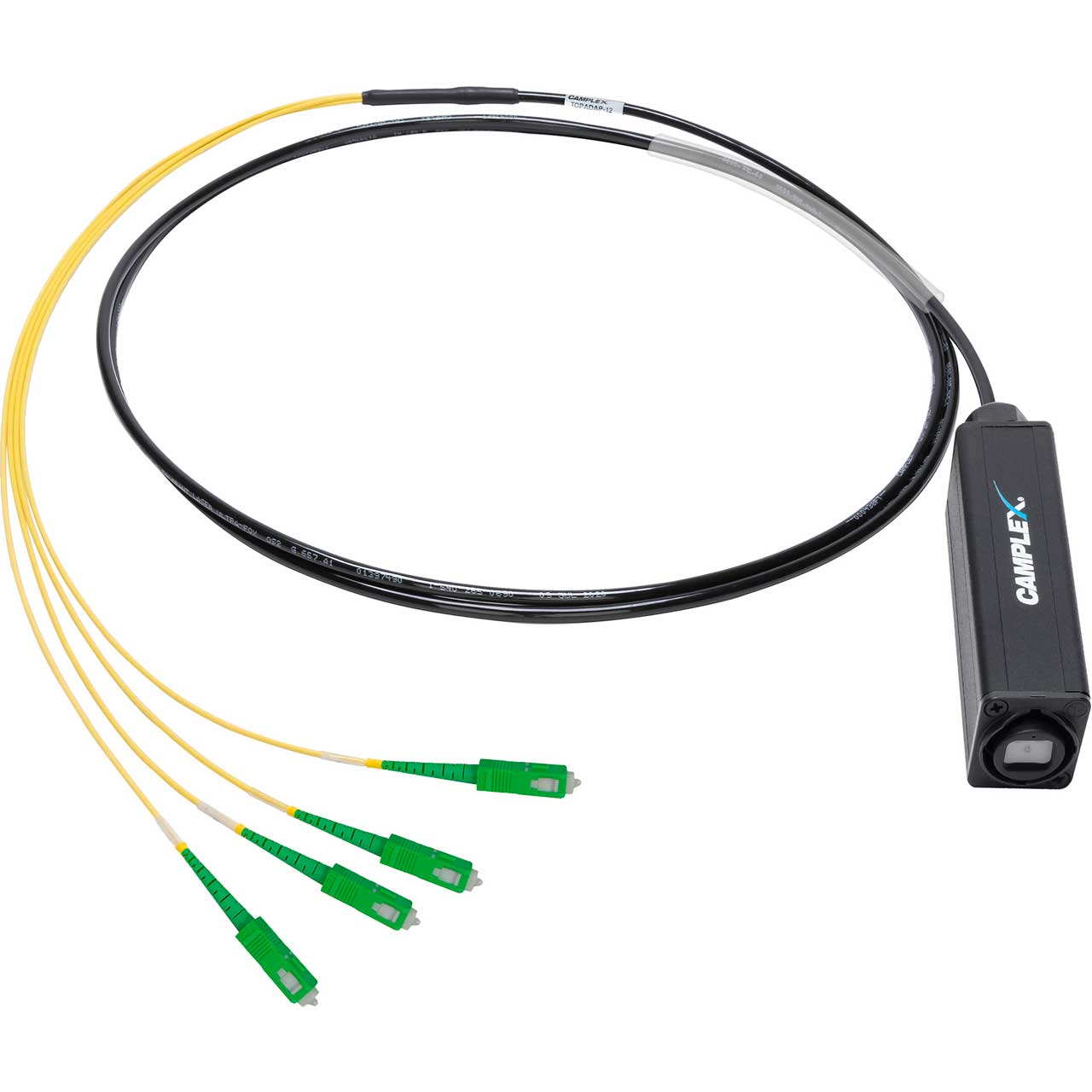

Connect your Neutrik opticalCON QUAD APC Single Mode cables to standard SC/APC fiber optic connectors with these handy in-line adapters by Camplex. Rugged ground-tactical cable, ideal for use in harsh environments where repeated deployment and reuse is required, is a standout feature on this assembly. In addition to its durability, the lightweight design is perfect to strap to cameras and other gear. The total cable is 10 foot while each individual channel fanout is clearly labeled and 2 foot in length for professional use. Supplied with opticalCON rubber dust cap for maximum protection. opticalCON QUAD APC adapters feed out to (4) individual fiber channels.

  • Features:

    • Tactical Single Mode Cable Ideal for Use in Harsh Environments
    • Lightweight Design
    • Labeled Channels
    • (4) SC/APC Connectors
    • Rubber Dustcap for Connector Protection


  • Specifications:

    • Neutrik NO4FDW-A:
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: > 5000 Mating Cycles
    • Locking Device: Push-Pull
    • Insertion Loss: < 0.5 dB / Connection

      D-Series Camplex Tactical Fiber Cable:
    • Typical RL <-55dB and IL<0.25dB.
    • Industry Standard Designation: SMF-28
    • Core/Cladding Diameter (µm): 9/125
    • Wavelength (nm): 1310/1550
    • Maximum Cabled Attenuation (dB/km): 0.5/0.5
    • Primary Coating Diameter (µm): 500
    • Secondary Buffer Diameter (µm): 900


  • Warranty:

    • 1 Year
