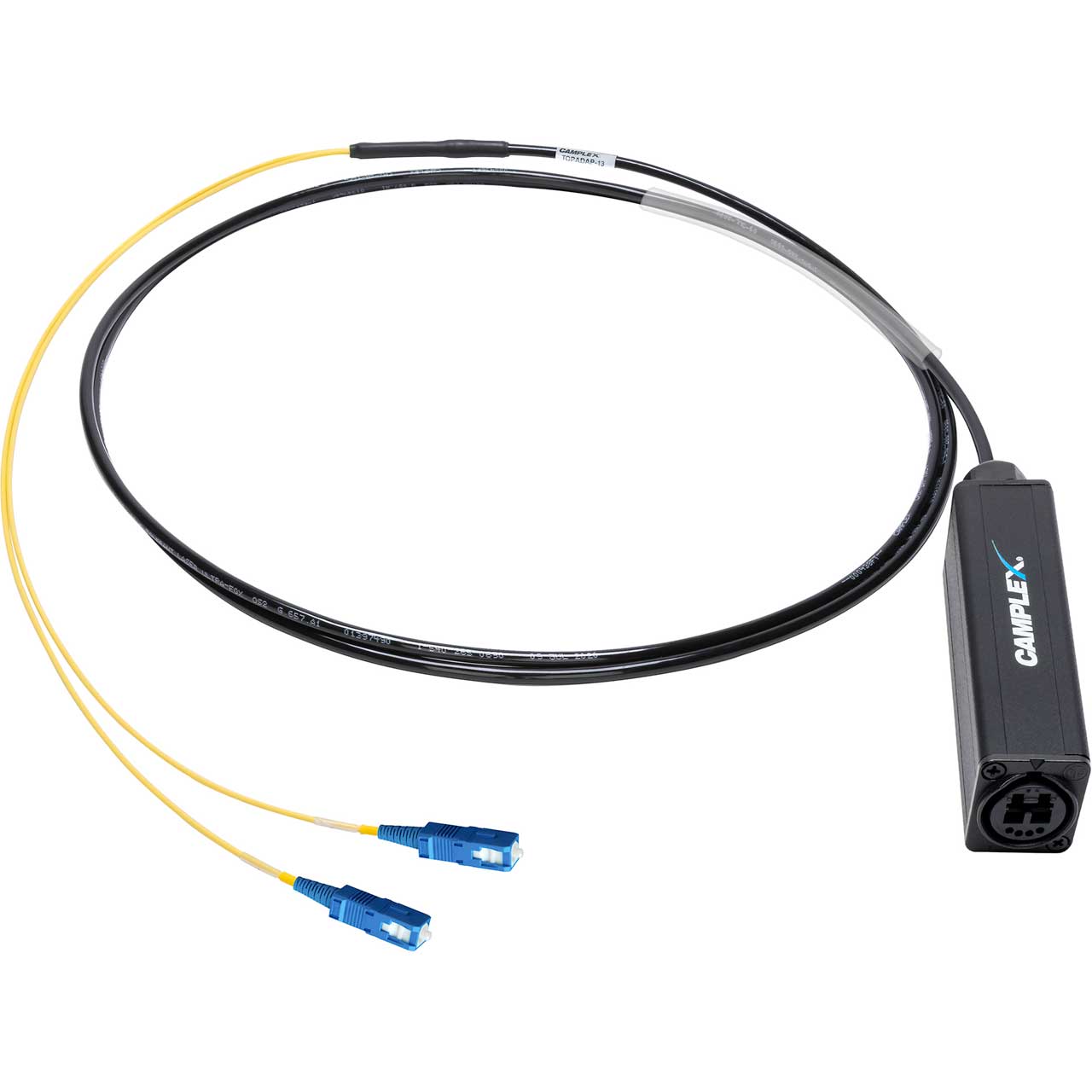

Camplex opticalCON DUO to Two (2) SC Tactical Breakout Adapter - Single Mode

ITEM #: TOPADAP-13 MFG #: TOPADAP-13

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$328.49

Our Price:

$291.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TOPADAP-13 - Overview

Connect your Neutrik opticalCON DUO Single Mode cables to standard SC fiber optic connectors with these handy in-line adapters by Camplex. Rugged ground-tactical cable, ideal for use in harsh environments where repeated deployment and reuse is required, is a standout feature on this assembly. In addition to its durability, the lightweight design is perfect to strap to cameras and other gear. The total cable is 10 foot while each individual channel fanout is clearly labeled and 2 foot in length for professional use. Supplied with opticalCON rubber dust cap for maximum protection. opticalCON DUO adapters feed out to (2) individual fiber channels.

  • Features:

    • Tactical Single Mode Cable Ideal for Use in Harsh Environments
    • Lightweight Design
    • Labeled Channels
    • (2) SC Connectors
    • Rubber Dustcap for Connector Protection

  • Specifications:

    • Neutrik NO2-4FDW-A:
    • Insertion Force < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: > 5000 Mating Cycles

      D-Series Camplex Tactical Fiber Cable:
    • Typical RL <-55dB and IL<0.25dB.
    • Industry Standard Designation: SMF-28
    • Core/Cladding Diameter (µm): 9/125
    • Wavelength (nm): 1310/1550
    • Maximum Cabled Attenuation (dB/km): 0.5/0.5
    • Primary Coating Diameter (µm): 500
    • Secondary Buffer Diameter (µm): 900

  • Warranty:

    • 1 Year
