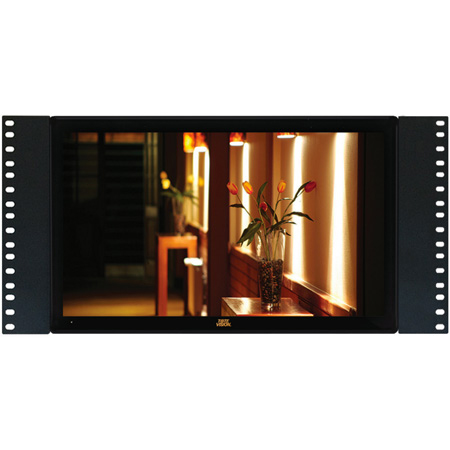

ToteVision LED-1566HDTR Rack-mounted 15.6 Inch 16:9 ATSC/QAM Tuner LCD Monitor

LED-1566HDTR - Overview

• Features:

  • Displays native Full HD signals (1080i/p) with no downscaling
  • LED backlight: brighter picture using less power
  • Hotel TV Features: default input source, default TV channel, max volume, keypad lock, and cloning through USB
  • Widescreen (16:9) native aspect ratio
  • Multiple connections including HDMI, Composite and VGA
  • Built-in speakers


• Specifications:

  • Mount: Rack-mount 6U
  • Anti-Glare Coating: Yes
  • Case: Durable ABS Plastic
  • Remote Control: Yes; Infrared
  • Resolution: 1920(H) x 1080(V) (Full HD)
  • Native Aspect Ratio: 16:9
  • Visible Screen Size: 13.6" x 7.6" / 345 x 195mm
  • Back Light: LED (15K)
  • Brightness: 300 cd/m² (Nit)
  • Contrast: 800:1
  • Dot Pitch: 0.215(H) x 0.215(V)mm
  • Color Depth: 16.7 million colors
  • Response Time: 25ms (Rising/Falling)
  • Viewing Angle: 85/85/85/85 degrees
  • DSP / 3D Comb Filter: Yes
  • Audio Power / Speakers: 8 Ohm, 2 Speakers x 5 Watts
  • Digital TV Tuner: x1 F-Connector Coax Input
  • HDMI: x1 Input
  • Component: x1 RCA (x3) Input
  • Composite: x1 RCA Input (shared with Component Input)
  • VGA: x1 15 pin D-sub Input
  • Audio: x1 RCA L/R Input and Output; x1 3.5mm PC Input
  • Power: x1 2.1mm DC Input
  • Operating Temp: 32 ~ 104°F / 0 ~ 40°C
  • Humidity: 10% ~ 90%
  • Power Requirements: Regulated 12VDC; 3A; Negative Ground
  • Power Consumption: 30 Watts (Max)
  • Dimensions: 16.7" x 11.4" x 1.9" / 425 x 290 x 48mm
  • Product Weight: Net: 2.6 lbs / 1.18 kg; Gross: 4.9 lbs / 2.2 kg
