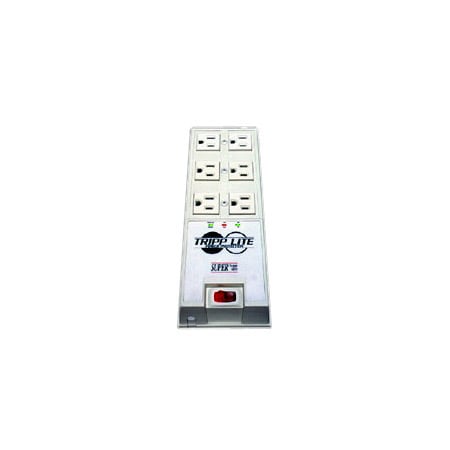

Tripplite TR-6 6-Outlet Super Surge Alert Protector - 2420 Joules - 6 Foot Cord

TR-6 - Overview

• Features:

  • 6 outlets with child safety covers
  • 6-ft. cord with space-saving right-angle plug
  • Surge energy absorption: 2420 joules; 78,500 amps
  • 15 amp circuit breaker
  • 3 diagnostic LEDs indicate AC present, line fault & protection present
  • EMI/RFI noise filtering
  • Logical outlet spacing accommodates transformers without blocking remaining outlets
  • Keyhole supports for wall mounting
  • Recessed and lighted power switch
  • Color-coded cord identifiers
  • $50,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
  • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing
  • equipment damage and indicating replacement is required


• Specifications:

  • Output
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles (6): 5-15R
  • Output (Watts): 1800
  • Circuit Breaker (amps): 15
  • Transformer Accommodation: Holds up to 4 large transformer plugs
  • Right-Angle Outlets: No

    Input
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service 120V (110-125V)
  • Input Connection Type: NEMA 5-15R right-angle input plug
  • Input Cord Length (ft.): 6
  • Input Cord Length (m): 1.83
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 97000
  • Right-Angle Plug: Yes

    User Interface, Alerts & Controls
  • Diagnostic LED(s): Yes
  • Switches: Two position red illuminated on/off power switch
  • Diagnostic LED Details: PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)

    Surge / Noise Suppression
  • AC Suppression Joule Rating: 2420
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping Voltage (RMS): 140
  • AC Suppression: Surge Current
  • Rating: 78,500 amps
  • UL1449 Let Through Rating: 400V
  • Immunity: Conforms to IEE 587 / ANSI C62.41

    Physical
  • Shipping Dimensions (hwd / in.): 12.00 x 2.40 x 6.10
  • Shipping Dimensions (hwd / cm): 30.48 x 6.10 x 15.49
  • Shipping Weight (lbs.): 1.80
  • Shipping Weight (kg): 0.82
  • Unit Dimensions (hwd / in.): 1.75 x 3.5 x 9.5
  • Unit Dimensions (hwd / cm): 4.45 x 8.9 x 24.13
  • Unit Weight (lbs.): 1.6
  • Unit Weight (kg): 0.73
  • Material of Construction: Plastic
  • Integrated Keyhole Mounting Tabs Keyhole: mounting tabs enable wall mounting
  • Housing Color: Light Gray
  • Receptacle Color: Light gray
  • Color (AC Line Cord): Light Gray
  • Outlets Measurement (Center to Center): Distance between horizontal outlets = 44.20mm; Distance between vertical outlets = 39mm
  • Keyhole Slot Mounting
  • Measurement (Center to Center): 88.8mm
  • Anti-Microbial Protected: No

    Certifications
  • UL1449 3rd Edition (AC
  • Suppression) Tested to UL1449 3rd Edition by ETL
  • cUL / CSA (Canada) Approved for Canada by ETL
  • Approvals Exceeds IEEE 587 category A&B specifications


• Item Includes:

  • TR-6 Surge Suppressor
  • Child Safety Covers
  • Color-coded cord identifiers
  • Instruction manual and Warranty
  • information


• GTIN:

  0037332010315
