SFM500 - Overview

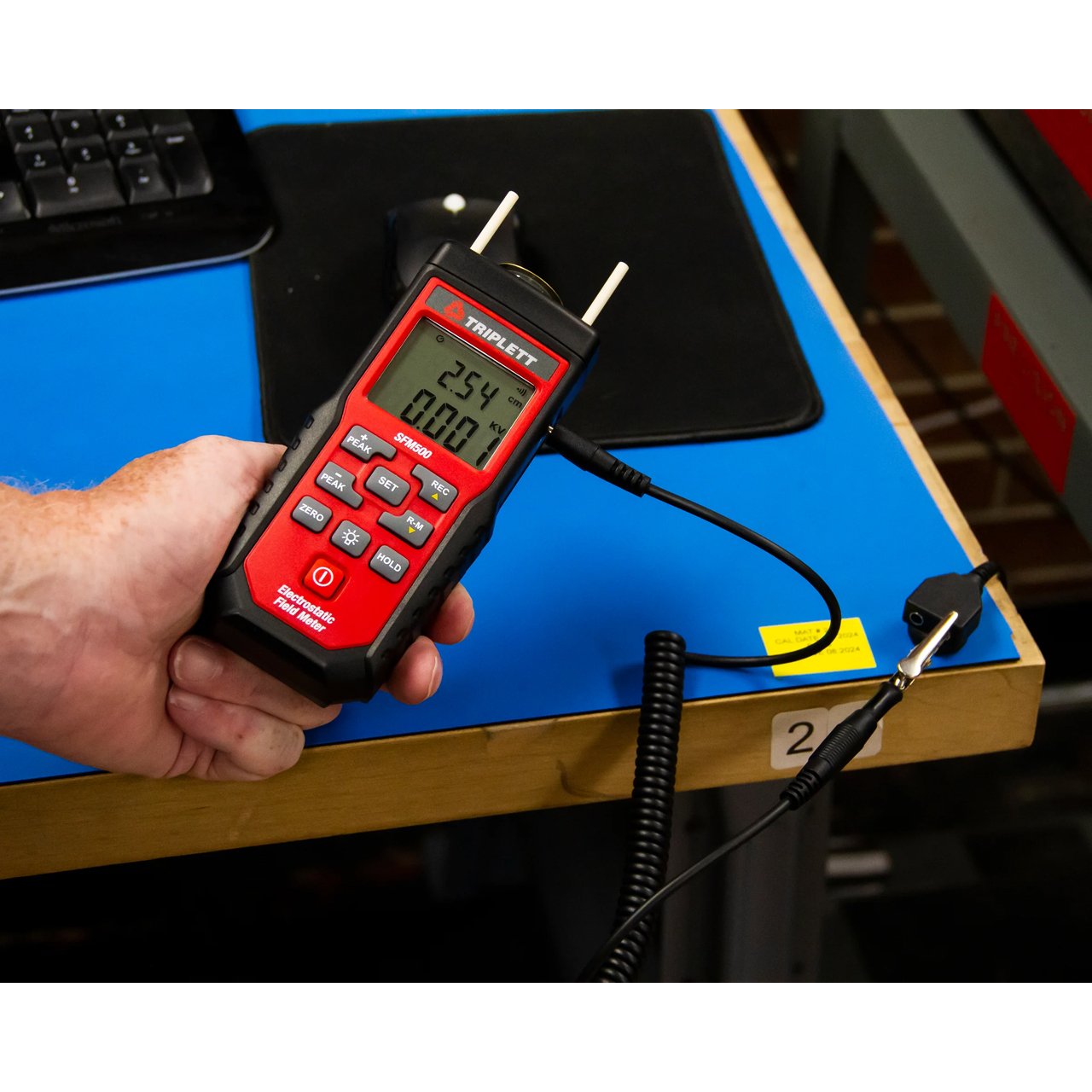

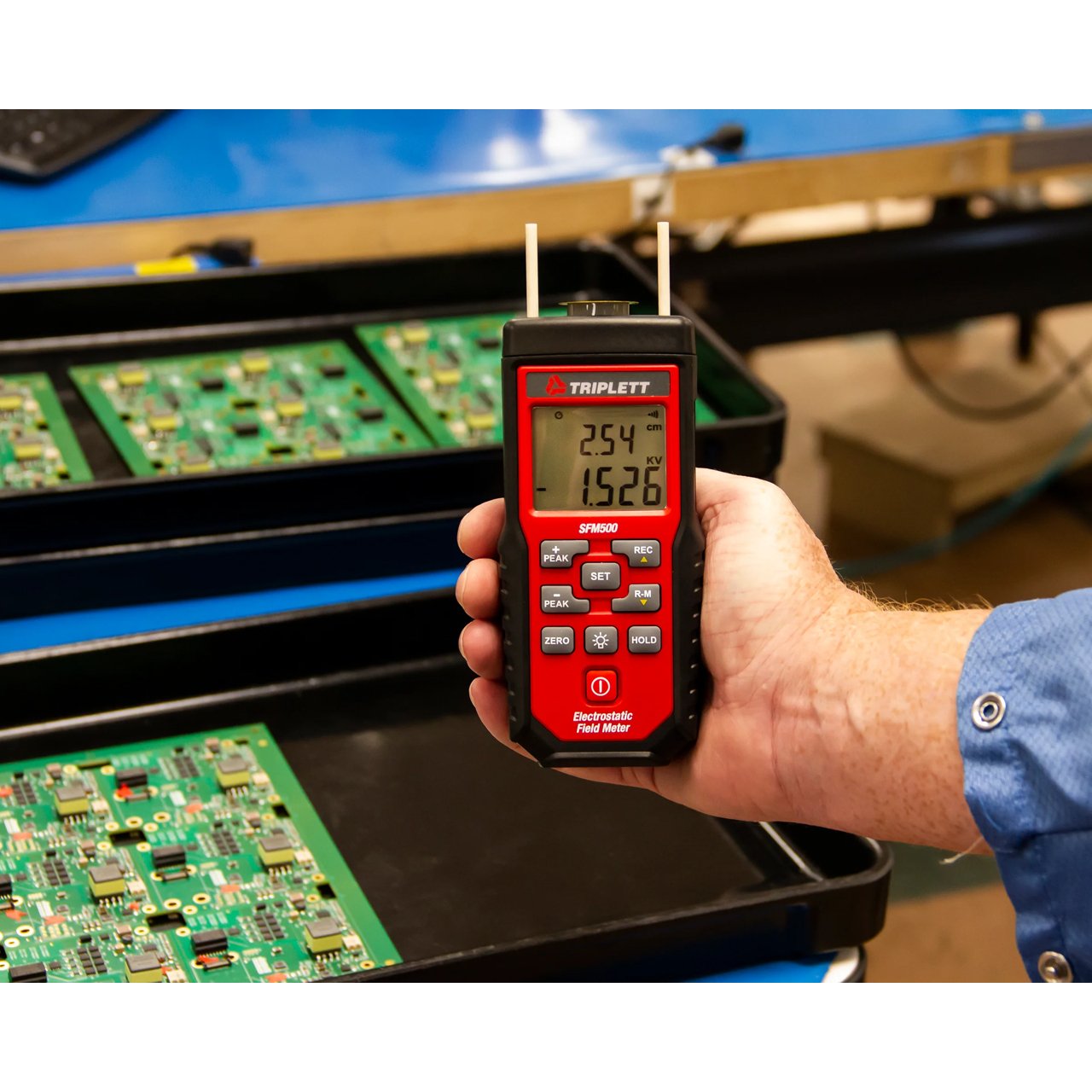

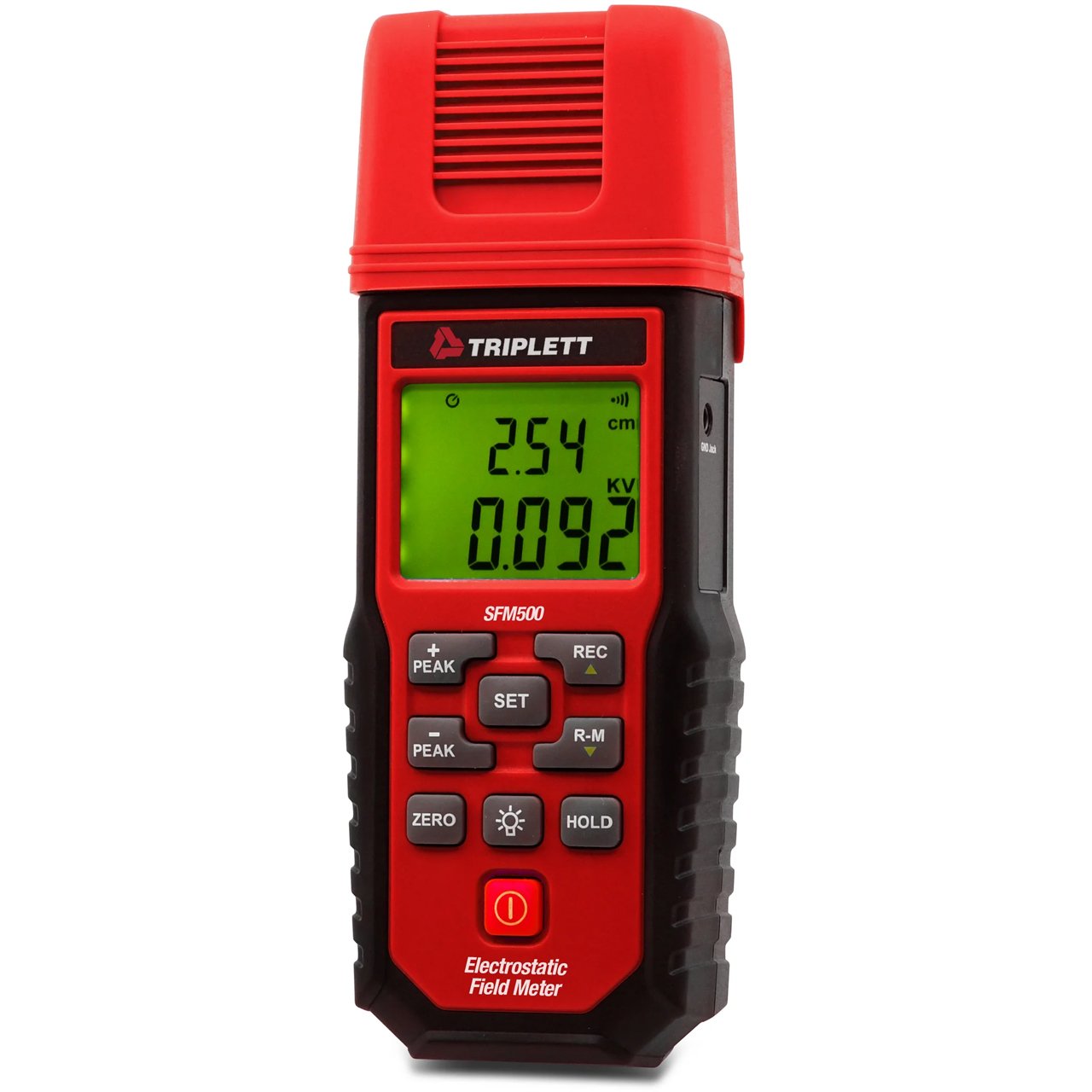

The Triplett Model SFM500 Electrostatic Field Meter is used for the non-contact measurement of an electrostatic charge on a body or object. It has a range of -19.000kV to +19.000kV and a measuring distance of 1" (2.54c). Measurements are read on the 4.5 digit (19,999 count) backlit LCD display. It features user programmable audible high/low alarm settings, Data hold function that freezes the reading on the display, Min/Max captures the highest and lowest readings, and a Zero function that clears residual readings on the display and resets it to zero. You can manually store/recall 99 readings.

  • Features:

    • Measures static voltage on a charged body without contact
    • Measuring range: -19.000kV to +19.000kV
    • Measuring distance: 1" (2.54cm)
    • Sampling rate: 500ms
    • 4.5 digit backlit LCD display
    • User programmable audible high/low alarm settings
    • Data hold freezes the reading on the display
    • Min/Max captures the highest and lowest readings
    • Zero function clears residual readings on the display and resets it to zero
    • Manual store/recall 99 readings

  • Specifications:

    • Measuring Range: -19.999kV - 19.999kV
    • Resolution: 0.001kV
    • Accuracy: ±(5% + 10 digits)
    • Sample Rate: 500ms
    • Measuring Distance: 1" (2.54cm)
    • High/Low Alarms: 0.001kV to 18.000kV
    • Memory: Manually store/recall 99 readings
    • Power: 9V battery
    • Dimensions: 5.8" x 2.6" x 1.5" (148mm x 65mm x 37.5mm)
    • Weight: 7.4oz (210g)

  • Item Includes:

    • 1x Protective Sensor Cover
    • 1x Ground Wire with Alligator Clip
    • 1x Carrying Case
    • 1x 9V Battery

  • Warranty:

    • 1 Year Warranty
