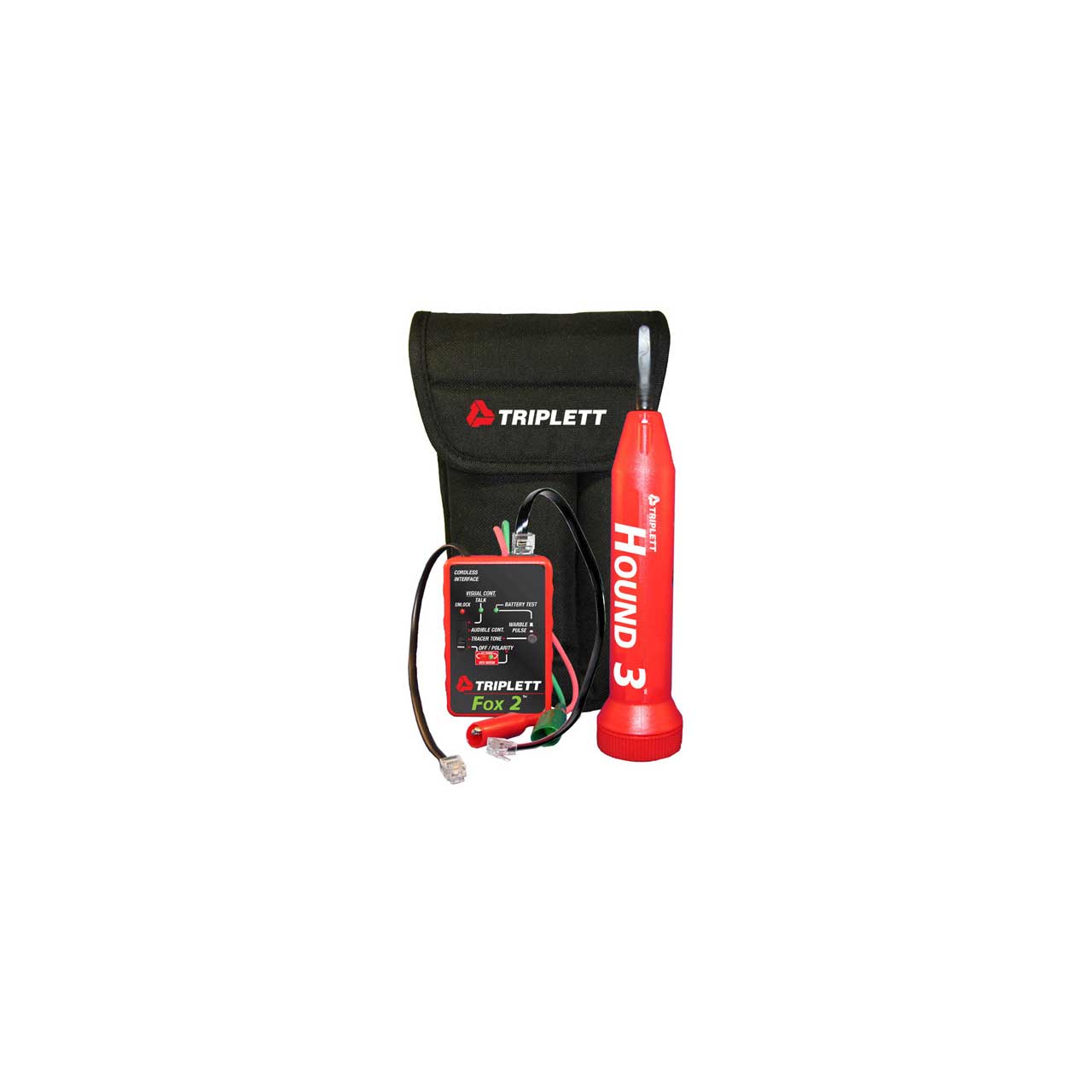

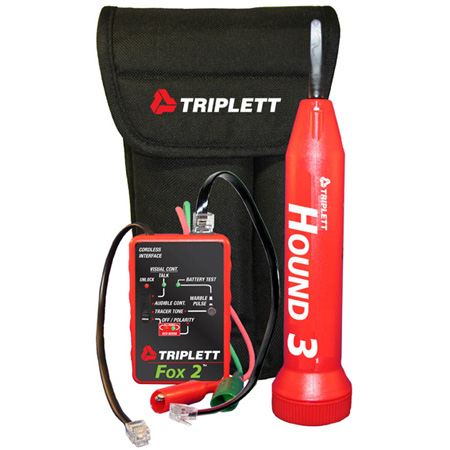

Triplett 3399 Fox 2 and Hound 3 Wire Tracing Kit with Carrying Case

ITEM #: TRIPLETT-3399 MFG #: 3399

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$109.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


3399 - Overview

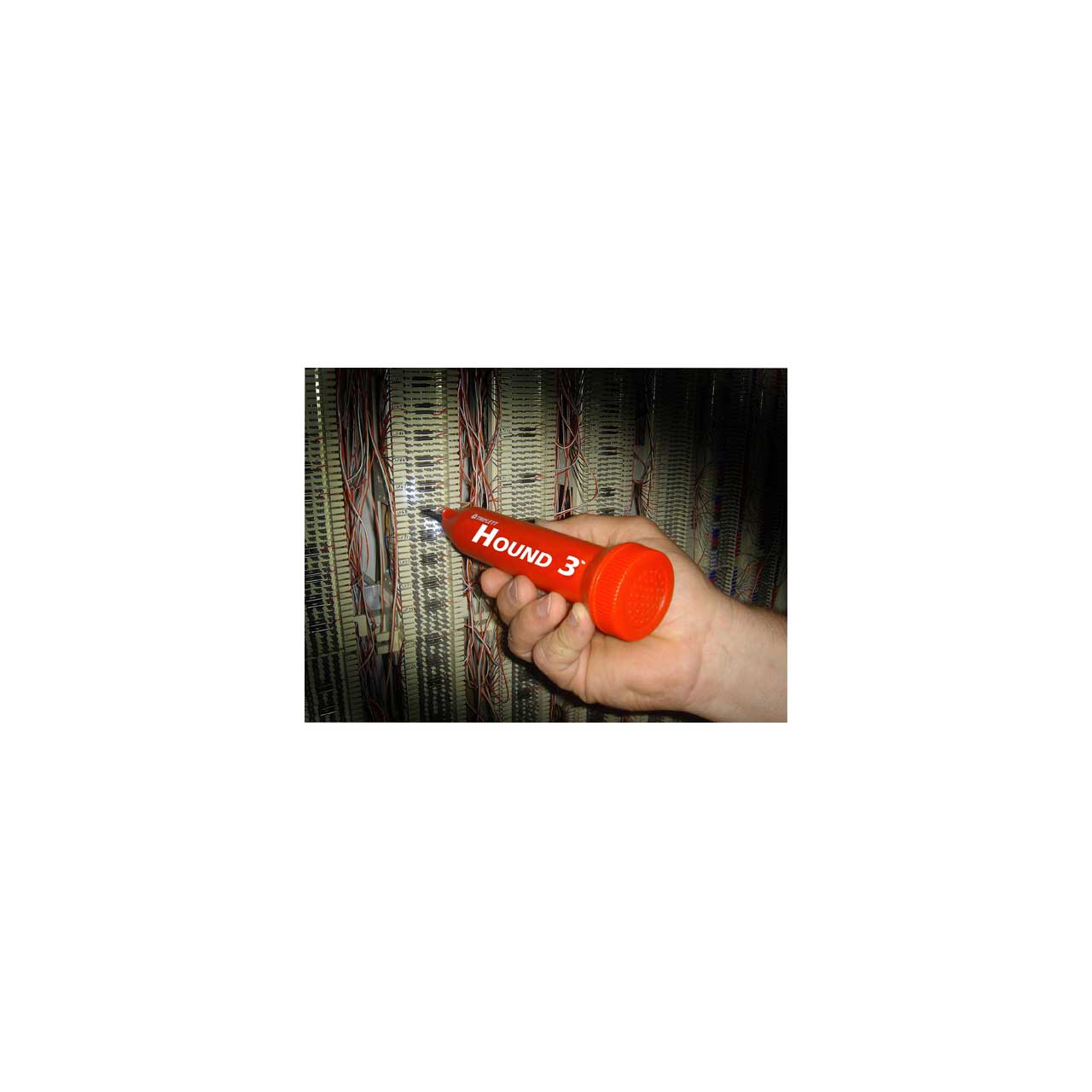

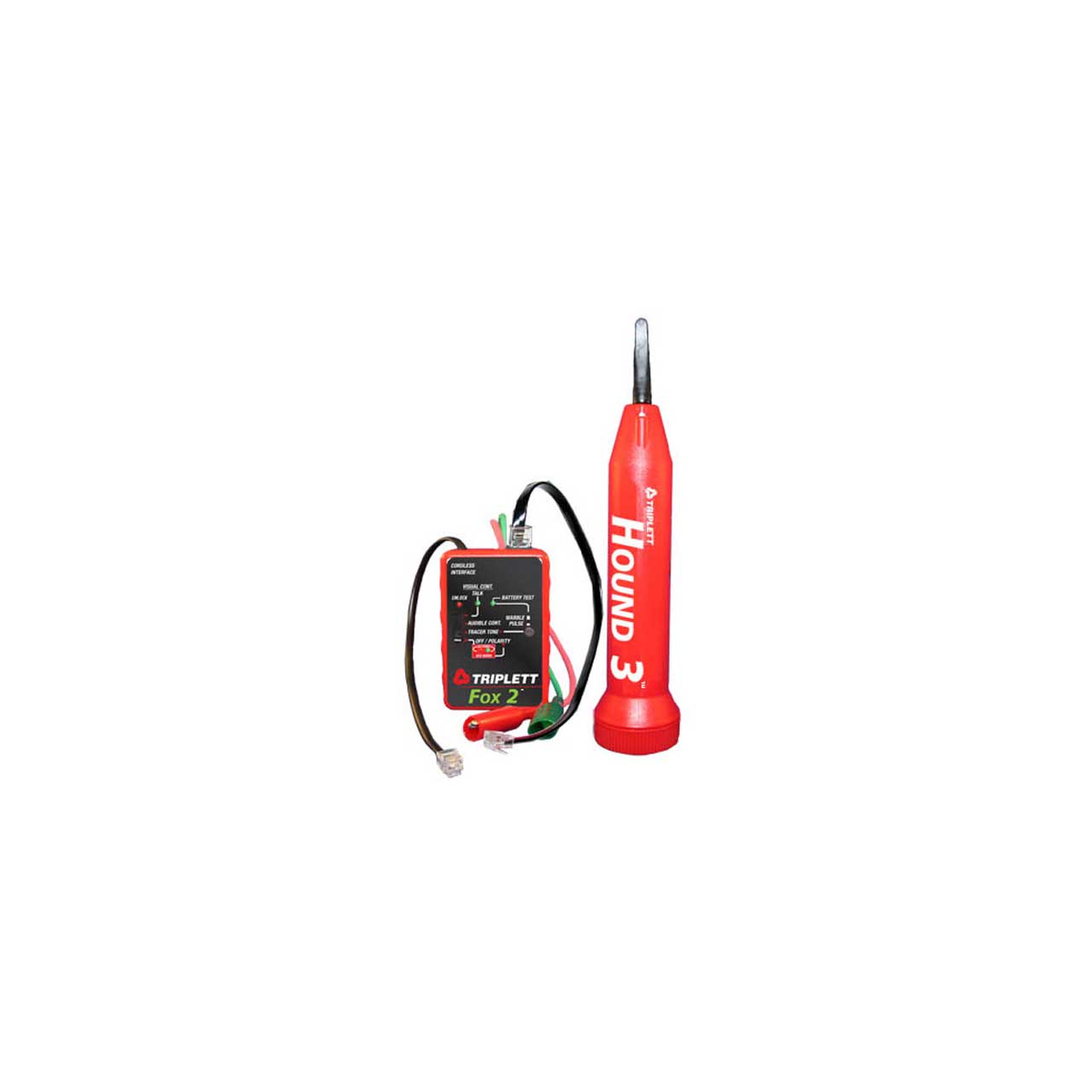

The Fox & Hound™ 3399 wire tracing kit consists of a versatile Fox 2™ Tone Generator (Toner) and a high performance Hound 3™ Inductive Amplifier (Probe). The Fox 2™ is a battery operated handheld multi-function Toner that generates multiple tones (Pulse or Warble), performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 120 VAC. The Hound 3™ is a battery operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs with built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy access battery cover.

  • Features:

    • Hound 3
    • Adjustable sensitivity and loudness control
    • Bandpass Filter suppresses 60Hz and high frequency noise
    • Identifies Fox 2's tracer tone up to 12 inches away
    • Headlights illuminate dark areas and reduce fluorescent light noise
    • Built-in signal strength indicator
    • Earphone jack for use in quiet or noisy environments
    • Easy access battery door
    • Rugged, moisture resistant. Mylar cone speaker
    • 3 year limited warranty

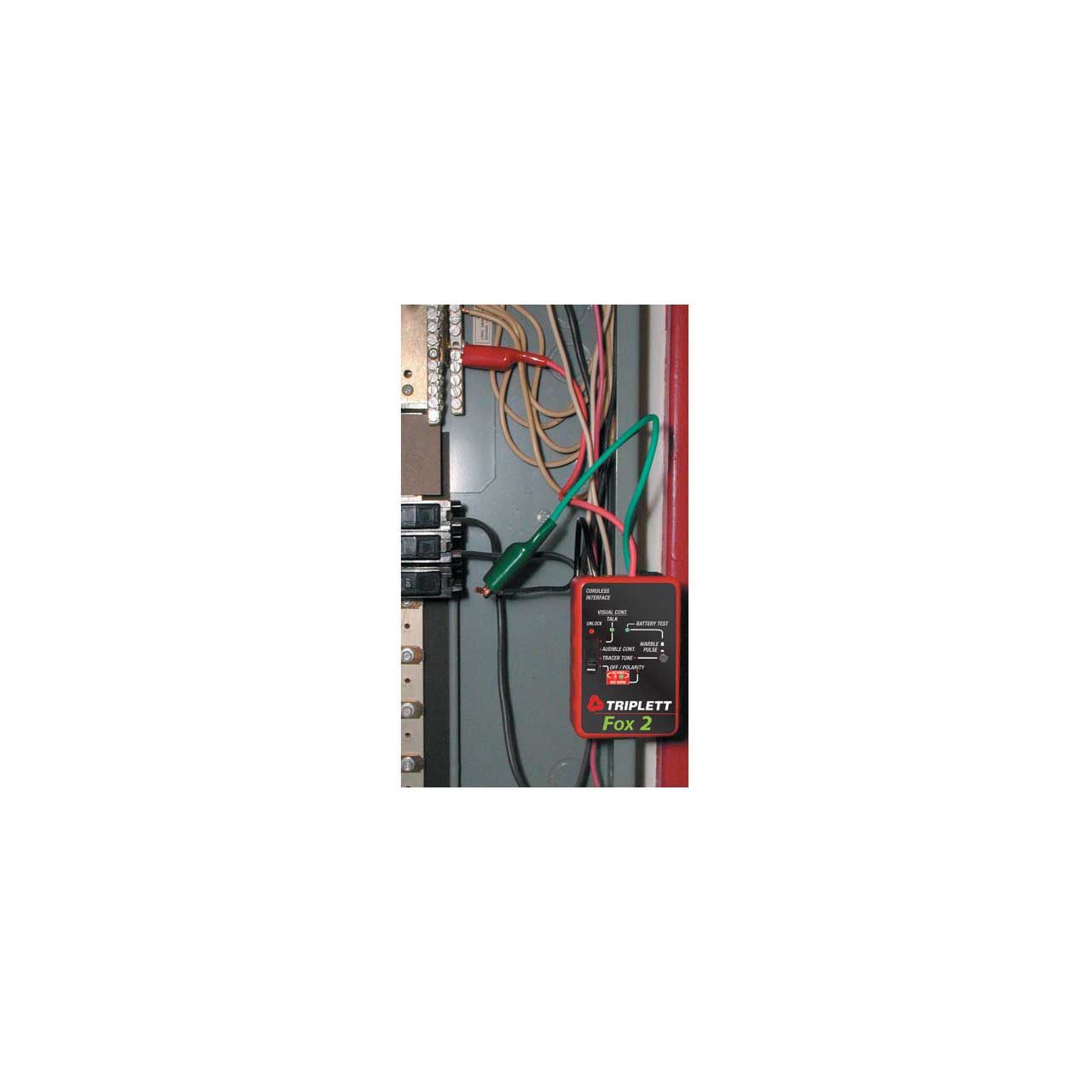

      Fox 2
    • 3 methods of connectivity: RJ-11, RJ-45, or Alligator Clips
    • Cordless phone interface
    • High output, Warble/Pulse selectable Tracer tone
    • Convenient magnetic back for easy mounting
    • TrueTrace cadence shift for definite ID of cable or par within cable
    • Red/Green telephone lines polarity LEDs
    • Tone/Battery LED - indicates that Tracer tone is on and battery status
    • Overload protection to 120 VAC
    • 3 year limited warranty

  • Specifications:

    • Hound 3
    • Detects FOX's tone up to 12 inches away
    • Speaker: 1-1/2 inch mylar coned speaker with high strength alnico magnet is rugged and moisture resistant
    • Probes: (2 provided)
    • Solid aluminum conical probe for low resistance contact testing
    • Conductive Plastic duckbill probe with metal threads for sensitive non-shorting testing
    • Earphone Jack: Accepts standard 1/8 inch (3.5mm) mini phone plug, either mono or stereo
    • Battery 9 volt (not included)
    • Tone/Battery LED - indicates that Tracer tone is on and battery status
    • Dimensions: 1-7/8 inch dia at speaker, 1-3/8 inch dia at body, 8-1/4 inch long with metal probe, 9-1/4 inch with conductive plastic probe
    • Weight: Less than 8 ounces including battery

      Fox 2
    • Indication: Red LED lights to indicate presence of Loop mA in correct polarity
    • Load: Approx. 13mA at 50VDC (usually less than off-hook recognition current)
    • Waveform: Square Wave or Differentiated Square Wave Level Approx. 8Vpp (+14dBu, 600 Ohm) into an open circuit(UN-terminated cable or telephone line) Approx. 5Vpp (differentiated) +2dBm into a 600 Ohm load (terminated telephone line)
    • Frequencies (3 types): LO - approx. 800Hz HI - approx. 1000Hz WARBLE - alternates between LO and HI
    • Battery: Standard 9v Alkaline Battery
    • Battery Life: 9 volt (not included) Approx 500 hours continuous
    • Dimensions: 3.7"H x 2.4"W x 1.1"T
    • Weight: Less than 7 ounces including battery
