The Triplett 8073 CamView IP Pro, Pro+, and Pro-D are designed to facilitate the installation and maintenance of surveillance video equipment. The Tester works with both Standard Definition analog NTSC/PAL camera systems, High Definition Analog, and ONVIF conformant IP (Ethernet) camera systems. Also, the testers provide an RS485 port for PTZ control of analog PTZ cameras and can provide POE for operating IP cameras, or 12VDC (not to exceed 2A) to power analog cameras. The IP Camera Tester allows you to perform Ethernet and network tests, capture video (snapshots and video recording), playback video, generate video test patterns for monitor checking and perform analog camera testing. They also allow you to check microphone/audio sources and even provide a bright flashlight function. Both recorded images and video can be transferred to PCs or other devices via the USB port connection.
No Network. No Power. No Problem
The CamView IP Pro-D works with IP and Analog SD cameras, as well as AHD, HD-CVI and HD-TVI (encoding 3.0) models to allow you to test, verify, and troubleshoot cameras, cables, and networks even before the network is setup, or even before the power is setup. It works with the most popular AHD, HD-CVI, HD-TVI, IP, and Analog NTSC/PAL cameras.
Troubleshooting Simplified
With an intuitive user interface, and no need to download Apps or manufacturer-specific software, the CamView IP Pro is your security camera test solution. Compact, lightweight, and ruggedized for real-world use, the CamView IP Pro D also features a built in DMM.
Built-In Testing
The CamView IP features an analog camera test, a RS485 PTZ control test, and TDR cable tests. Ethernet tests include: 10M/100M/1G Ethernet link test, packet loss test, and Ethernet loop detection.

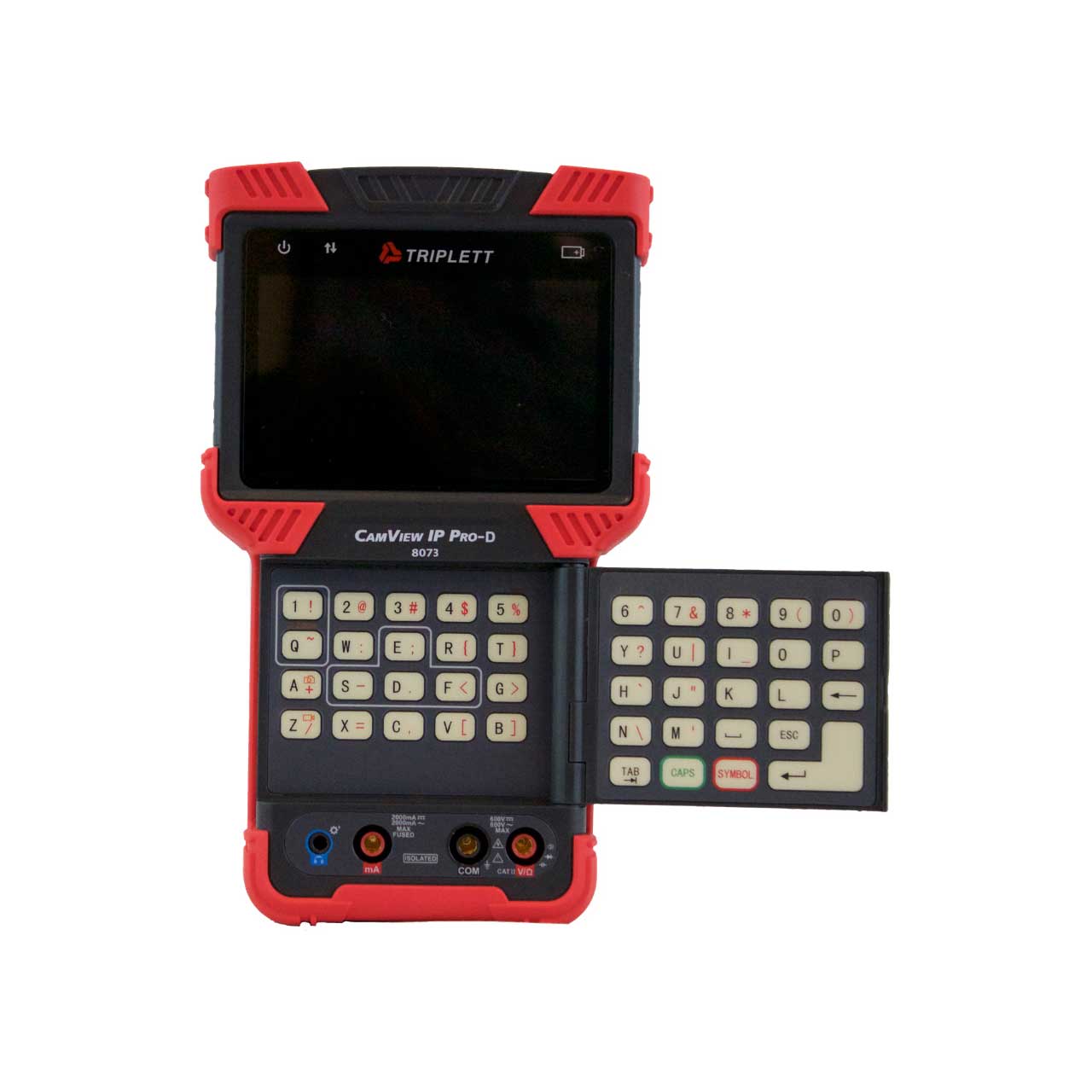

Built-In DMM
The CamView IP Pro-D has a built-in Digital Multimeter (DMM). It can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Forward Voltage, and Circuit Continuity.
