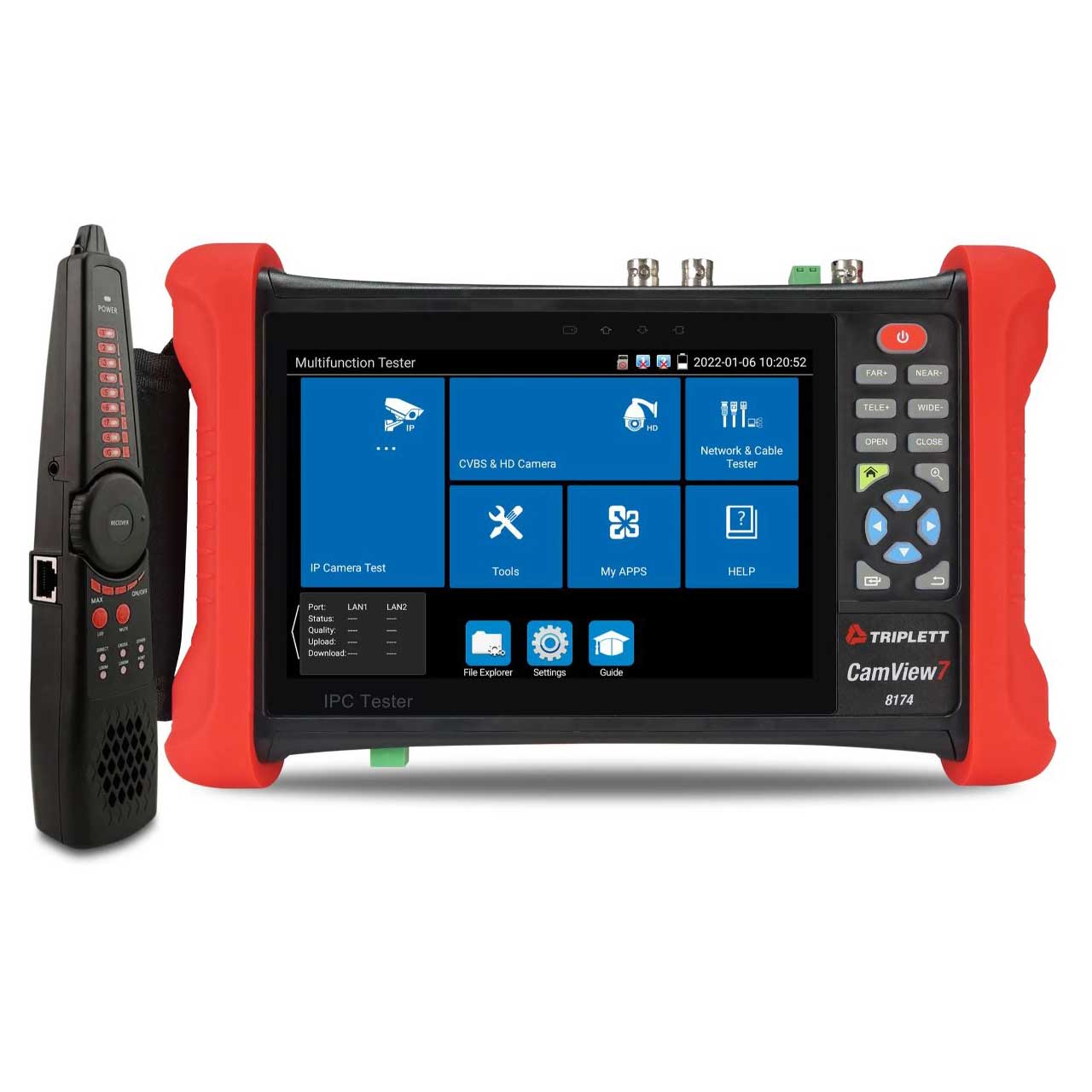

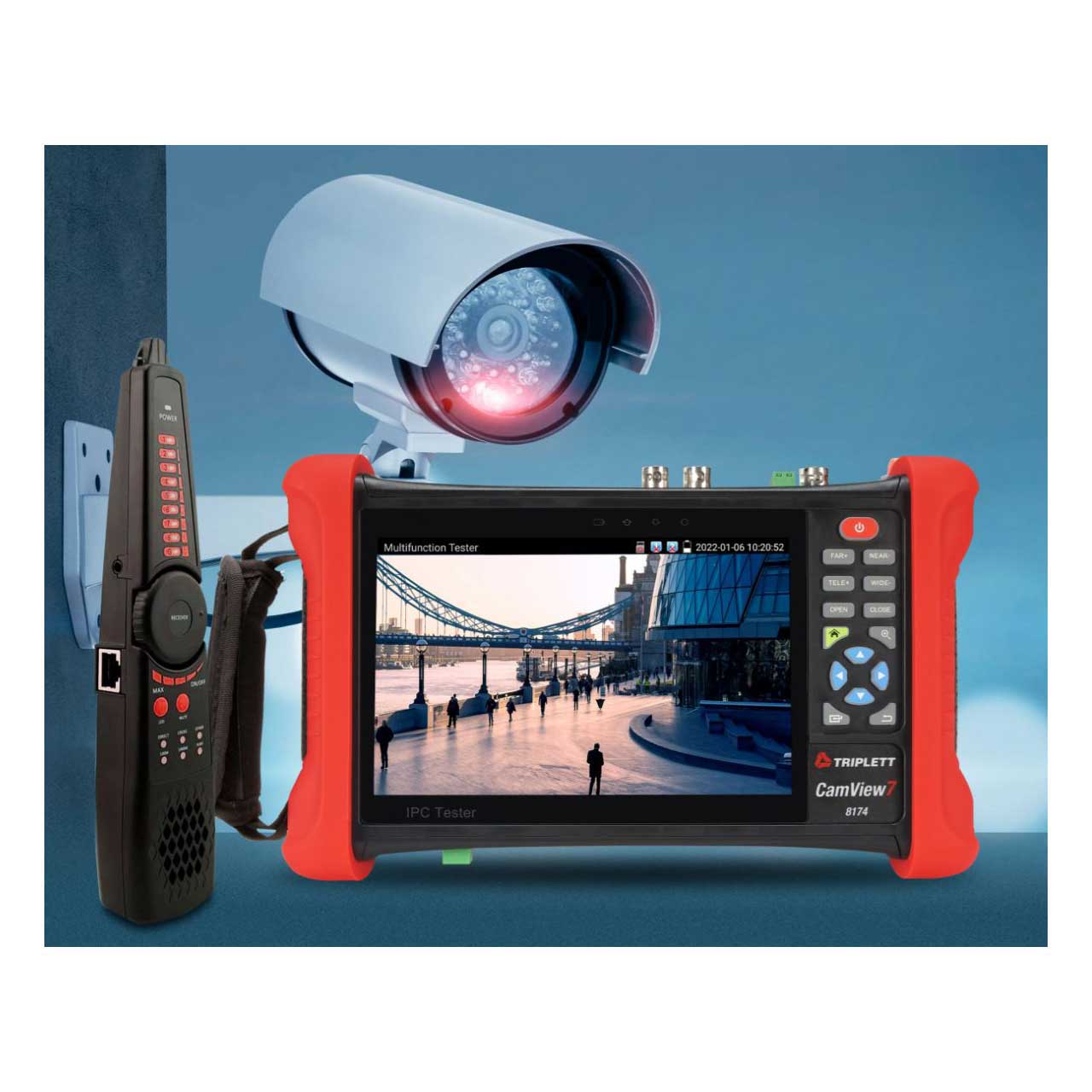

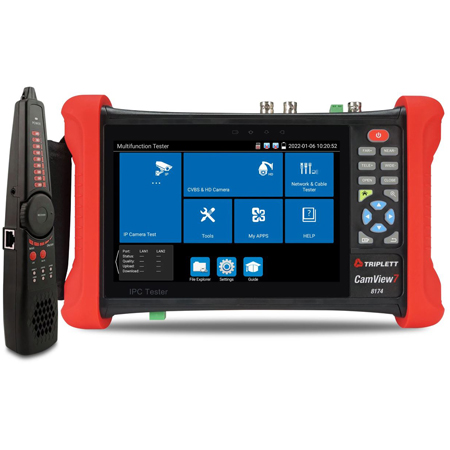

Triplett 8174 CamView 7 Camera Tester with 2.4G Spectrum Analyzer

8174 - Overview

• Features:

  • 7" Camera Tester with advanced capabilities and up to 16hr battery life
  • 8MP TVI, 8MP CVI, 8MP AHD, CVBS camera test with PTZ control
  • H.265/H.264, 4K video display via mainstream
  • HDMI input & output supports up to 1080p
  • Network testing includes: Ping, IP scan, Port Flash, DHCP server, Trace Route
  • Built-in Wi-Fi analyzer with 2.4G signal strength tester and hot spot generator; Chrome browser included
  • Dual 1000M LAN ports, to check network bandwidth, packet loss or error data
  • 4x Zoom to enlarge on screen image, screen snapshot, screen record, save, view, record and playback video
  • 24W, 48V DC PoE Power output / DC 12V 3A


• Specifications:

  • Display Size: 7 inch touch screen with retina display
  • Display Resolution: 1920 x 1200 resolution
  • CVBS
    1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto detect)
    Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
    PTZ control, RS485 control, Baudrate 600-115200bps
  • CVBS loop test: Send and receive color bar generator signal, check BNC cable
  • IP camera test: IP Discovery / Quick ONVIF / IPC test / IPC viewer / RTSP Player / Client APK / Auto HD - Auto Detect Type
  • Rapid Video: Auto Login to view the video and create test report
  • IP & CVBS test: Test IP & CVBS video simultaneously, utilizing dual test window feature
  • Coaxial HD test (auto HD automatically recognizes the type of HD Signal)
    8MP AHD test, 3840 x 2160P 15 fps
    8MP TVI test, 3840 x 2160P 15 fps
    HD-SDI/Ex-SDI Camera Testing
    8MP CVI test, 3840 x 2160P 12.5/15fps
  • HDMI input 1 channel HDMI input, supports up to 4K
  • Zoom Image: 4x zoom to enlarge on screen image, screen snapshot, screen record, save, view, record & play back video
  • Color bar generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable, 24V DC 2A Power Out
  • HDMI output: 1 channel HDMI output, supports up to 1080P for testing HDMI input of monitor
  • Power Output:
    12V DC/3A Power Output
    48V PoE power output, max power 24W
    5V/2A USB power output
  • Cable tracer: Trace BNC, network and telephone cables
  • UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen
  • RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. (max range 180m)
  • Network Test: Trace route, Link monitor, DHCP server, port flashing, ping test
  • Wi-Fi: Built in WiFi, 150M speeds
  • Audio Test: 1 channel audio signal input, to test if sound is normal, 1 channel audio signal for headphones
  • Data Monitor: Captures and analyses the command data from controlling device; can also send hexadecimal data
  • PoE test: Measures POE switch or PSE power supply voltage and cable connection status
  • External power supply: DC 12V 2A
  • Battery: Built-in 7.6V Lithium polymer battery, 7800mAh
  • Rechargeable battery life: 3.5-4 hour charge, achieves up to 16 hours operation
  • Operation setting: OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, etc.
  • Auto power off: 1-30min
  • Tester Play: Screen projection: tester, mobile phone and PC display at the same time (for android version mobile phone)
  • Wi-Fi Analyzer: Detect the surrounding wi-fi signal and signal strength, supports 2.4G frequency band
  • Drop-down Menu: Select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface
  • Working Temperature: -10°C - +50°C
  • Working Humidity: 30% - 90%
  • Dimension/Weight: 9.4 x 6.1 x 1.8" / 1.4lbs


• Item Includes:

  • 1x Triplett 8174 CamView 7 Camera Tester with 2.4G Spectrum Analyzer


• GTIN:

  0614395004255
