8064 - Overview

The Triplett CamView 8064 Analog Camera Tester is designed to facilitate the installation and maintenance of surveillance video equipment using Standard Definition analog NTSC/PAL, HD-TVI, HD-CVI, and AHD camera systems. The Tester has an RS485 port for testing the Pan-Tilt-Zoom (PTZ), and supports more than 30 PTZ protocols. It can also provide 12VDC (not to exceed 1A) to power the analog camera. You can also use it to check microphone/audio on the camera, or take advantage of the built-in flashlight. Supports HD cameras up to HD-TVI 3.0, HD-CVI 3.0, and AHD 2.0. This Tester is powerful, portable, and designed with the technician in mind. It will help you perform installation and maintenance jobs quickly and efficiently.

  • Features:

    • Analog testing for up to 8MP cameras; Automatically recognizes the type of encoding: SD Analog, AHD 2.0, HD-CVI 3.0, HD-TVI 3.0
    • RS485 port for testing the Pan-Tilt-Zoom (PTZ) and supports more than 30 PTZ protocols
    • 12VDC/1A output
    • Analog Video Generator and HD Video Generator (up to 1080P 30fps); Screen shot, video recording, and frame by frame or streaming playback

  • Specifications:

    • Video Format: Auto recognizes NTSC/PAL, HD-CVI 3.0, HD-TVI 3.0, AHD 2.0
    • Test Pattern: Generates NTSC/PAL, HD-CVI, HD-TVI, or AHD test patterns (720P/1080P)
    • Signal Level: 1vpp

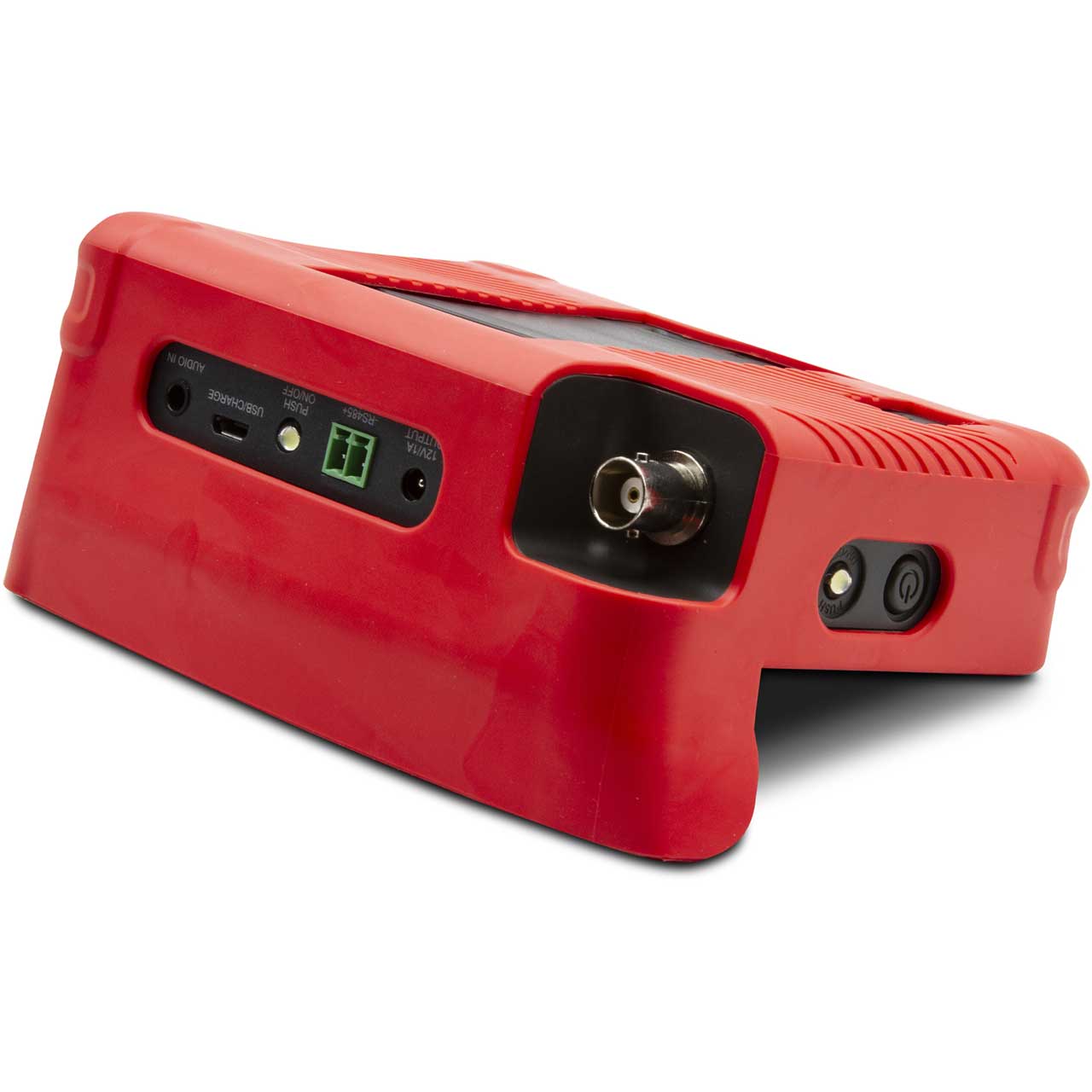

    • Input/Output: Video IN BNC, Video OUT BNC
    • Digital Zoom: Supports 8-level portion view
    • Capture : Take snapshot or record video
    • Output: 12V/1A power output to camera
    • Screen: 4 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, Backlight with adjustable brightness
    • Operation : Power key, 13 control keys
    • Language: User selectable -- English, French, Spanish, Russian, Chinese
    • Auto Shut-off : Disable / 5~60 minutes
    • Software : Supports online upgrade through USB using your PC
    • Charger: 12V/1A (5.5mm) power supply
    • Battery: 7.4V lithium-ion polymer battery, capacity 10.4Wh
    • Battery runtime: Approximately 5 hours
    • Power Saving: Auto power off; Real-time battery level indicator
    • Storage: 8GB flash built in; use microUSB port to connect external device
    • LED Light : (2) 35lm LED lights
    • Dimensions/Weight: 6.9 x 4.4 x 1.5" (175 x 113 x 37mm); 3.5lbs (1.6kg)

  • Item Includes:

    • 1x Triplett 8064 CamView Analog Camera Tester

  • GTIN:

    0614395004347
